SMA-BSW/500

Description

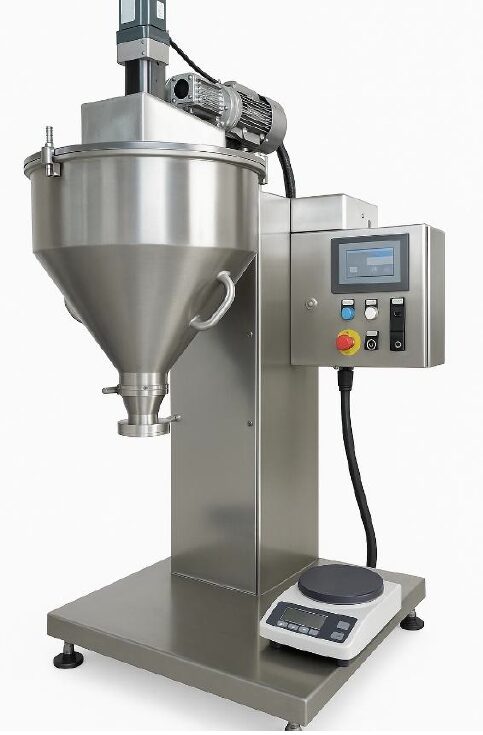

AUTOMATIC SYSTEM FOR DISPENSING AND WEIGHING OF MIXED ABRASIVE
For the production of cutting and grinding wheels

General Description
The system is designed for the automatic dispensing and weighing of abrasive and binder mixtures used in the production of cutting and grinding wheels. It ensures high precision, repeatability, and dynamic process control, guaranteeing:
Product uniformity

Optimized production times
Reduced waste
The machine is a bench-top unit with a compact and robust structure, entirely built in AISI 304 stainless steel, with IP65 protection rating, and designed for complete washability at each grit change.

Loading hopper: 10 kg capacity with refill grid
Mixing tank equipped with a motorized agitator and inverter control, ensuring homogeneous mixture during operation. The dispensing process is managed by a high-precision polymer screw feeder, driven by a brushless servomotor that guarantees volumetric repeatability and accurate delivery. An electronic balance with Ethernet IP connection automatically verifies, at each cycle, the correct amount of material dispensed compared to the target value.

Operating Sequence:

The operator places the container on the scale, beneath the screw feeder outlet.

The system automatically performs tare.

The automatic abrasive dosing cycle starts.

The system checks the measured weight against the target value.

In case of deviation, the HMI displays a non-conformity message and activates a 2-second acoustic alarm.

All cycle data are automatically stored and can be exported via USB.

Main Technical Features
Parameter /Value
Maximum dispensable quantity 500 g
Weighing tolerance ± 0.20 g on 500 g
Cycle time (250 g) 5 s
Weighing system High-resolution load cell
Product contact materials Stainless steel / anodized aluminum
Surface finish Smooth, easy to clean

Dispensing Unit
Screw Feeder
Material: high-resistance technopolymer
Drive: 1 kW brushless servomotor with integrated encoder
Gear ratio: planetary reducer 1:5
Tank Agitator
Motor: 0.75 kW geared motor
Control: inverter with cooling fan

Electronic Control System
Industrial PLC for full process control
10” HMI touchscreen for:
Parameter setting
Process supervision
Recipe management and recall

Software Functions
Multi-stage dosing with automatic weight correction
Recipe storage and recall
Batch traceability and process data logging
System diagnostics and guided calibration via HMI

Connectivity and Ready4.0 Integration
Ethernet TCP/IP communication
Modbus/TCP compatibility for network integration (optional)
Bidirectional data exchange with SMA-PMA machines for automatic synchronization of dosing, weighing, and pressing cycles (optional, integrable with SCCA system)
