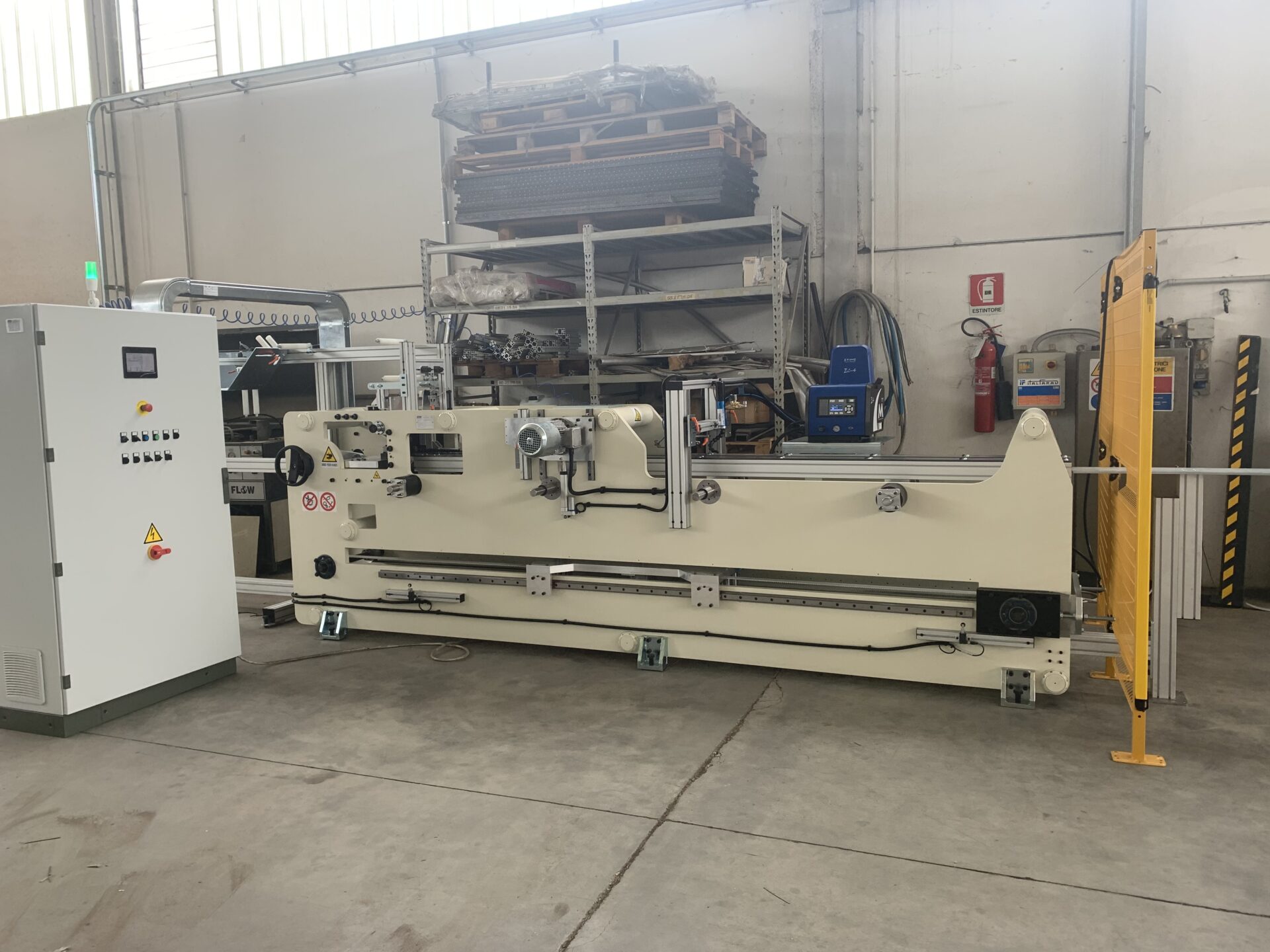

CUTTING MACHINE FOR UNMOUNTED WHEELS
Description
The latest addition to SMA, the SMA-TFTk-S machine is the longer version of the SMA-TFTK machine. Guides alignment is not automatic; the cutting unit is made up of modular single-shape molds. Electric compression allows you to check the hardness of the wheels produced. An unloading table can be added for flap packs which are automatically ejected at the end of the cycle.
Productivity (e.g. for a 200x50x54, P40 flap wheel):
60 pcs/hour
Technical data
Power supply
400V 50HZ
Rated power
12KW
Dimensions
7000X2000X2000
Weight
3500Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
