FLAP CUTTING MACHINE FOR NON-WOVEN ROLLERS
Description

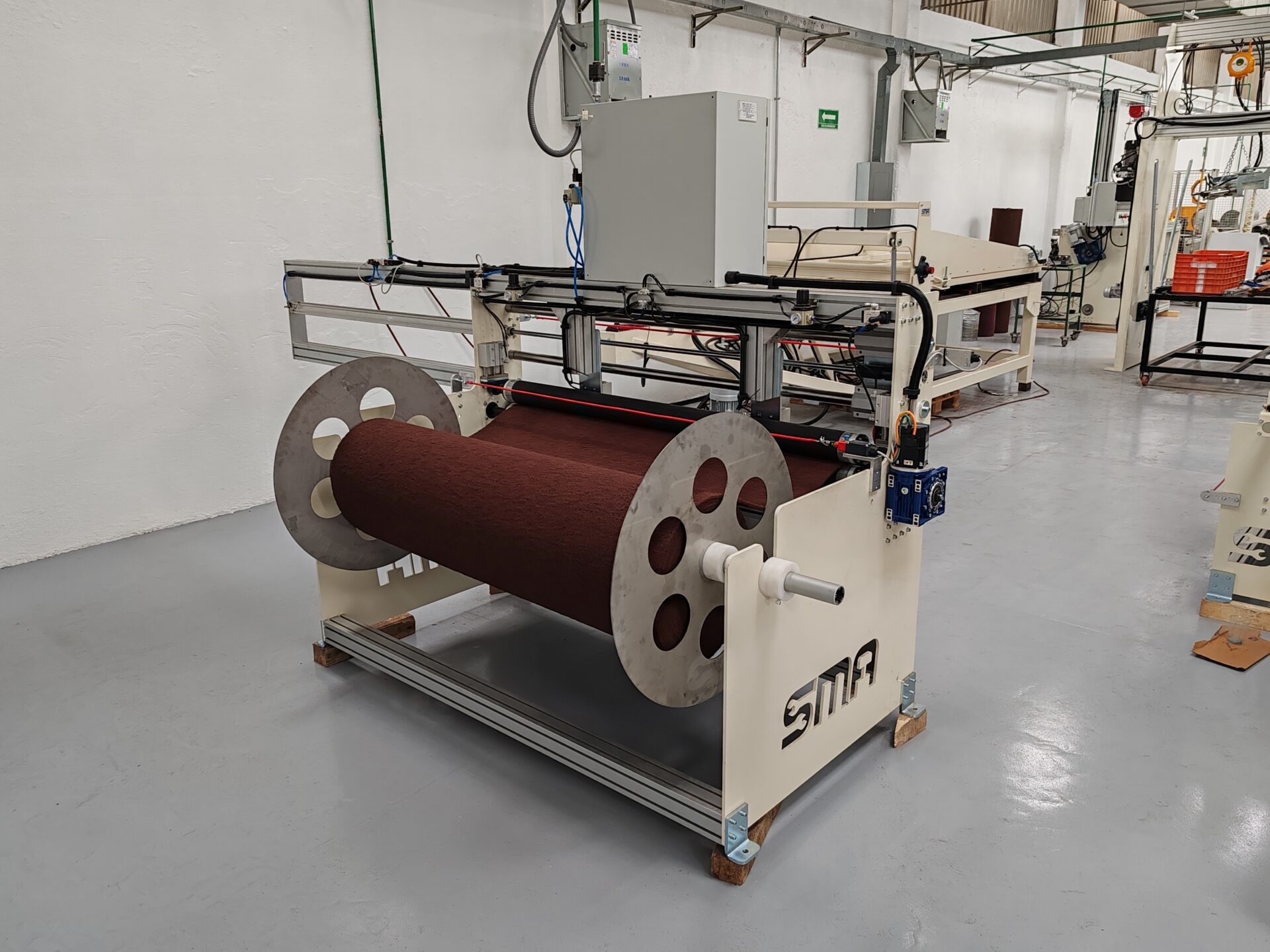

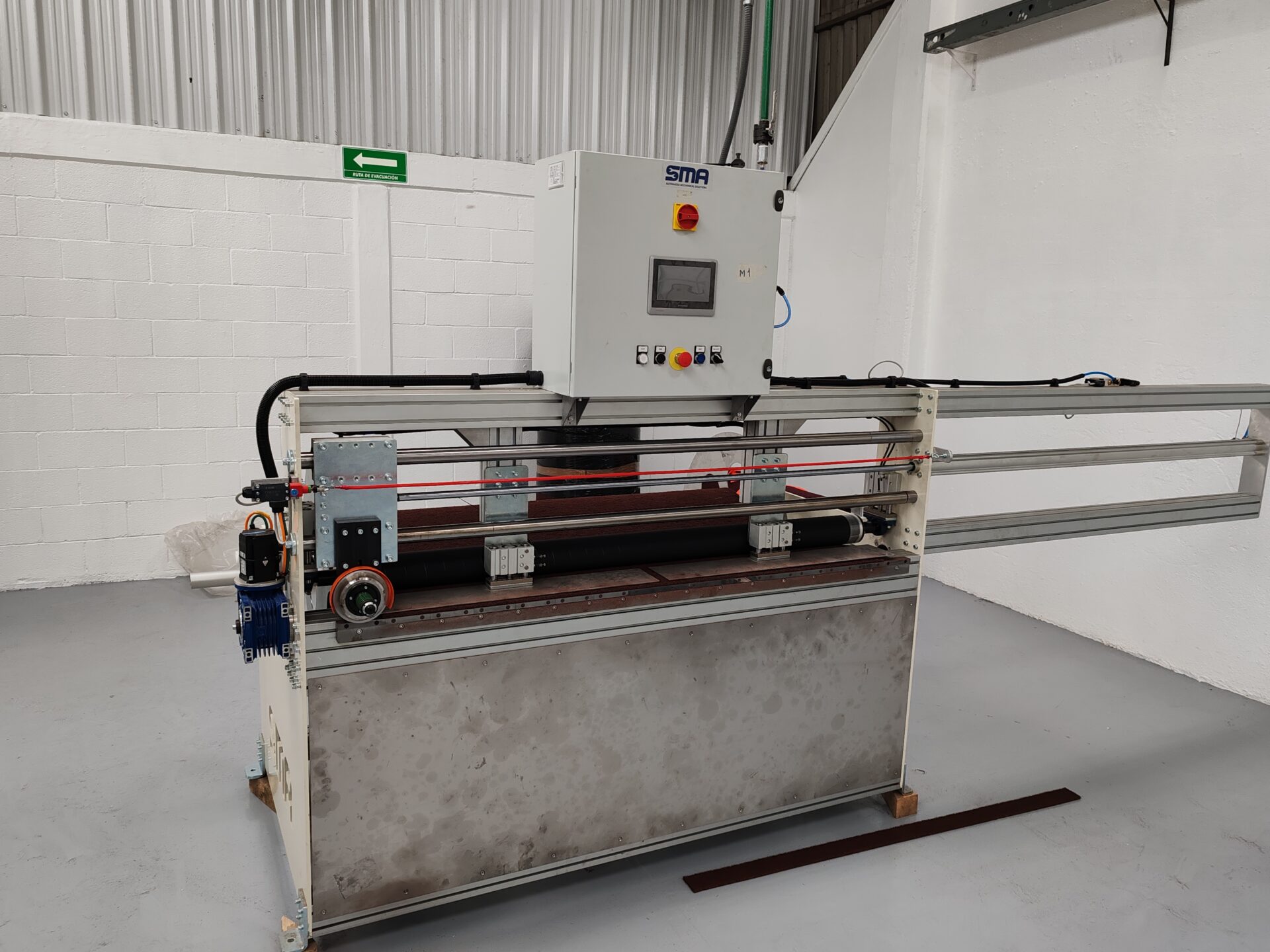

Semi-automatic machine for the cutting of flaps made of abrasive material. A roll of non-woven abrasive material is positioned into the unwinding unit and led to the cutting area where, according to a pre-selected recipe, flaps are automatically cut and stacked on a vertical loader. This unit is equipped with an operator panel and a piece-counter.
Technical data
Power supply
230V 50HZ
Rated power
1.5KW
Dimensions
2500X1100X1600
Weight
650 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
Medium to high
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
