GRINDING MACHINE FOR NON-WOVEN WHEELS
Description

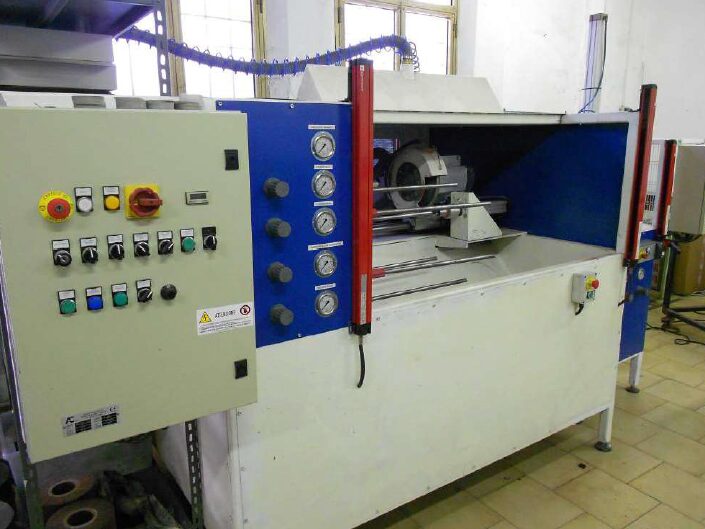

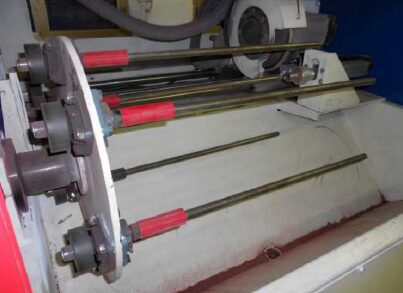

Automatic equipment for the granding of non-woven wheels. this automatic machine grinds non-woven wheels whose maximum diameter is 250mm and maximum length is 700mm (wheels are in a side by side configuration). Grinding is performed be means of a diamond blade whose diameter is 300mm and width is 20mm; it is specifically shaped to perform the grinding activity. Wheels are placed on a revolver that guarantees complete automation of the process; the operator has to unload and relead the revolver. With full load, the revolver can handle approximately 65 (250x50nn) wheels. tha machine is controlled by a PLC for the management of each work stage.
Productivity: 1200 wheels/hour
Technical data
Power supply
400V 50HZ
Rated power
5KW
Dimensions
4000X2000X1800
Weight
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
