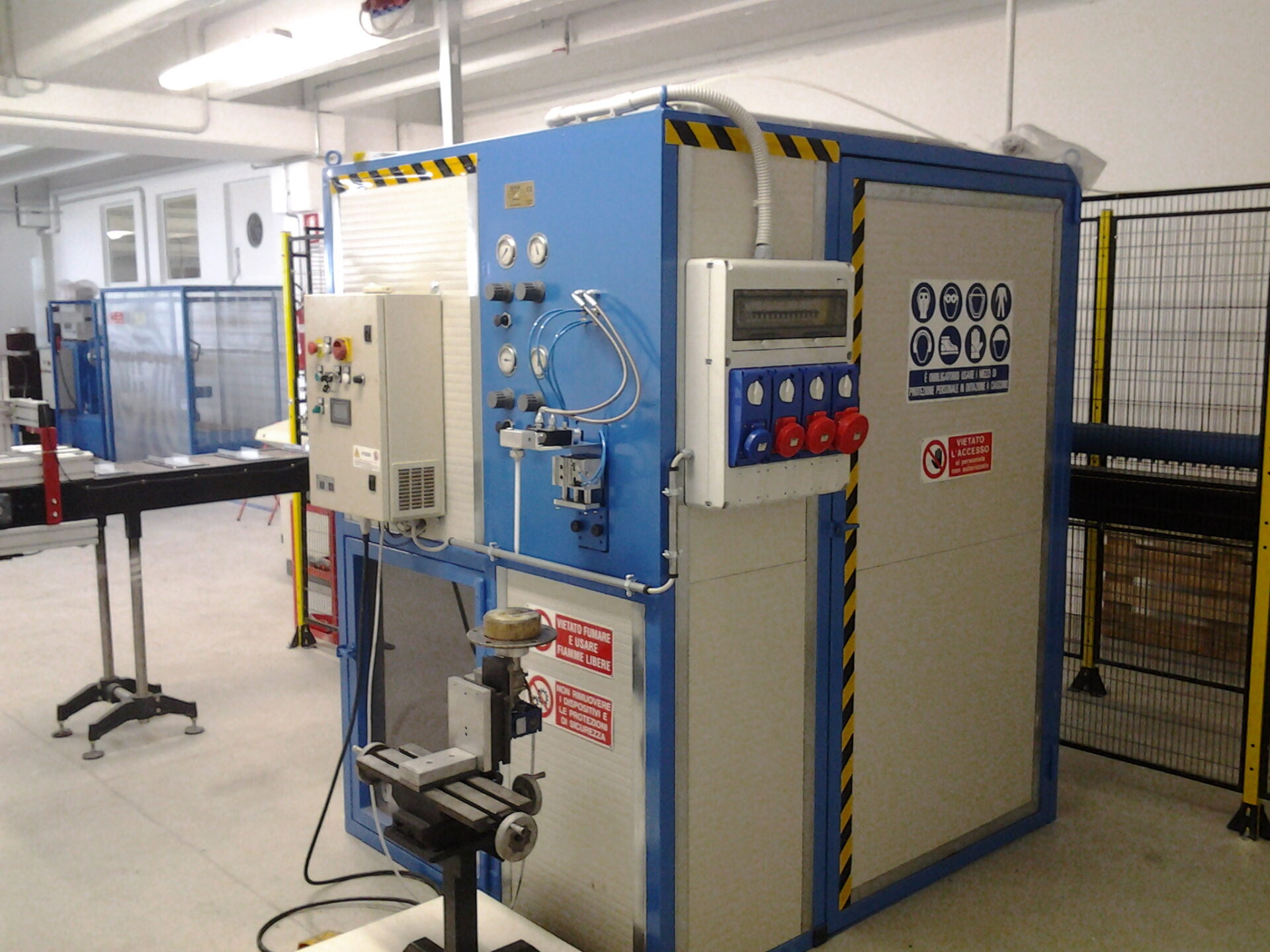

DOSING UNIT FOR 2K RESINS
This is a dosing unit for two-component resins. It is a volume proportioning machine that uses piston pumps to dispense adhesive into abrasive wheels. 200/250kg drums of resin are stored in an insulated box; piston pumps extract the product and transfer it into flux regulators; finally, pumps dispense the product. The mixing unit is composed of a head block, made of AISI-3016 stainless steel, and a double on/off valve. This machine is controlled by an operator interface that manages the dosing parameters, the ratio between component A and component B and the dispensing mode of the product.
Productivity:
Flow rate 18-20 kg/hour
Technical data
Power supply
400V 50HZ
Rated power
10 KW
Dimensions
2000X2000X2000
Weight
700KG
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
Tube turning device with moving nozzle
Electrically heated tubes
