CUTTING AND FORMING MACHINE FOR NON-WOVEN FLAP WHEELS
Description

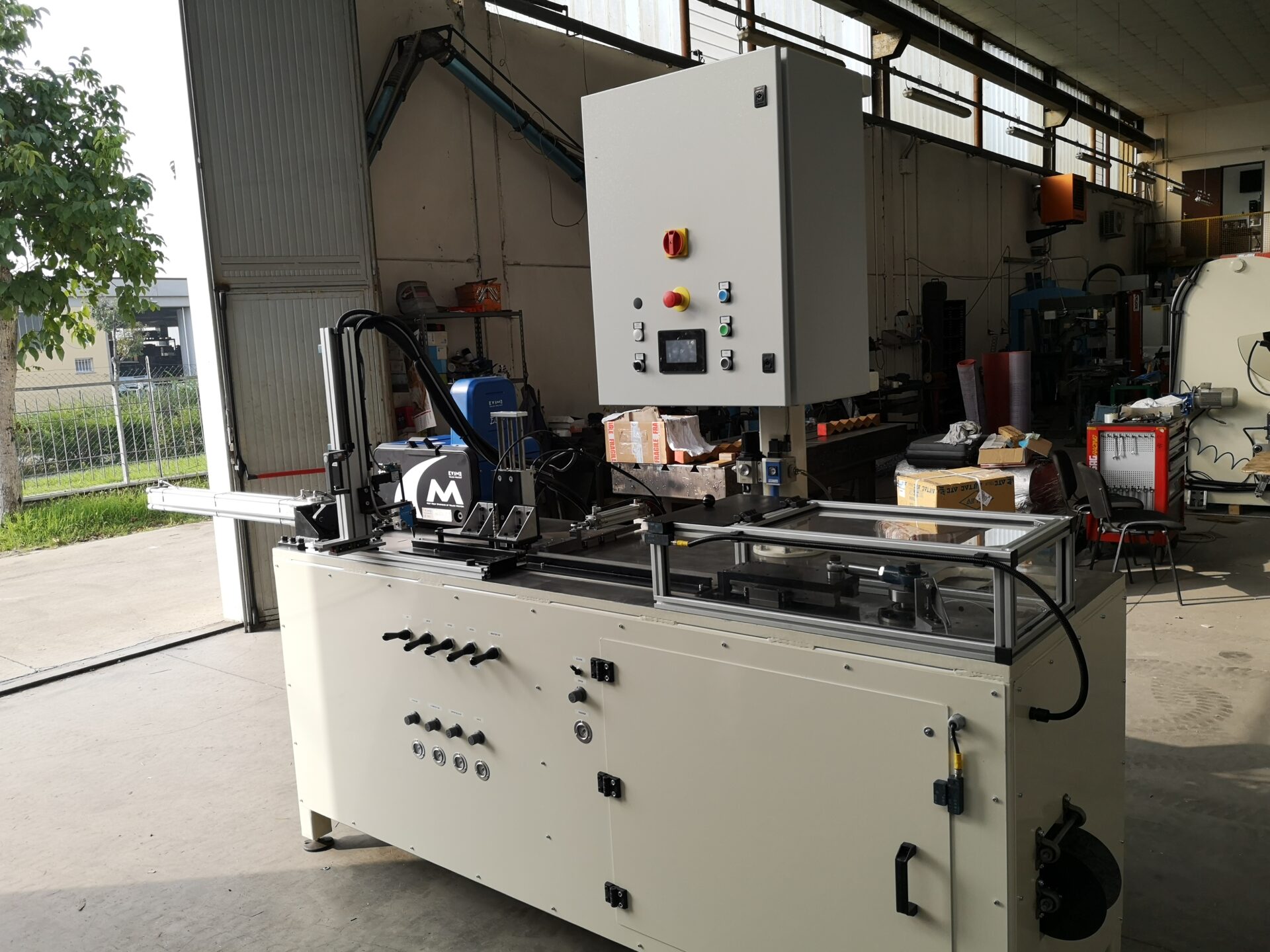

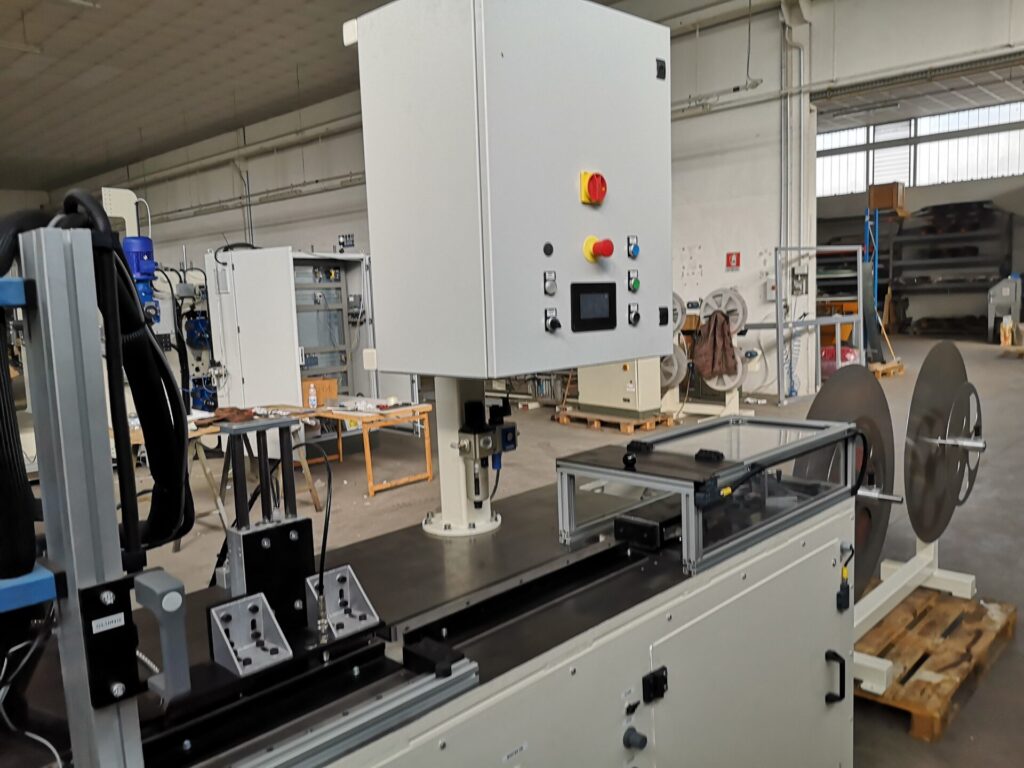

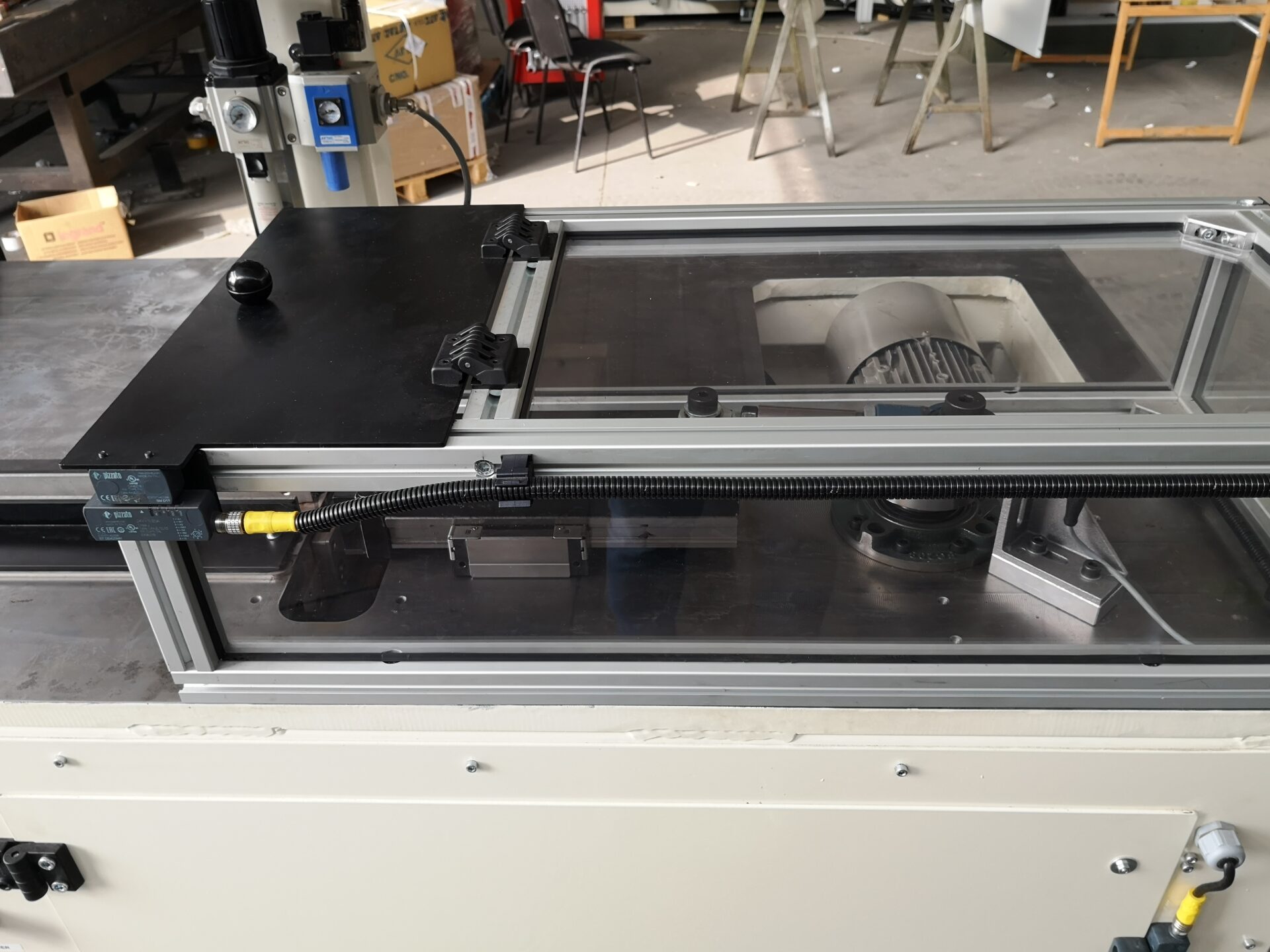

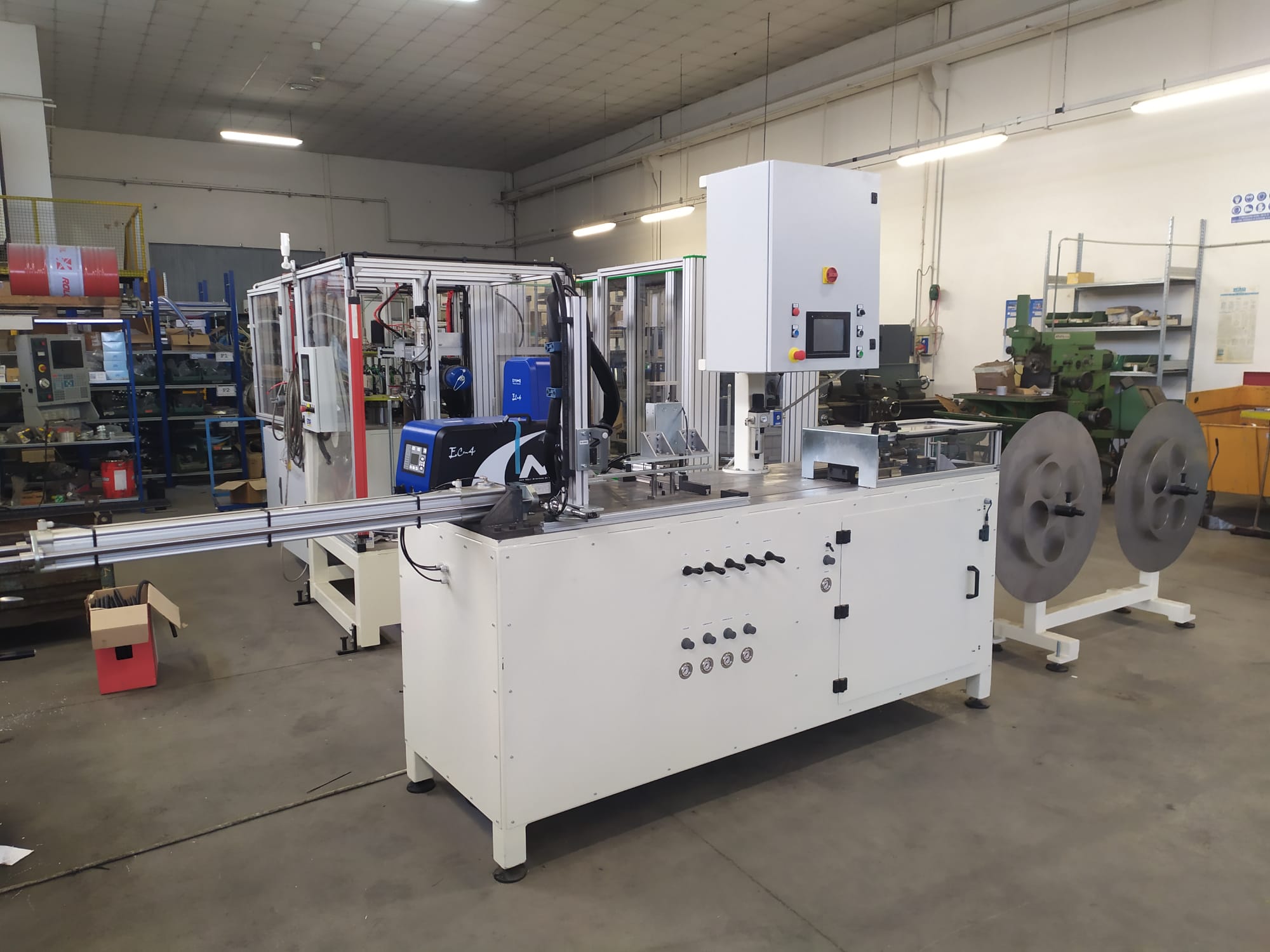

Cutting and forming machine for the manufacturing of non-woven wheels in this range: 100×100, 110×100, and 120×100 mm; for shaft-mounted wheels, diameter goes from 30 to 120 mm. The machine cuts flaps from a pre-cut roll and, with the help of lever controls, the operator can form the wheel manually. It is possible to make mixed wheels (non-woven + cloth) in a 1+1 combination. It is equipped with a double decoiler to unroll the material. The abrasive material is processed via mechanical cutting, performed by a double blade made of K20 hard metal. The machine is controlled via a console, placed alongside of the double decoiler.
Productivity (e.g. for a 100x100mm wheel):
25-30 wheels/hour
Technical data
Power supply
Rated power
Dimensions
Weight
Compressor feed available?
Cycle consumption
Productiviy
Number of operators
Machine Color
Noise level
Marking
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
Ring container for flaps
Mold with 19.10mm centring for wheel gluing
Automatic glue melter with 5kg tank
