SMA-DMG

DOSING AND DISPENSING UNIT FOR 2K RESINS

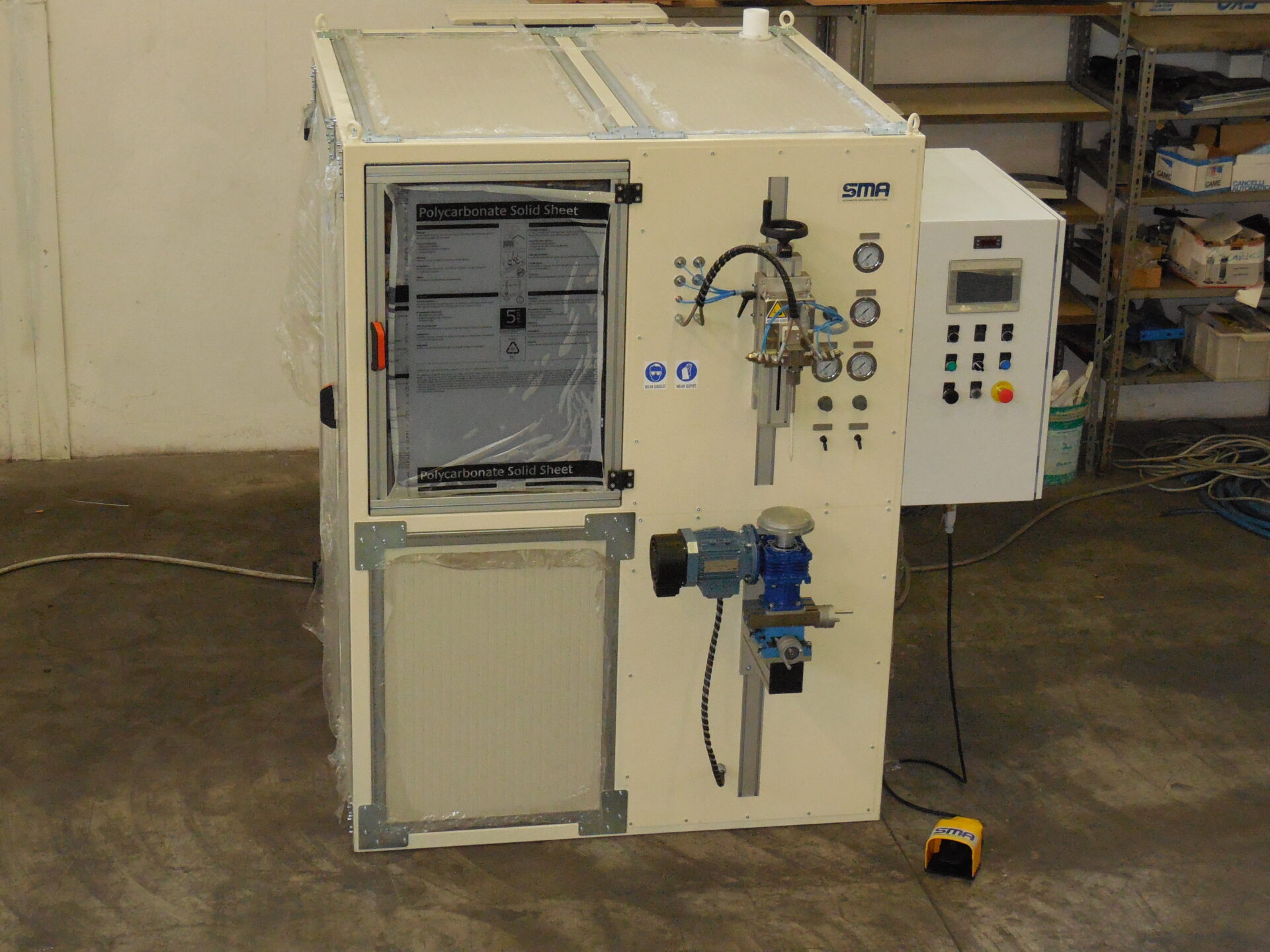

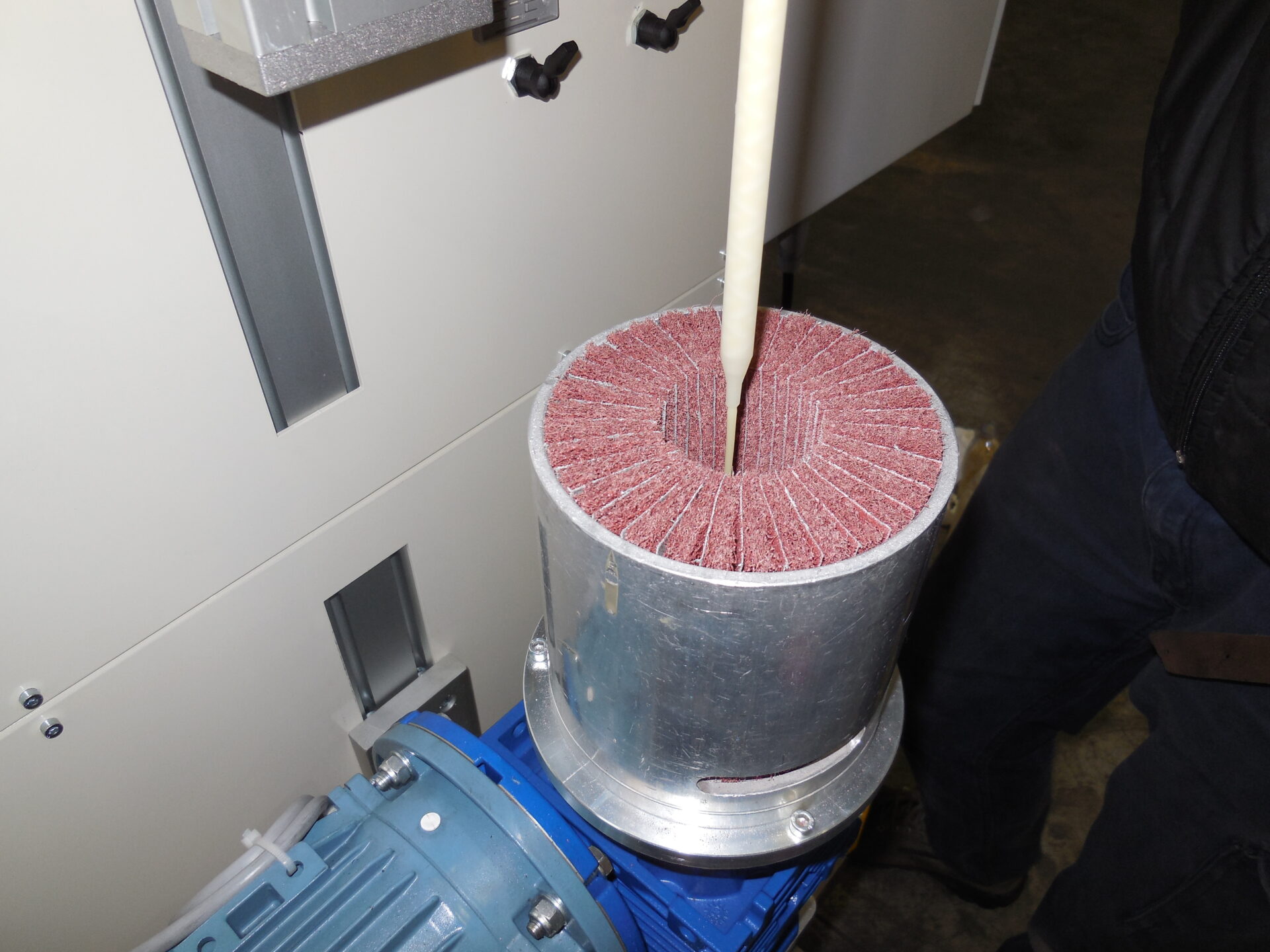

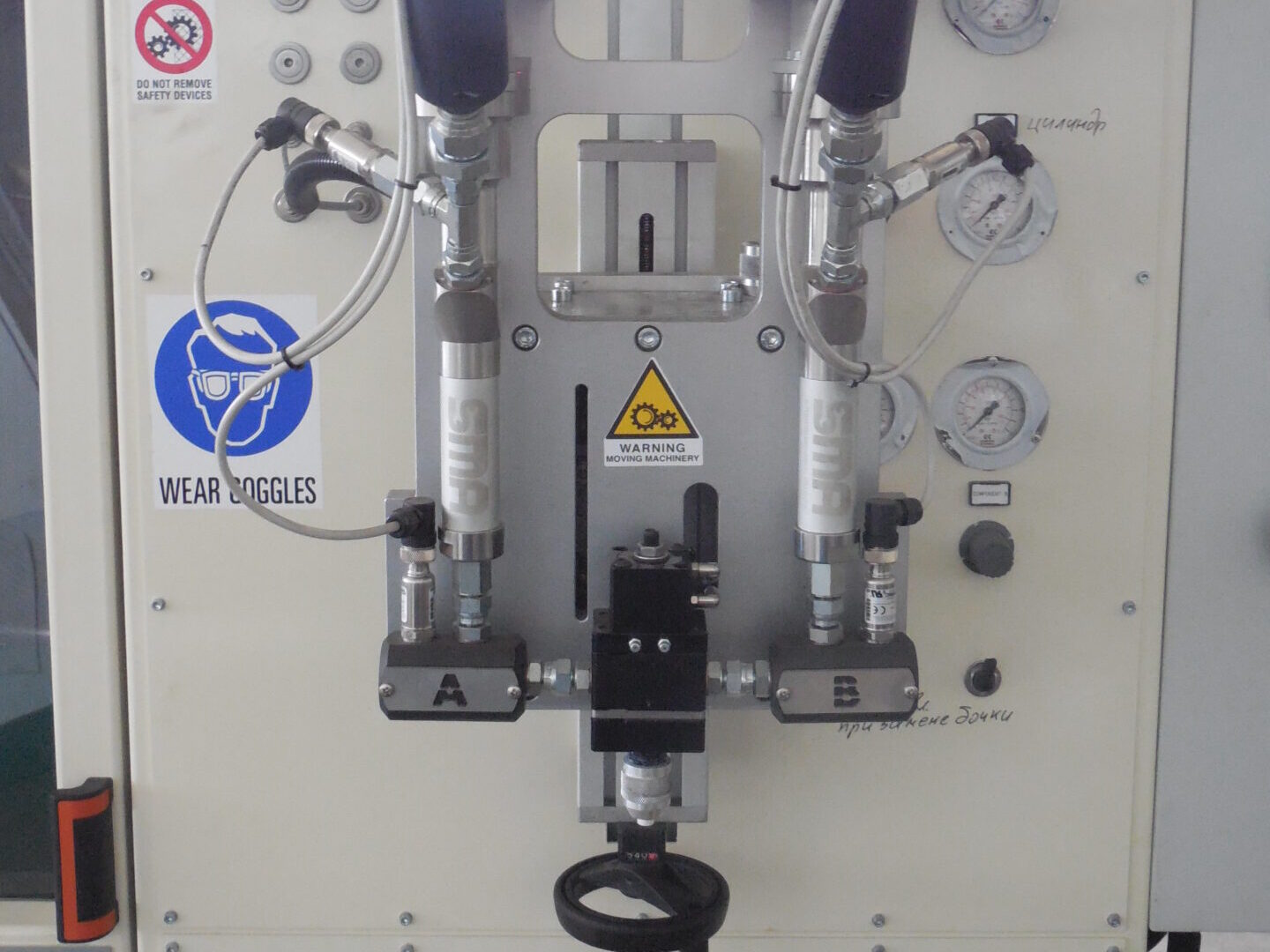

This is a dosing unit for two-component resins. It is a volumetric proportioning machine that uses gear pumps to inject wheels with arbor hole as well as shaft-mounted wheels, manufactured by SMA-TFN and SMA-TFNW machines. 200/250kg drums of resin are stored in an insulated box; piston pumps extract the product and transfer it into flux regulators, gear pumps then cast the product. The mixing unit is composed of a head block, made of AISI-3016 stainless steel, and a double on/off valve. This machine is controlled by an operator interface that manages the dosing parameters, the ratio between component A and component B, and the dispensing mode of the product. For large-scale production, a buffer rotary table with 8 to 12 workstations can be installed to operate continuously.

Productivity:
18-20 kg/hour
