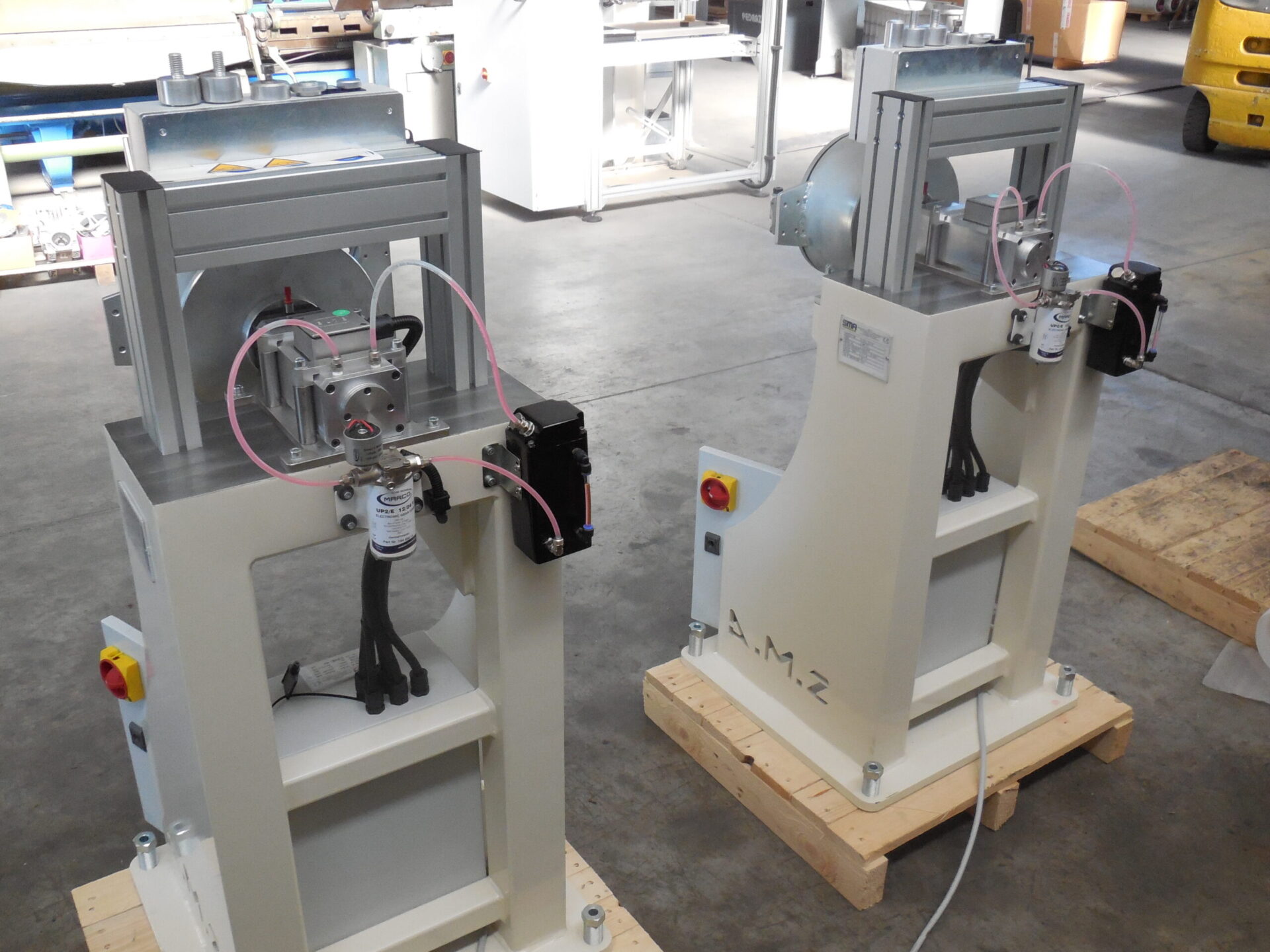

SPEED TEST MACHINE FOR FLAP DISCS AND FLAP WHEELS
Description
This is a machine for the verification and assessment of the safety of flap discs and wheels; a speed test is
performed, and maximum rotational speed is 30,000 RPM. Programming is handled via insertion of one or multiple batch production numbers of all the raw materials used for the production of such tools. Upon completion of the test, the machine will automatically create a .txt file that can be exported to a USB memory stick.
Technical data
Power supply
400V 50HZ
Rated power
4KW
Dimensions
600X600X1500
Weight
350 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? Yes
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
Electrospindle – 60,000 RPM
Turbine – 150,000 RPM
6 Bar compressed air
