LAB MACHINE FOR FLAP DISCS
Description

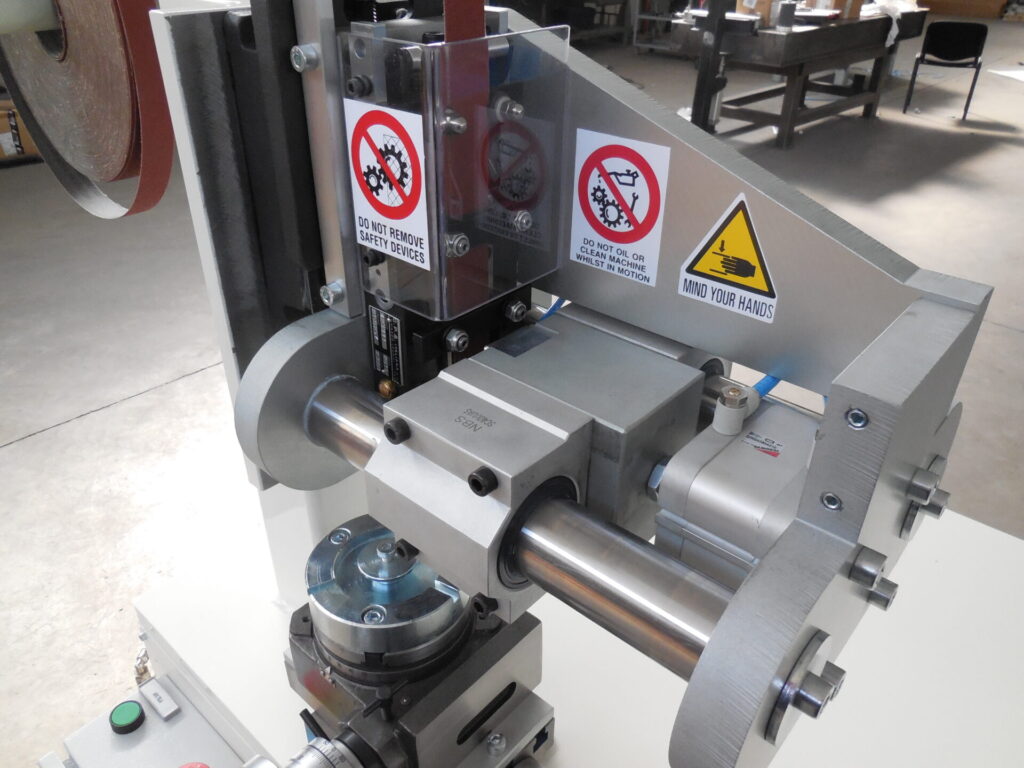

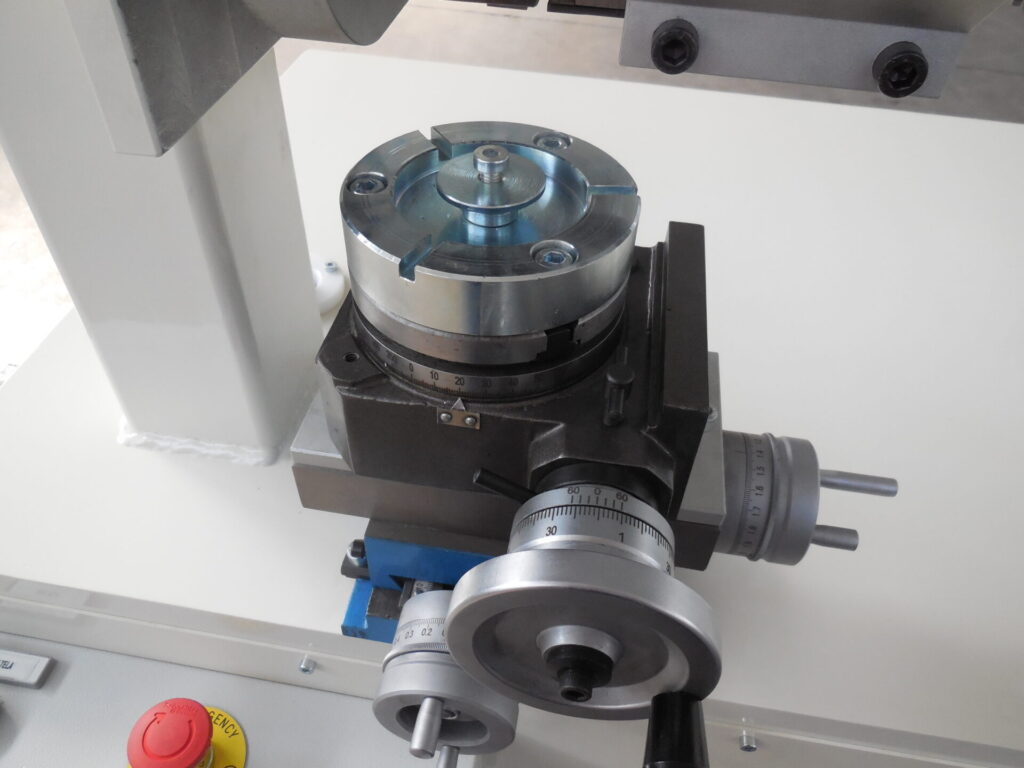

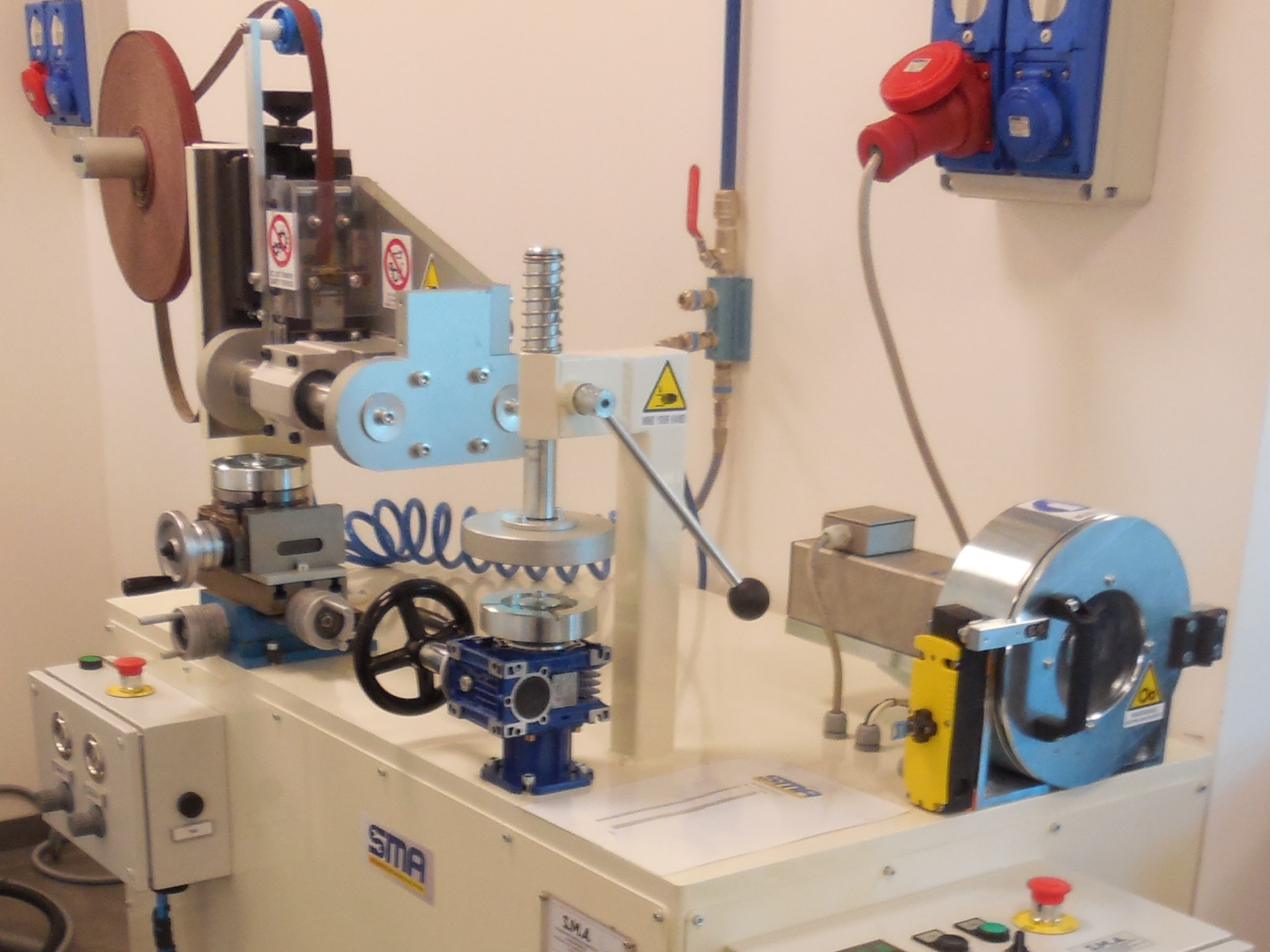

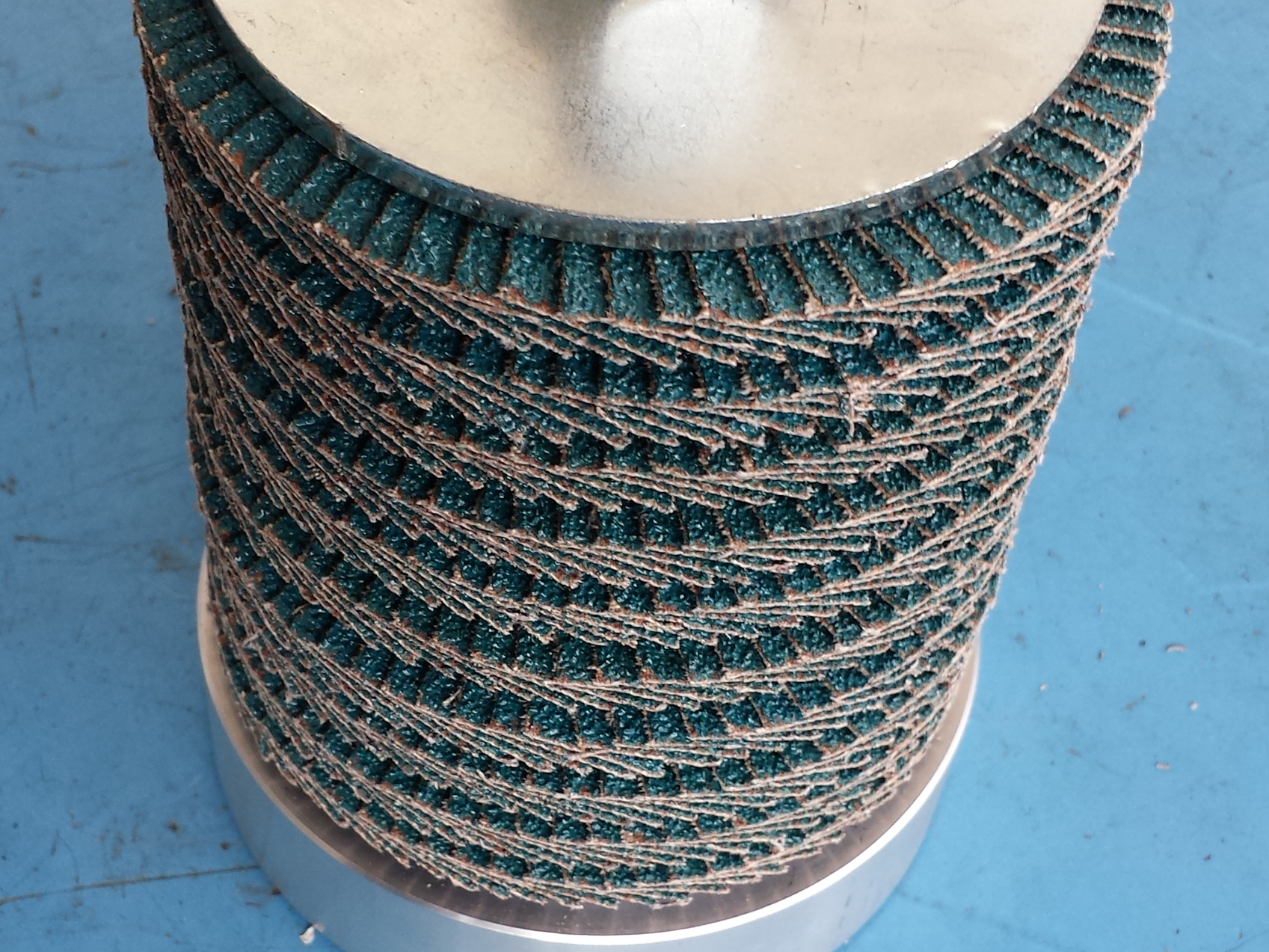

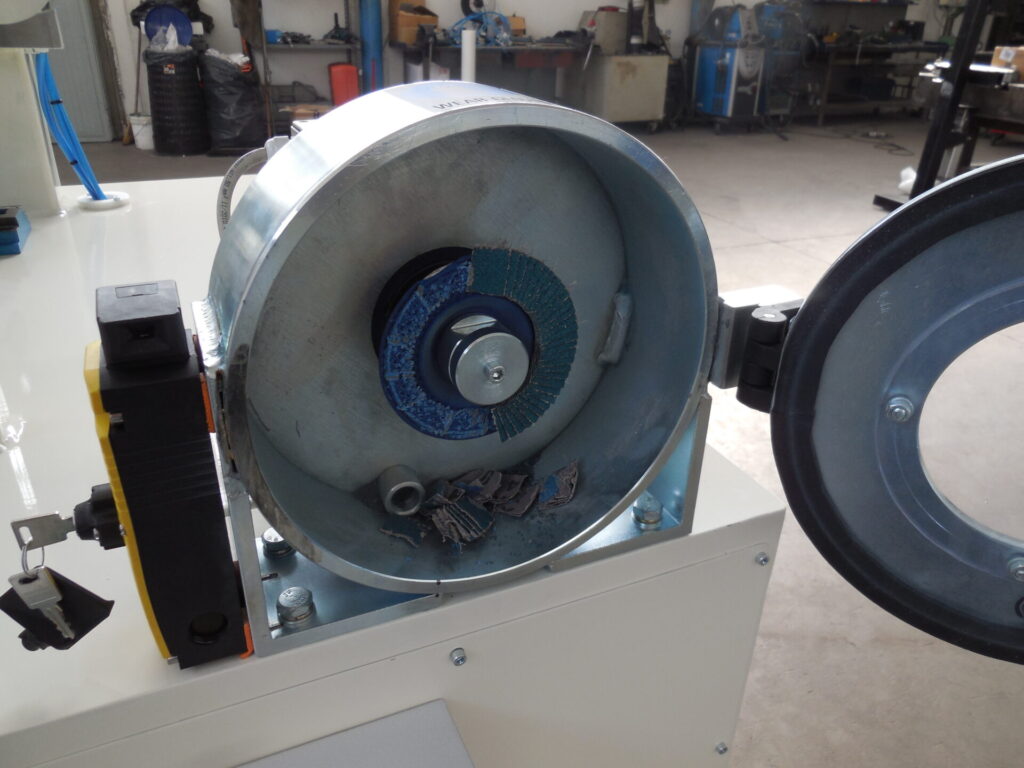

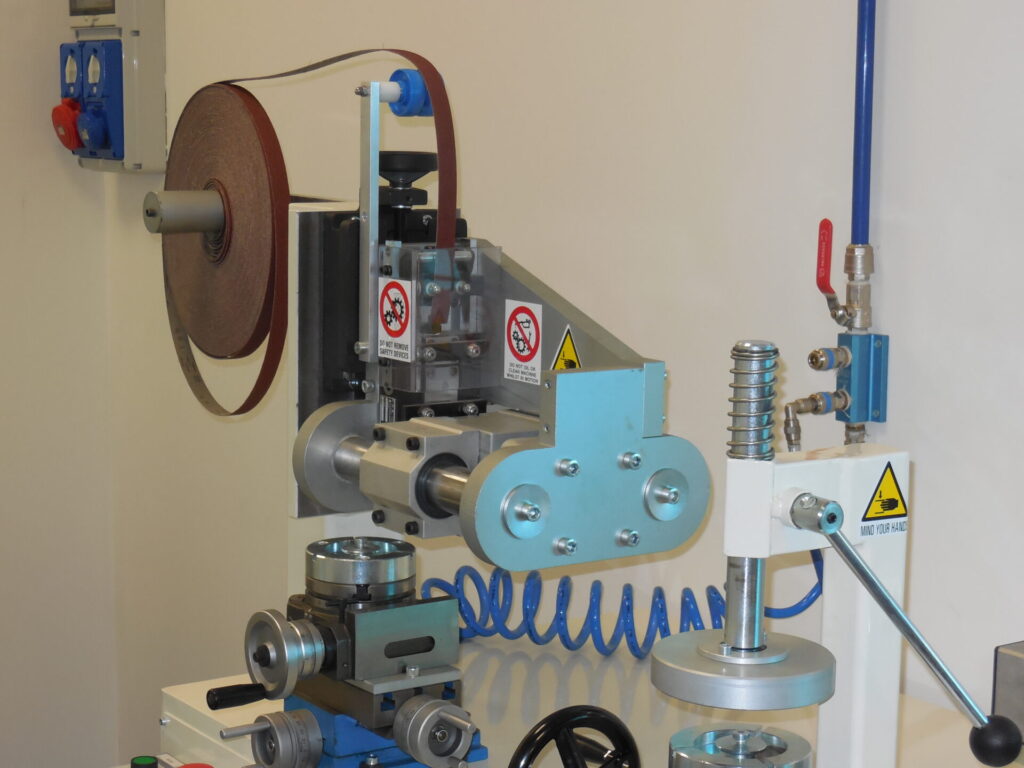

This is a lab machine for the manufacturing and sampling of flap discs. It is designed to make disc prototypes and their process testing. It is equipped with an electric spindle for speed testing, whose maximum rotation value is 30,000 rpm. This system is divided in two units: the first unit, on the left side of the console, is for the cutting and forming of the disc, while the second unit, on the right, performs the speed and breaking test.
Technical data
Power supply
400V 50HZ
Rated power
3KW
Dimensions
900X200
Weight
500 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? Yes
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
A SUCTION SYSTEM MUST BE USED WITH THIS UNIT
