CUTTING AND FORMING MACHINE FOR NON-WOVEN FLAP WHEELS
Description

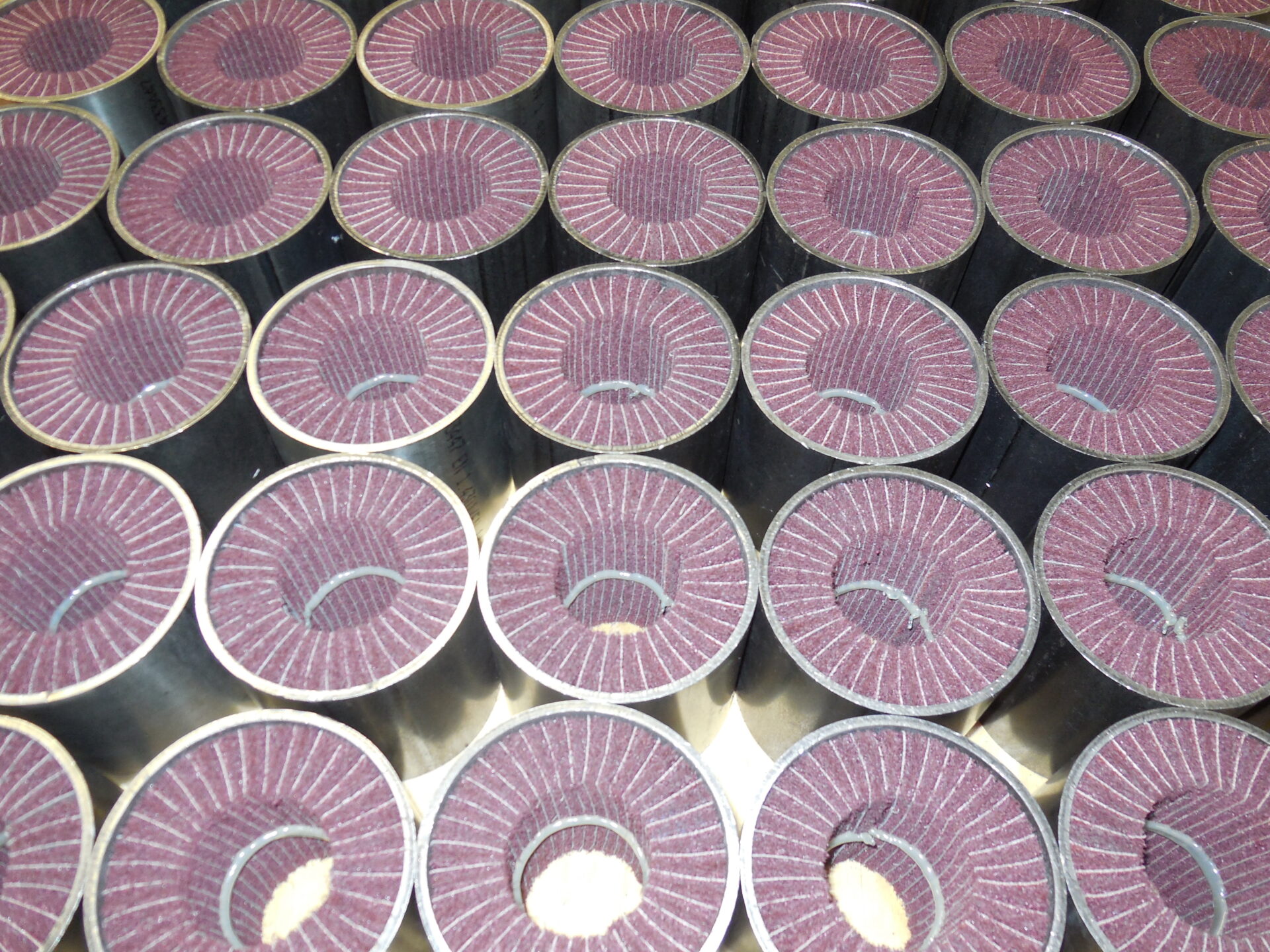

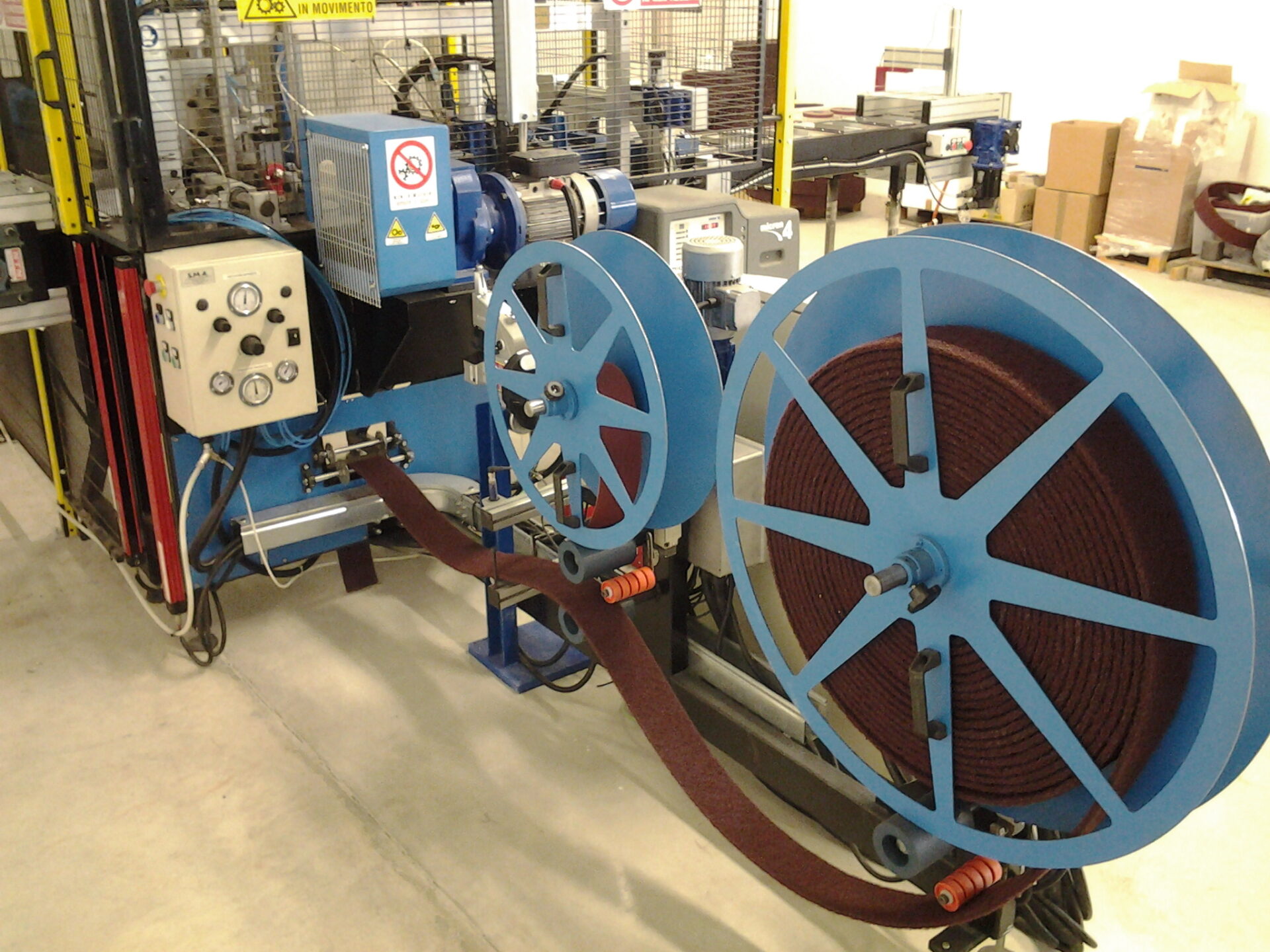

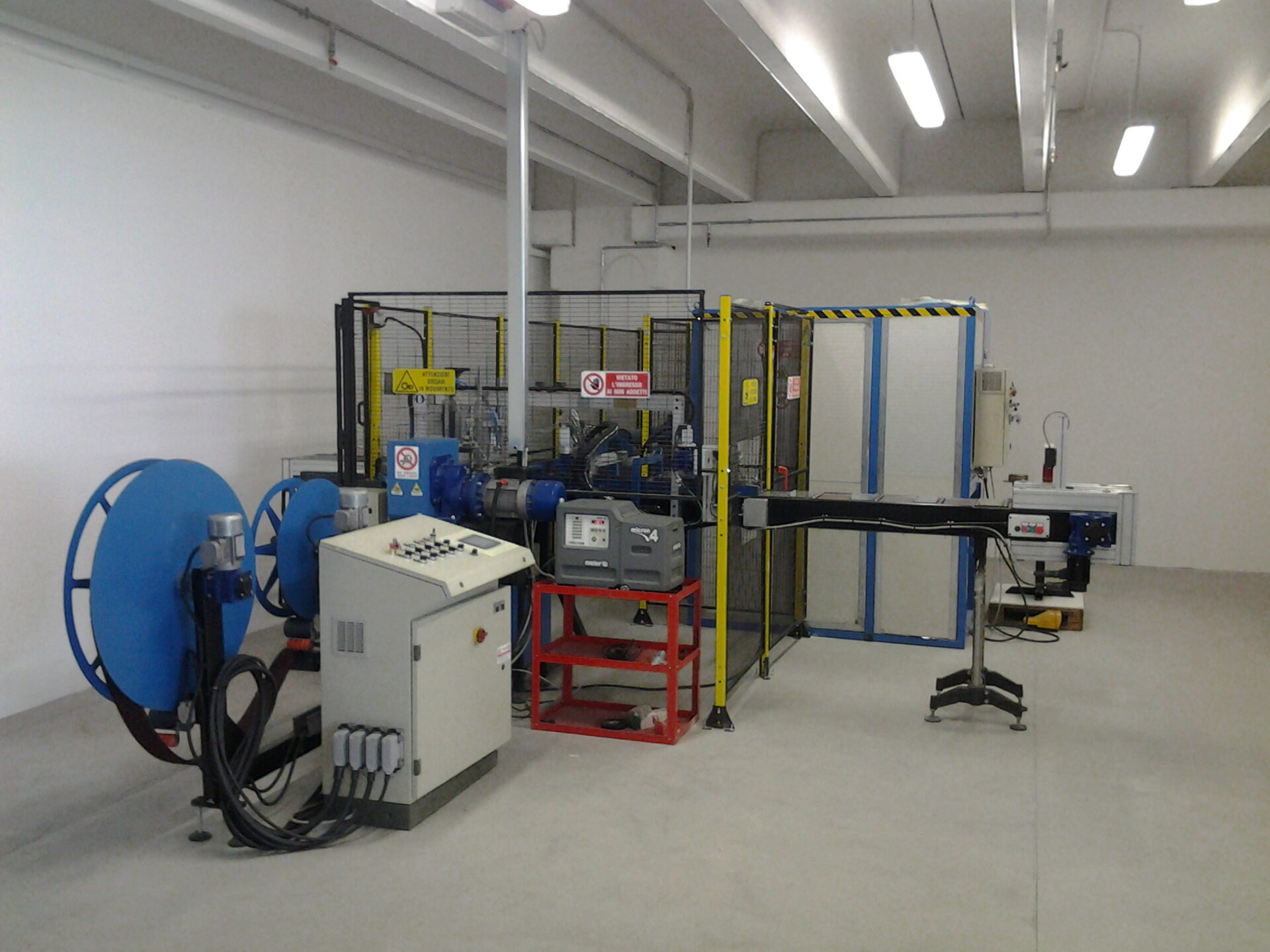

This is an automatic machine for the production of wheels in non-woven fabric and combined nonwoven+ cloth. Sizes are: diameter 100, 110, 120 mm; height 100 mm. The machine cuts a pre-cut roll into flaps, then compresses and a gluing unit distributes Hot Melt on top of the flap pack. This machine can also manufacture combined wheels (non-woven + cloth) in a 1+1 flap combination; a double decoiler unrolls the material. The abrasive material is processed via mechanical cutting, performed by a double blade made of K20 hard metal. The machine is controlled via a console, placed alongside of the double decoiler.
Productivity (e.g. for a 110×100 AC wheel):
120 pcs/hour
Technical data
Power supply
Rated power
Dimensions
Weight
Compressor feed available?
Cycle consumption
Productiviy
Number of operators
Machine Color
Noise level
Marking
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
Ring to contain flaps
Mold with 19,10mm centring
