HOT MELT-BASED LAMINATION MACHINE FOR PAPER/CLOTH + FOAM /VELCRO
Description

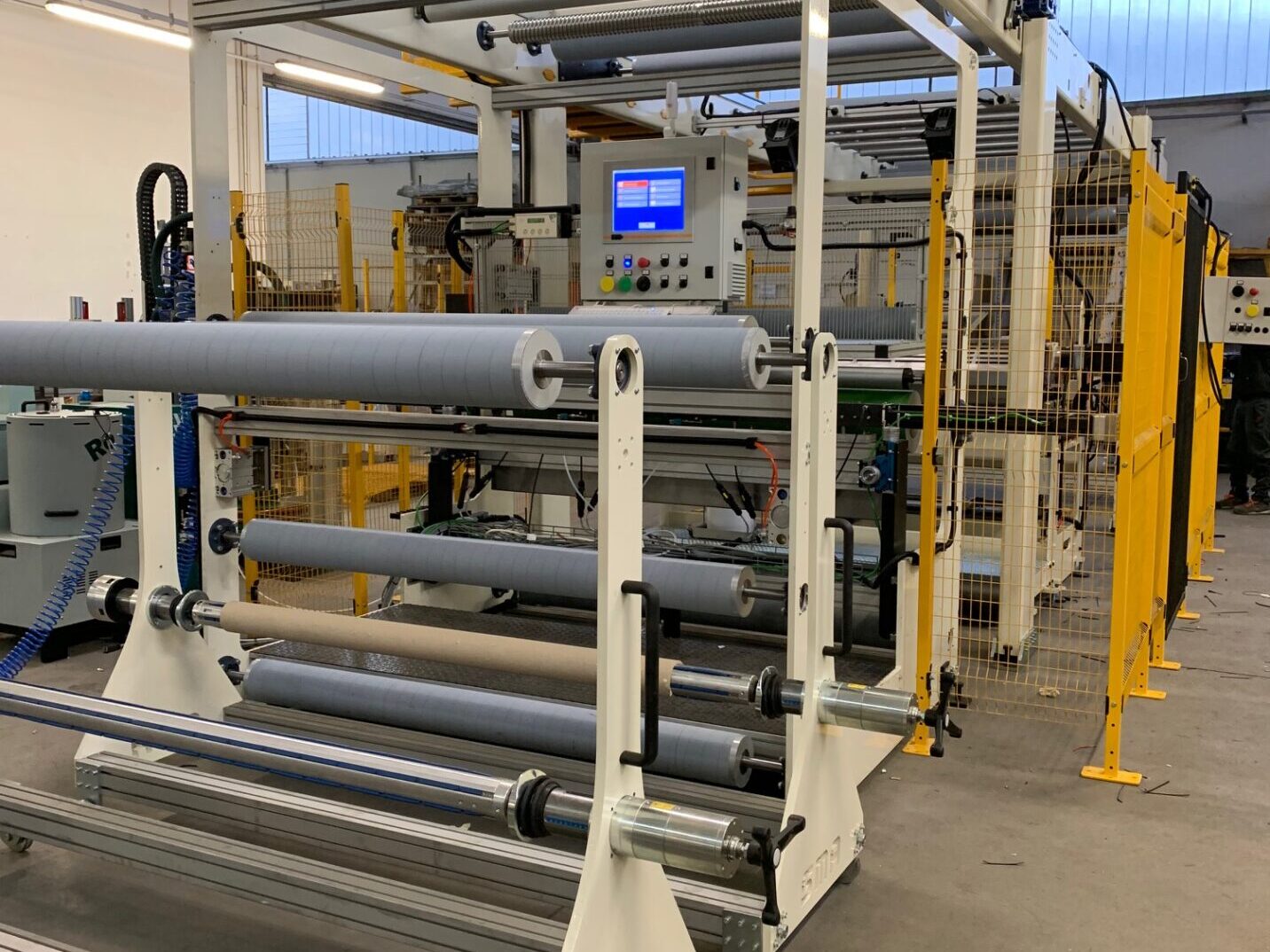

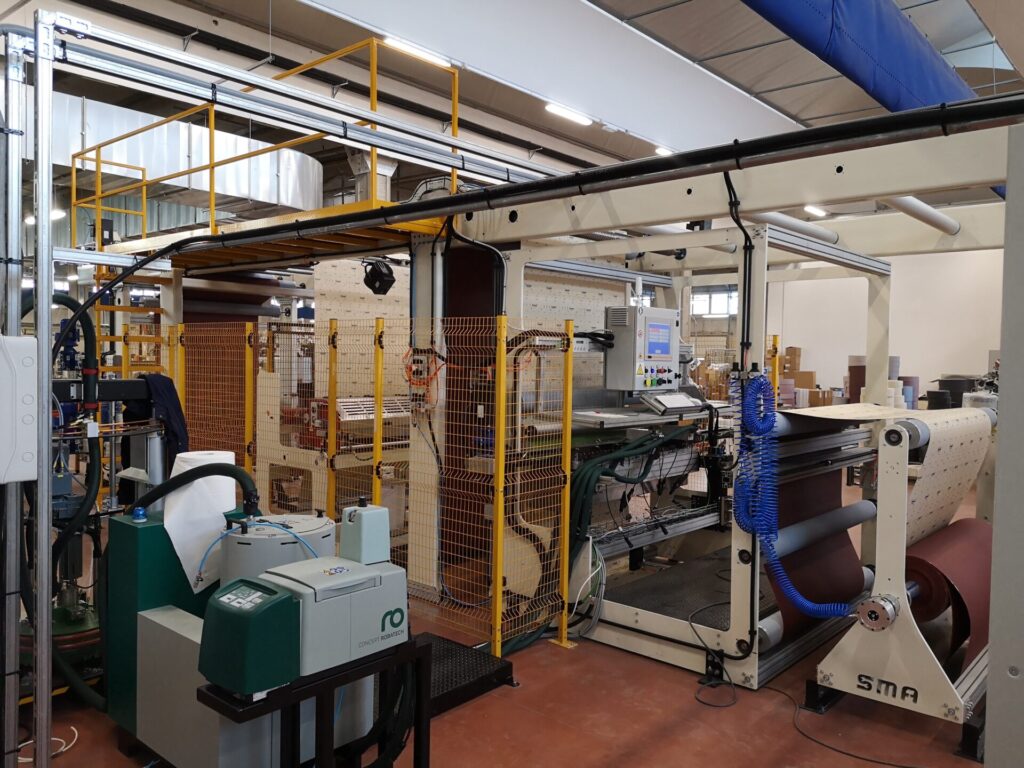

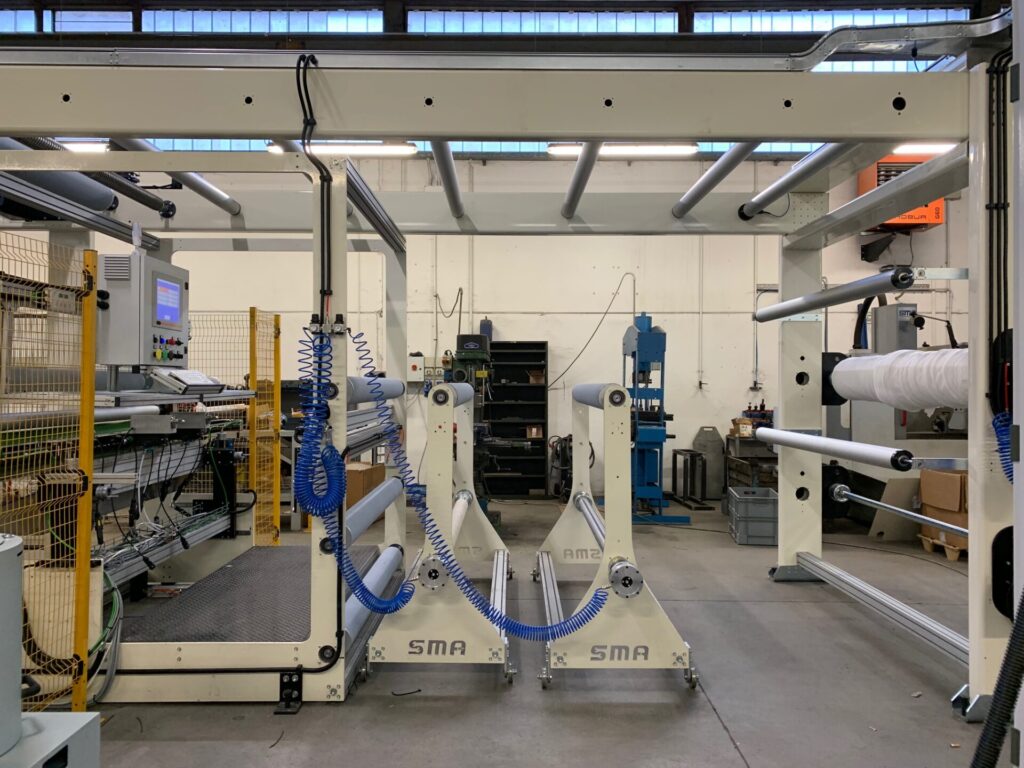

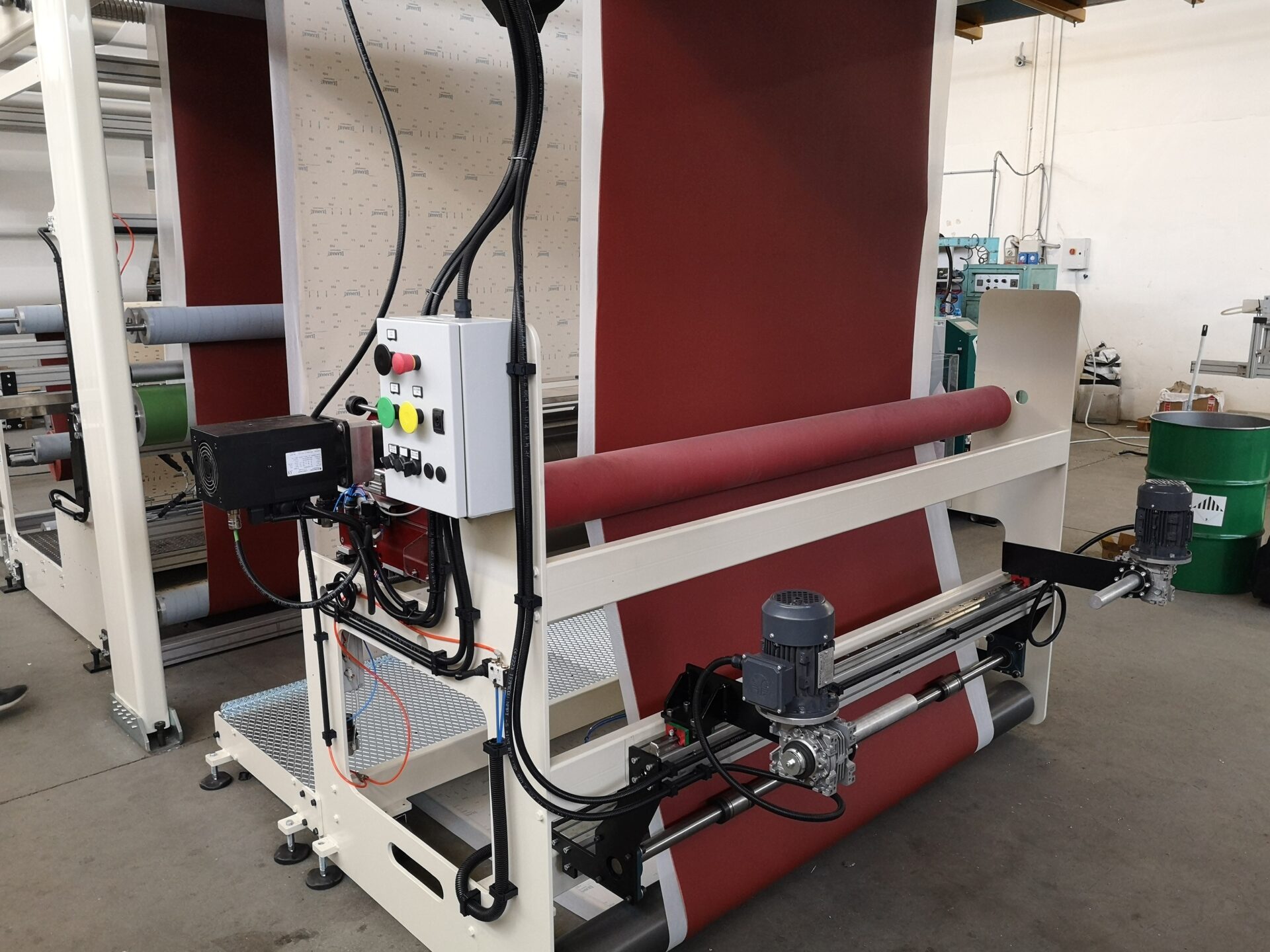

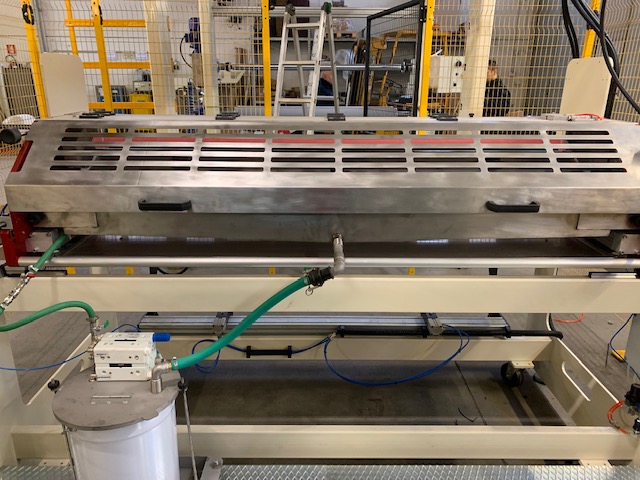

This is a full automatic machine for the lamination of abrasive cloth and paper to Velcro® or Foam. This piece of equipment is designed to make large quantities of rolls. Handling of the different working units and constant drive of the material is completely automatic, via CNC. The unwinding and rewinding units feature 3″ (76mm) shafts. The rewinding unit is equipped with edge-guide systems for the perfect alignment of the material. Adhesive application is via Hot Melt head dispenser. It is possible to install a printing unit for the printing of the backing at the end of the line, before the rewinding phase.
Technical data
Power supply
400V 50HZ
Rated power
50 KW
Dimensions
15000x5000x5500
Weight
50,000Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?

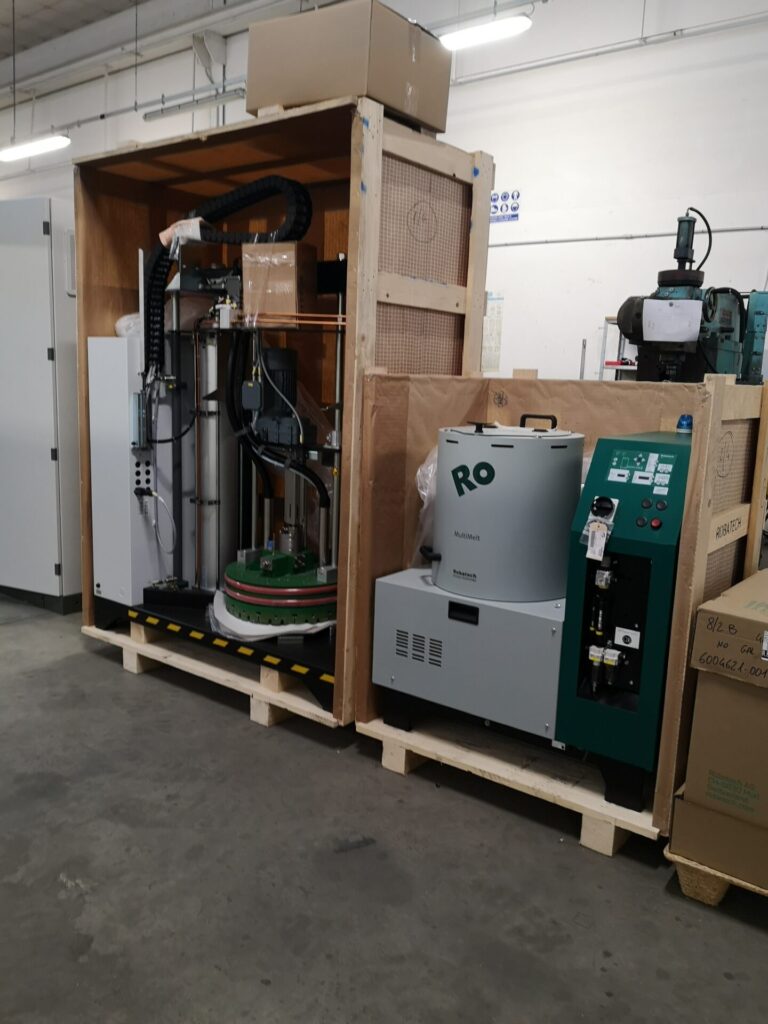

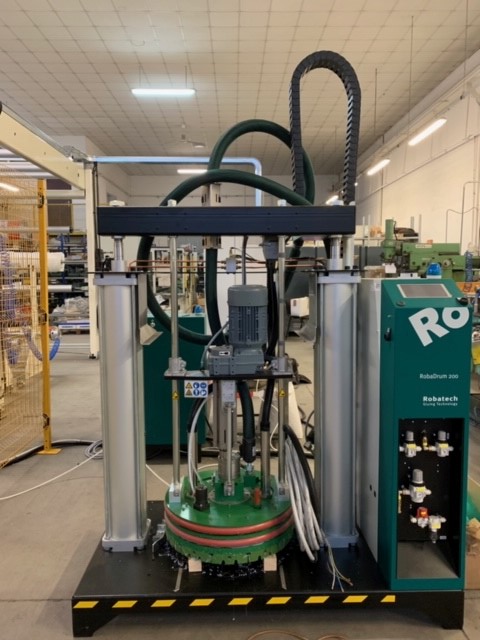

Hot-Melt gluing system
Printing unit
