PRESSING AND DISPENSING MACHINE FOR UNMOUNTED LARGE FLAP WHEELS
Description

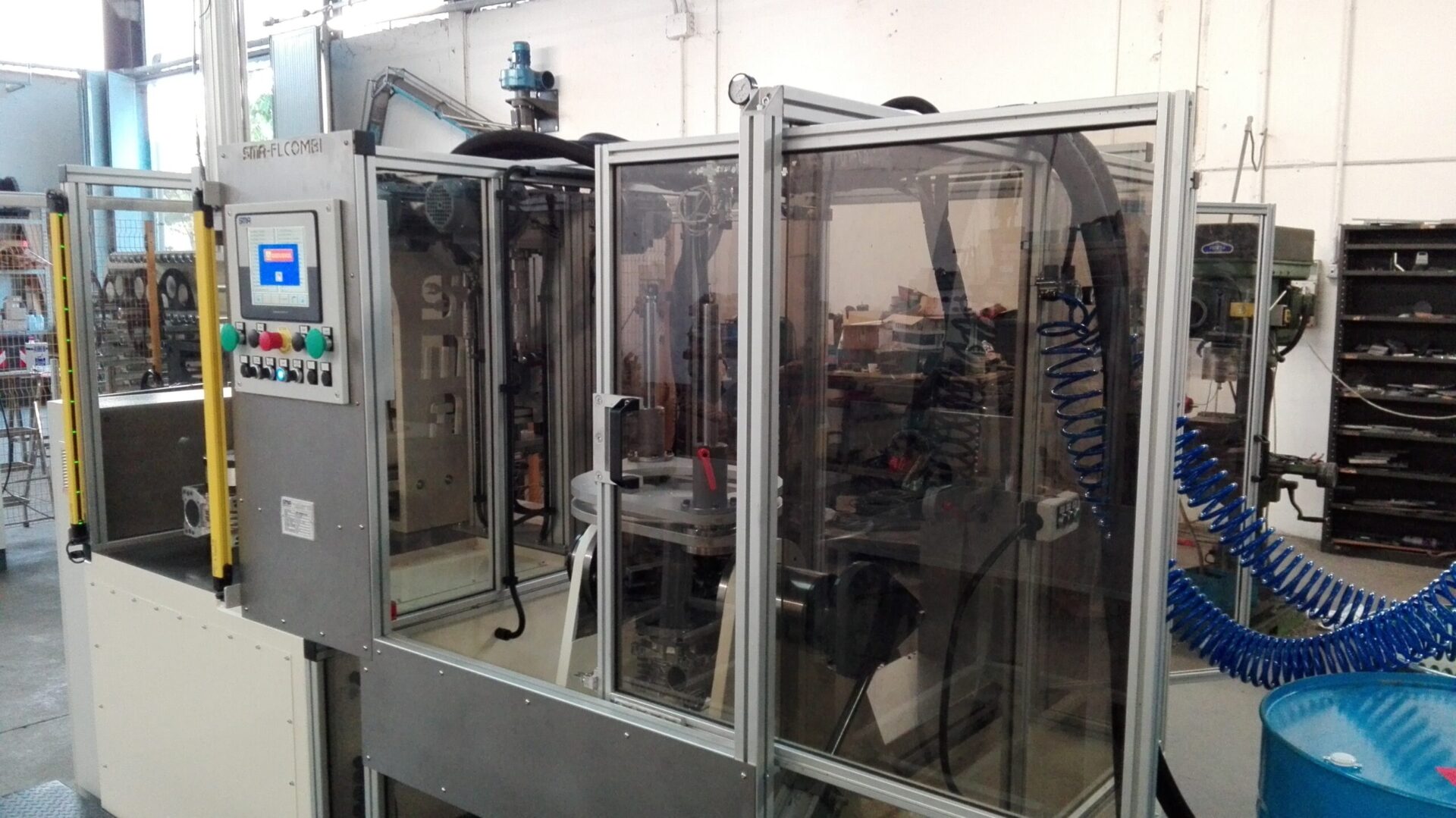

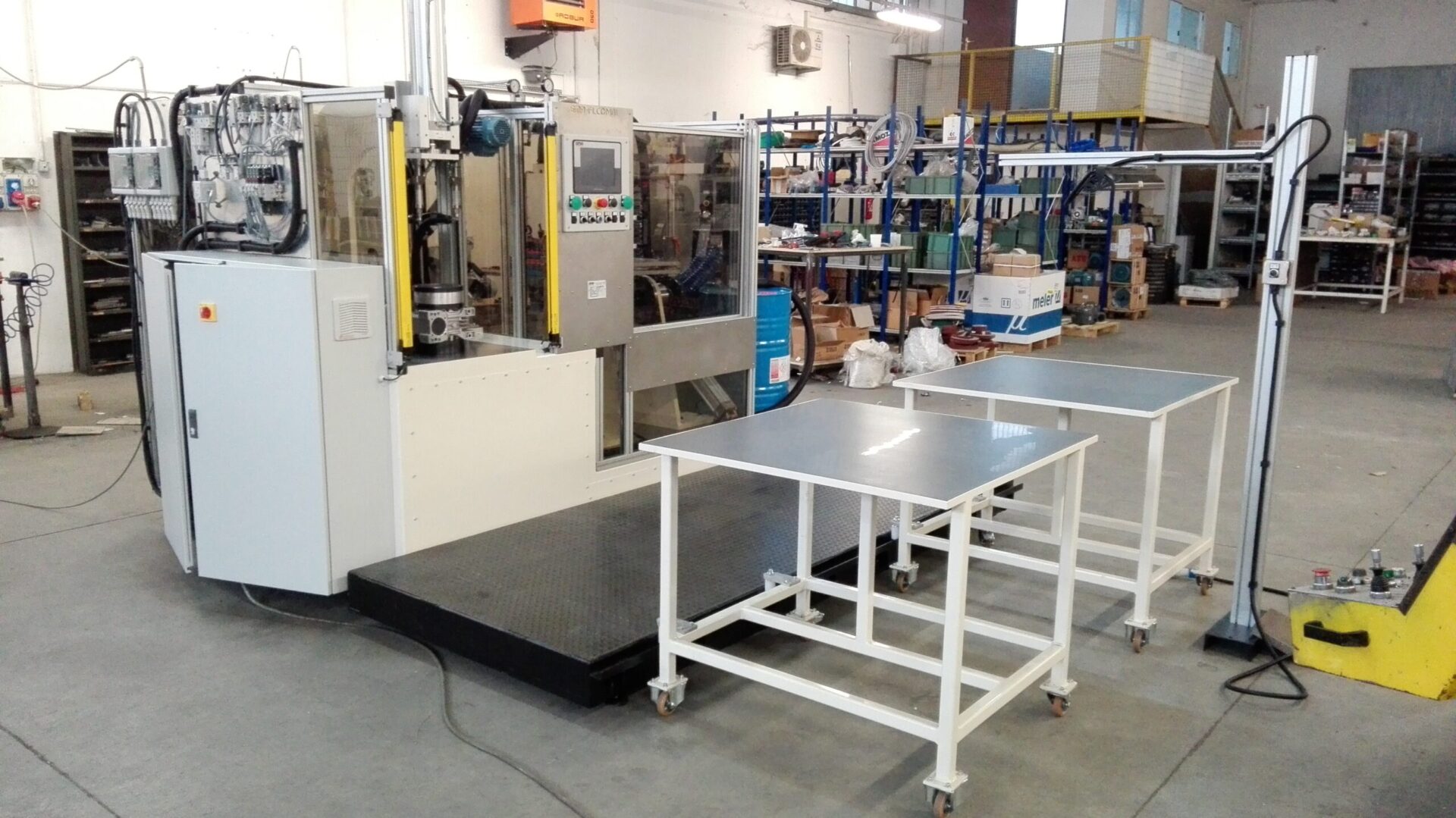

This combo system is designed for the pressing, adhesive dispensing and centrifuging of wheels.
Controlled by a multifunction PLC with an operator panel that supervises all the working processes.

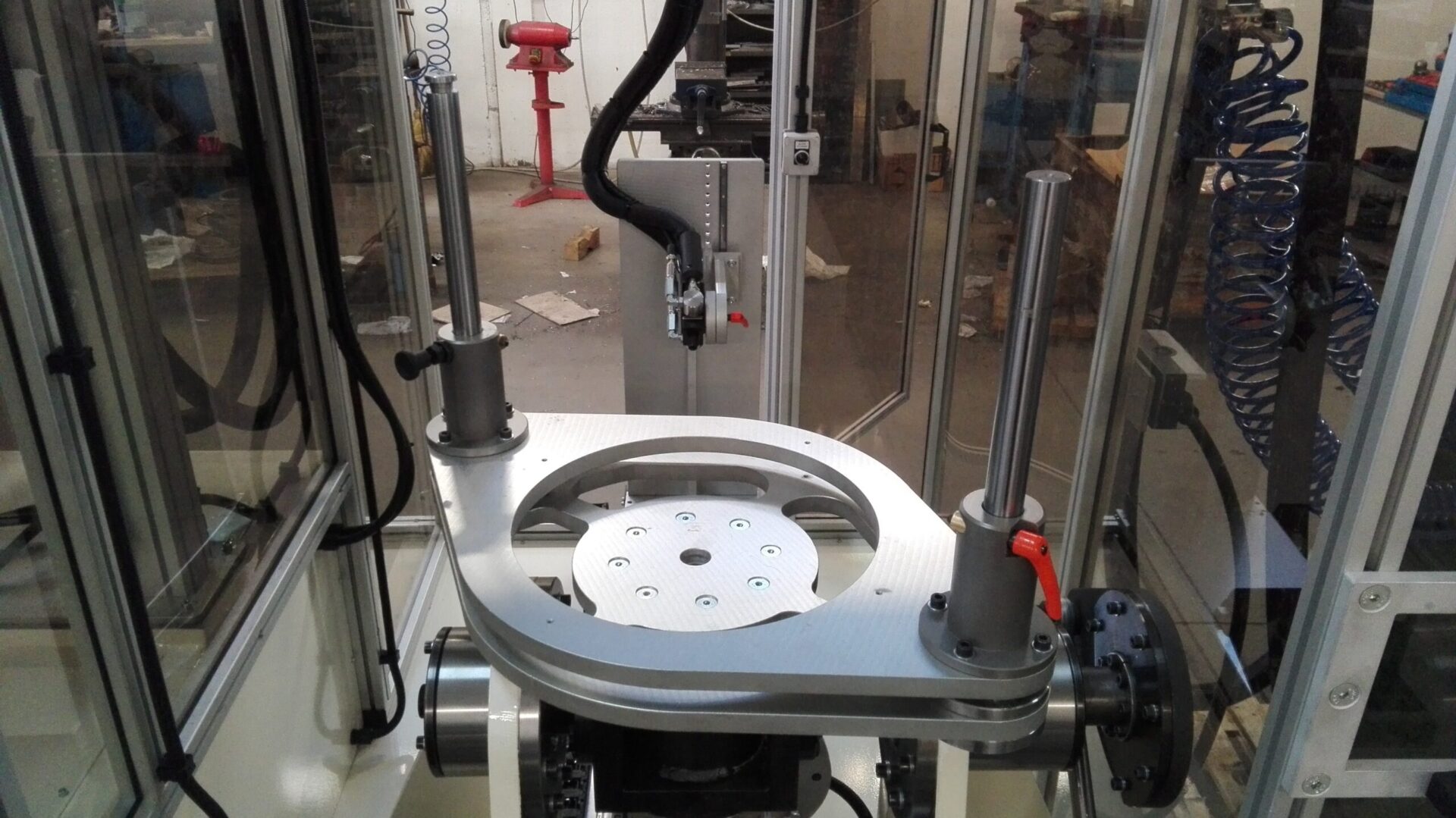

This system is divided into two workstations: one for the dispensing and pressing, the other for the
centrifuging. This system can be integrated with SMA-TFTk and SMA-TFTk+ machines.
Technical data
Power supply
400V 50HZ
Rated power
20 KW
Dimensions
2500X2000X2000
Weight
3000 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
A SUCTION SYSTEM MUST BE USED WITH THIS EQUIPMENT
