SEMI EQUIPMENT FOR SPIRAL BANDS
Description

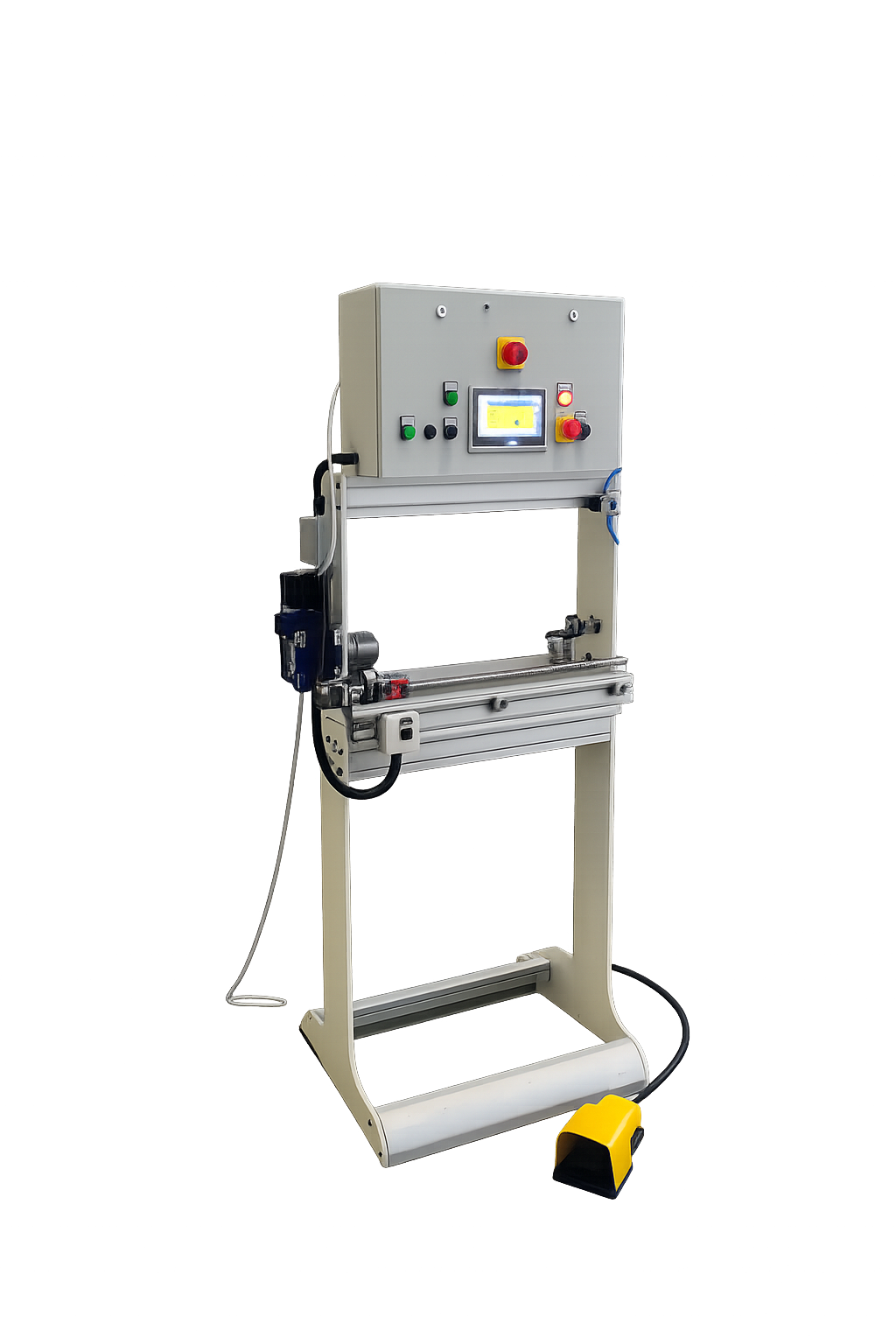

Wrapping unit for the automatic production of spiral bands.
Diameter size range: from 6.35 to 60mm
Max. width: 450mm

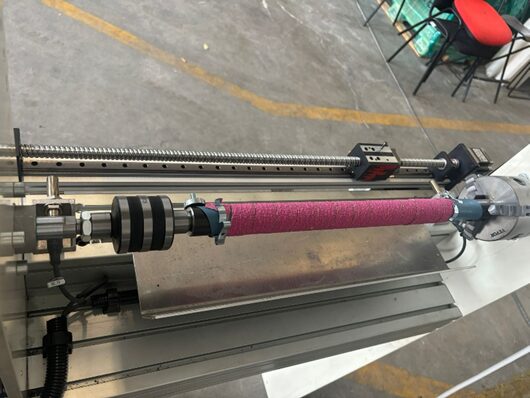

The core of the unit is composed of a servo-controlled mandrel and an electronic cam handling the linear guide along the electric axis.
Equipped with a roll-system dosing unit for adhesive application.
Technical Specs
– Mandrel with 0.75-kw Brushless servo
– 400W brushless linear guide
– Pressure roller at the end of working cycle

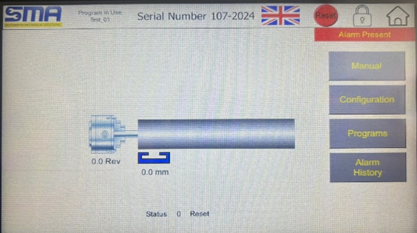

– 7-inch Inovance PLC
Technical data
Power supply
Rated power
Dimensions
Weight
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
