CURING OVEN FOR UNMOUNTED FLAP WHEELS
Description

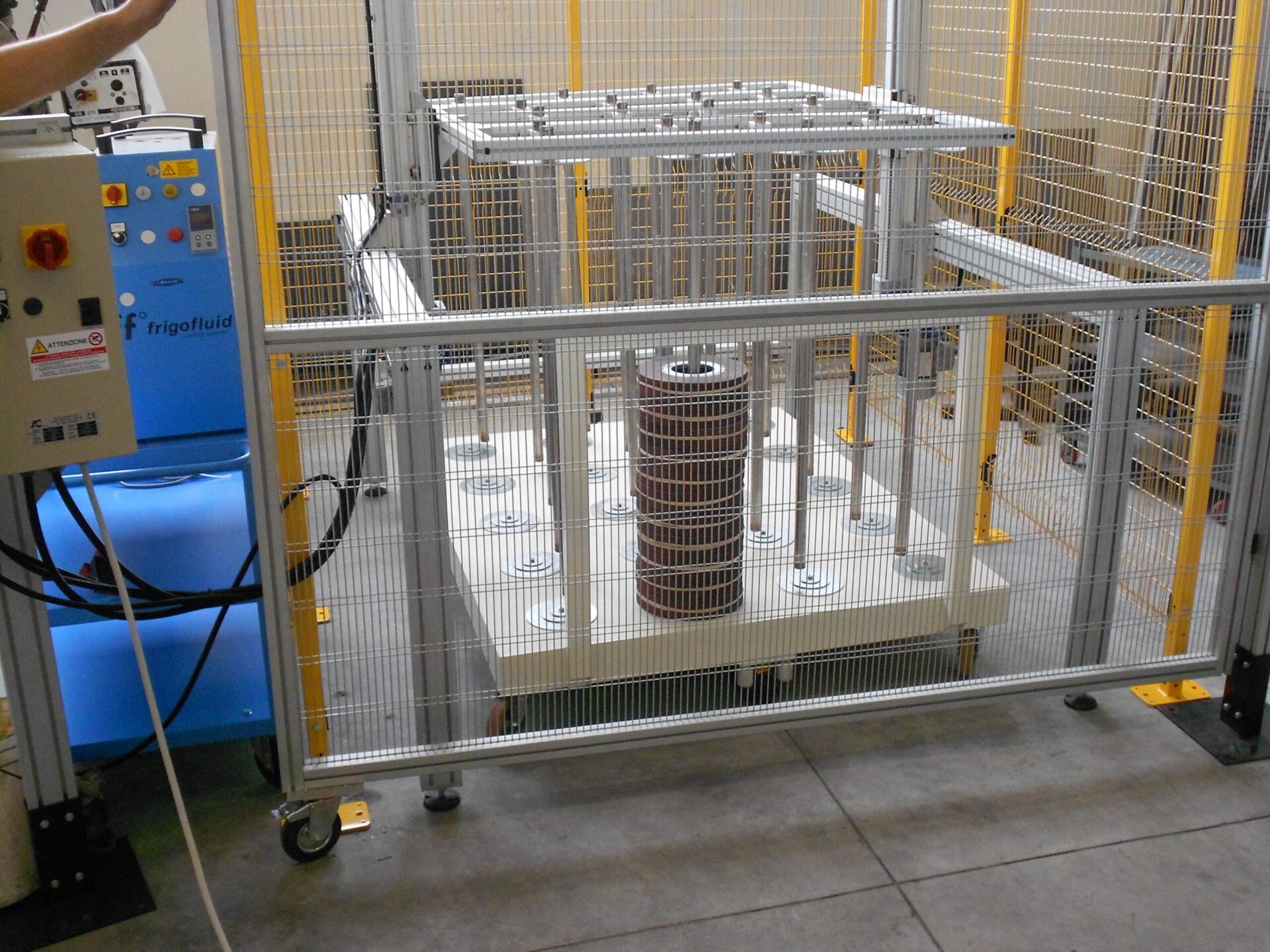

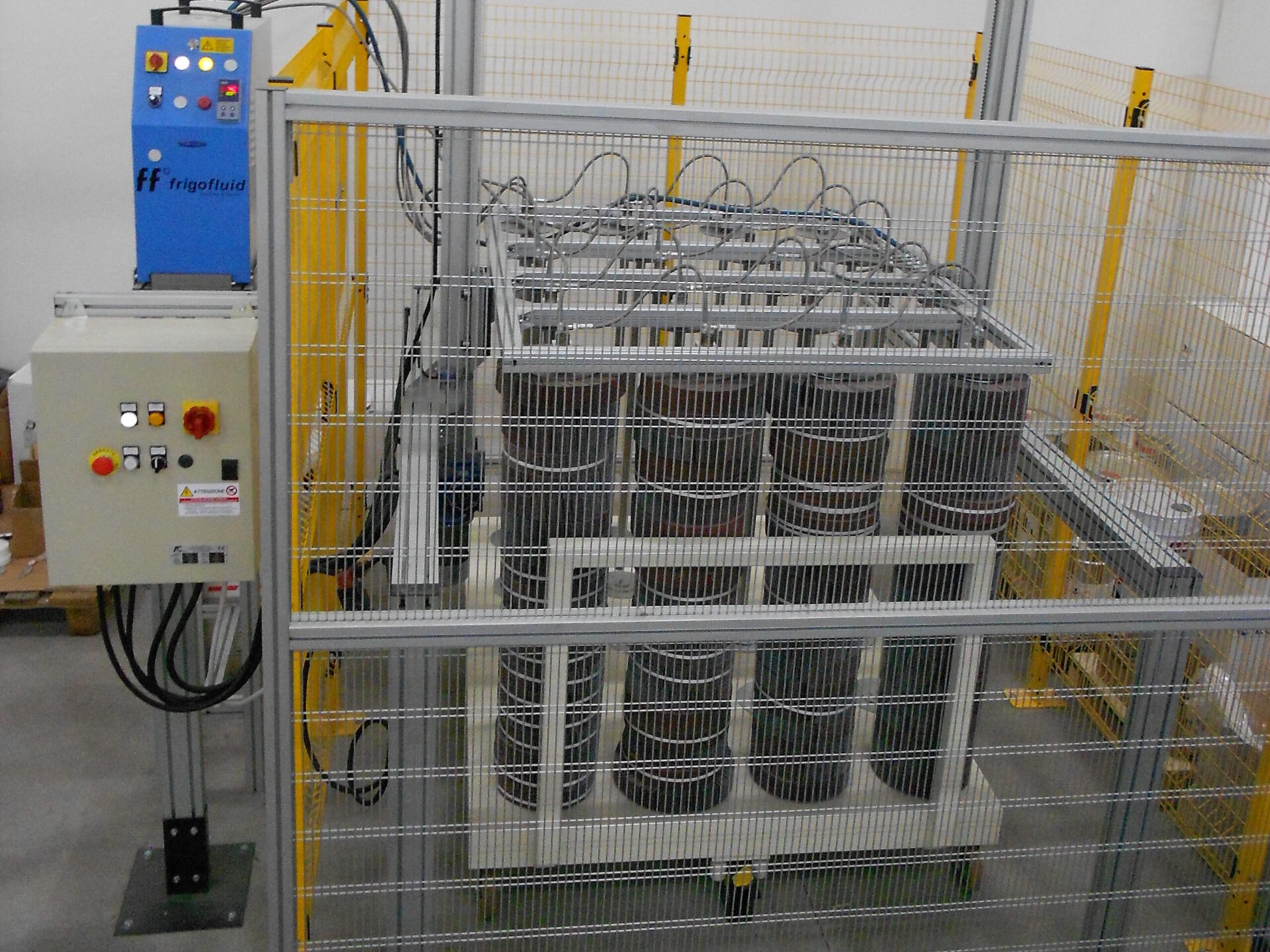

Curing oven heated via diathermic oil. Polymerising unit for abrasive cloth wheels. Maximum operating temperature is 140°C. This unit is electronically controlled and surrounded by a protective enclosure. By means of a trolley, the operator arranges the wheels within the enclosure and lowers the heaters with the push button switches that are found on the side control panel, starting the polymerisation process. This system can be integrated with the SMA-BI70 machine.
Technical data
Power supply
400V 50HZ
Rated power
10KW
Dimensions
3000X3000X3000
Weight
300 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? Yes
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
A suction system must be used with this unit
