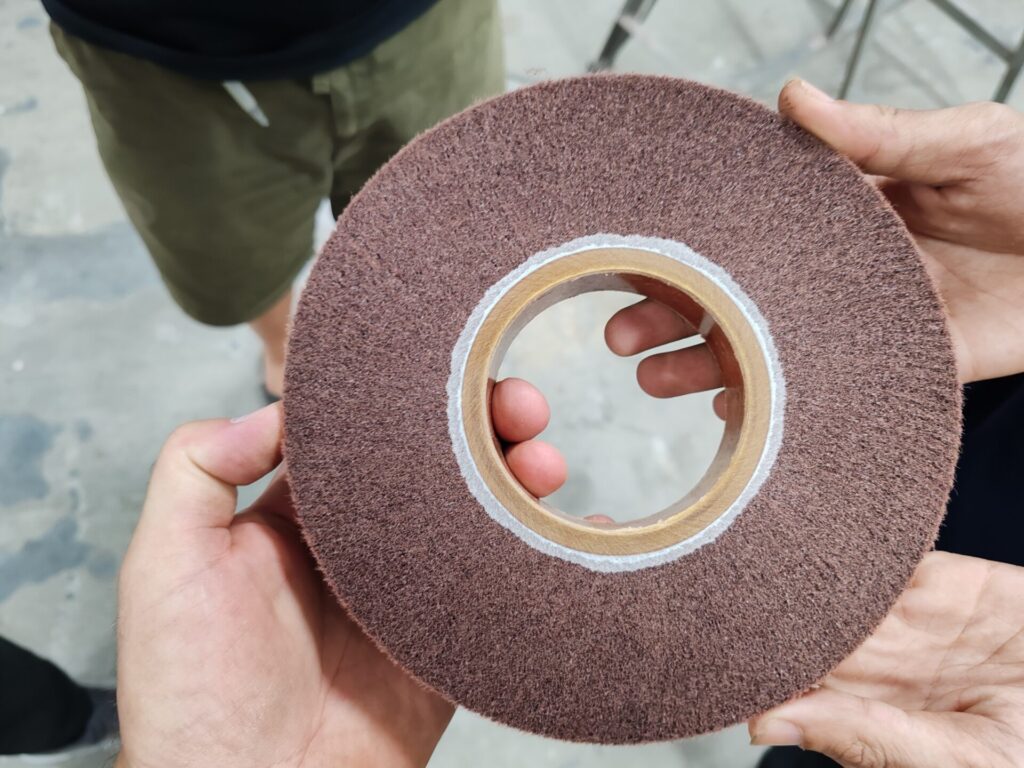

CUTTING AND GRINDING MACHINE FOR NON-WOVEN CONVOLUTE WHEELS
Description

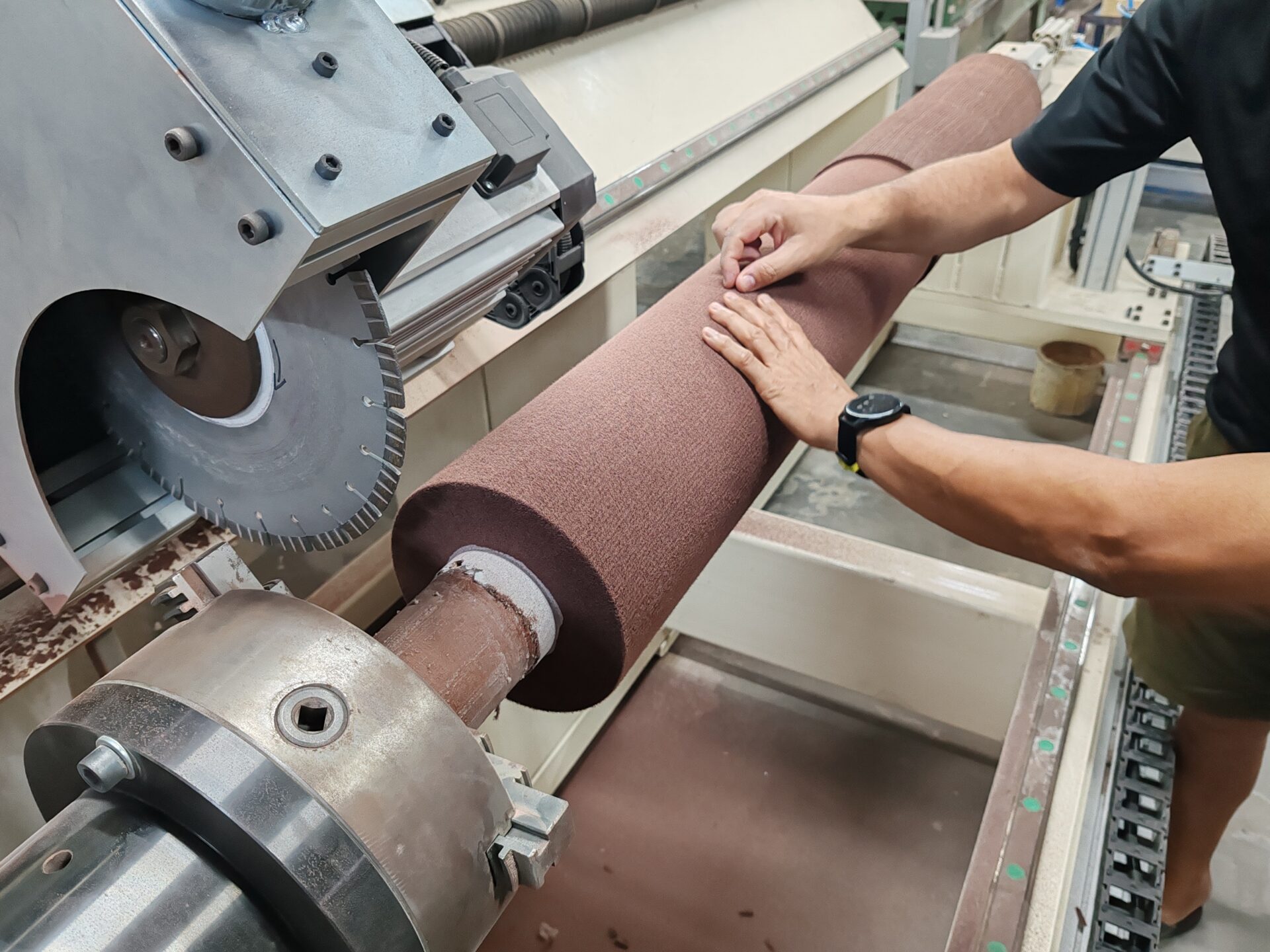

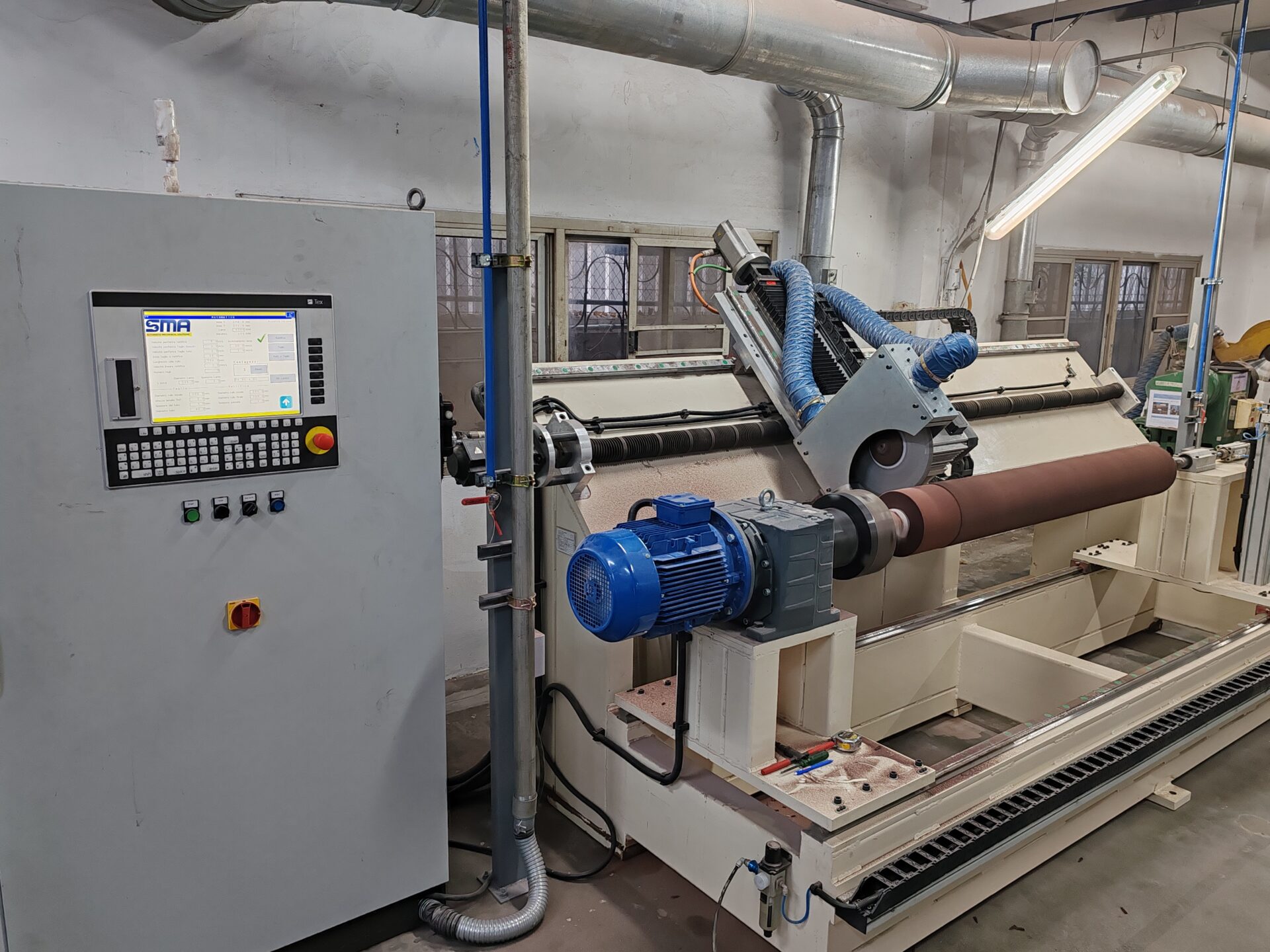

Cutting and grinding machine for NW rollers. This unit is equipped with diamond blades whose diameter is 350mm and thickness is 3mm. Very simple to use, versatile; maximum size for rollers is diameter 460mm and length is 1500mm. A suction system is needed for abrasive dust.
Movement control
Max speed for mandrel: 800 rpm on inverter
Man speed for mandrel: 200 rpm on inverter
X axis handled via handwheel
Cutting blade handled manually (can be blocked during grinding operations)
Y axis handled via positioning handwheel or inverter motor
Max speed: 2mm/sec
Min speed: 2mm/sec
Max. working diameter: 460mm
Max. working length: 1500mm
Technical data
Power supply
400V 50HZ
Rated power
2KW (3-PHASE SUPPLY)
Dimensions
2500X1500X600
Weight
500KG
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?

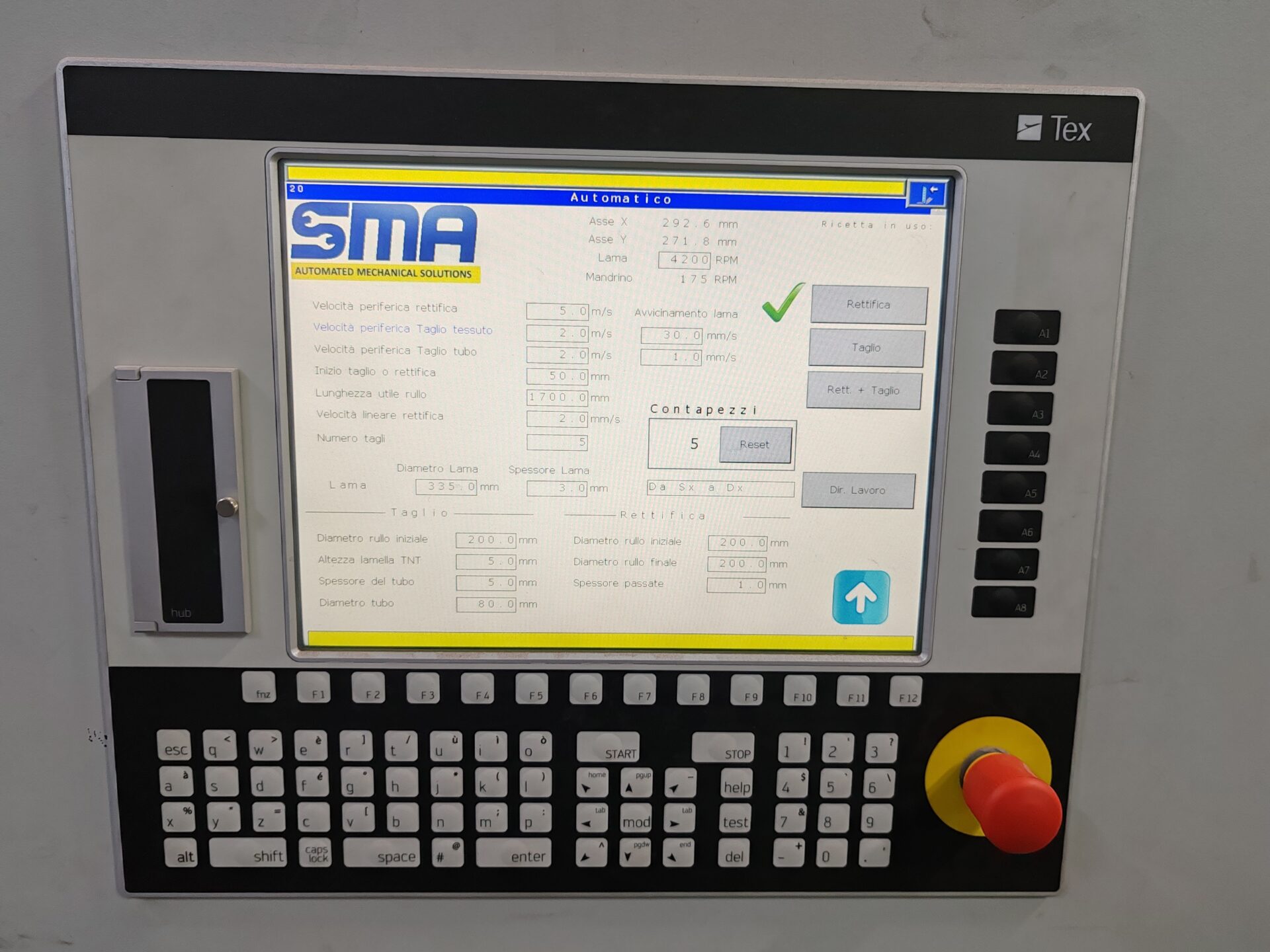

Display quota visualizer
Suction system for abrasive dust
