SMA-BI70

Description

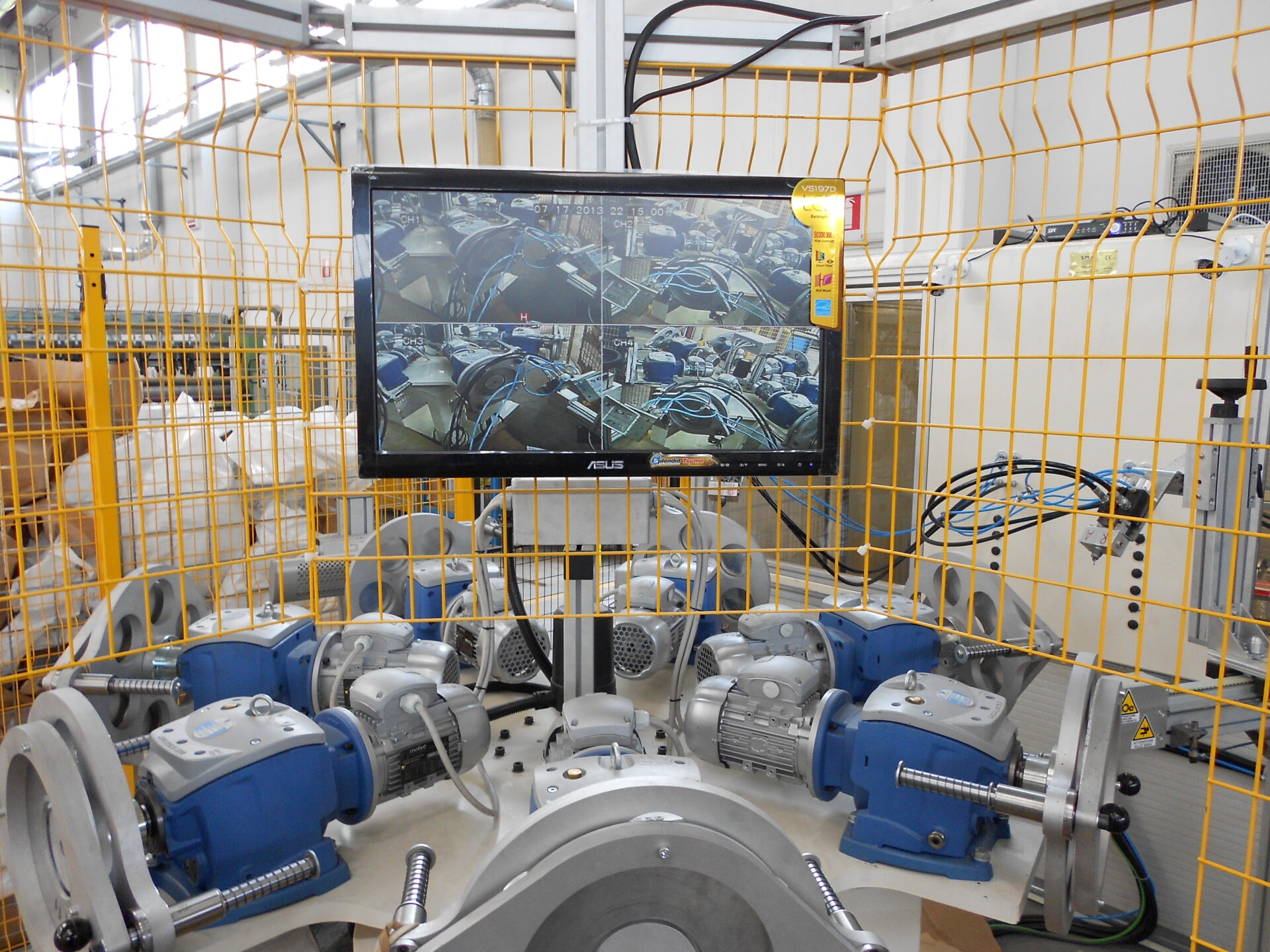

This machine is designed for the automatic gluing of flap wheels with flange. Its versatility allows to manufacture wheels whose diameters go from 110 mm to 350 mm. This fully automated system has been designed for large scale production; the average bonding time for a wheel is about 30 seconds. This machine features 7 gearmotors, whose purpose is to make wheels rotate in the different stages of the process. 7 different speed levels can be handled in full automatic mode. The bonding of the wheels occurs by means of two dosage units: one works with a bi-component epoxy resin, the other dispenses a bi-component polyurethane. Each dosage unit is composed of a static mixing head, two gear pumps and two piston pumps that extract the product from 230kg or 18kg drums. Also, it is equipped with two heating lamps that control the beginning of the polymerisation process. This machine can be integrated with SMA-TFN machine.

Productivity:
120 wheels/hour
