SMA-TFDM

Description

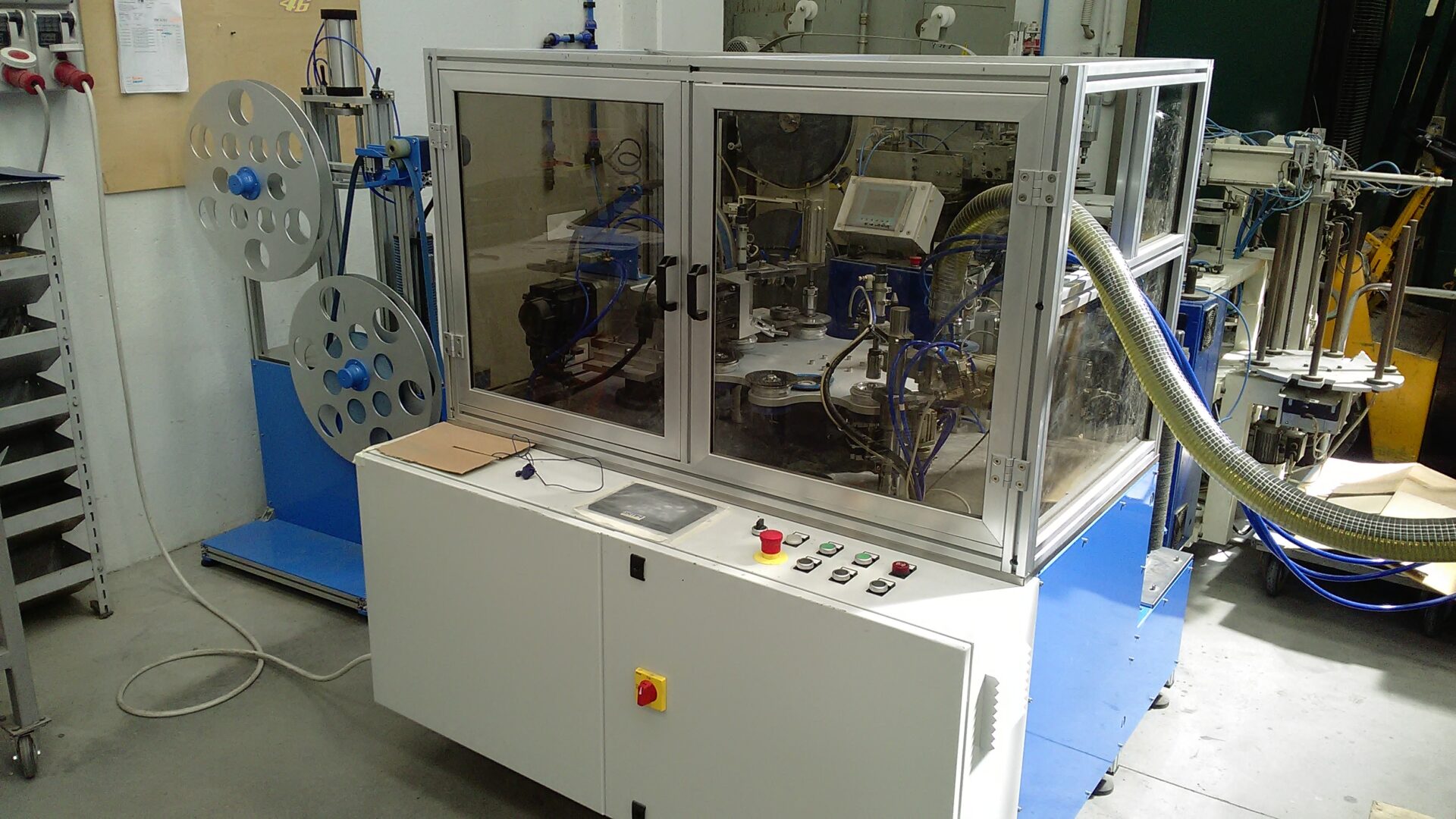

SMA-TFDM is a cost-efficient and easy-to-use machine for the production of flap discs. This machine was
conceived to be used by non-experienced operators, in order to achieve a medium-capacity production.

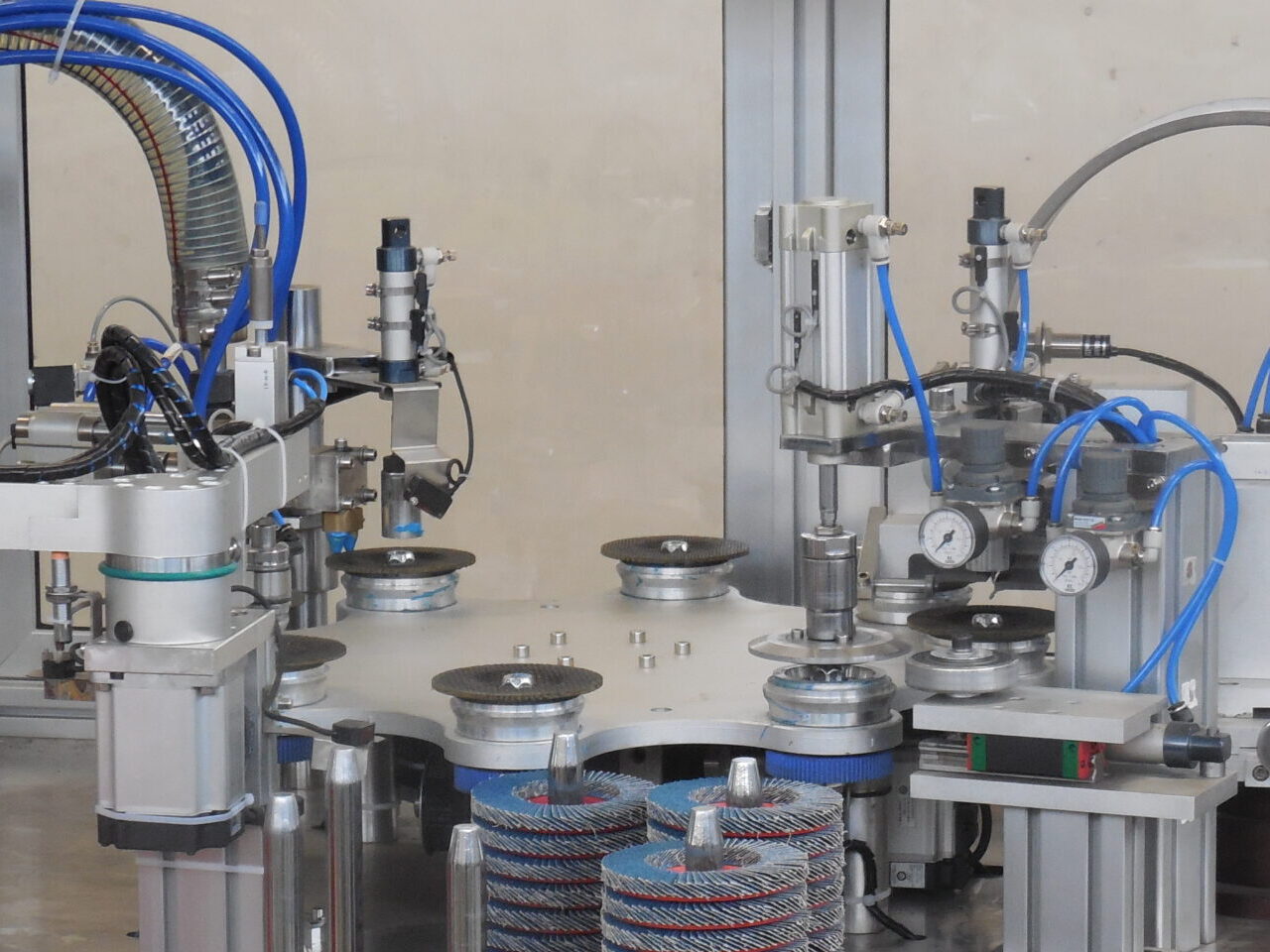

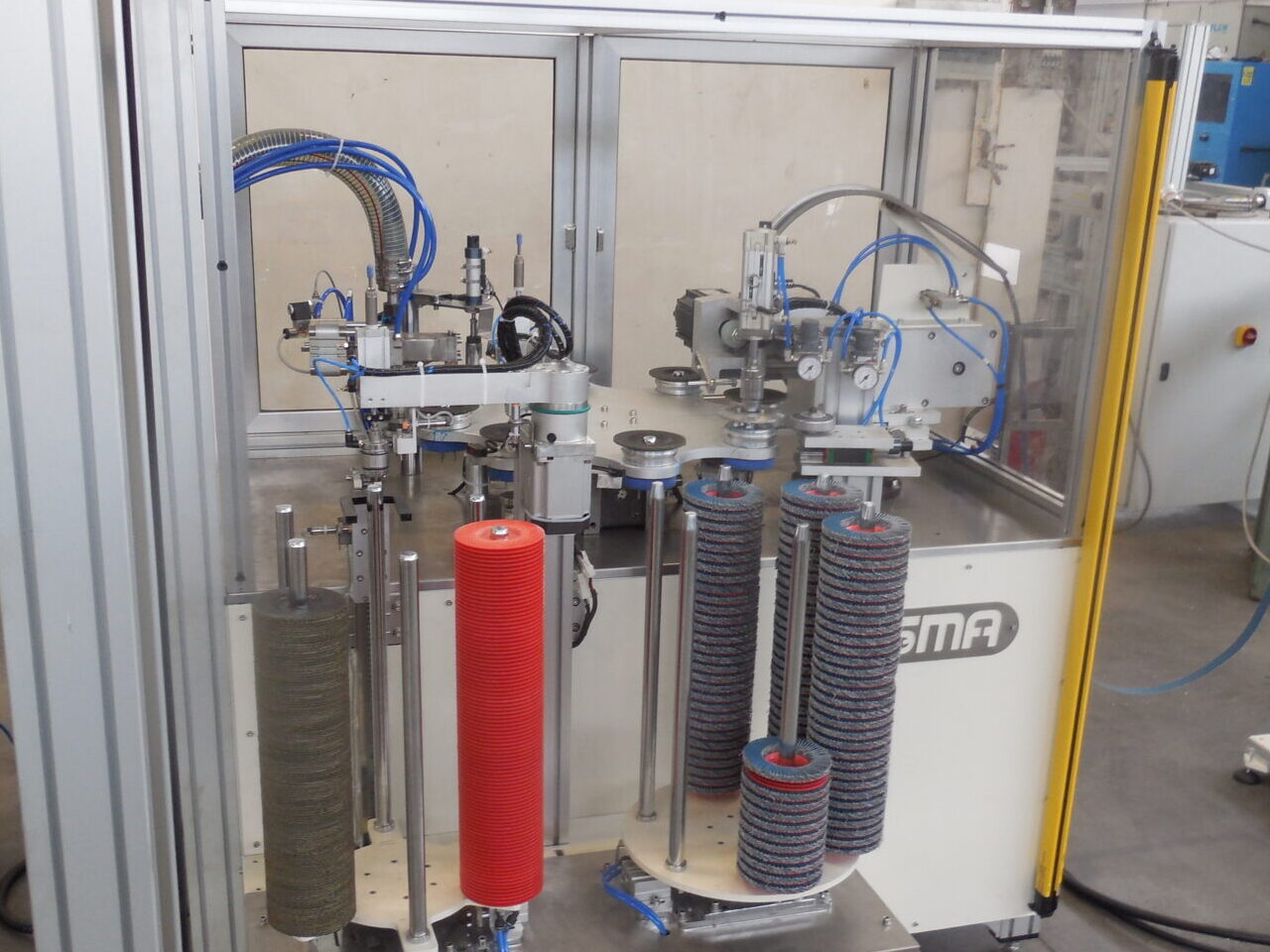

The machine electronics are simple yet highly developed. The machine is controlled via PLC for the handling of every working process and a 7” operator panel is installed. Setup is flexible and easy; maintenance can be performed by non-experienced technicians. The main units of the machine are: a high-speed cutting head, an 8-position rotary table and two boards, one for the loading and one for the unloading of the disc.

Production range:
Disc dia.: from 100 to 180mm
Bore dia.: 16 and 22mm 5/8 and M14 as optional
Flap length: from 0 to 35mm

Max. capacity
15 pcs/min for single-flap disc
15 pcs/min for double-flap disc
