AUTOMATIC CUTTING MACHINE FOR SHAFT-MOUNTED FLAP WHEELS
Description

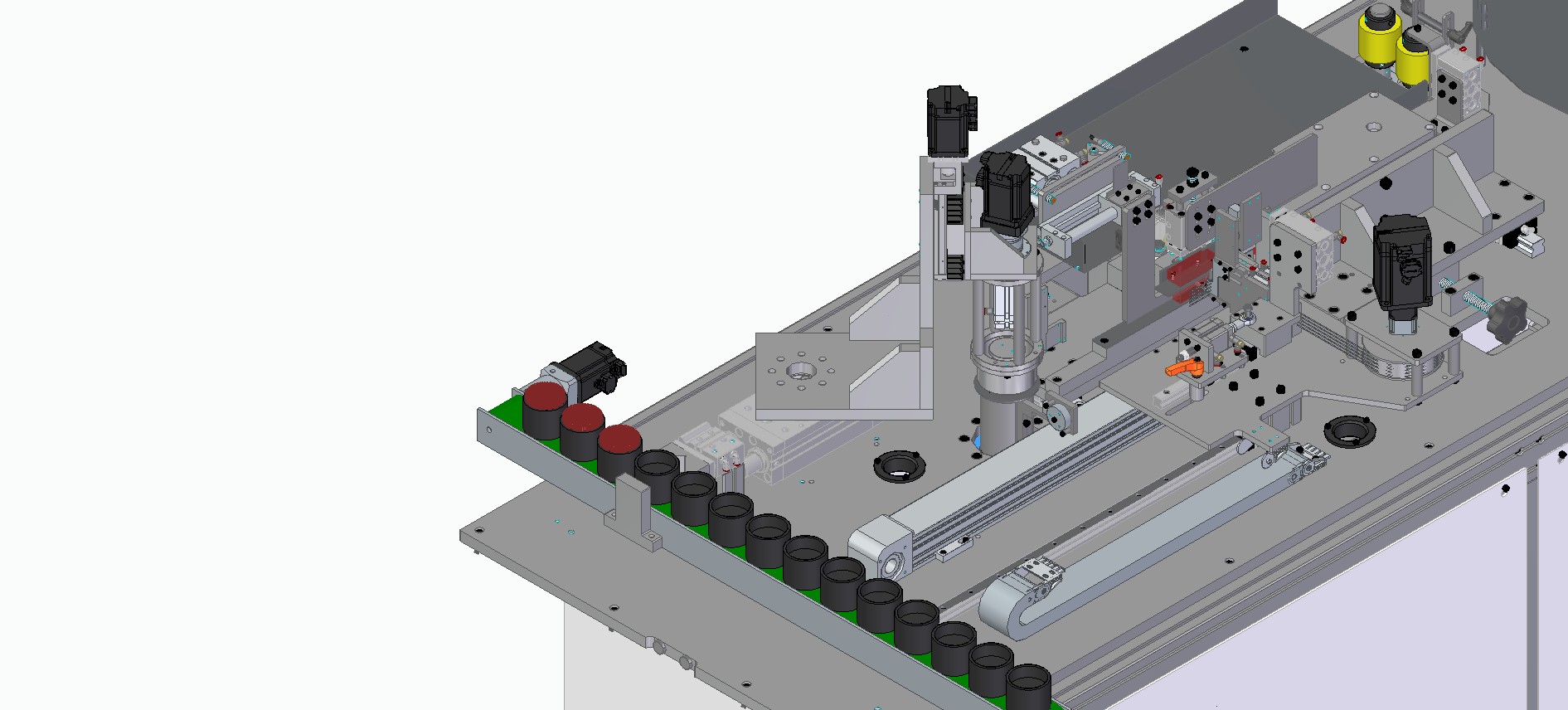

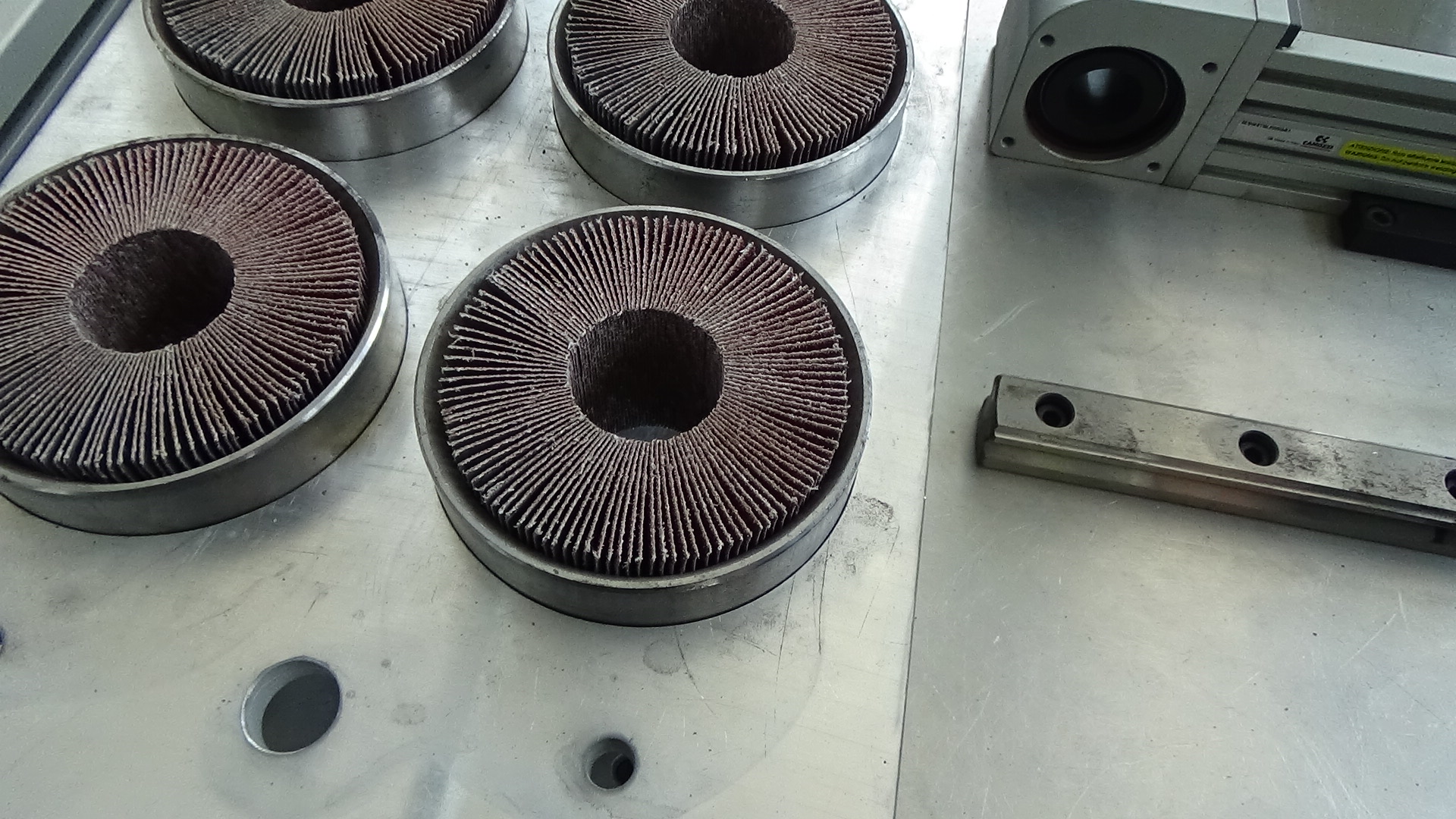

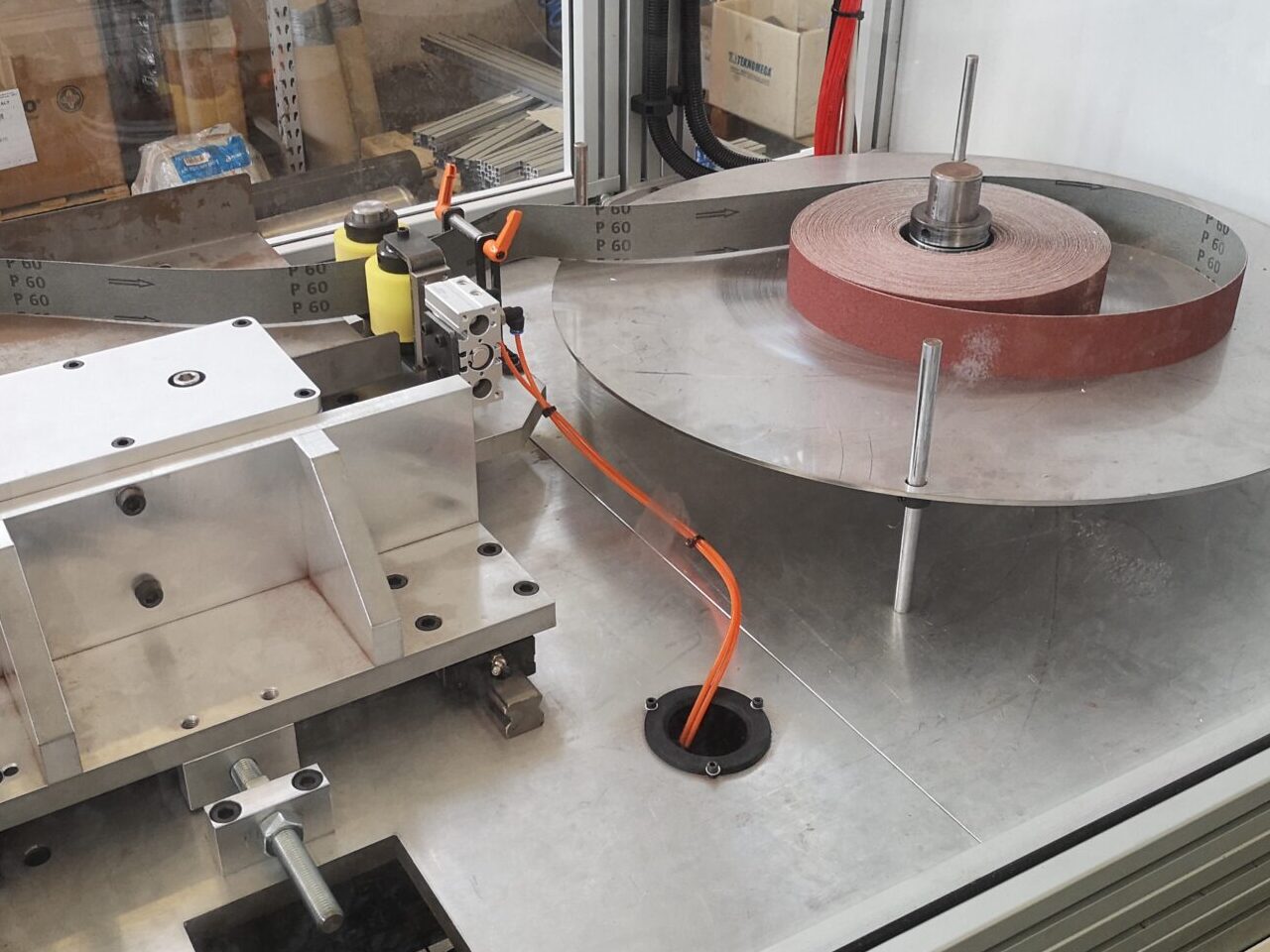

Automatic cutting and forming machine for shaft-mounted flap wheels. Diameter range goes from 20 to 80mm. The flap pack is cut lengthways, then formed via 360° rotation. Flaps are hence distributed consistently along the wheel inside diameter. The machine is robust, reliable and easy to set up thanks to an extremely quick format change. The unit is equipped with an IPC that implements RTLinux operating system. Communication elements and axes work via EtherCAt module. The machine features Industry 4.0 technologies.
Specifications
5/6 pcs/min
Technical data
Power supply
400V 50HZ
Rated power
5KW
Dimensions
2000X2000X1500
Weight
800 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
A SUCTION SYSTEM MUST BE USED WITH THIS EQUIPMENT
