DMT-DME

DISPENSING UNIT FOR LOW-VISCOSITY FILLED AND UNFILLED RESINS

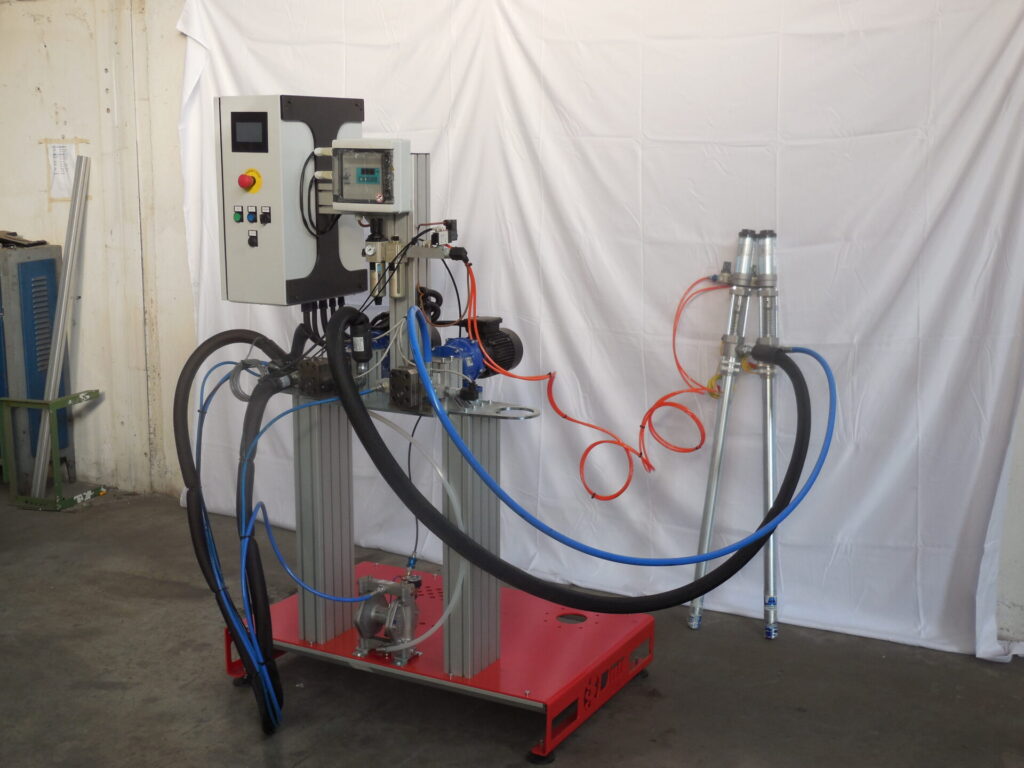

Dispensing unit for low-viscosity filled and unfilled resins. Unit handling occurs entirely via vector control of asynchronous motors, and a programming display. Mixing ratio is handled automatically, and it can be modified or reprogrammed. This unit is the best approach in terms of innovation and ease of use. It is also useful for intensive work and demanding applications.

The standard version includes:
IP65 electronic enclosure, with certified control
Syel V4c
Real-time two-vector control of the dosing process
Real-time or timed casting working modes

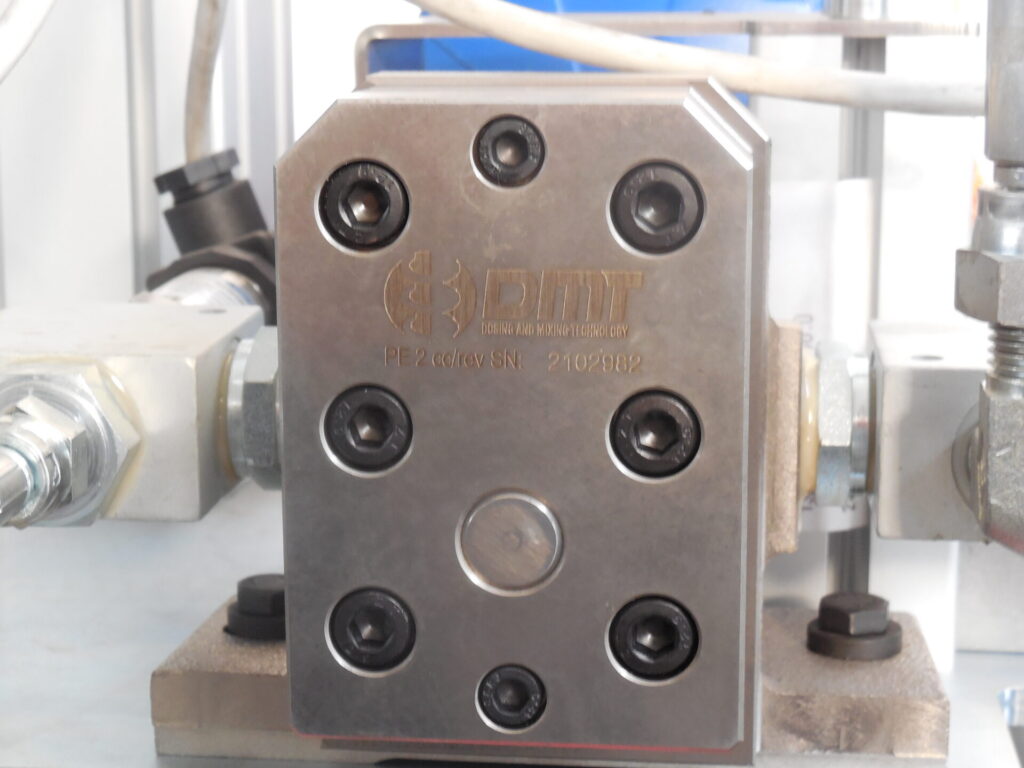

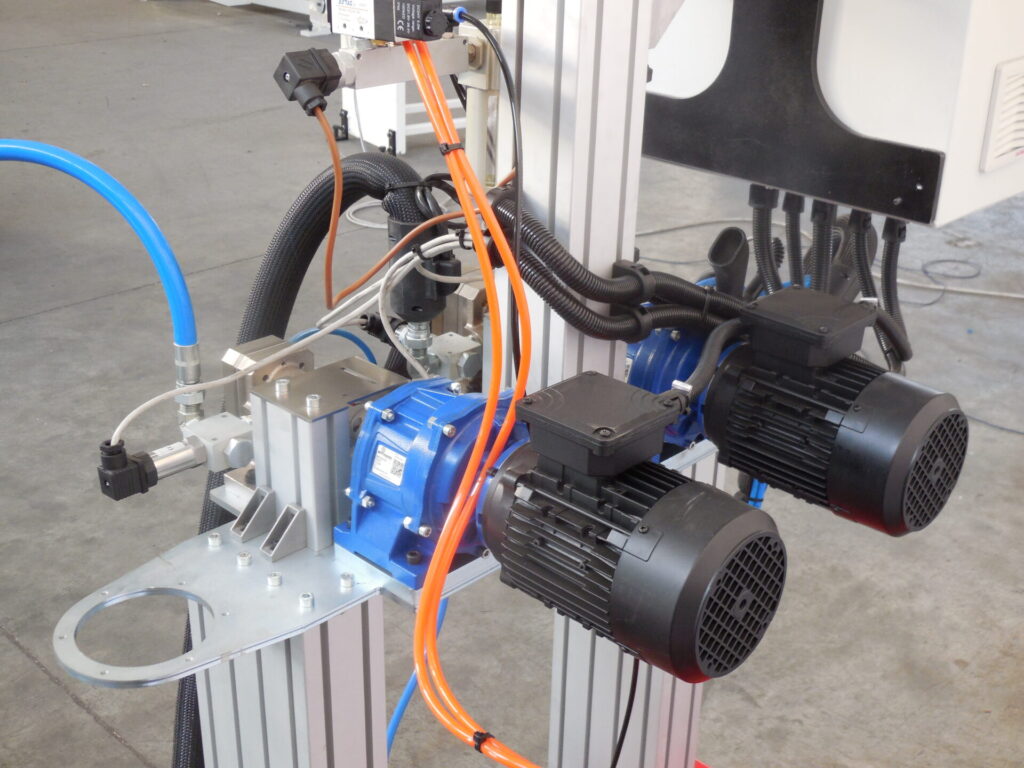

Gear pumps featuring permanent magnet motor
control, variable ratio from 1:1, 2:1 to 10:1
Max. working viscosity: 70,000 Mpas at 25°C
Static mixing and anti-drop nozzle
Dosing capacity: from 100 to 1500 ml/min at 25°C
Min. dosing capacity: 1ml at 25°C
Electronic control and automatic monitoring on dosing pumps input and output working pressure
Recirculation for components A and B
Dosing start pedal
Handle for manual use of dosing head

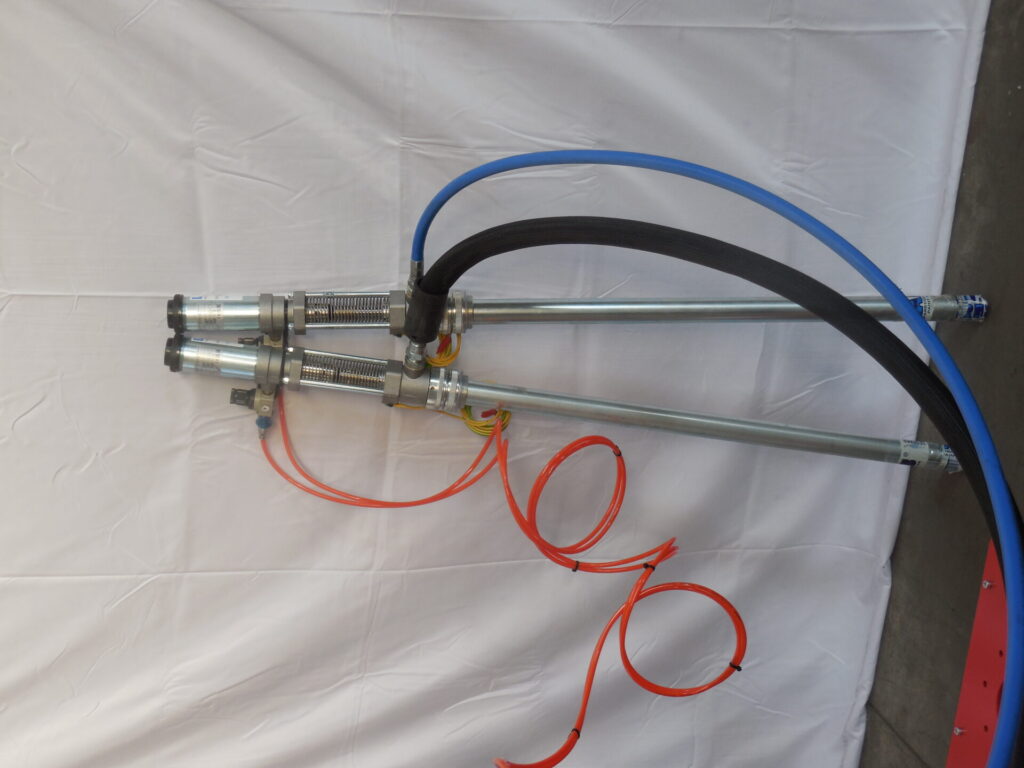

30l resin tank with pressure pump and 25°C-80°C heating
30l hardener tank with pressure pump
Sensor detecting minimum product level

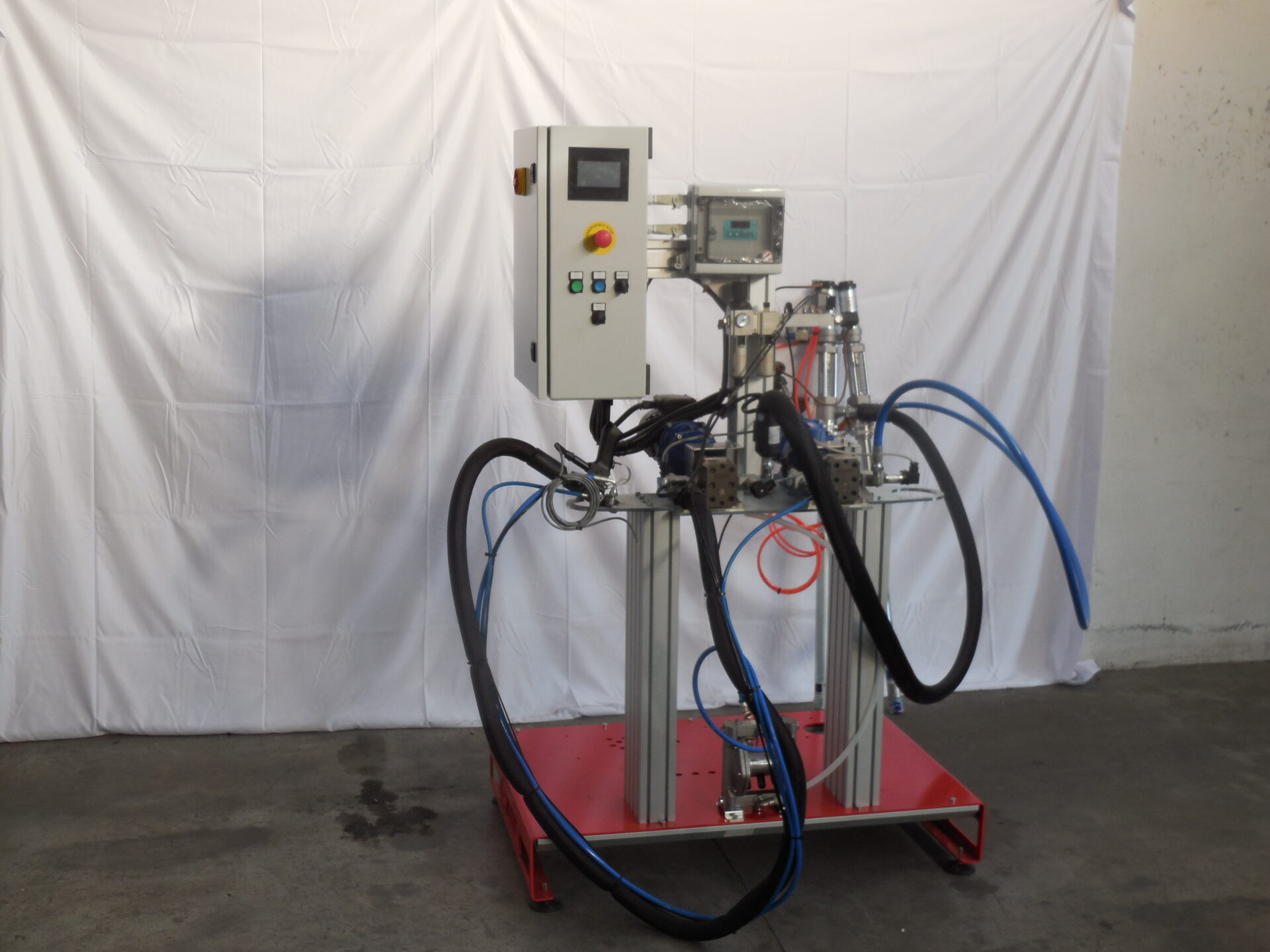

Frame mounted on 4 wheels with brake
