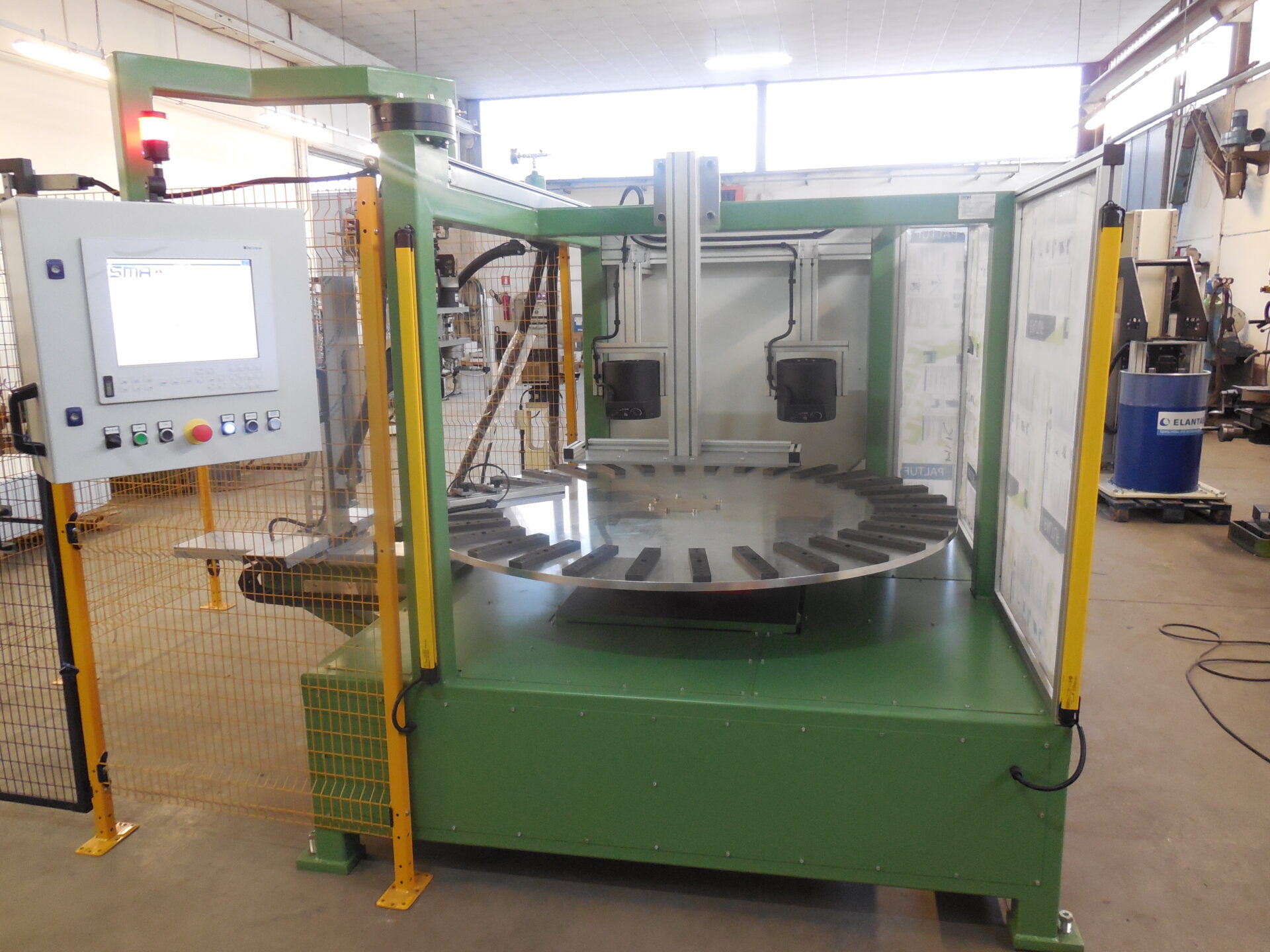

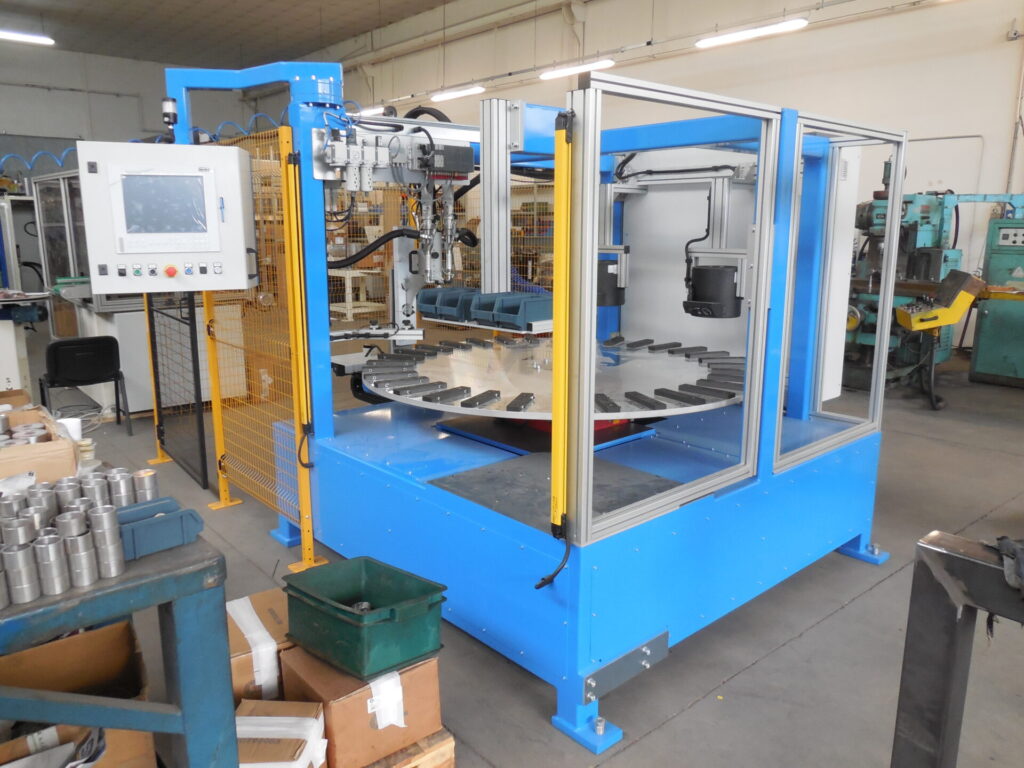

GLUING ISLAND FOR FLAP WHEELS SHAFT
Description
32-position dosing station, configurable in double or triple row layout, designed for high-volume production of cloth flap wheels with shank.
It covers a size range from Ø20 mm to Ø100 mm and uses high-performance, tough reactive resins to ensure strong, reliable bonding.
Optional features include abrasive grit marking/printing systems and automatic loading/unloading modules to maximize automation and reduce cycle time.
Technical data
Power supply
400V 50HZ
Rated power
7 KW
Dimensions
5000X3000
Weight
2500 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
Ring container for flaps

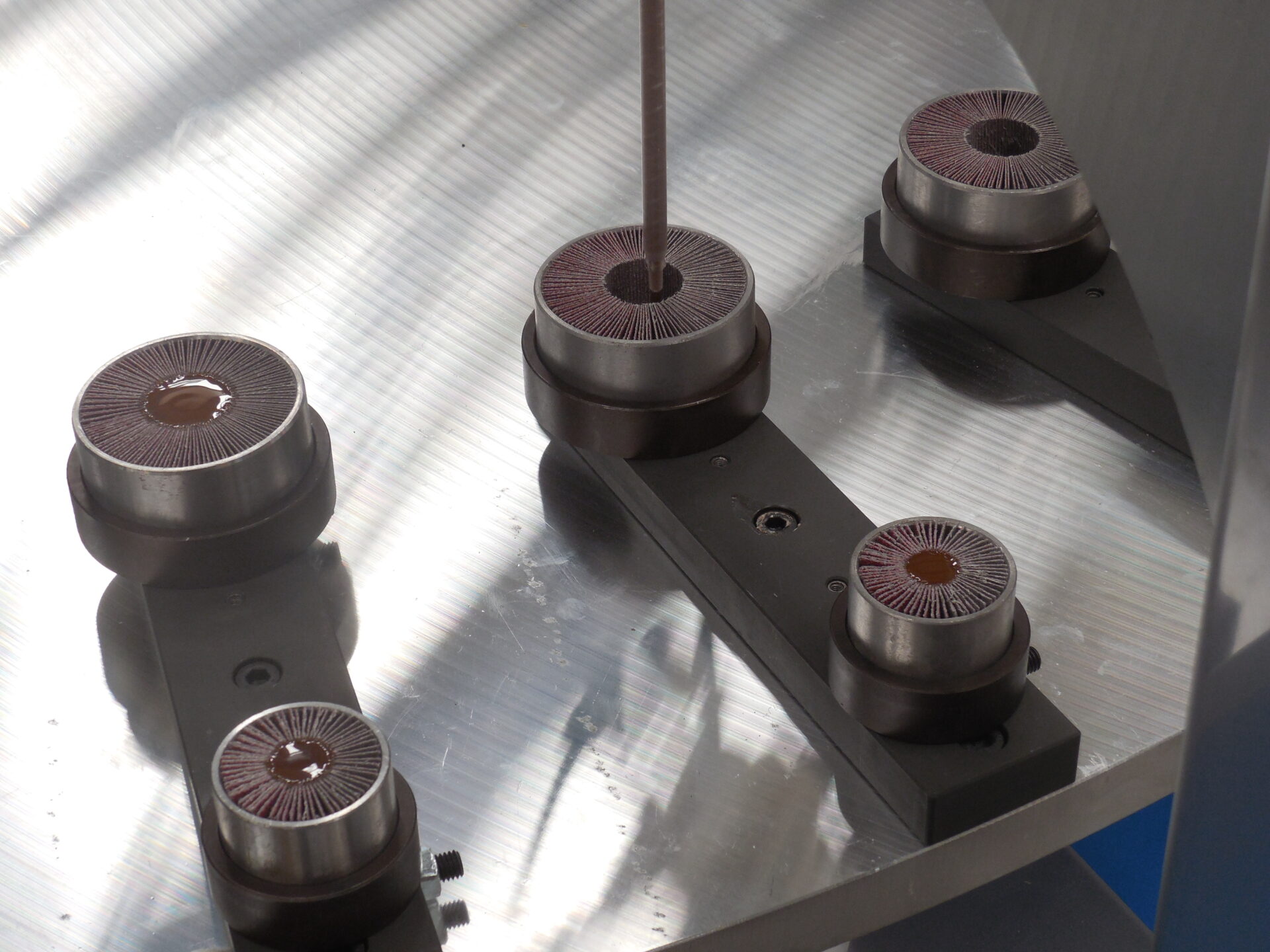

Mold with 19.10mm centring for wheel gluing
Automatic glue melter with 5kg tank
