AUTOMATIC CUTTING MACHINE FOR SHAFT-MOUNTED FLAP WHEELS FEATURING A ELECTRO-PNEUMATIC UNIT
Description

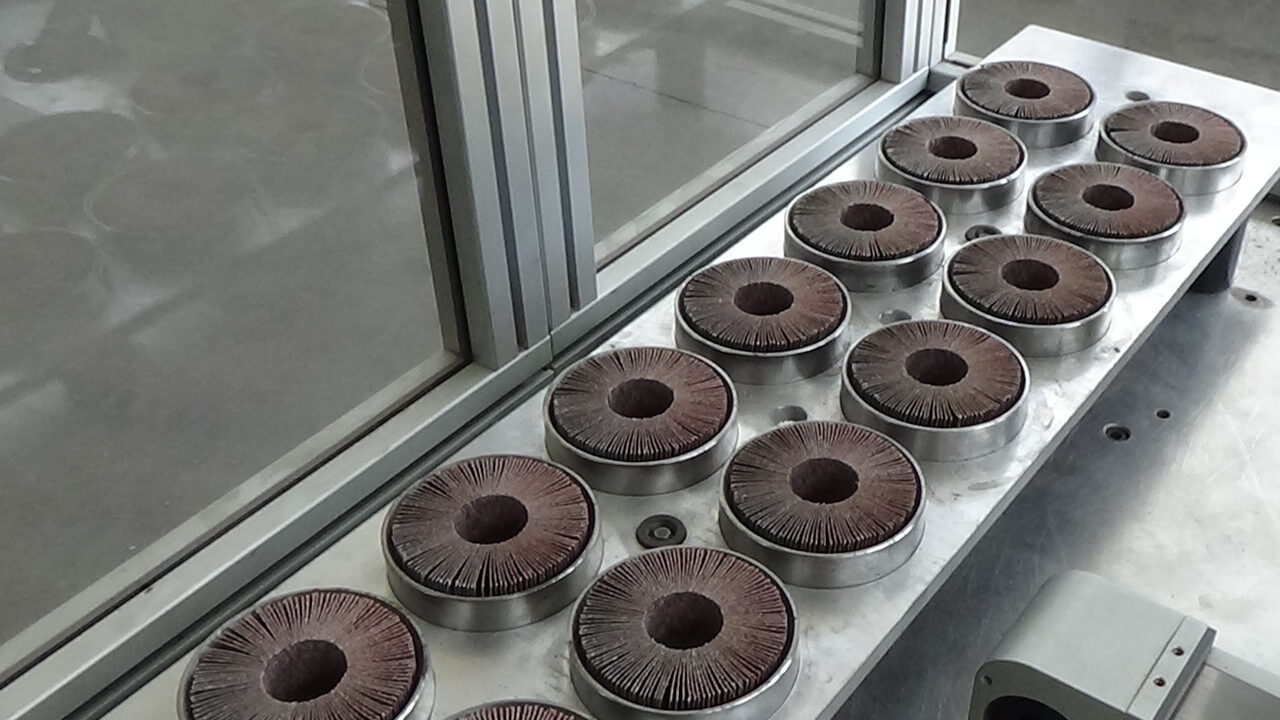

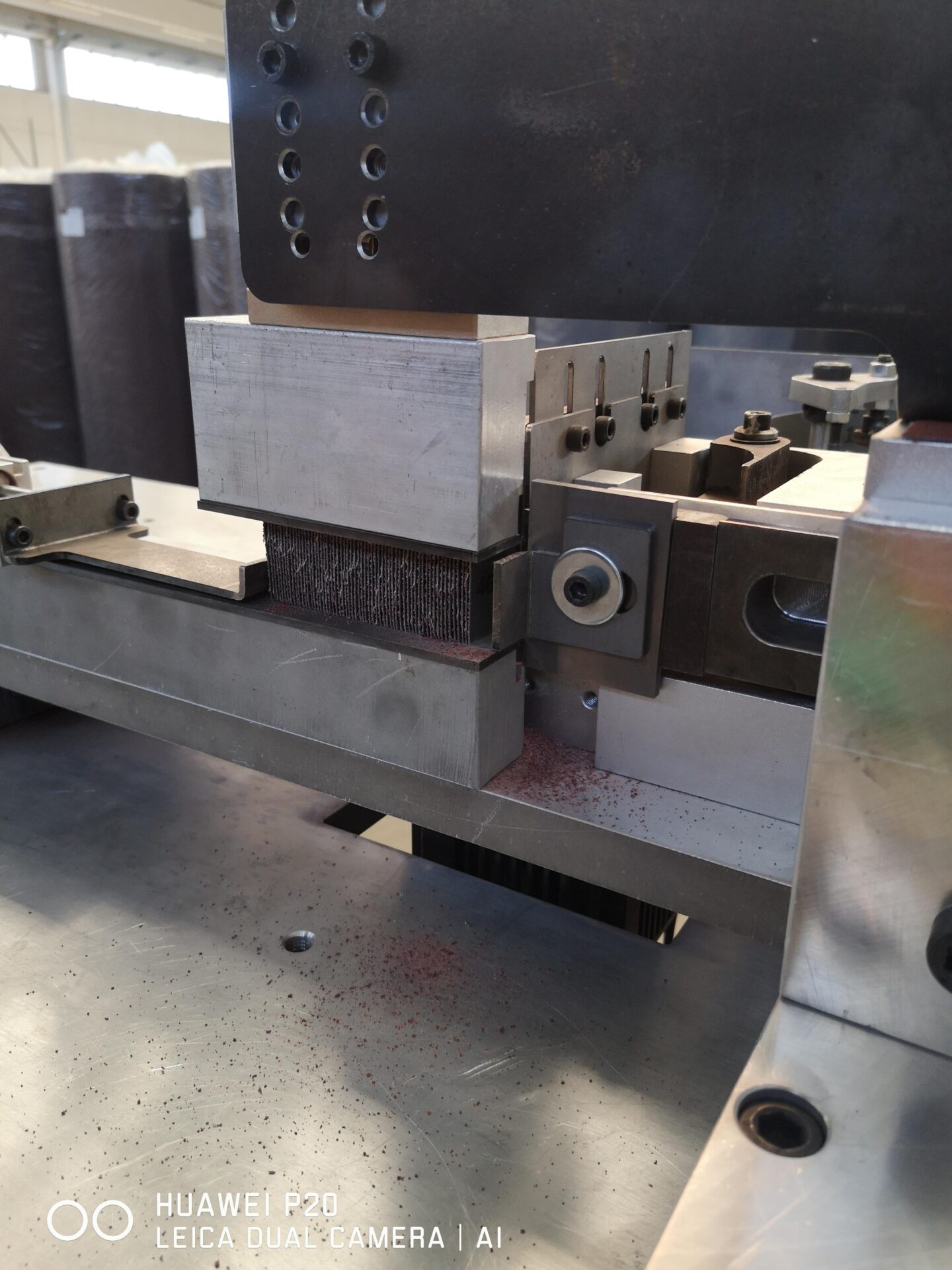

Semi-automatic cutting and forming machine for shaft-mounted flap wheels. Diameter range from 20 to 80 mm. The flap pack is cut lengthways, then manually formed via 360° rotation. Flaps are therefore distributed consistently along the wheel inside diameter. The machine is robust, reliable, and easy to set up thanks to an extremely quick format change. SMA-TFWA/EC features a simpler electro-pneumatic unloading unit. The unit is equipped with an IPC running the RTLinux operating system. Communication components and axes operate via an EtherCAT module. The machine features Industry 4.0 technologies.
Specifications:
2/3 pcs/min
Technical data
Power supply
Rated power
Dimensions
Weight
Compressor feed available?
Cycle consumption
Productiviy
Number of operators
Machine Color
Noise level
Marking
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
A SUCTION SYSTEM MUST BE USED WITH THIS EQUIPMENT
