SMA-ROLOC

Description

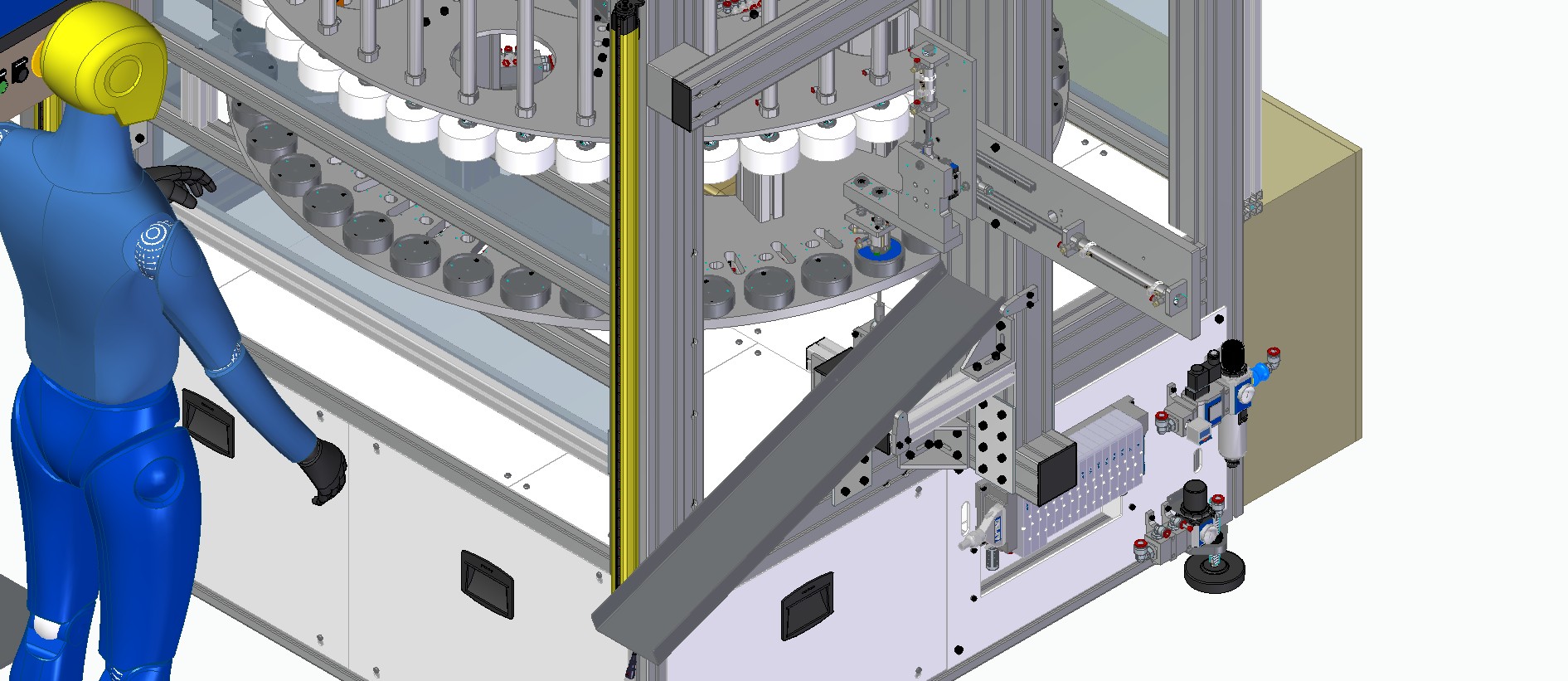

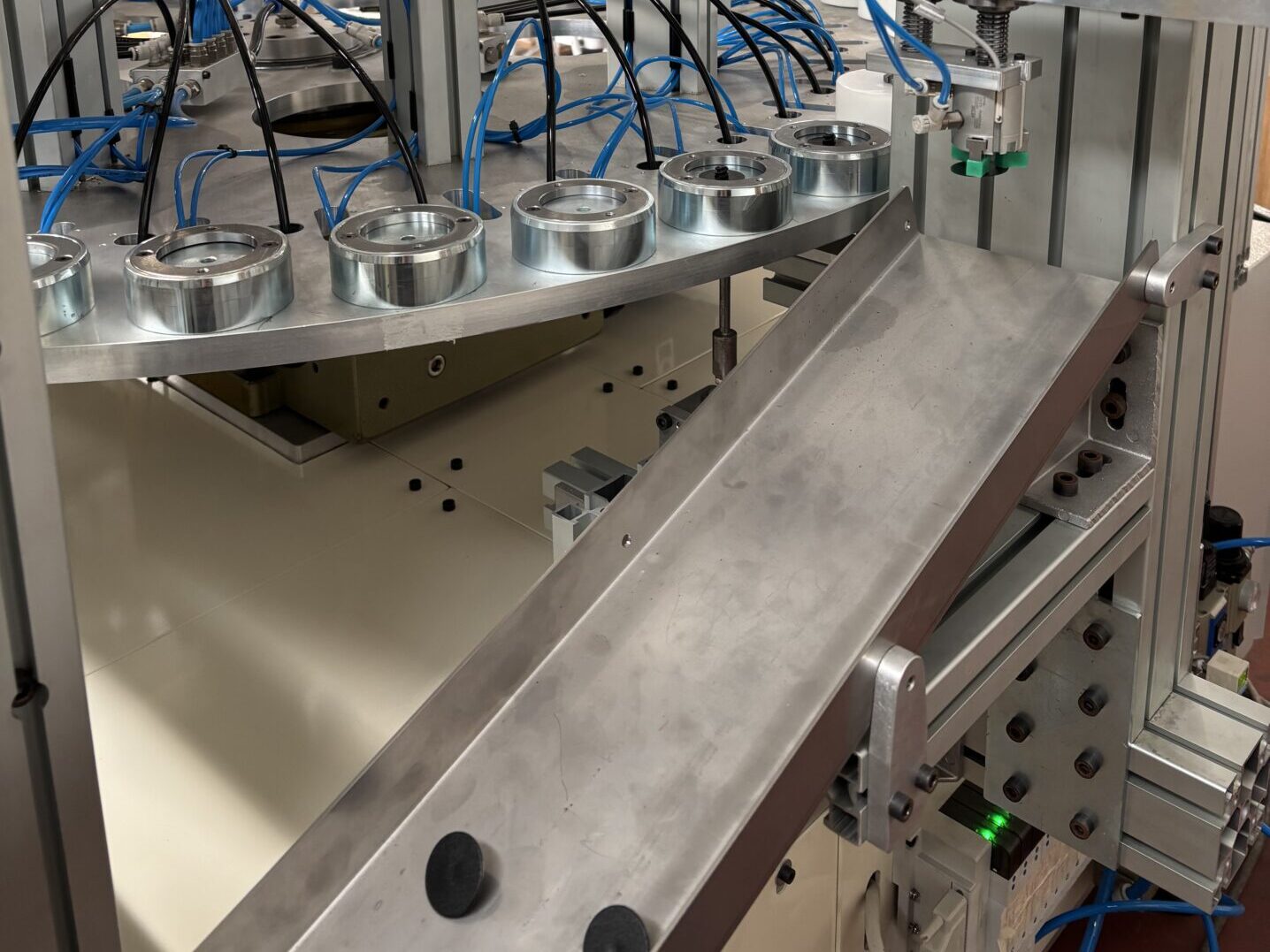

This system is equipped with a 40-position rotary table featuring different workstations and automatic unloading of the glued finished product into a collection box. Machine operated by a single operator with full autonomy.
Approx. Capacity: 12,000 / 14,000 pcs per hour
Diameter-range Production Capacity 1.5” / 2” / 3”
Material Type: NW-type, Surface material

PROCESS DESCRIPTION
A. The operator manually loads the disc onto the carousel – this is the only manual operation.
B. The disc is then handled by a 40-position rotary table.

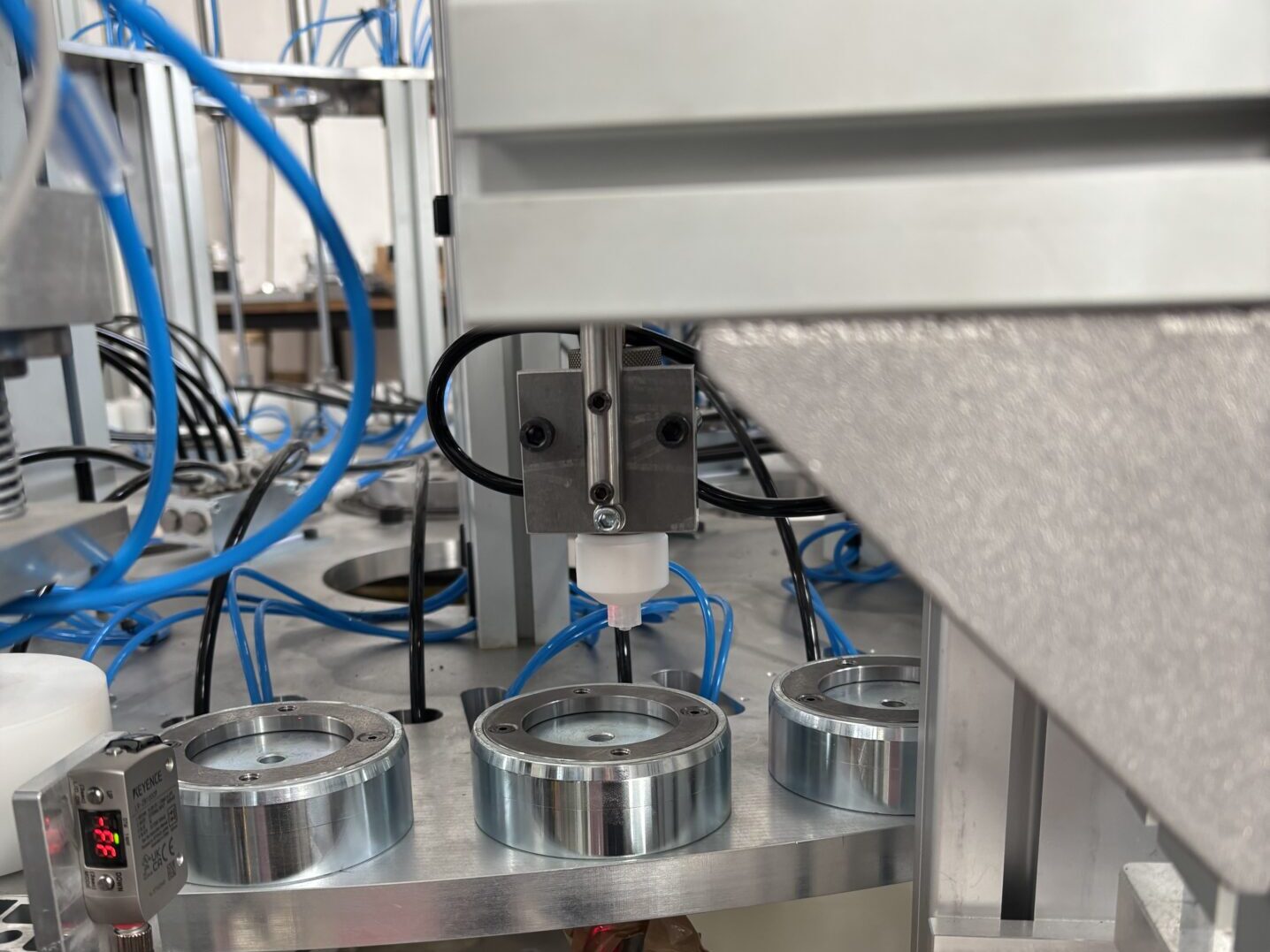

C. Adhesive is dispensed using a spiral method, applied via dosing unit

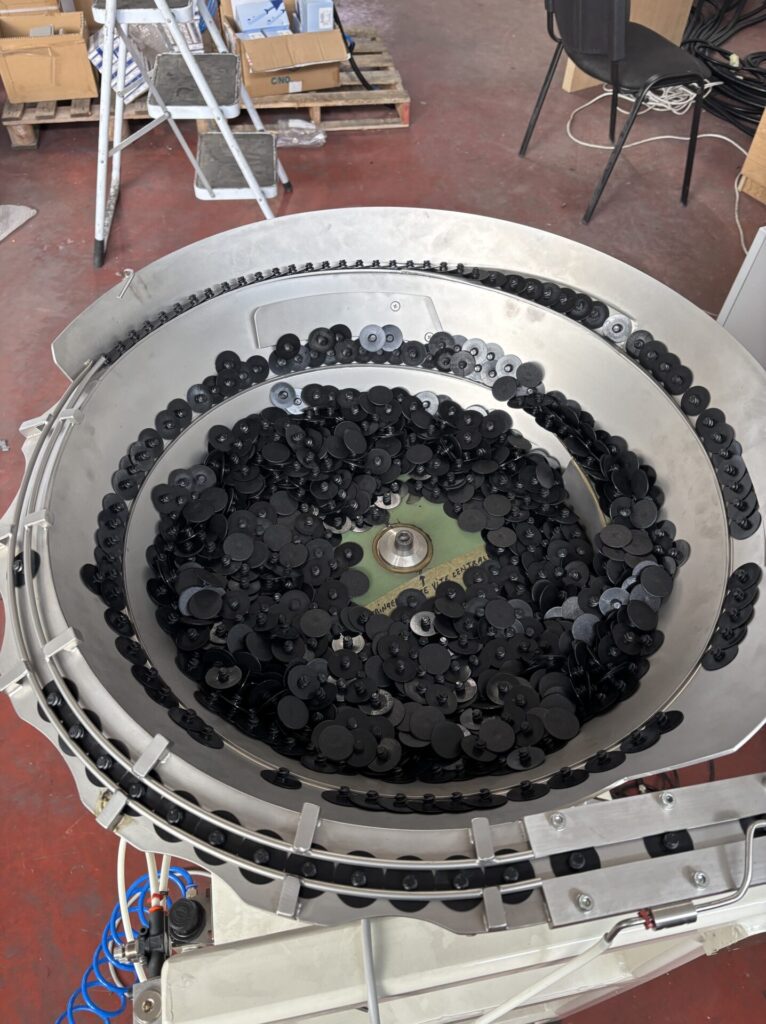

D. Plastic backing pads are automatically selected and placed at the centre of the discs.

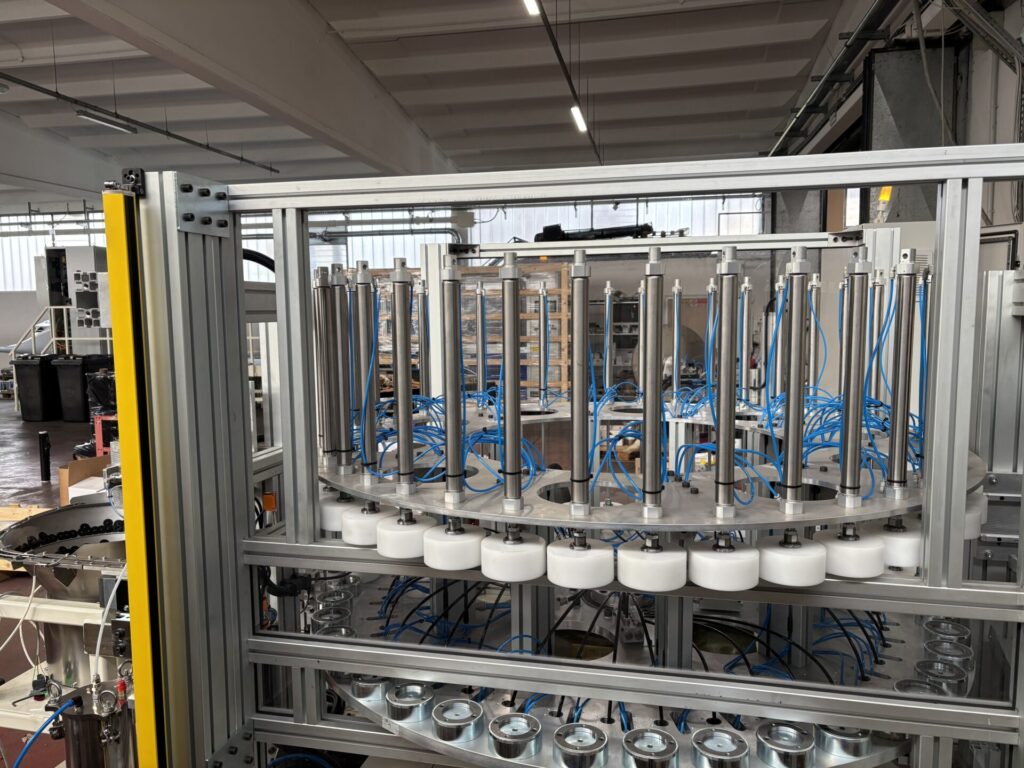

E. A continuous rotary press keeps the disc and support compressed for the following positions

Machine Setup Time for Size Change: 25-30 minutes
Recommended Adhesive: cyanoacrylate-based

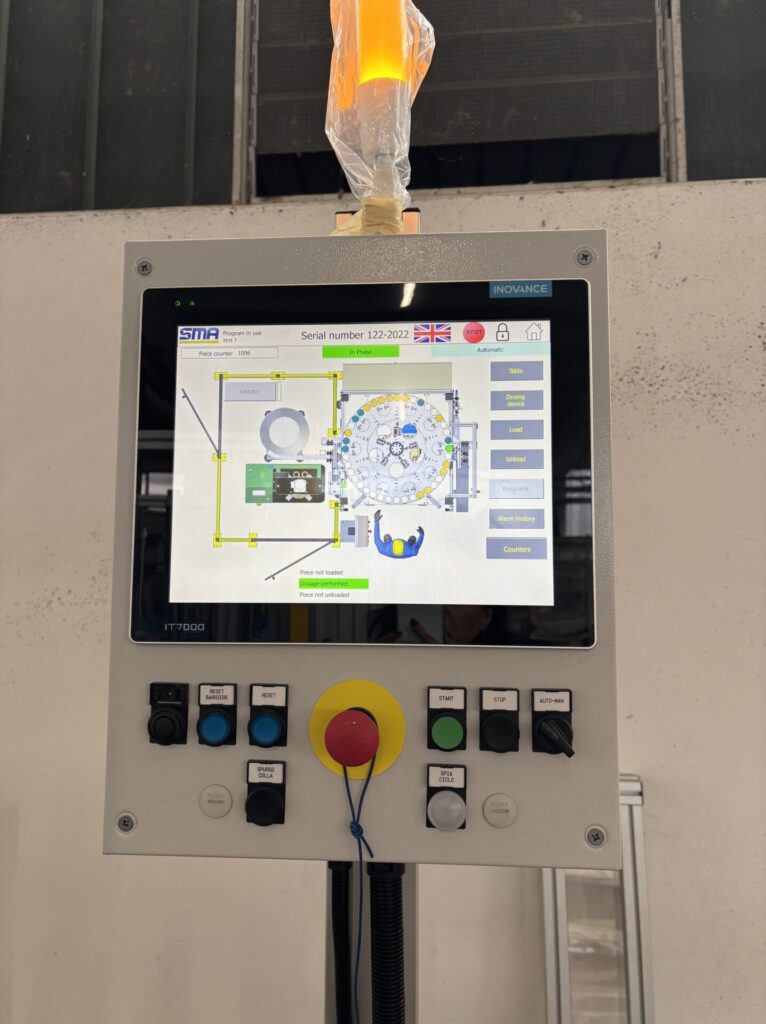

ELECTRONIC SYSTEM: 15” HMI Panel
