SPEED TEST MACHINE FOR NON-WOVEN FLAP DISCS AND WHEELS
Description

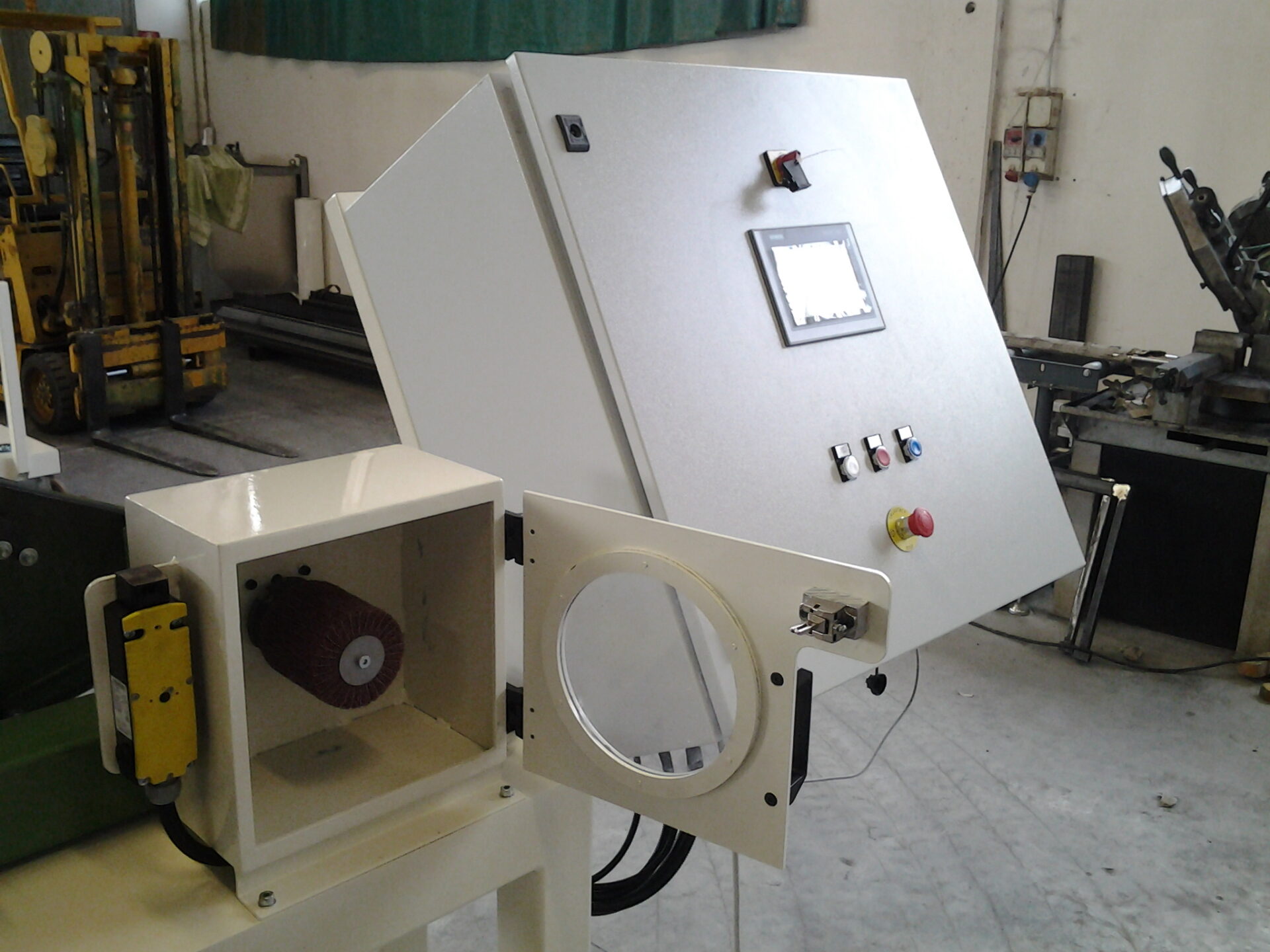

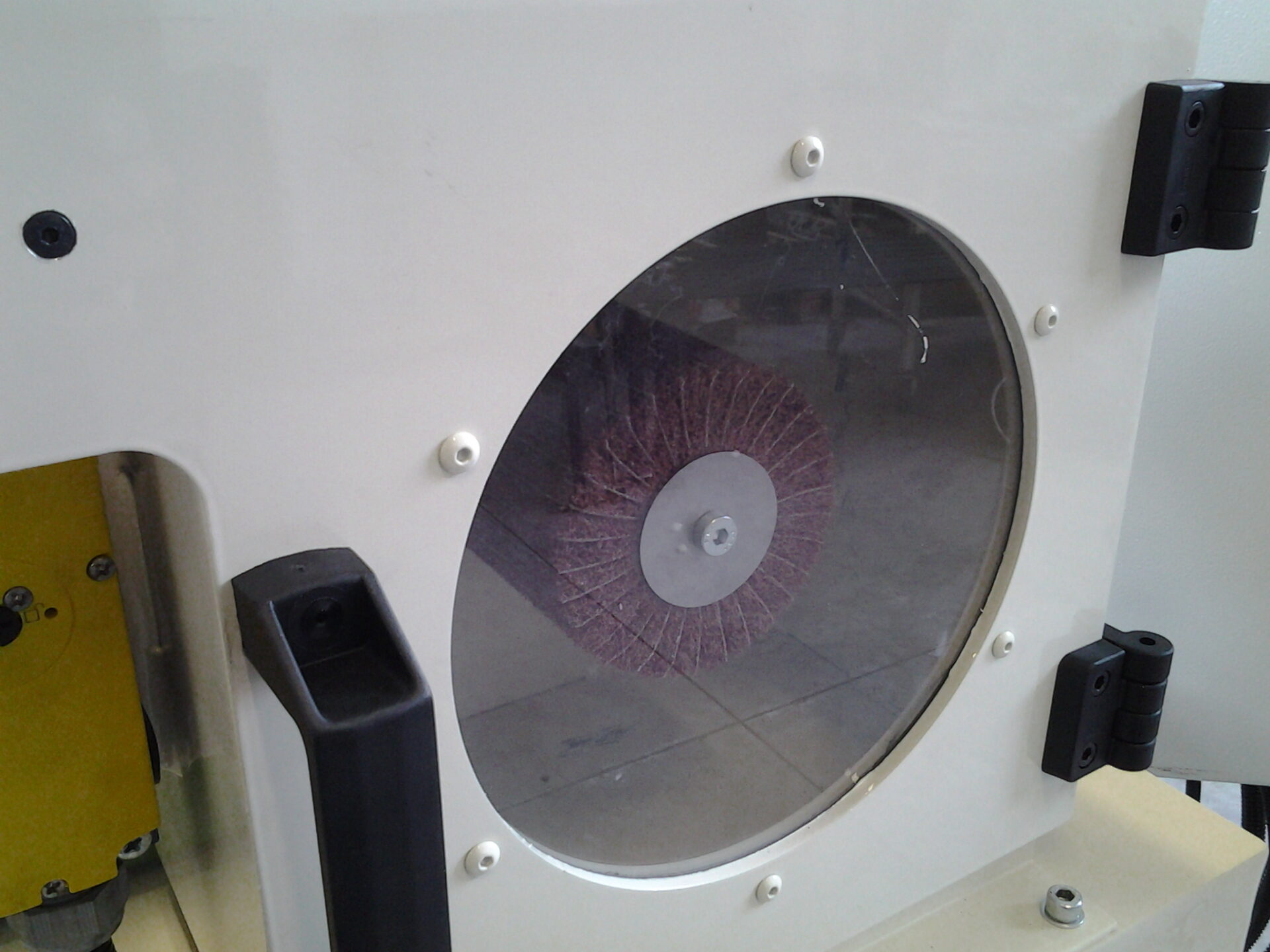

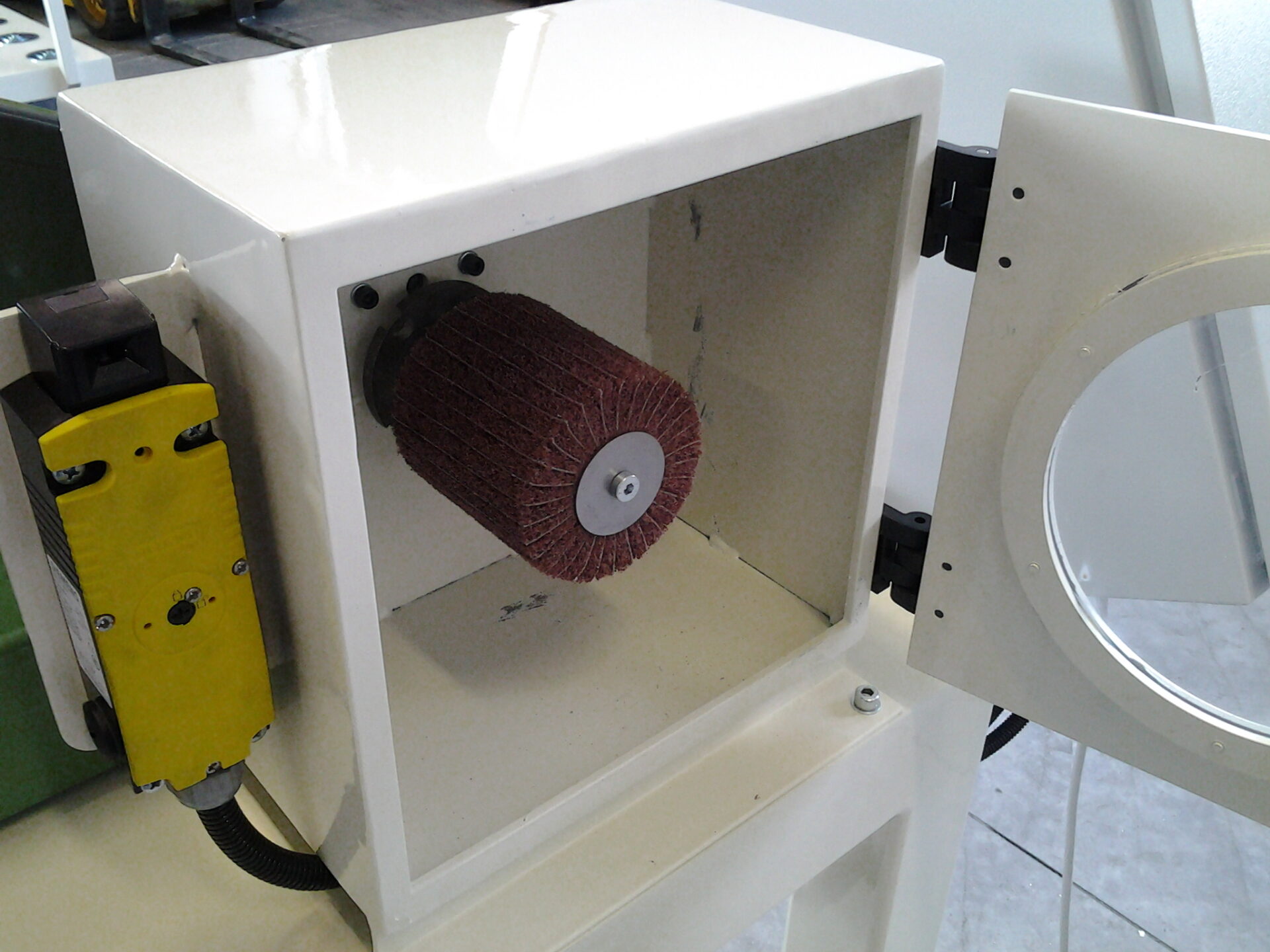

This is an automatic machine for the speed testing of non-woven flap discs and wheels. This tester works with a rotor at a maximum speed of 30,000.00 rev/min and is controlled by a high frequency in-verter. Thanks to an integrated CPU, the operator panel on the side of the machine controls testing parameters, speed and acceleration ramps. The rotor is closed behind an explosion-proof armoured door with electric locking system. A photocell sensor detects the breaking of the disc or the wheel during the speeding phase. A laser printer provides a printing of the test report.
Technical data
Power supply
400V 50HZ
Rated power
2KW
Dimensions
1000X700X1200
Weight
400 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? Yes
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
A SUCTION SYSTEM MUST BE USED WITH THIS UNIT
