UNIT FOR THE CLOSING OF NON-WOVEN ROLLER MOLDS
Description

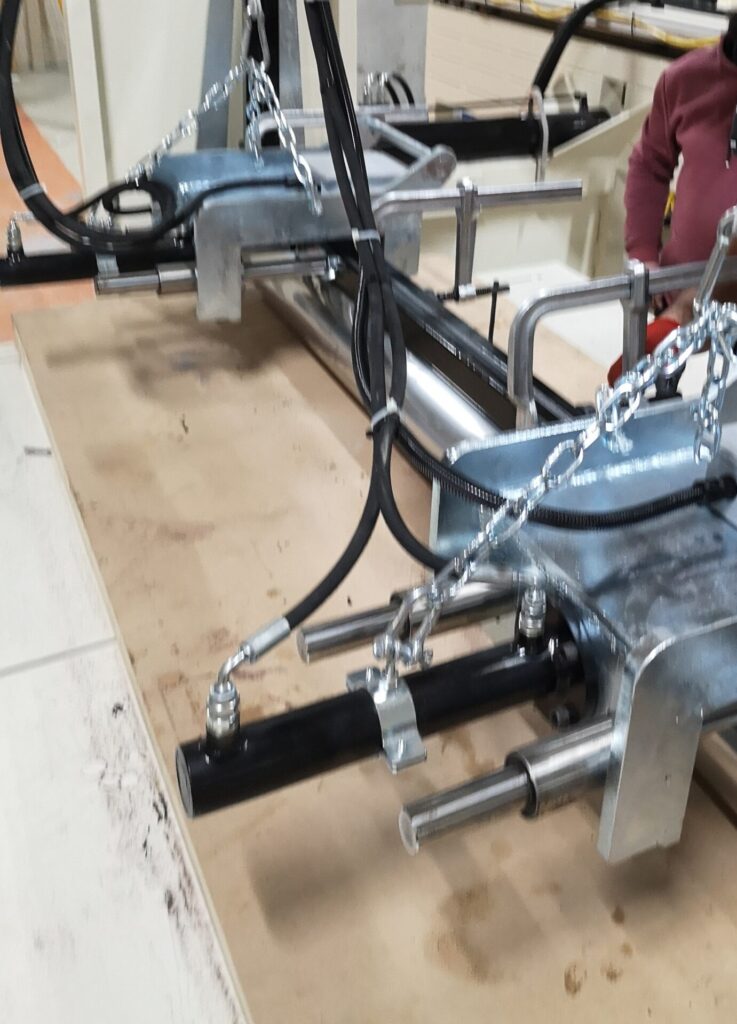

Hydraulic and electric unit whose purpose is the closing of steel-made molds, for NW-roller conversion.
This unit is capable of closing molds from a minimum diameter of 100mm, to a maximum diameter of 500mm. Each mold must be positioned on a trolley, in a size suitable for its handling.
Technical data
Power supply
400V 50HZ
Rated power
12 KW
Dimensions
WORKING AREA 3000X600X3000 ACTIVE AREA 2420X4000X1500
Weight
800 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
