CUTTING UNIT FOR UNMOUNTED WHEELS
Description

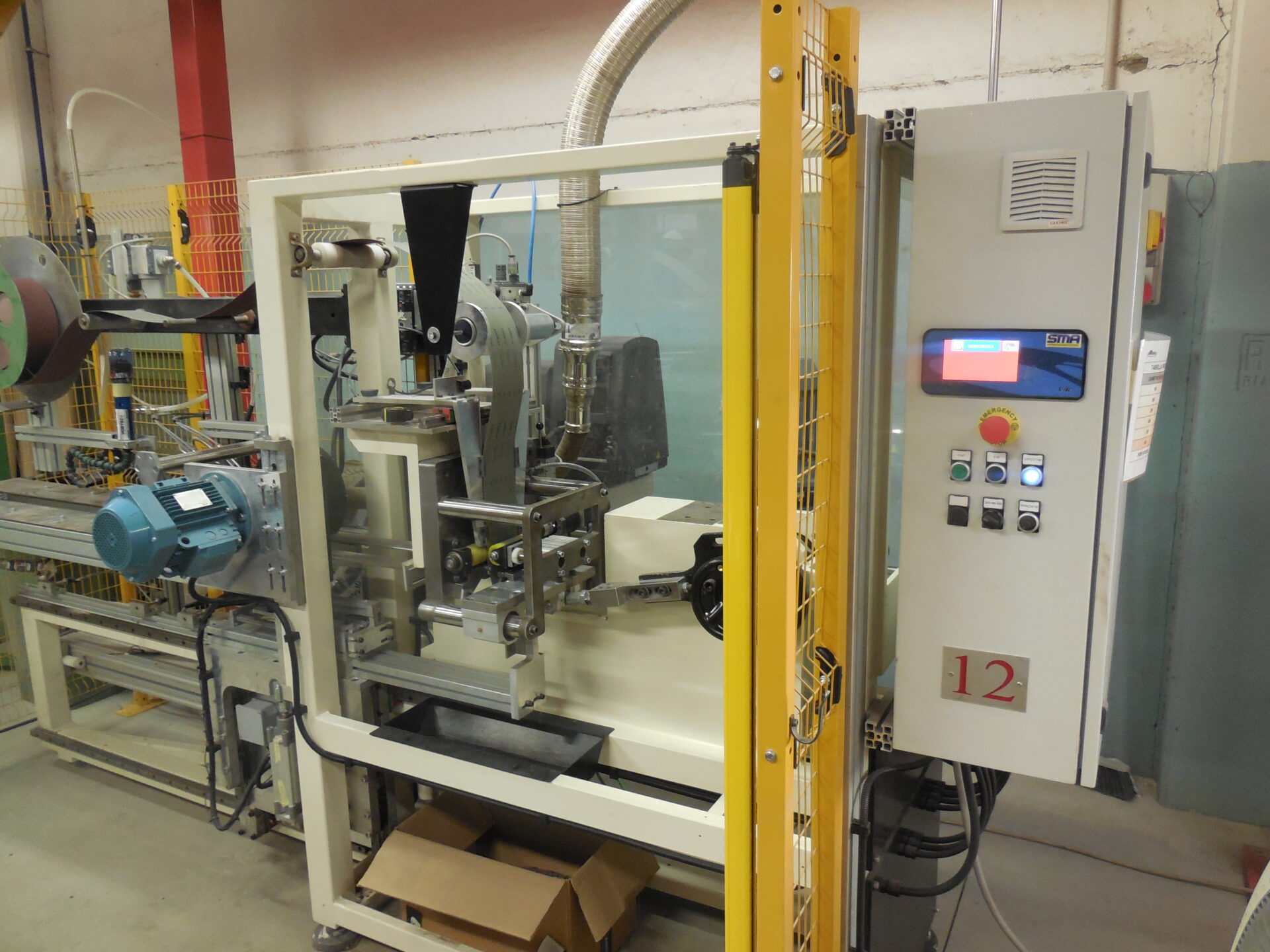

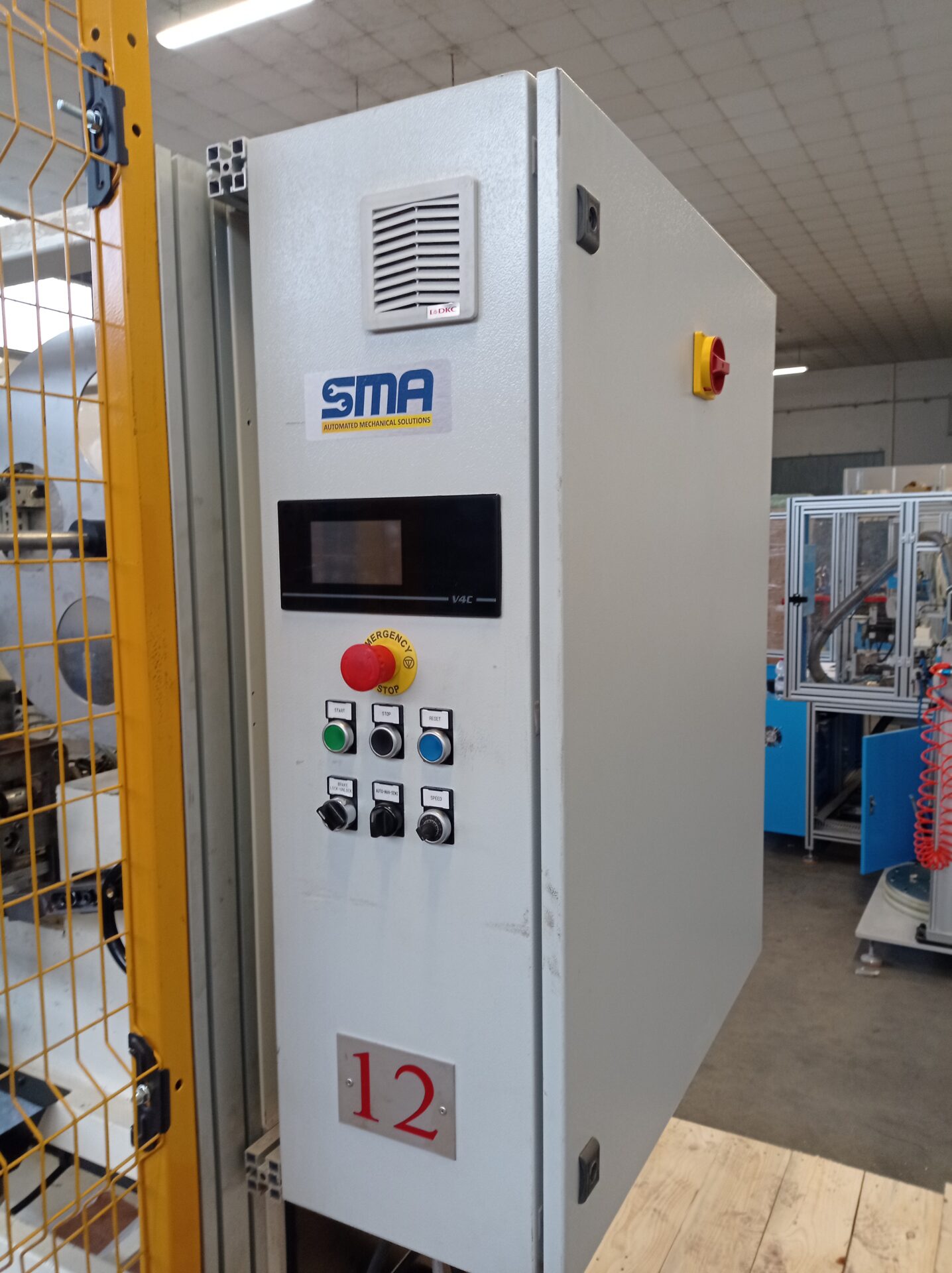

This machine manufactures abrasive cloth wheels with flange, ranging from 100mm to 350mm diameters, and up to a 100mm width. After flap cutting, a flap pack is formed and then stored in a unit at the end of the process. It is equipped with a multifunction touch screen panel that can set and store working recipes.
Technical data
Power supply
400V 50HZ
Rated power
10KW
Dimensions
6000X1500X1800
Weight
1800Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
