CUTTING AND FORMING MACHINE FOR NON-WOVEN FLAP WHEELS
Description

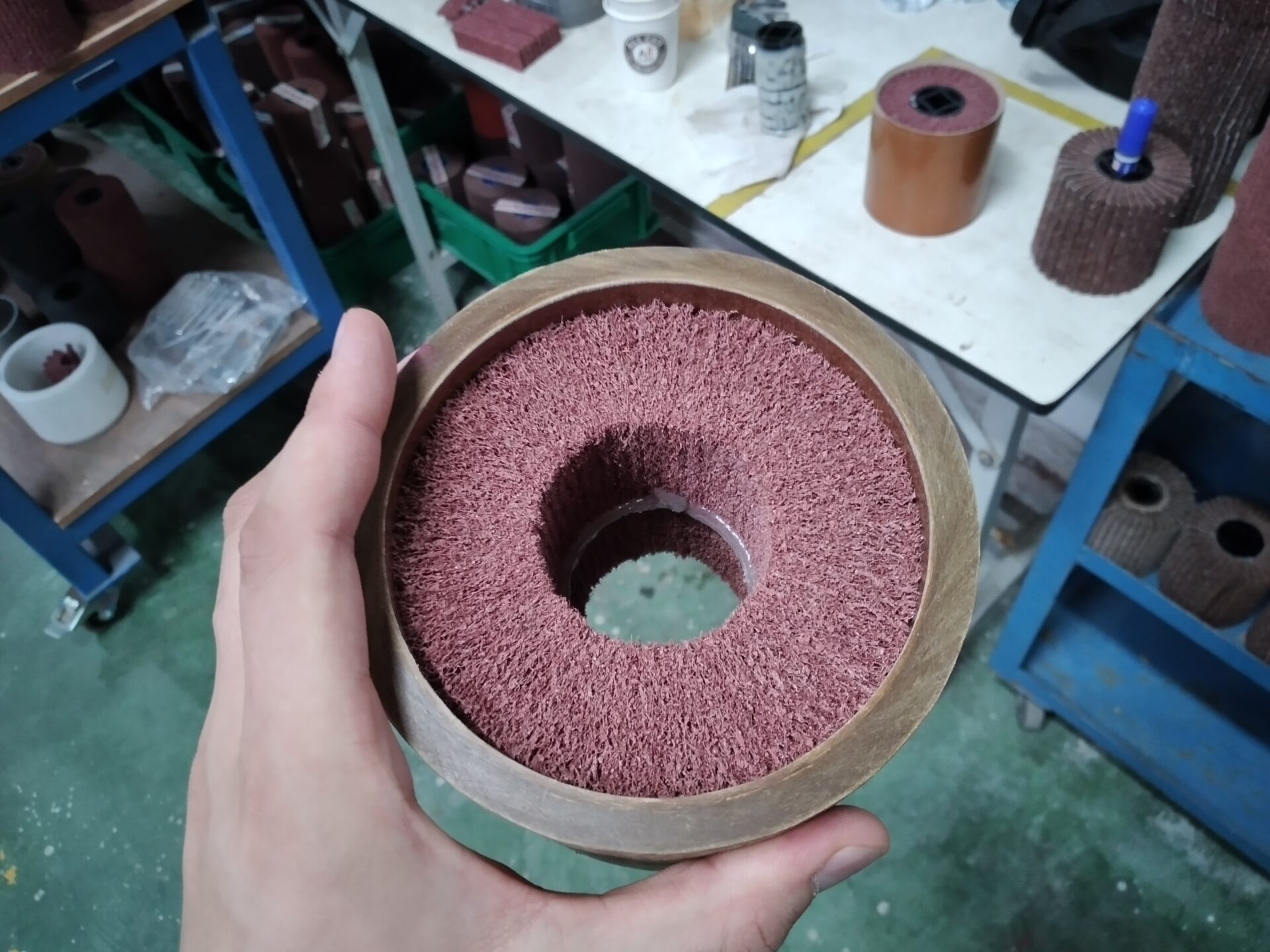

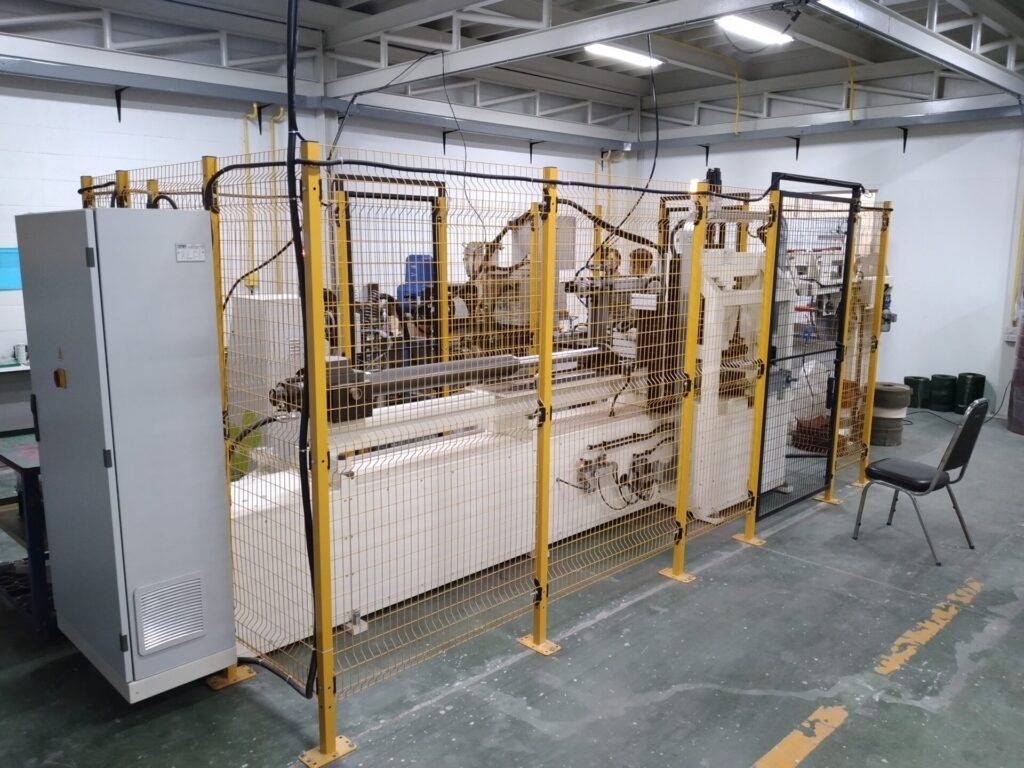

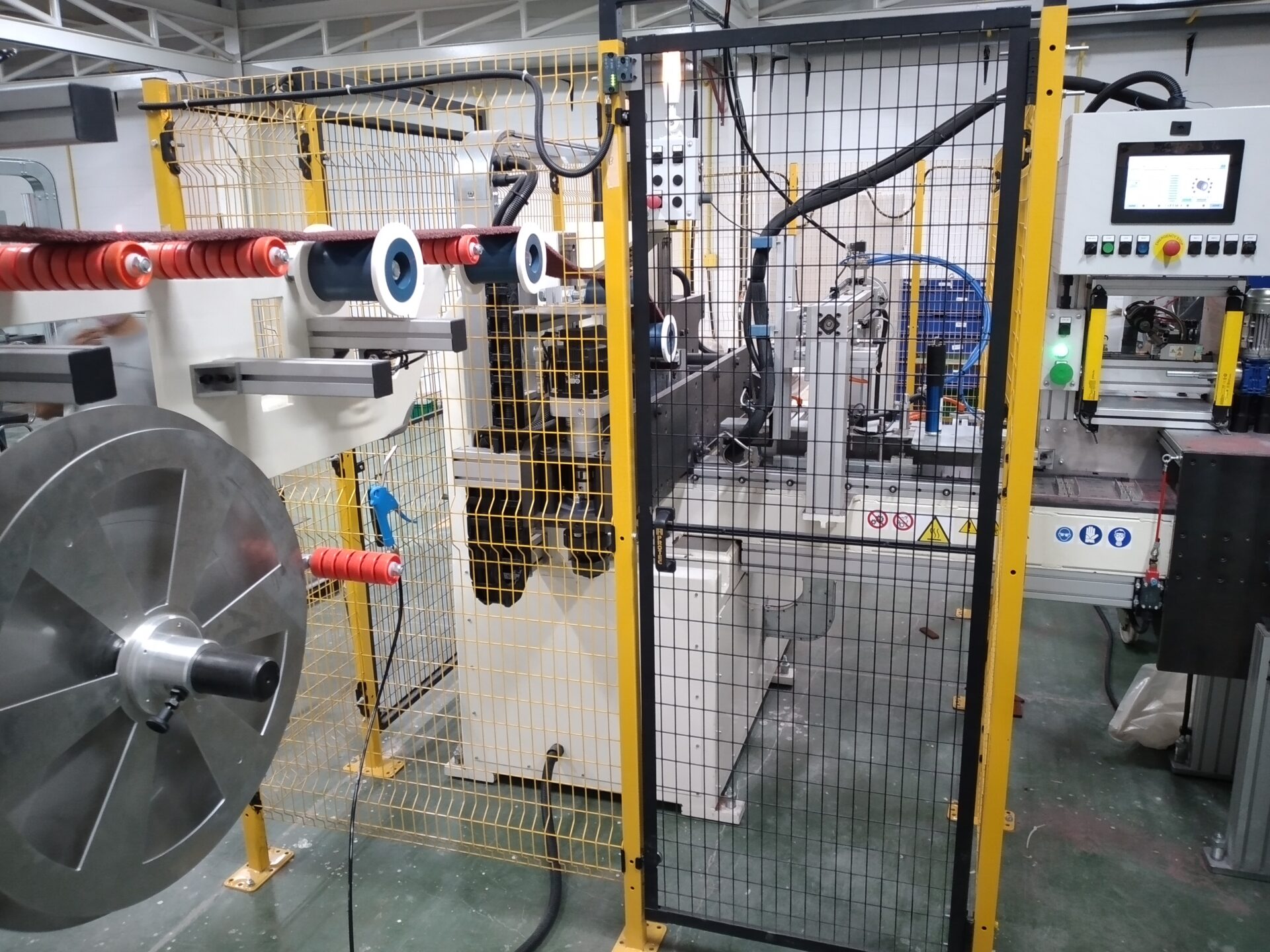

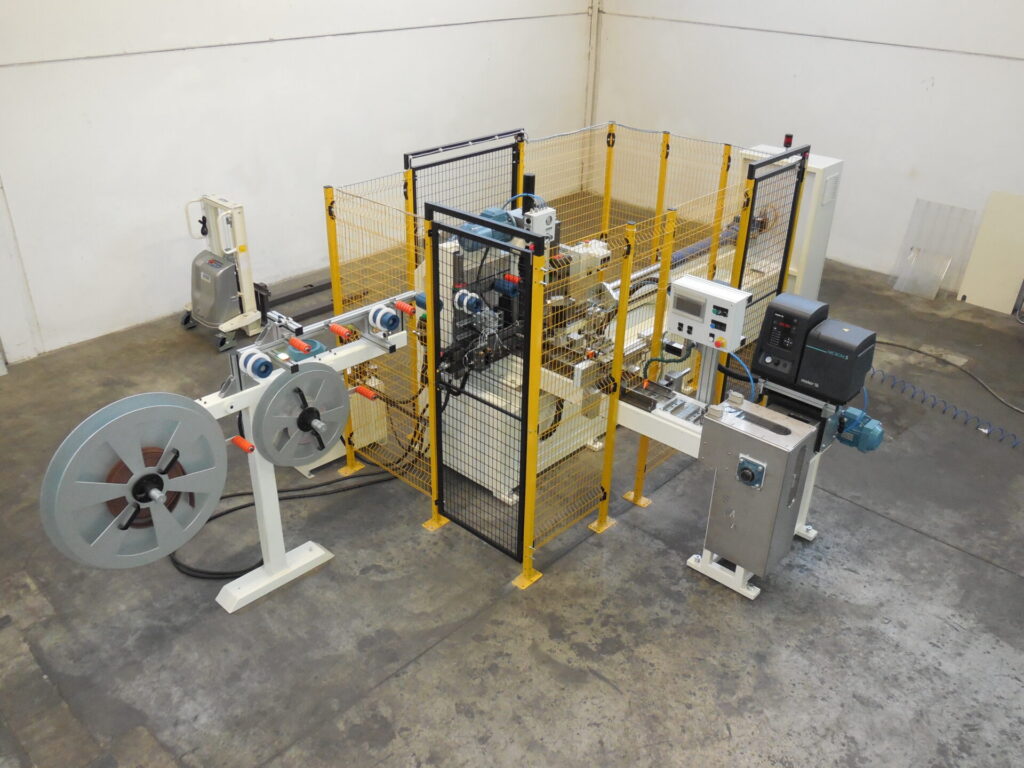

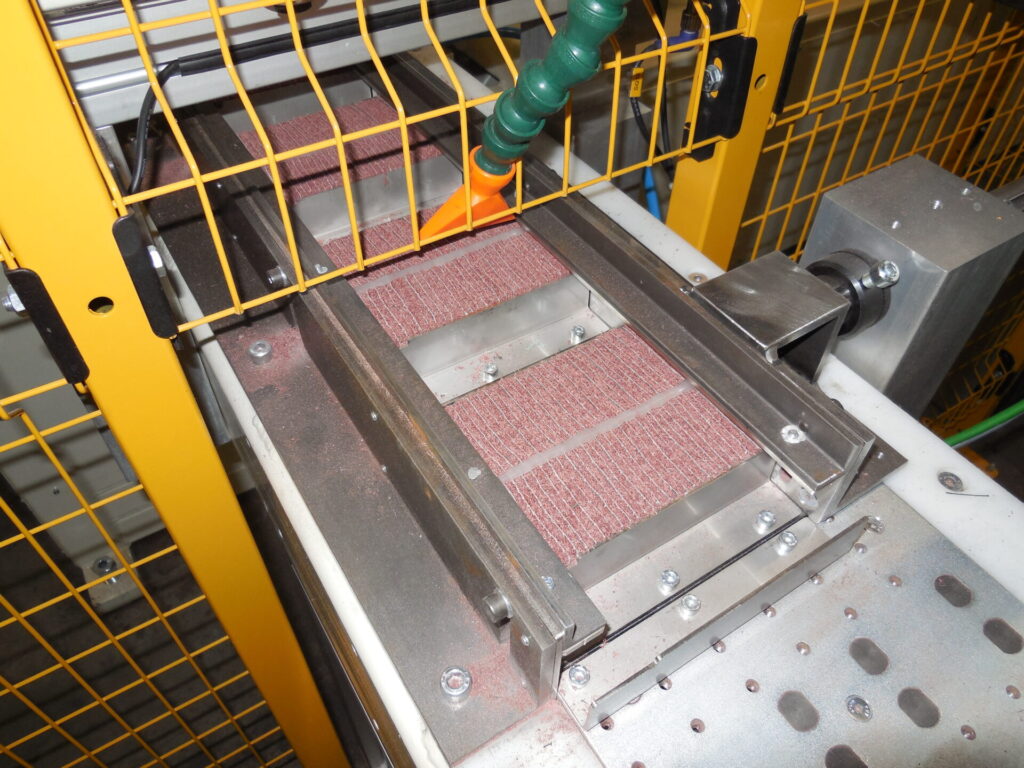

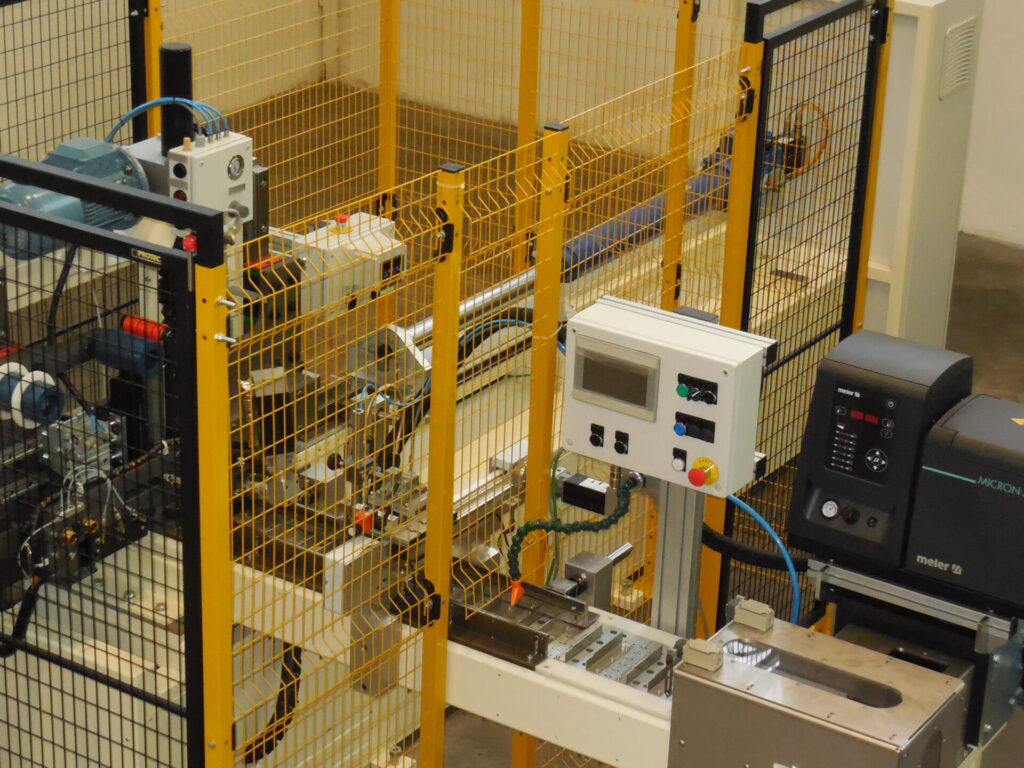

This is an automatic machine for the production of wheels in non-woven fabric and combined non-woven + cloth. The machine cuts a pre-cut roll into flaps, then com-presses and a gluing unit distributes Hot Melt on top of the flap pack. This machine can manufacture combined wheels (non-woven + cloth) in a 1+1 flap combination; a double decoiler unrolls the material. The abrasive material is processed via mechanical cutting, performed by a double blade made of hard metal.
Productivity (e.g. for a 110×100 AC wheel):
160 pcs/hour
Technical data
Power supply
400V 50HZ
Rated power
15KW
Dimensions
6000X3000
Weight
2000Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
Ring to contain flaps

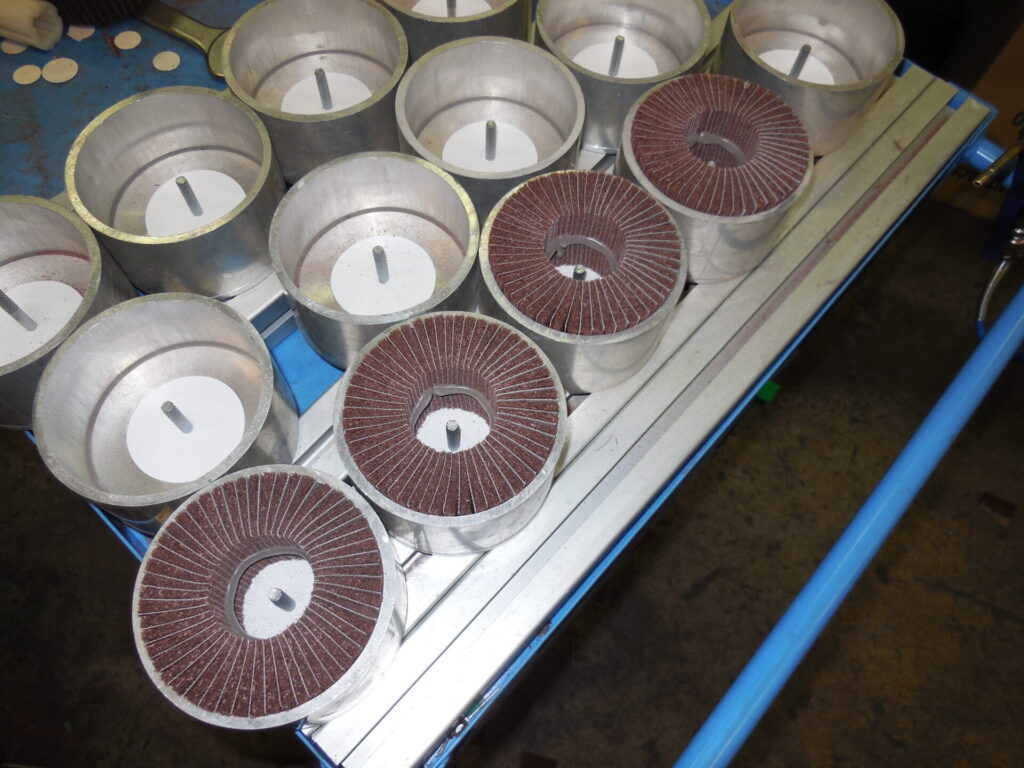

Mold with 19,10mm centring
Mold with centring for
shaft-mounted
wheels with 6 or 3mm shank
