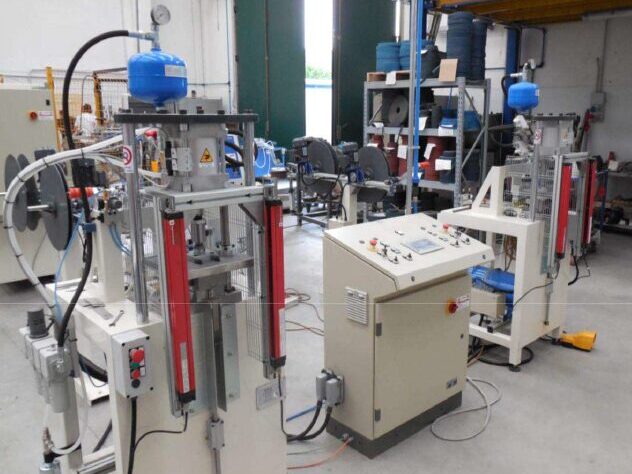

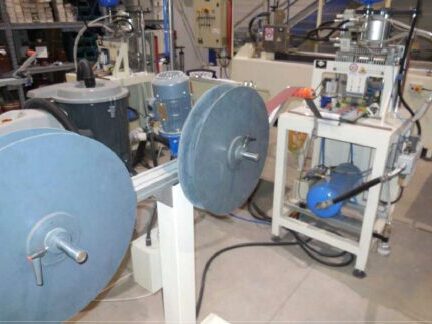

CUTTING UNIT FOR UNMOUNTED WHEELS
Description
This semi-automatic piece of equipment is for abrasive cloth wheels with flange, ranging from 165mm to
350mm diameters, and up to a 100mm width . Abrasive cloth is cut into flaps and these are subsequently
stored in a verti-cal loader. It is equipped with a multifunction touch screen panel that can set and store all the operator’s customi-sed programmes. This machine productively works with a dual programming approach; it is possible to simultaneously manufacture two types of wheels, different from one another.
Technical data
Power supply
400V 50HZ
Rated power
10KW
Dimensions
3500X3500X1600
Weight
1500Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
Medium
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
