SMA-CTR/1

Description

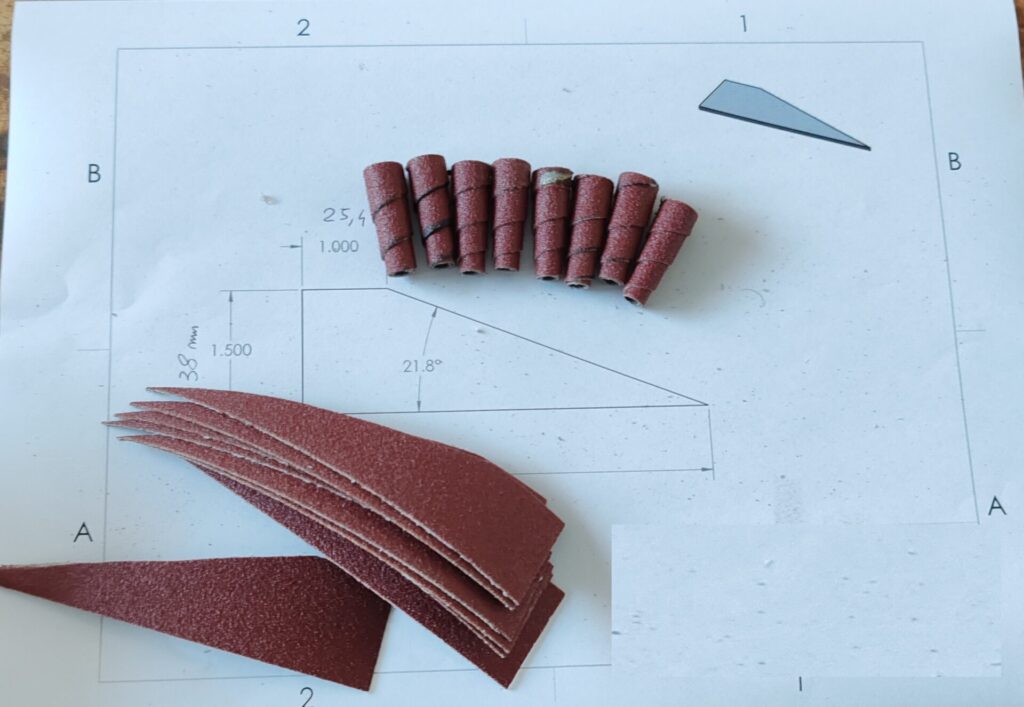

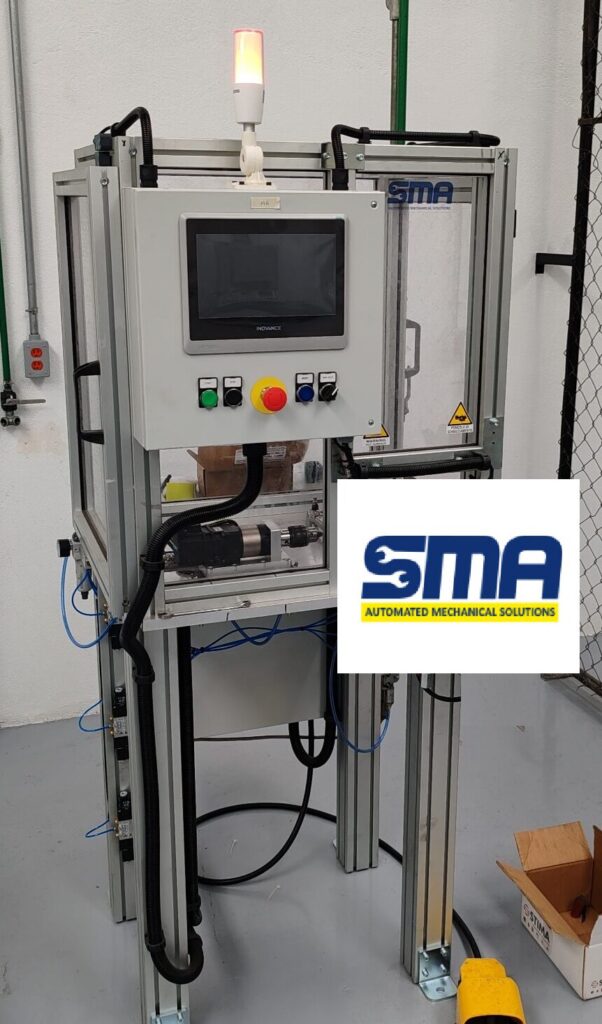

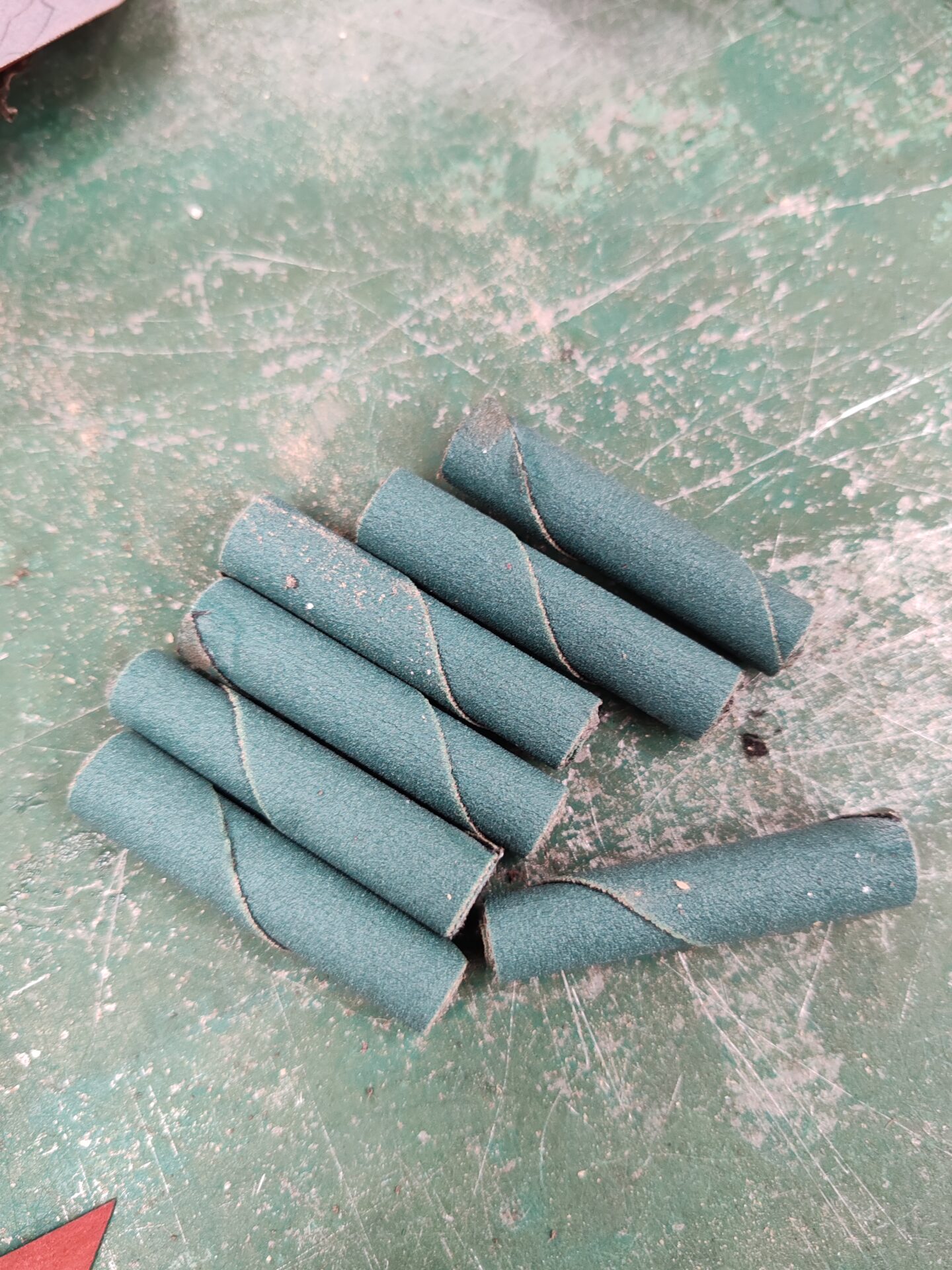

SMA-CRT/1 is a semi-automatic machine designed for the production of abrasive cartridge rolls. It features a rotating roller gluer positioned in front of the operator’s workstation, allowing for efficient and accurate assembly. The operator manually wets one end of the abrasive cloth with adhesive, inserts it into the housing, and activates the cycle using a foot pedal. The machine then automatically rolls and seals the abrasive cartridge.

Technical Specifications
Type: Semi-automatic
Main Functions: Gluing by rotating roller

Automatic rolling
Final automatic sealing
Operator Interface:

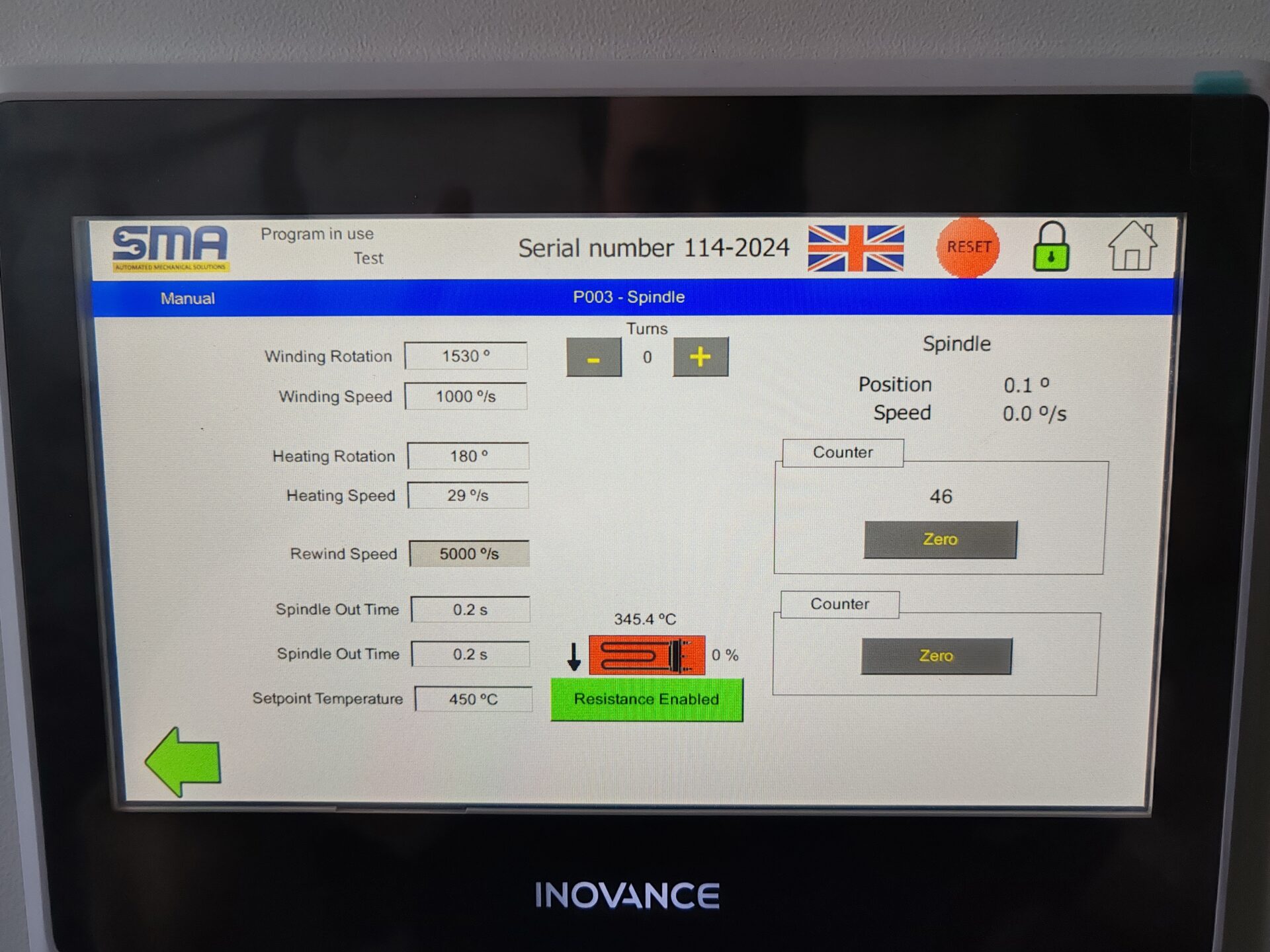

10” touch-screen HMI for parameter setting
Adjustable Parameters via HMI

Winding speed
Winding angle
Sealing speed
Sealing angle
Sealing temperature (adjustable from 50°C to 550°C)

Performance
Average production rate: 12–15 pieces per minute (at maximum sealing temperature)
