SMA-TFWA/RS007N

Print datasheet

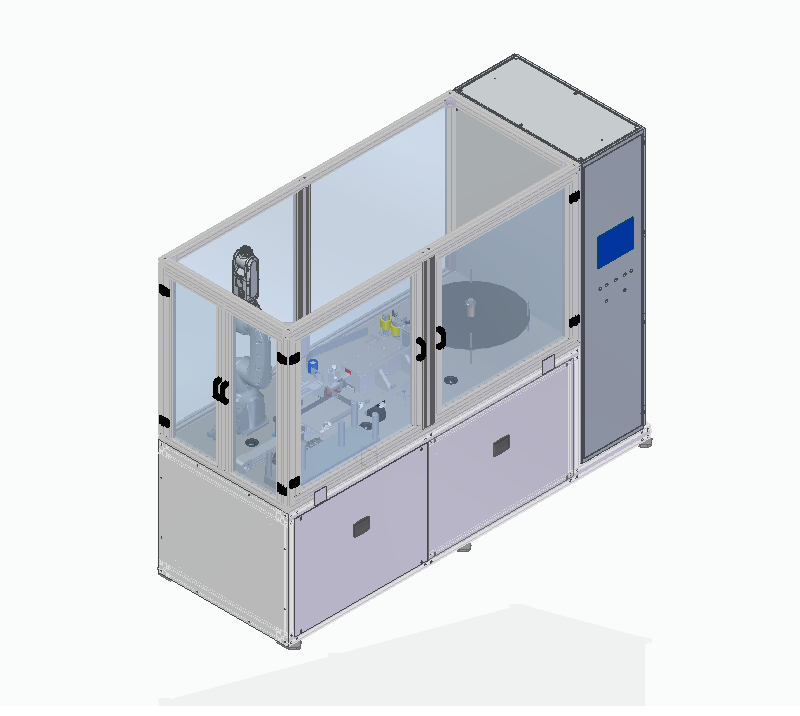

AUTOMATIC CUTTING MACHINE FOR SHAFT-MOUNTED FLAP WHEELS FEATURING A KAWASAKI ROBOT

Description

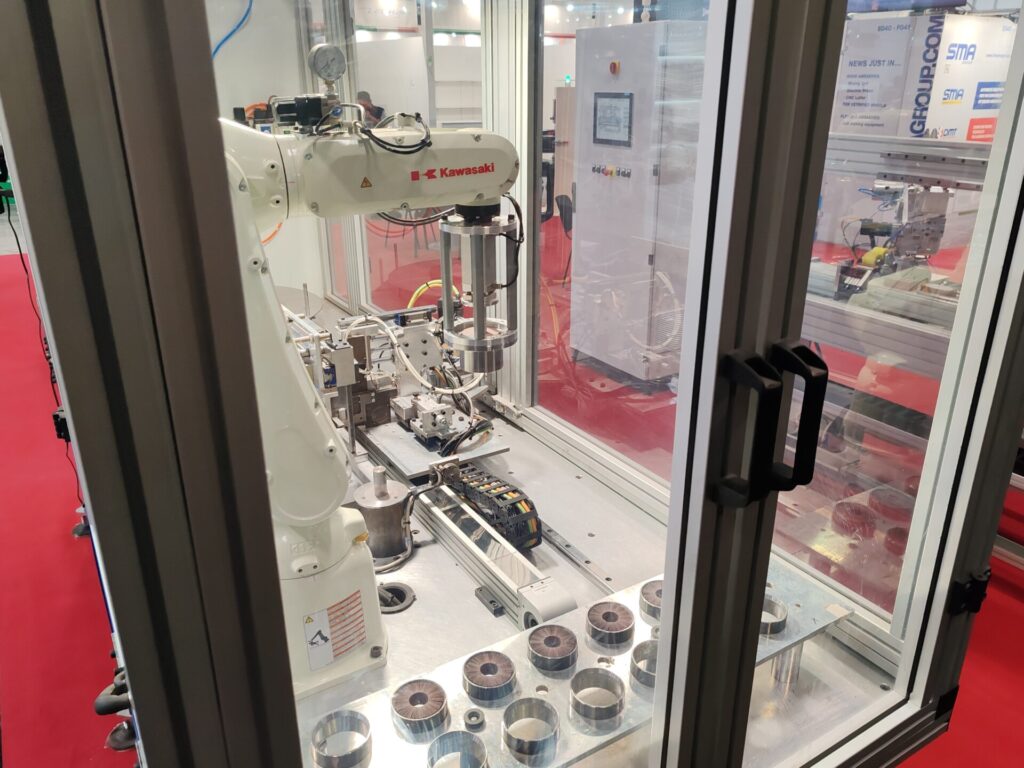

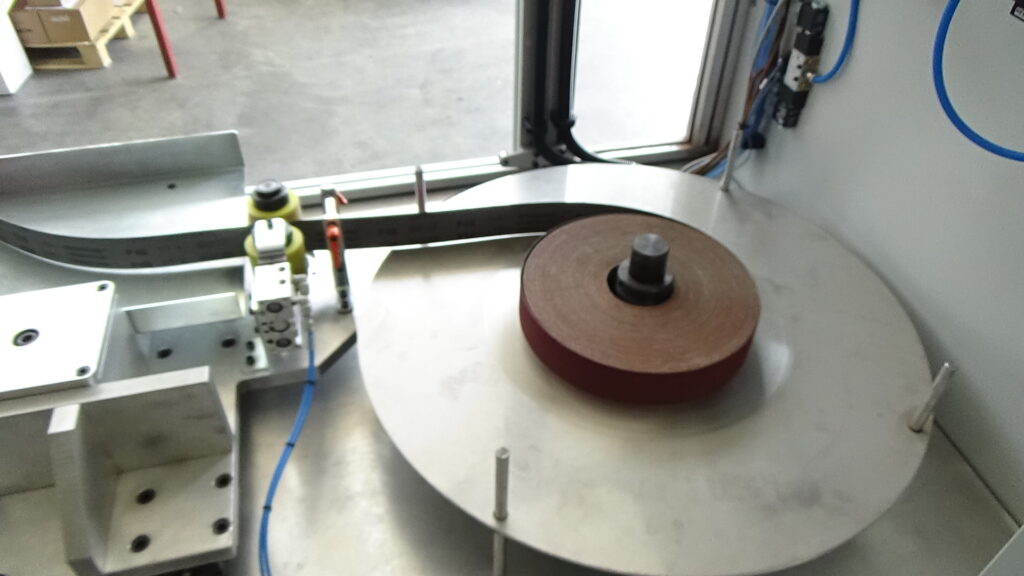

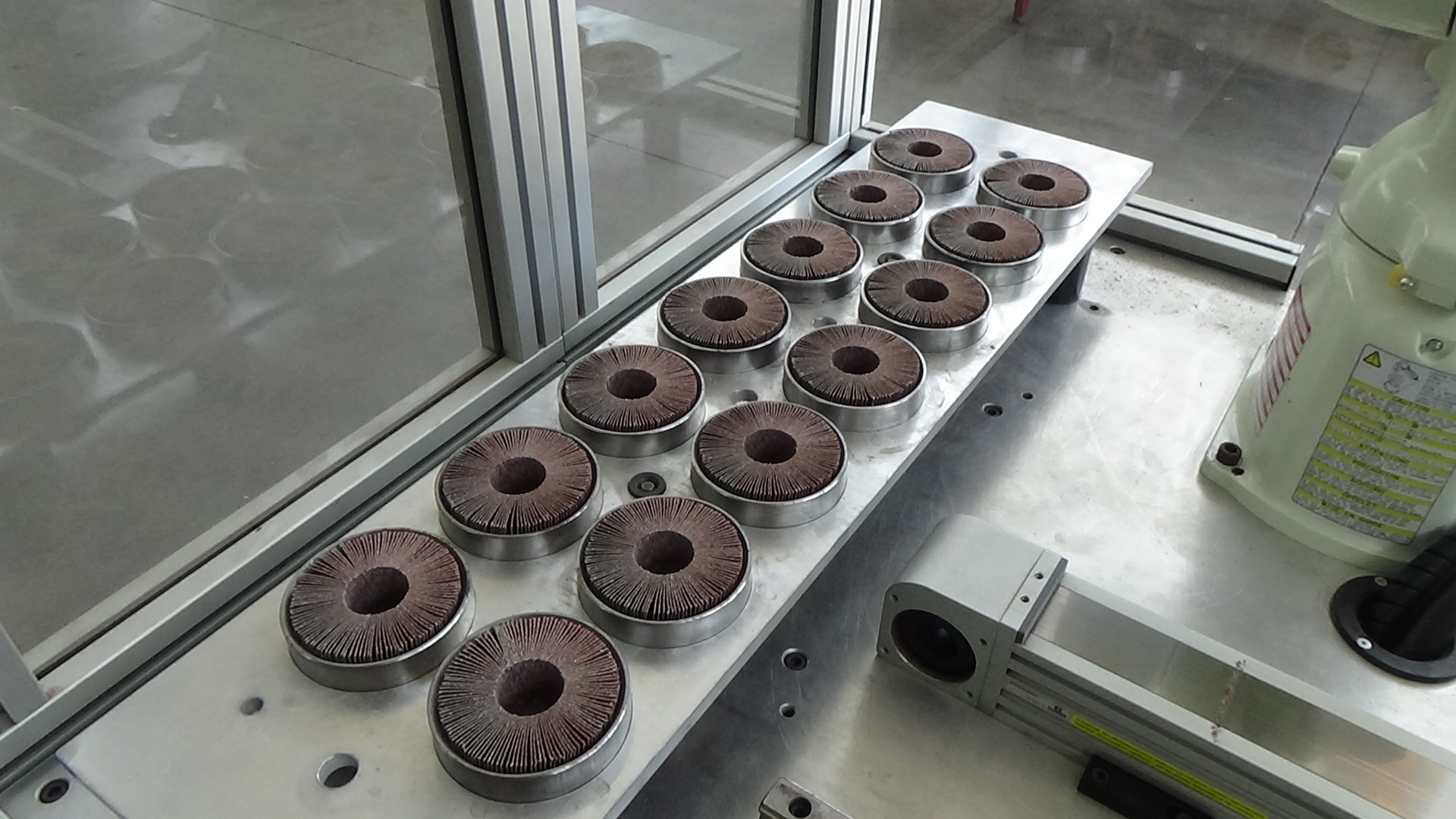

Automatic cutting and forming machine for shaft-mounted flap wheels. Diameter range goes from 20 to 80mm. The flap pack is cut lengthways, then formed via 360° rotation. Flaps are hence distributed consistently along the wheel inside diameter. The machine is robust, reliable and easy to set up thanks to an extremely quick format change. The unit is equipped with an IPC that implements RTLinux operating system. Communication elements and axes work via EtherCAt module. The machine features Industry 4.0 technologies. SMA-TFWA/RS007N, featuring a Kawasaki robot for the automatic unloading of flap packs into trays.

Specifications
5/6 pcs/min

Technical data

Power supply

400V 50HZ

Rated power

5KW

Dimensions

3170X1200X2300

Weight

1200 Kg

Compressor feed available?

Yes

Cycle consumption

Test

Productiviy

High

Number of operators

1

Machine Color

RAL1013

Noise level

25 dB

Marking

CE

PPI required? YES

  • SAFETY SHOES
  • SHIRTS WITH ELASTIC CUFFS
  • GLASSES
  • GLOVES
  • EARPLUGS

Accessories?

A SUCTION SYSTEM MUST BE USED WITH THIS EQUIPMENT
