SMA-DMV

DOSING AND DISPENSING UNIT FOR 2K RESINS

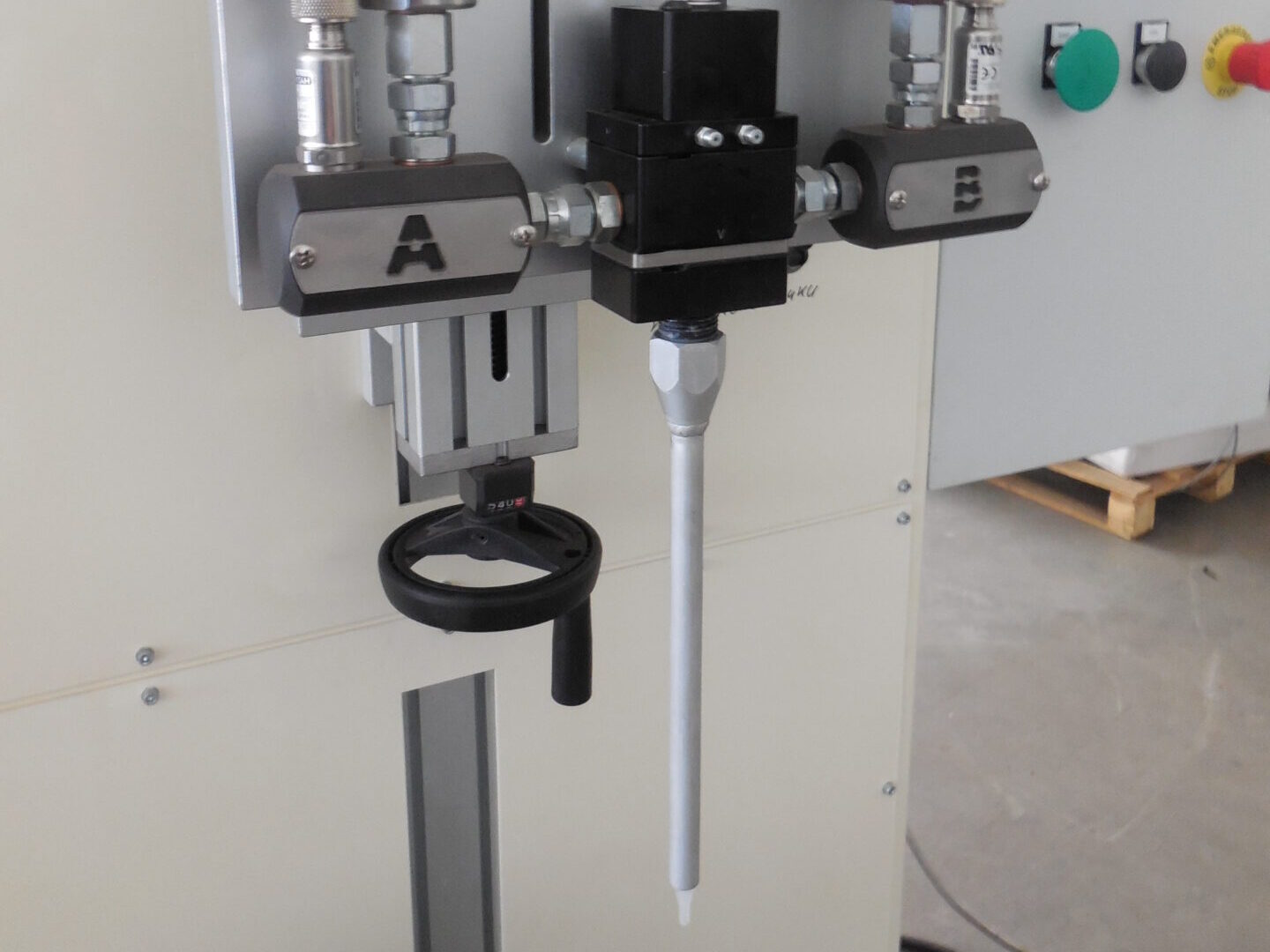

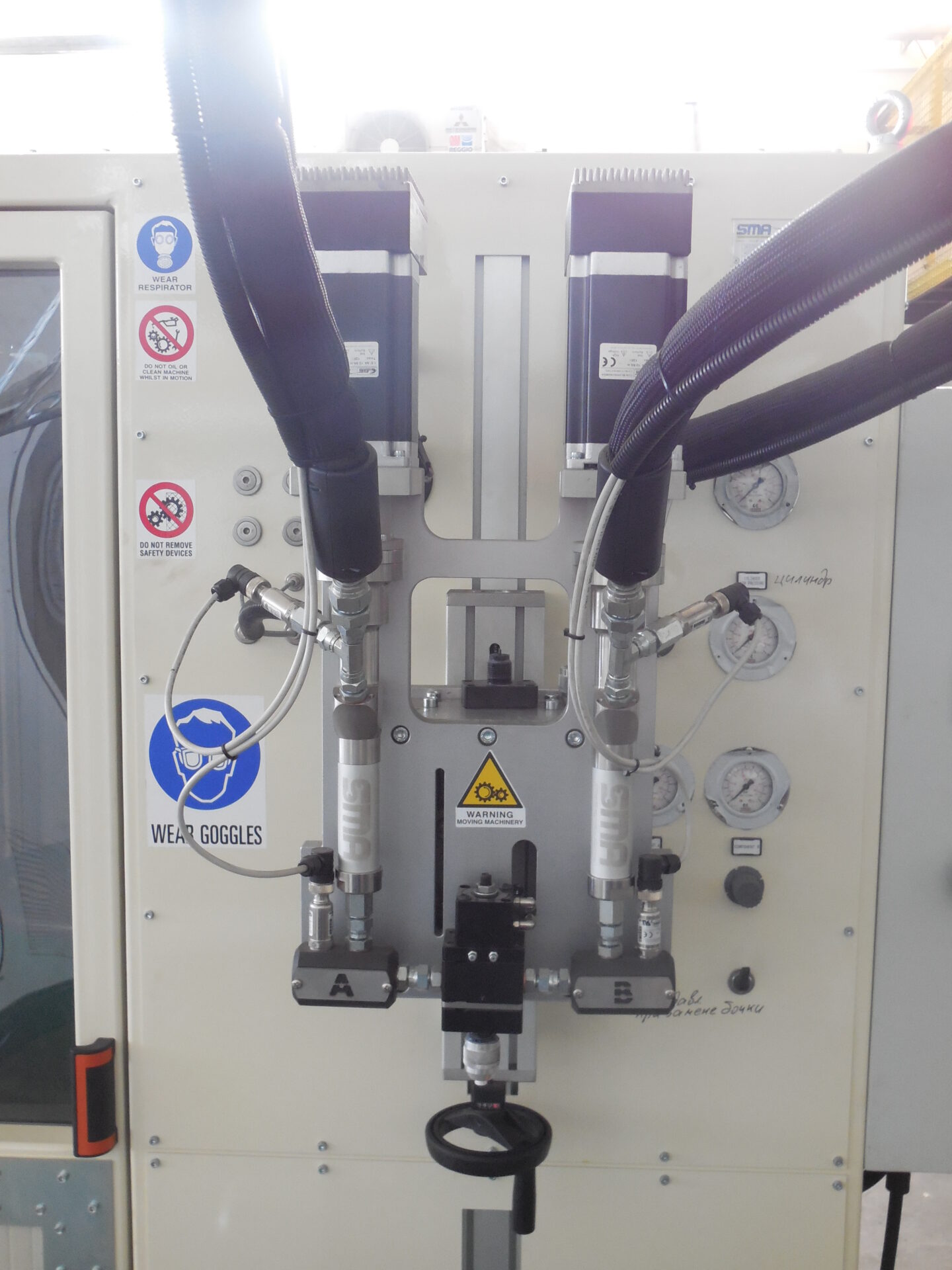

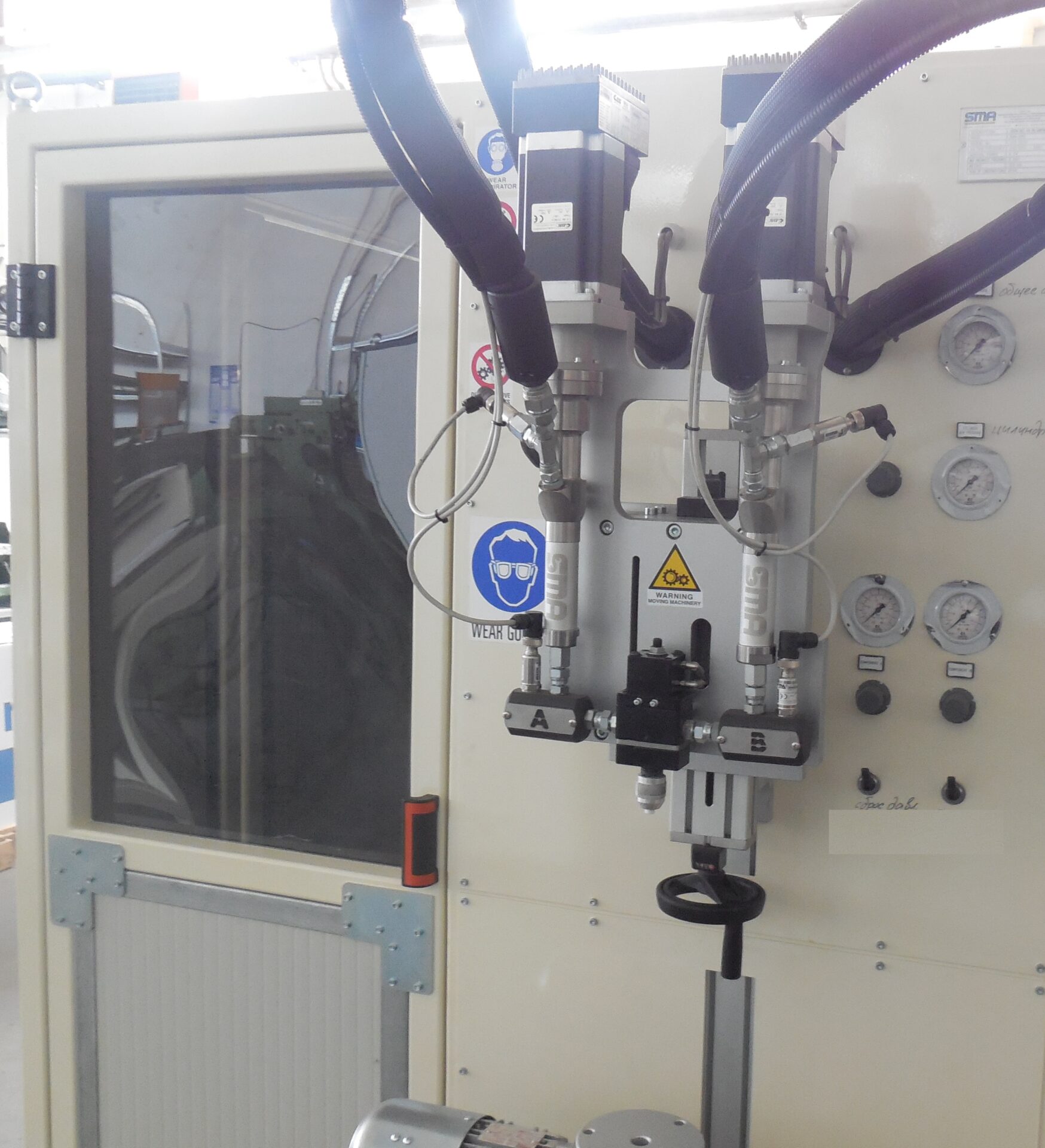

Volumetric proportioning machine that uses eccentric screw pumps; for numerous applications. 200/250kg drums of resin are stored in an insulated box; piston pumps extract the product and transfer it into flux regulators and stabilisers, screw pumps then cast the product. The mixing unit is composed of a head block, made of aluminium, and a double on/off valve. This machine is controlled by a 7” multifunction operator interface that manages dosing parameters, ratio be-tween component A and component B, and dispensing mode of the product. For large-scale production, a buffer rotary table with 8 to 12 workstations can be installed to operate continuously.

Pumps:
Capacity: from 0.03 to 4 cm3/rev
Dosing accuracy: 1%
Viscosity: from 1 to 1mil MPas
