TESTING UNIT FOR FLAP DISCS AND SHAFT-MOUNTED FLAP WHEELS
Description

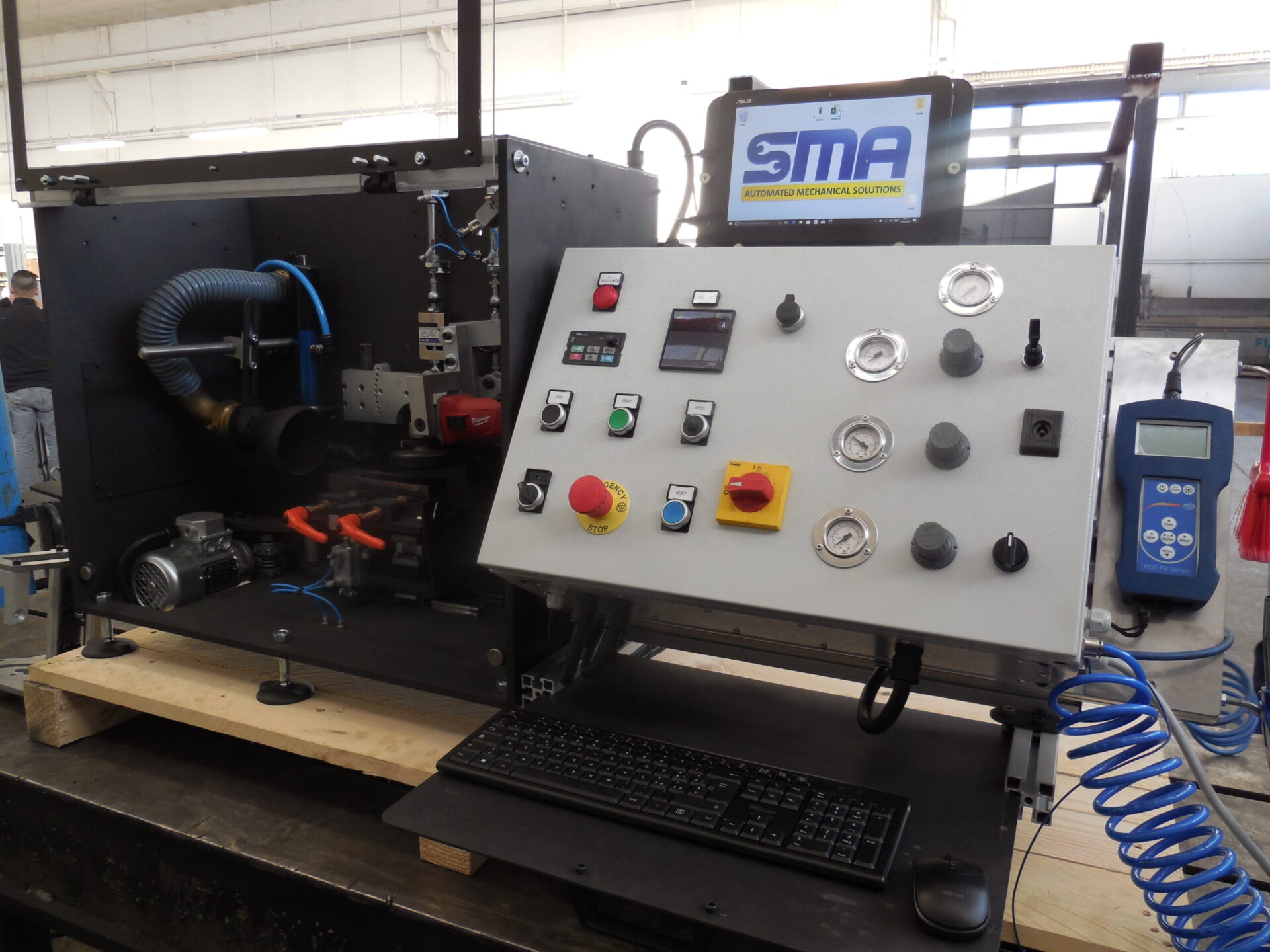

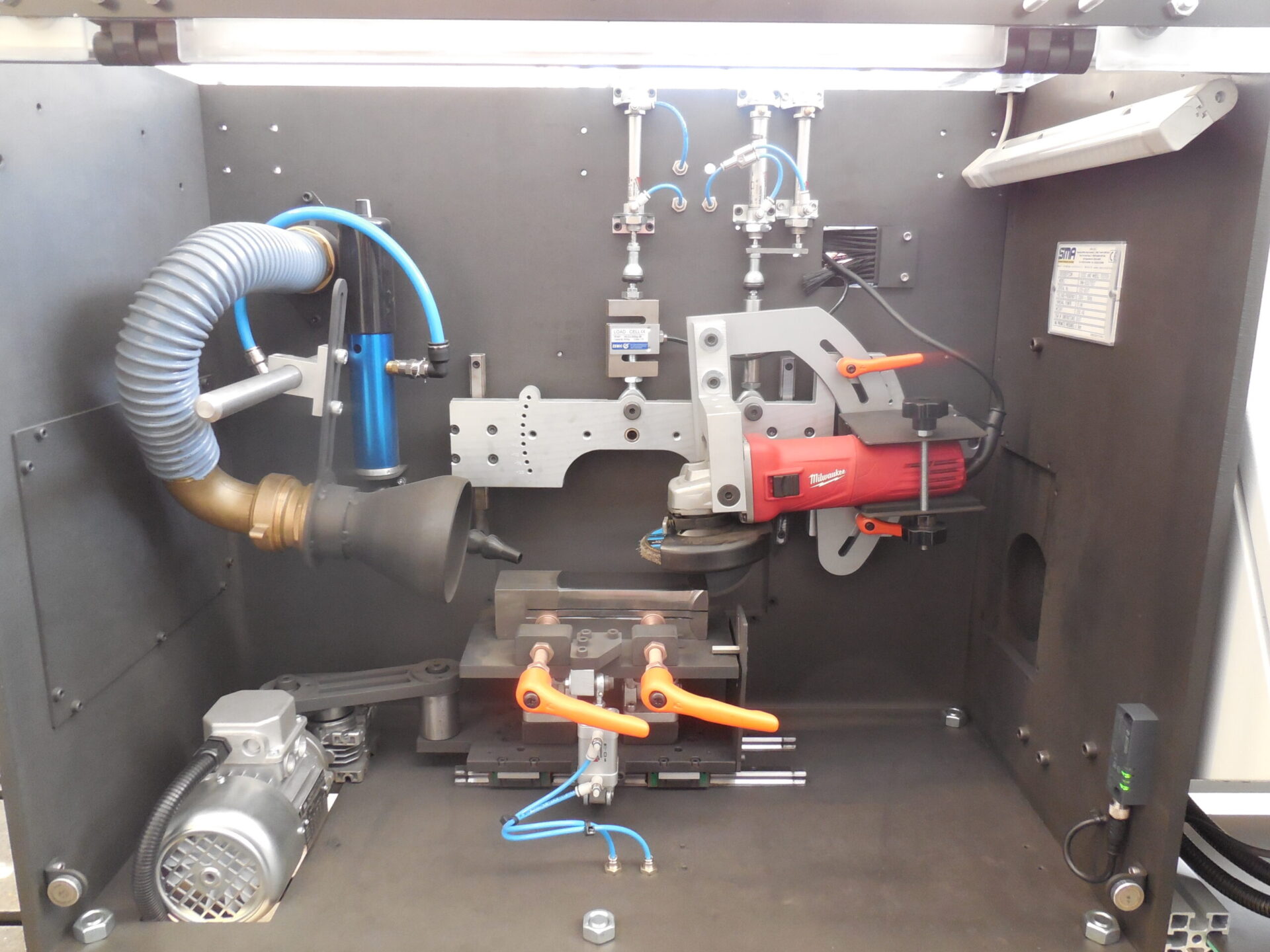

Unit for quality test of flap discs and shaft-mounted flap wheels.
Diameter range: from 100 to 180mm
Report with performance graph
Real procedure simulation
Working stroke adjustment
Automatic inclination of plate
Software for control of test procedure
Technical data
Power supply
400V 50HZ
Rated power
500W
Dimensions
1300X600X600
Weight
170 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
2
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? Yes
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
A SUCTION SYSTEM MUST BE USED WITH THIS UNIT
