HYDRAULIC PRESSING MACHINE WITH COMBINED PRESSURE FOR NON-WOVEN ROLLS
Description

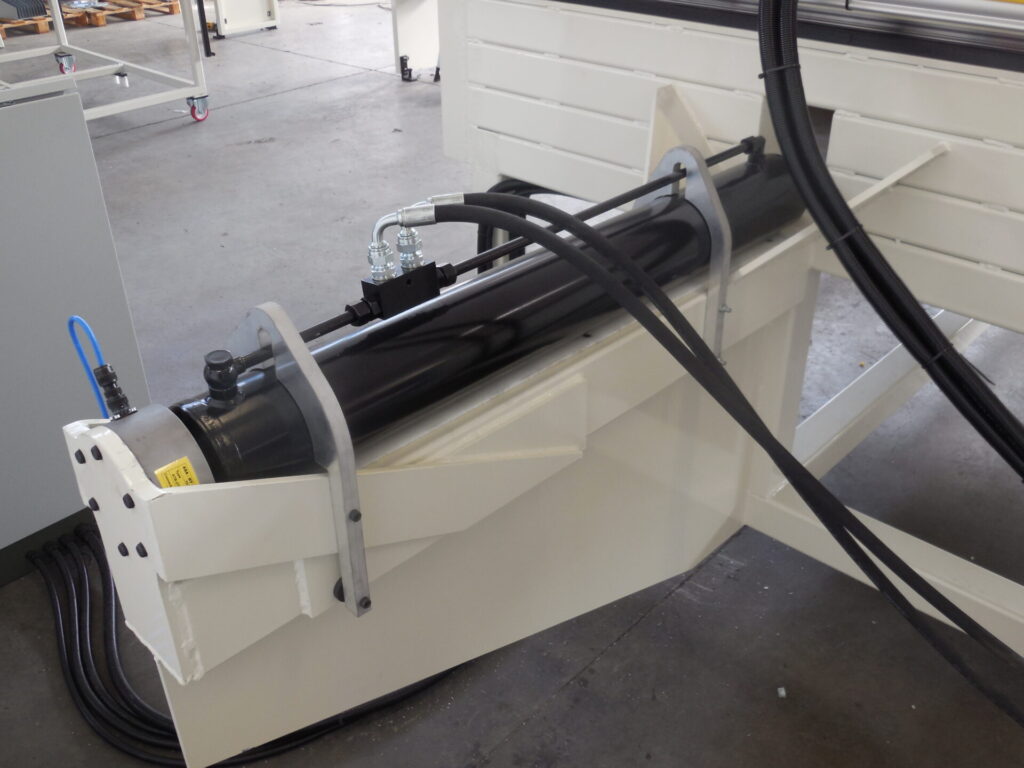

This is a machine for the production of abrasive rollers; maximum working sizes are 500mm diameter and 1700mm stan-dard length. This new-concept machine presses the material by means of four hydraulic cylinders placed at the side of the machine, thus improving the final quality of the roller. This system, developed by S.M.A., operates by opposed compression; thanks to it, rollers are more compact and homoge-neous at every step. With the G-Press option, through specific load cells, it is possible to control compression and its repeatabili-ty.
Technical data
Power supply
400V 50HZ
Rated power
7 KW
Dimensions
5000X2500X2000
Weight
2600 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
G-Press control system
