CUTTING MACHINE FOR ABRASIVE SHEETS
Description

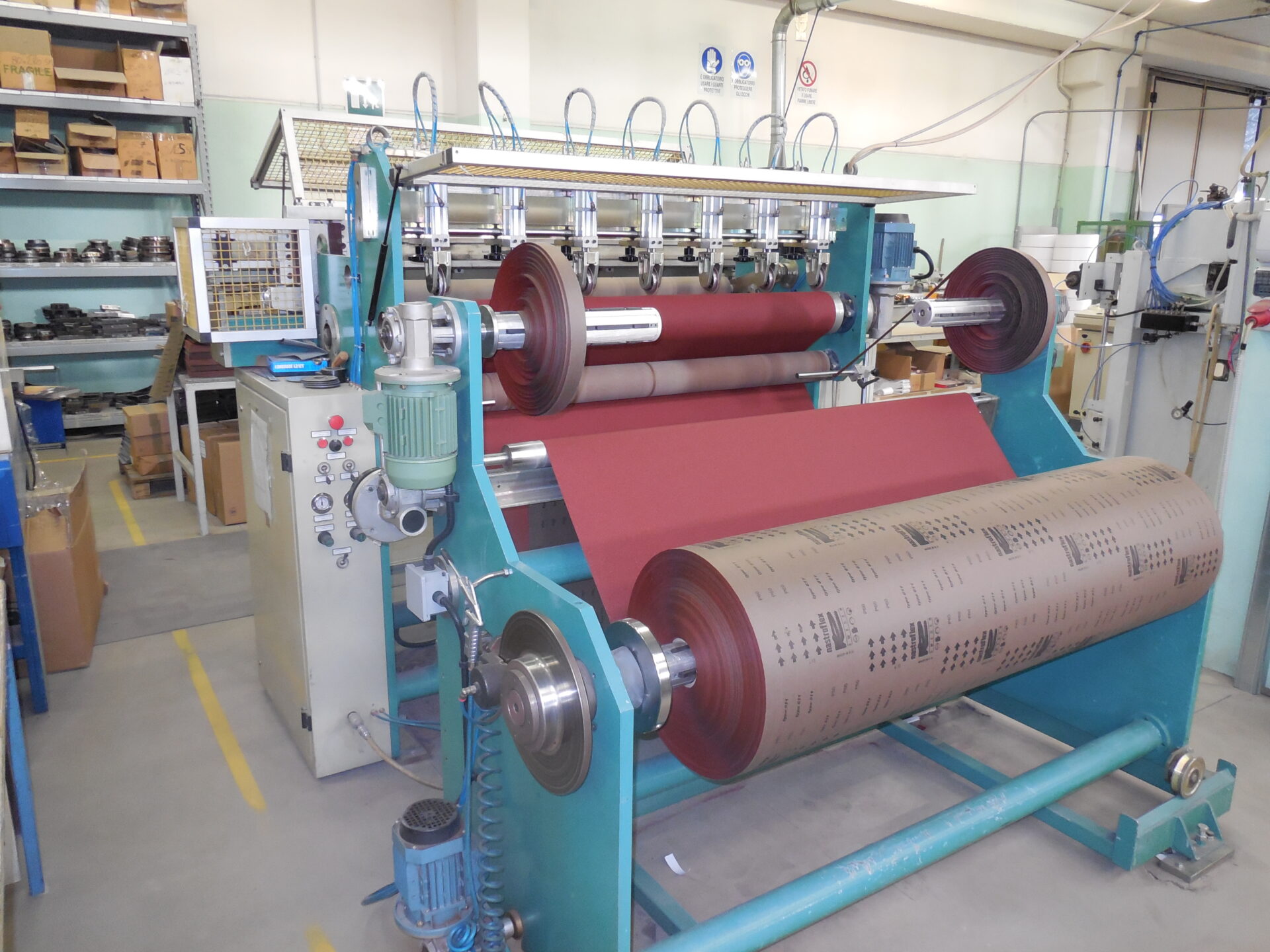

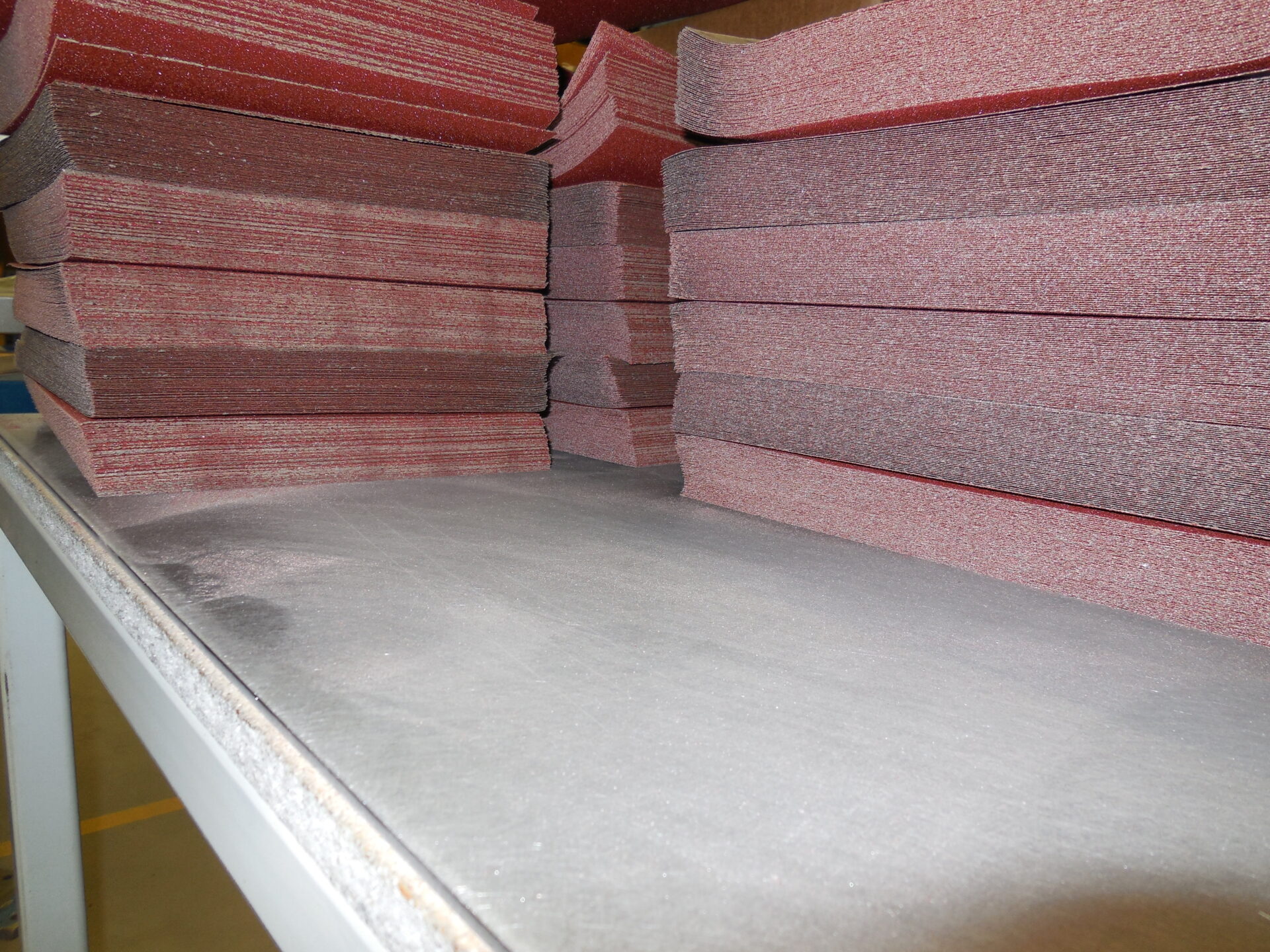

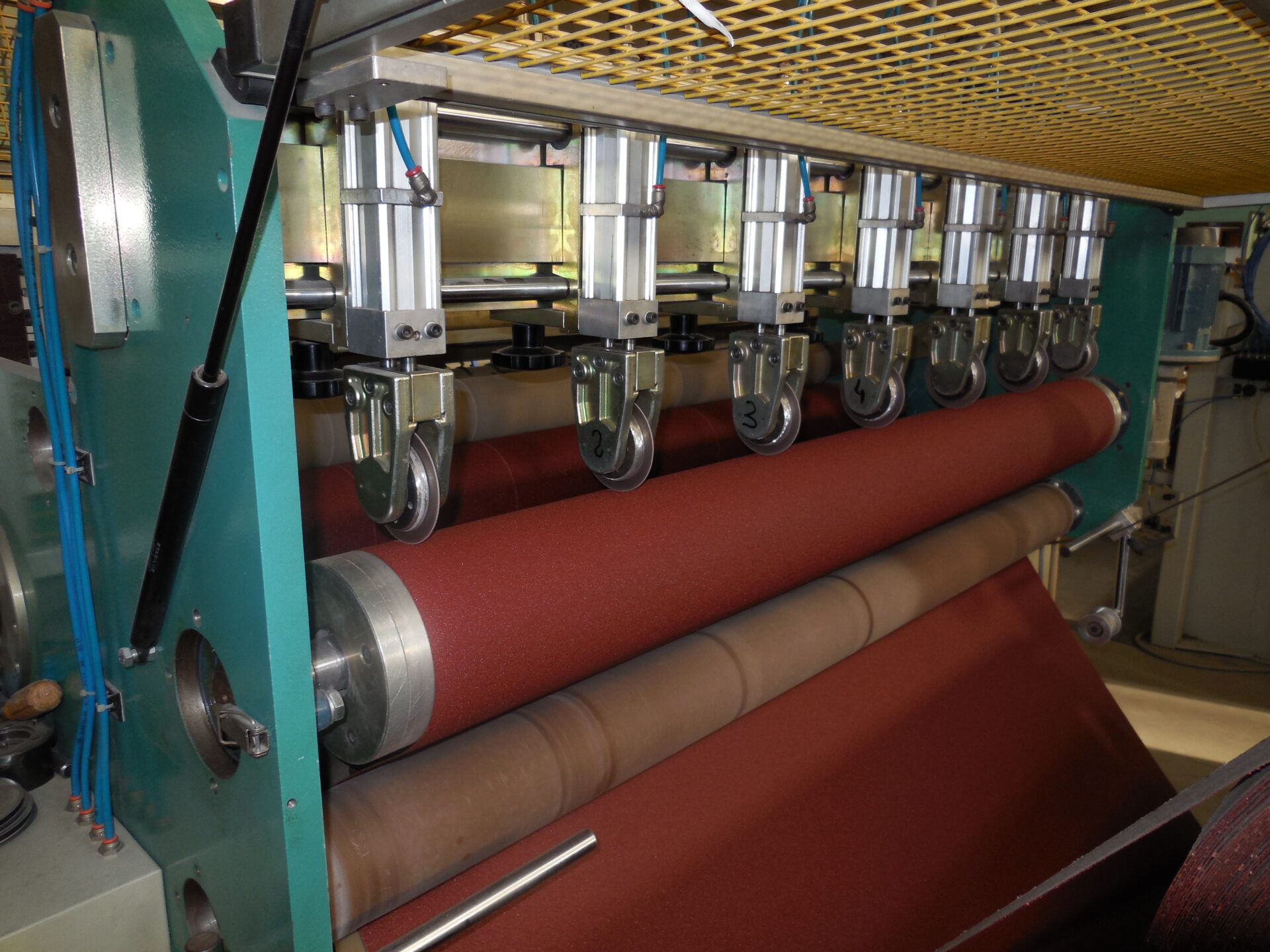

This is an automatic equipment for the cutting of abrasive cloth and paper rolls. This fully automatic machine cuts and neatly stacks the sheets; it consists of a transverse cutting unit that operates with a cup blade. The cutting frequency is very high; it is possible to work with all types of abrasive cloths and papers. This system is supervised by a PLC and an axis control system that has been developed to control the handling kinematics of the servomo-tors that perform the cutting of the material. This piece of equipment can be adapted to work on Master Jumbo rolls, up to 1000kg weight.
Technical data
Power supply
400V 50HZ
Rated power
15KW
Dimensions
3000X4000X1800
Weight
1900 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
