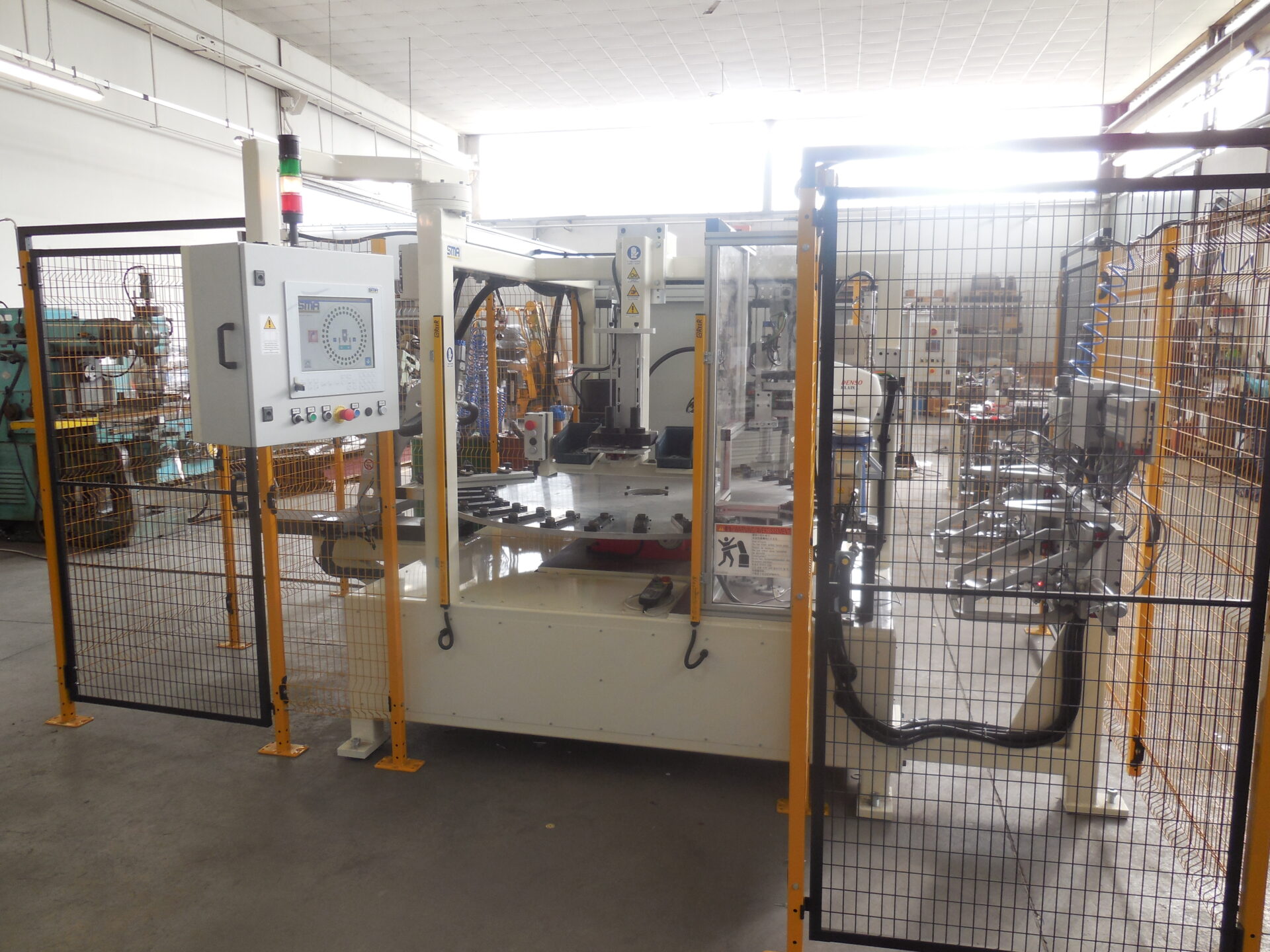

GLUING ISLAND FOR SHAFT-MOUNTED WHEELS
Description
Robotic automated machine for the gluing of shaft mounted flap wheels. It is a high-tech machine, entirely controlled by a CNC developed by S.M.A. This efficient programming system automatically calculates the resin volume that has to be cast within every single wheel; the machine automatically controls two different sizes. An extremely reliable dosing system guarantees a dispensing accuracy within 1% of the dosing parameter that has been set. This machine features an automatic unloading in boxes that are placed below the selection workstation. This unique machine fully expresses S.M.A.’s capacity and innovation.
Productivity:
500 wheels/hour
Technical data
Power supply
400V 50HZ
Rated power
10KW
Dimensions
3300X3800X2300
Weight
2000 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
