CUTTING MACHINE FOR UNMOUNTED WHEELS
Description

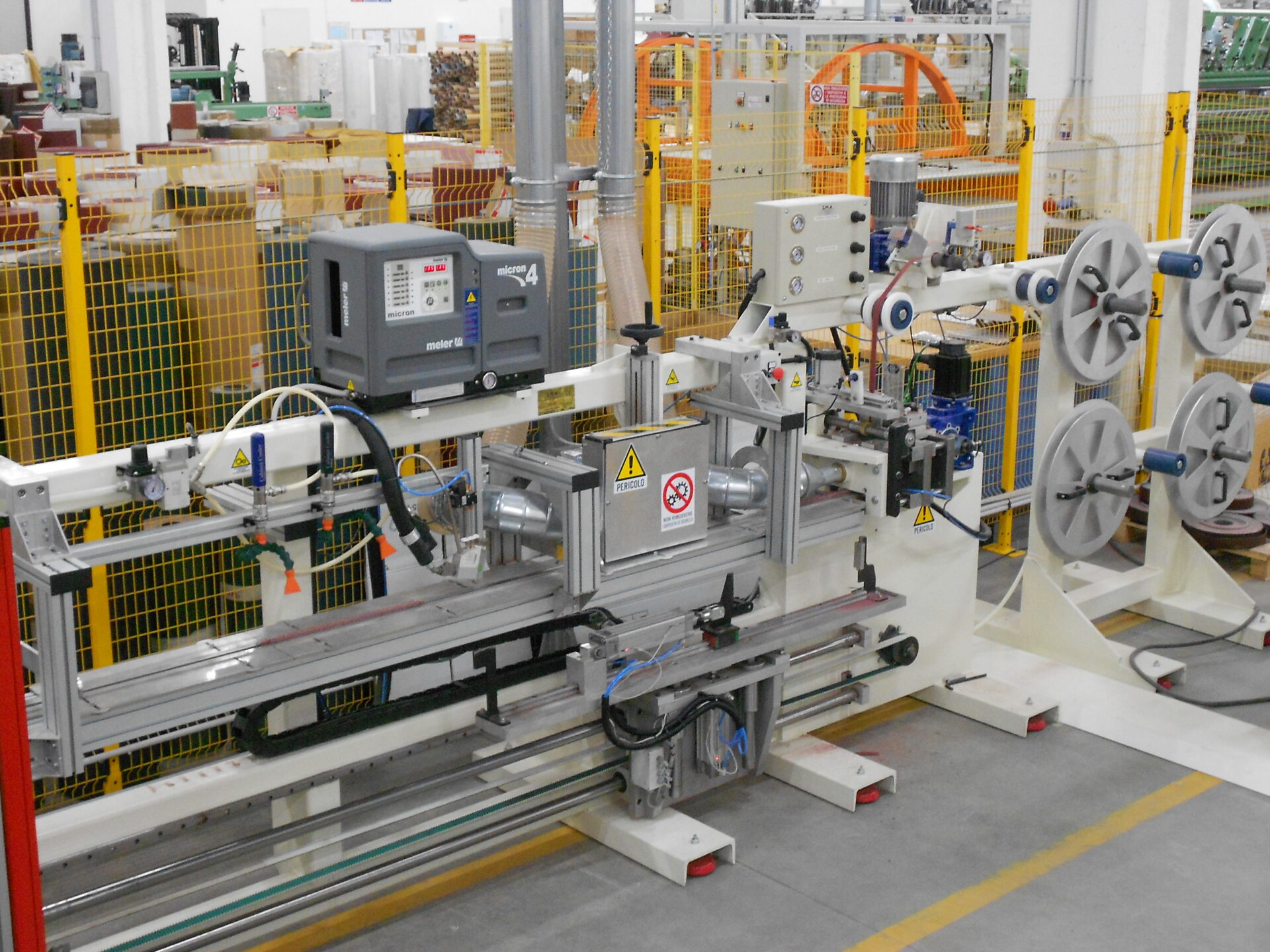

This machine manufactures abrasive cloth wheels with flange, ranging from 165mm to 350mm diameters, and up to a 100mm width. This full automatic machine cuts and applies Hot Melt glue on top of the flap pack. The flap pack is subsequently stored in a unit at the end of the process. It is equipped with a multifunction touch screen panel that can set and store all the operator’s customised programmes.
The working process occurs as follows :
Cloth is unwound and cut into flaps

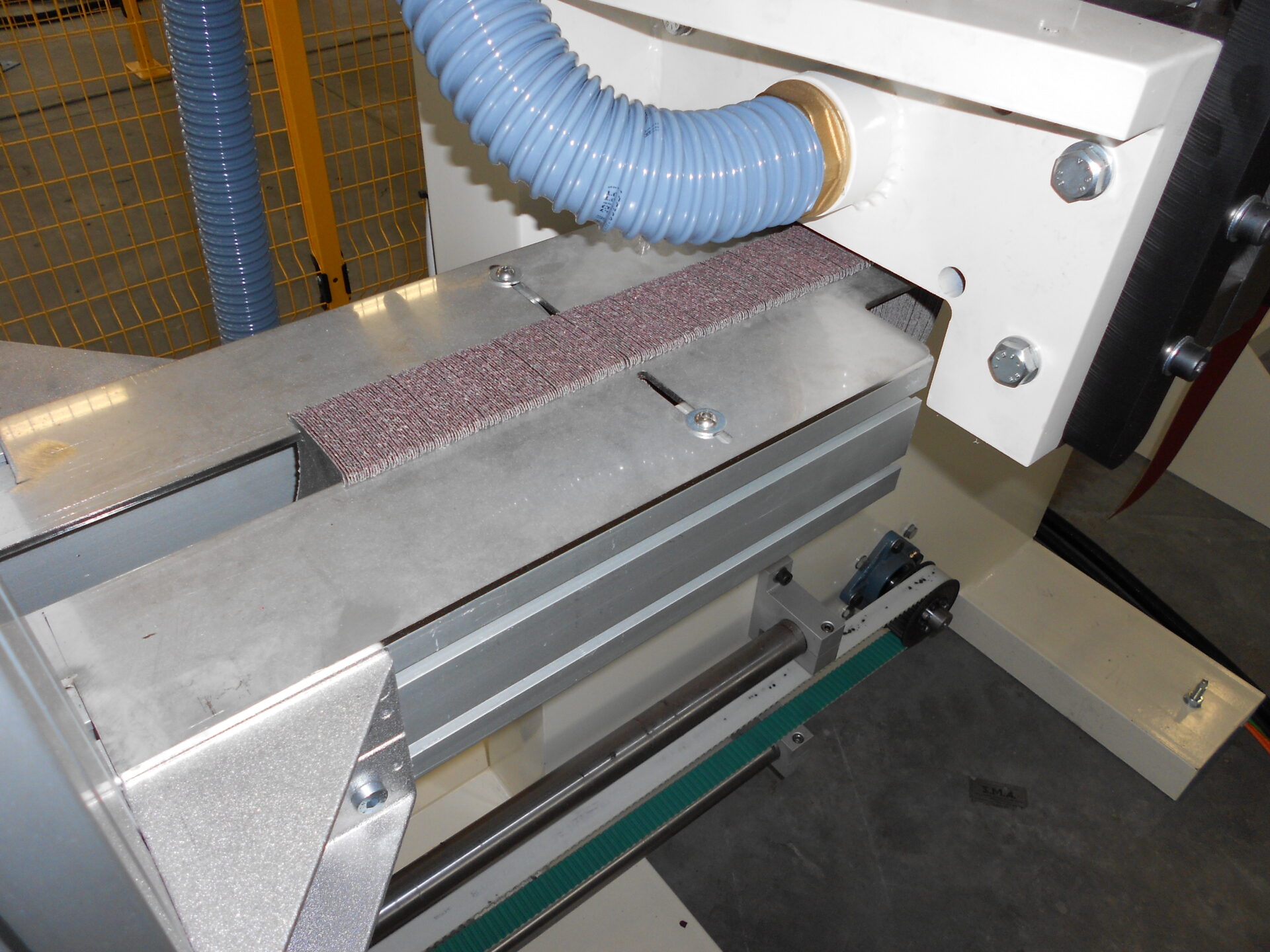

The flap pack is cut on the surface where Hot Melt glue is applied
The adhesive is cooled with X Air system (-20°C) and the final product is removed from the storage unit.
Productivity (e.g. for a 200x50x54, P40 flap wheel):
60 pcs/hour
Technical data
Power supply
400V 50HZ
Rated power
10KW
Dimensions
6000X2000
Weight
1500Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
