DMT-PT/818

DISPENSING SYSTEM FOR TWO-COMPONENT RESINS FOR SABILIZING MANSORY, FOUNDATION, MINING, MARBLE AND GRANITE

Dosing and metering unit for 2k products with a fixed ratio and plunger piston pumps.
PROS:
Easy to use, simplified maintenance
STRENGTHS:
Extremely precise and consistent in dosing2k products
USABLE WITH:
Epoxy/ PUR / Acrylic/ Silicone Resins; RTV; Structural Adhesives; Encapsulation Products
OPERATION:

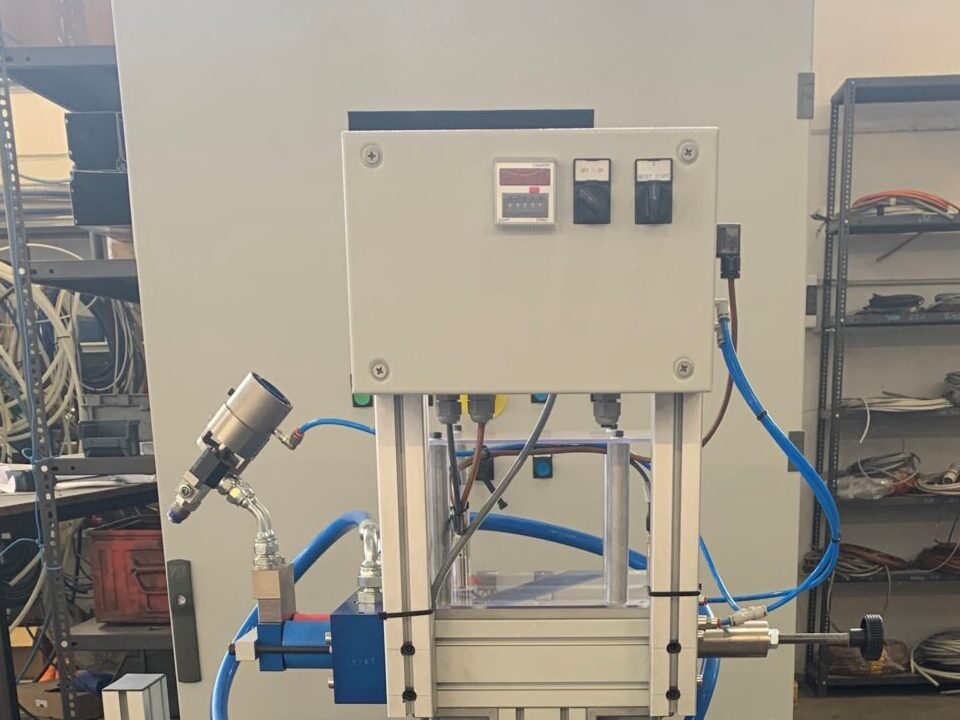

Via the Start pedal, the system enables pneumatic cylinders, which are connected to single-acting displacement pumps. Products are then transferred to the mixing head as per predetermined fixed ratio.
The mixing head use plastic mixers without cleaning process.

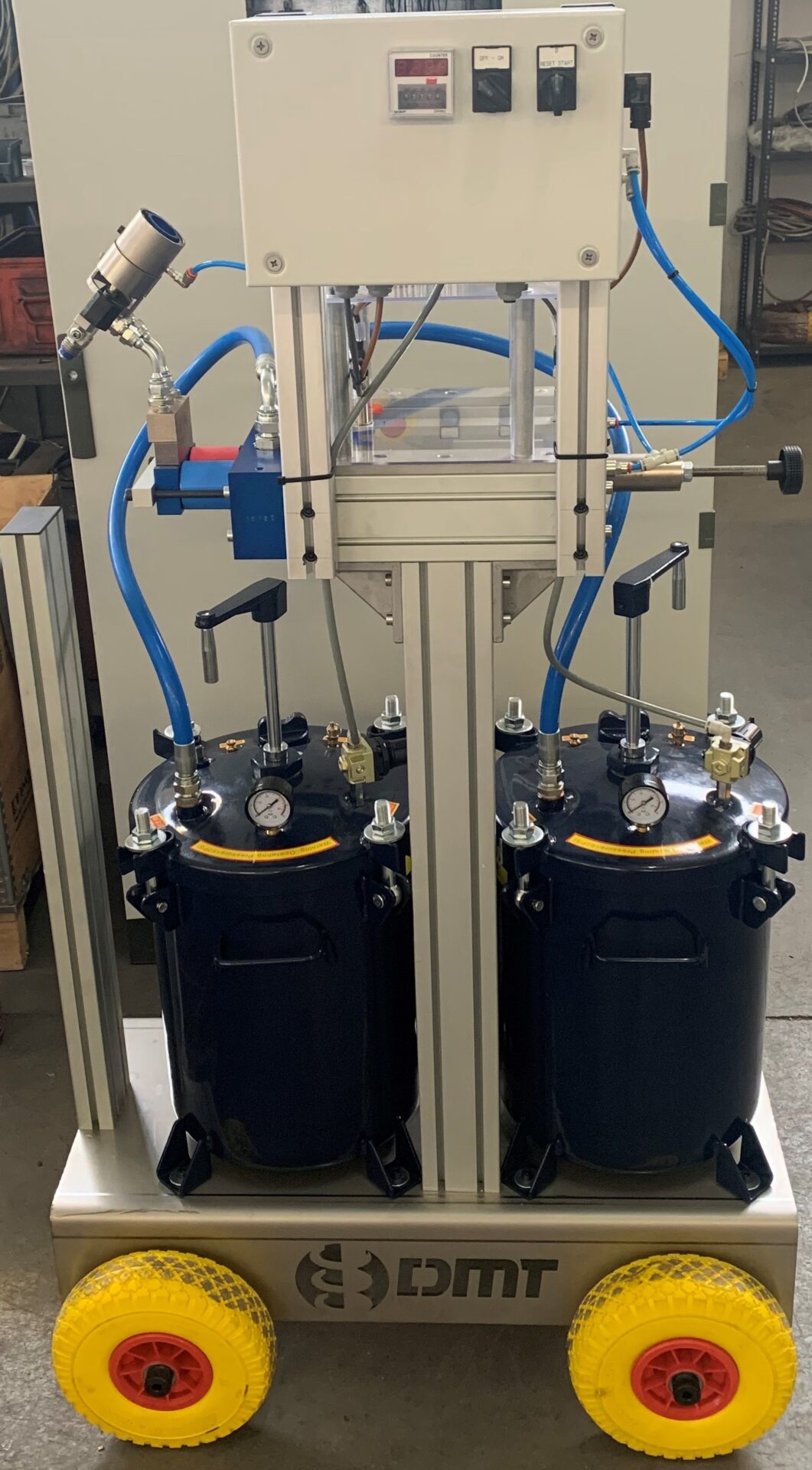

The standard unit features:

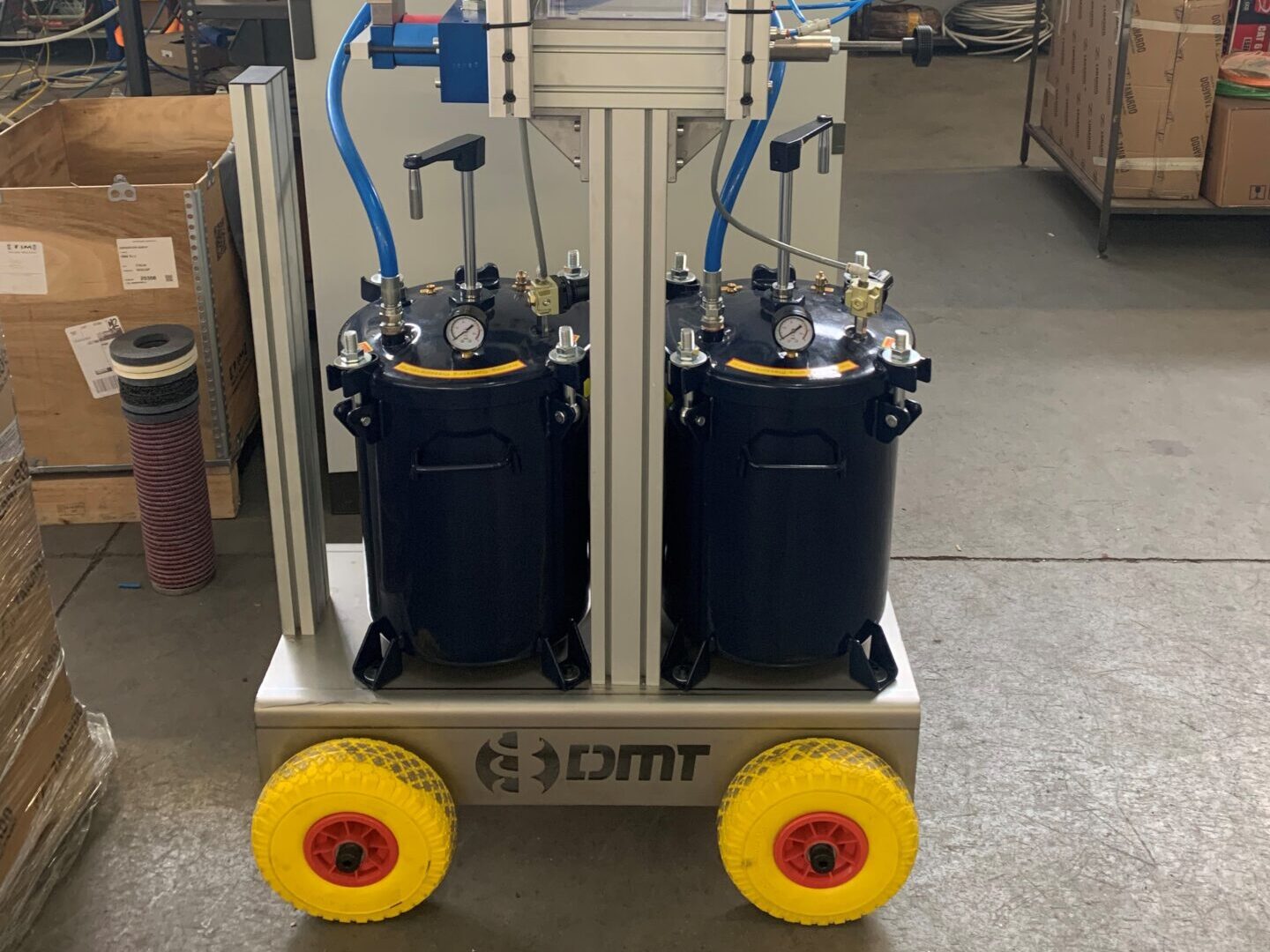

5-10-20 liter pressure tank for product B
Standard mixing ratio among:
100/100–100/90 -100/50–100/40–100/30
100/27-100/23-100/20–100/15–100/10-90/100
10-20 liter pressure tank for product A
Max dosing with 100/100 ratio: 80 ml, equivalent to a 1200 ml dispensing with fluid unfilled products
Maxviscosity: 100000 cps
Min dosing: 1.4cc
Max revper minute: 12-15, depending on viscosity of components
