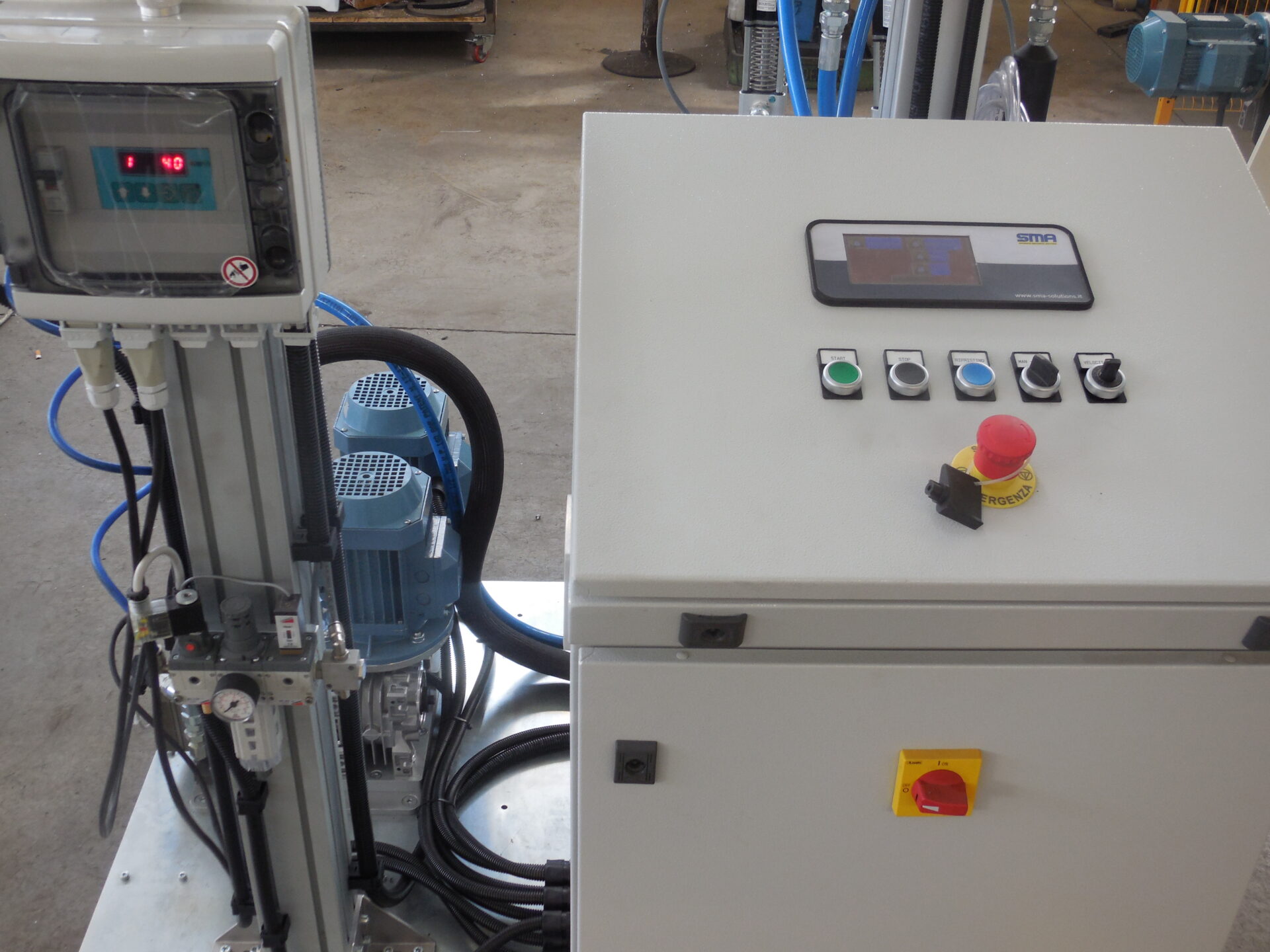

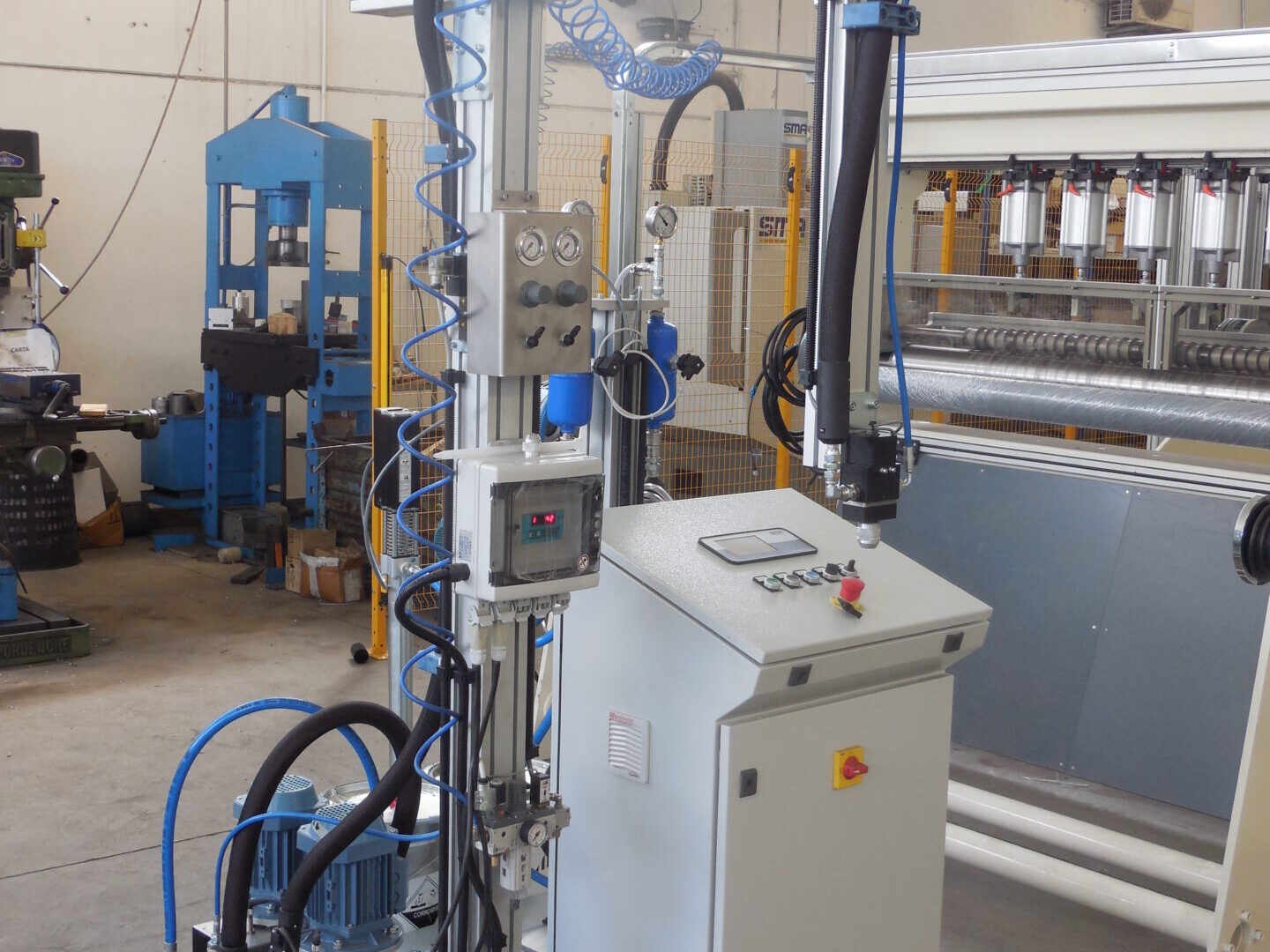

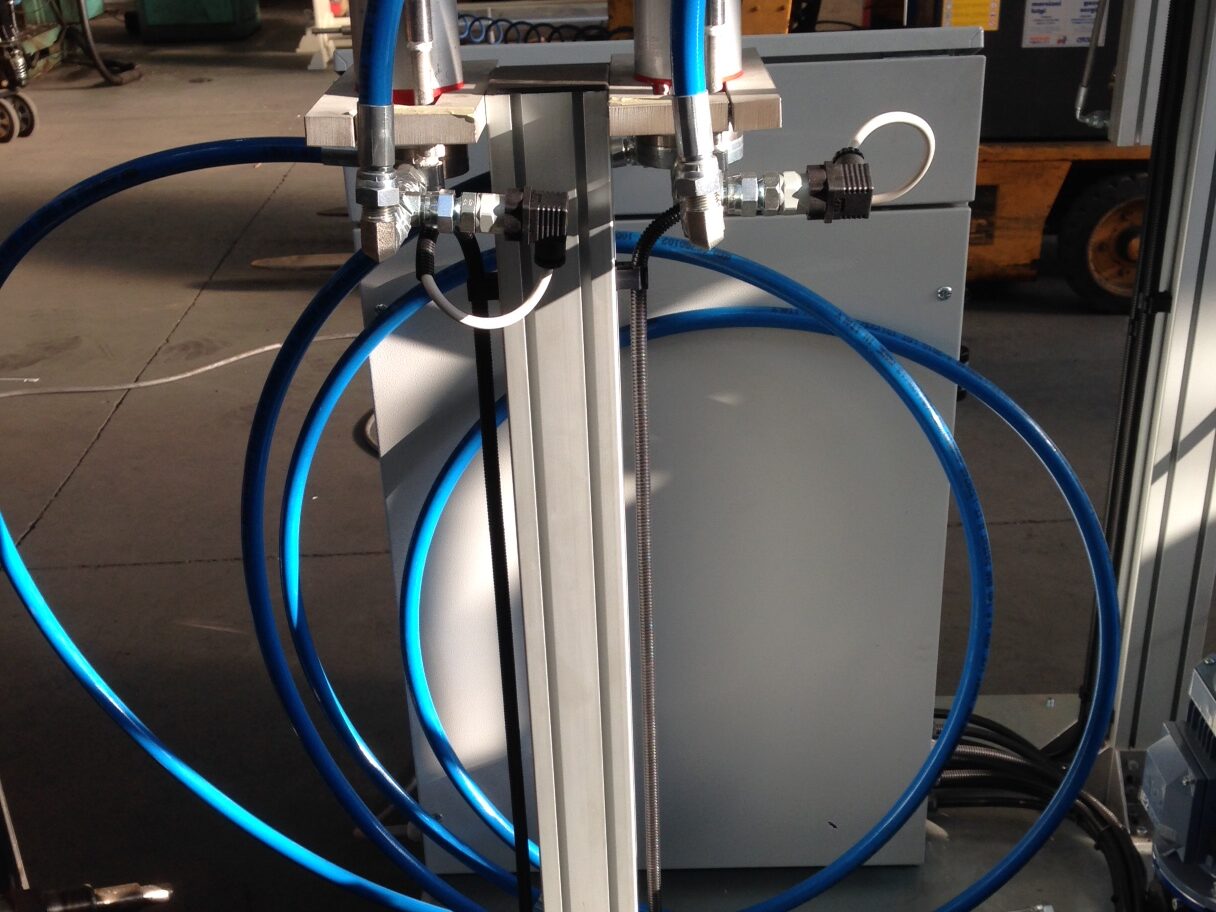

DOSING AND DISPENSING UNIT FOR 2K RESINS
New generation dosing unit for the proportioning of resins and adhesive products; pumps allow to dispense the product at a maximum outlet pressure of 20bar. Upon request, it is possible to install 60/80Bar pumps. The machine is CNC/PLC controlled, for the handling of dispensing ratio between component A and B. Mixing is via static mixer.
Technical data
Power supply
400V 50HZ
Rated power
1.5 KW
Dimensions
1200X900X1800
Weight
400KG
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
Handgun for manual dispensing
Electro-heated tubes
4” multifunction operator panel
50/100/200l tanks
Start pedal for dispensing
