CARTESIAN DOSING ROBT FOR FLAP WHEELS
Description

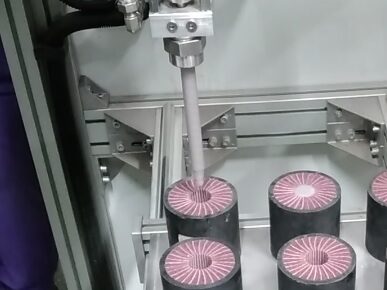

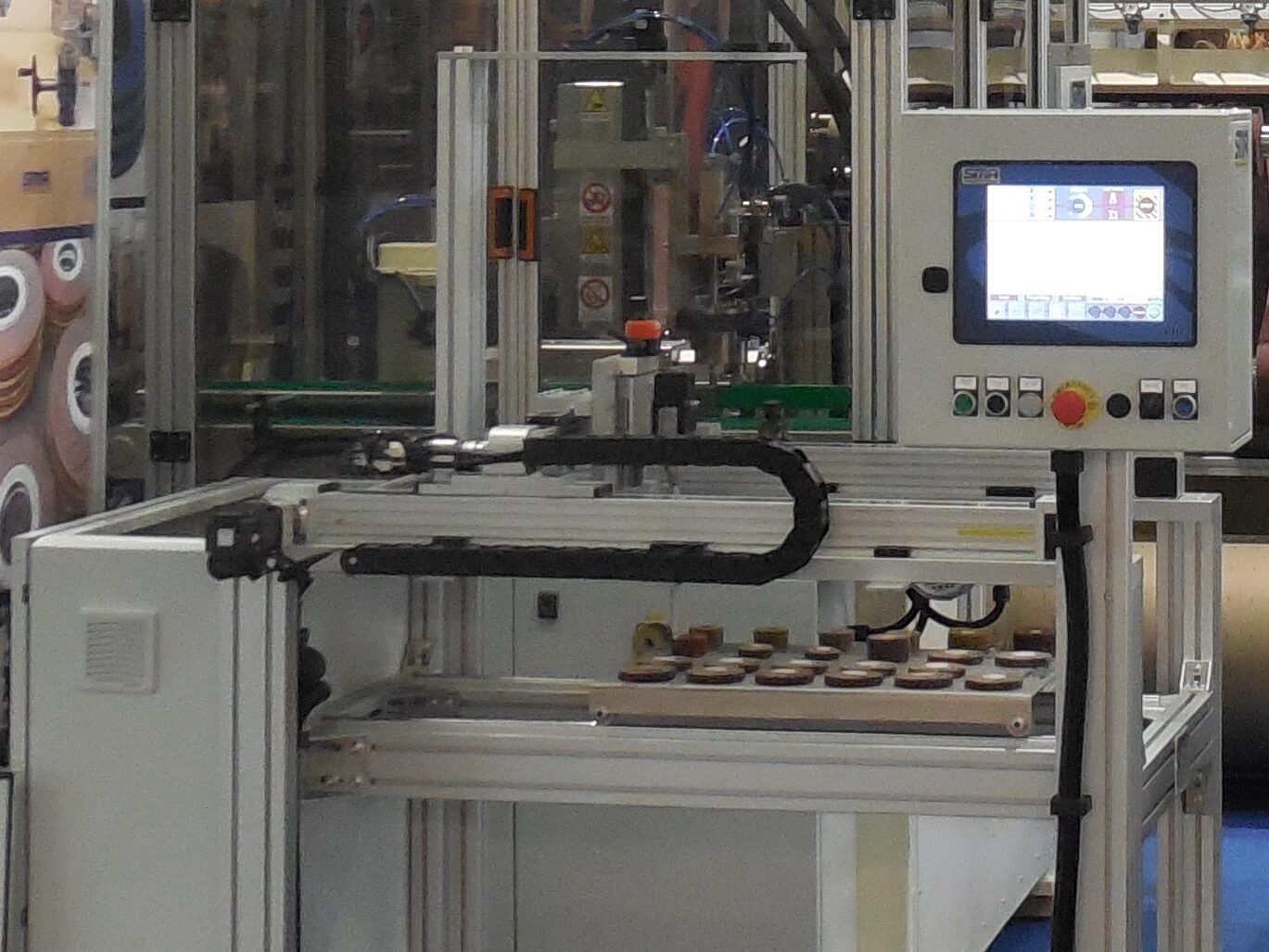

Cartesian robot for the gluing of flap wheels with shaft or hole. This is a highly productive, extremely versatile machine; it can reach up to 20 metres/minute. The machine is controlled via CNC for the handling of gluing modes; casting accuracy is about 0.1/0.2 mm. This system can be integrated with almost all dispensing units currently available.
Technical data
Power supply
400V 50HZ
Rated power
2KW
Dimensions
1200X1000X1500
Weight
300 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
2000x1000mm working area
Supplementary 3rd axis
