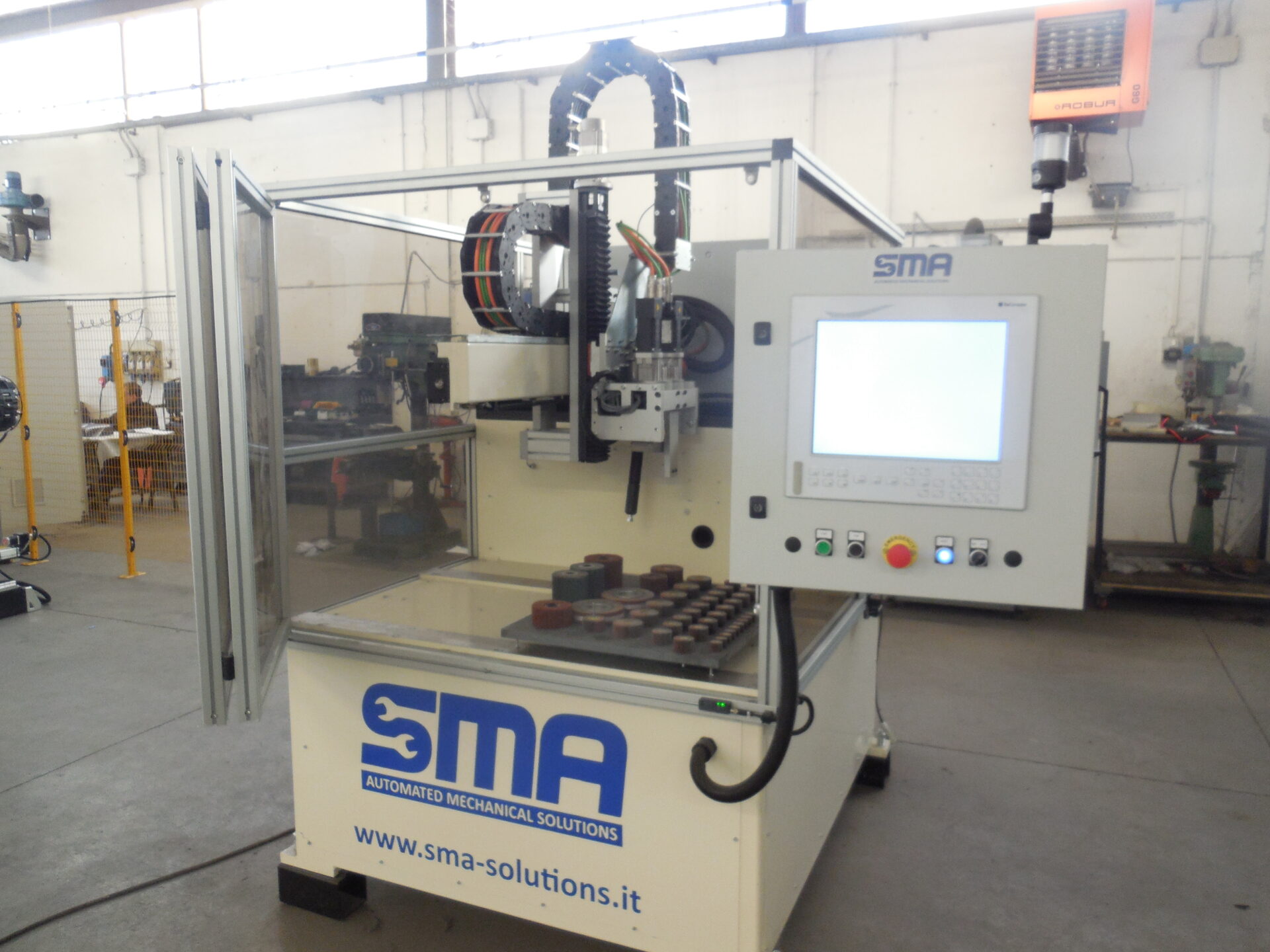

CARTESIAN DOSING ROBT FOR FLAP WHEELS
Description

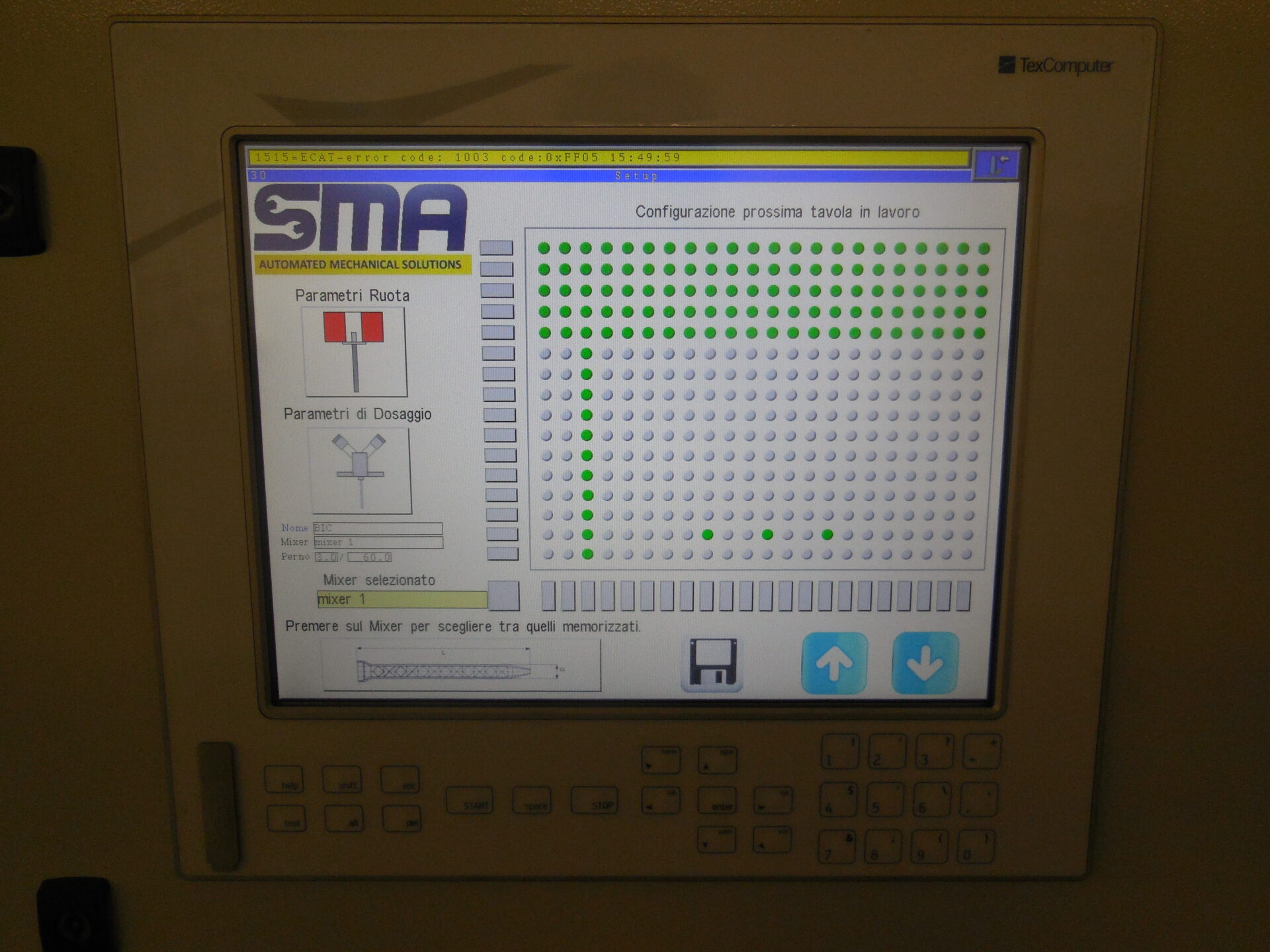

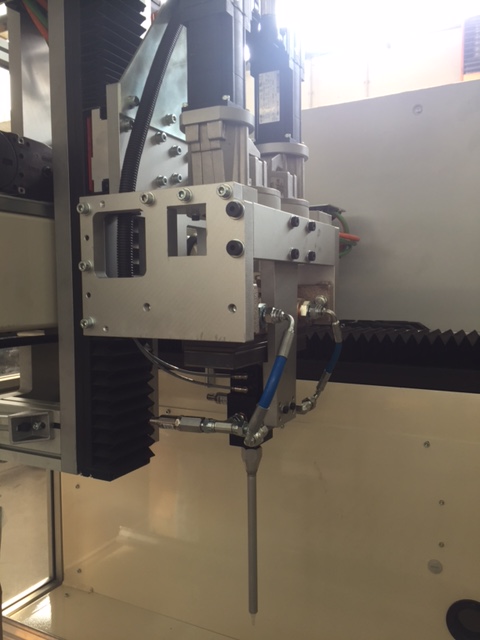

Cartesian dosing robot, with 3-axis interpolation. For the dosing of shaft-mounted and unmounted wheels, both in abrasive cloth and non-woven fabric. The machine is equipped with ball bearings pads and screws. Positioning accuracy is 0.02mm. A 15” operator panel programming is the same applied to SMA-BI320. This machine can host the automatic tray supply feeder and/or a curing oven. Possiblility to cast both epoxy and PU resins, regardless of loading amount or thixotropy, with extreme
precision and dosing accuracy.
Technical data
Power supply
400V 50HZ
Rated power
5KW
Dimensions
2100X1500X2500
Weight
1200 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
Curing oven
Automatic tray feeder
