ROTATION UNIT FOR TAPE WRAPPING
Description

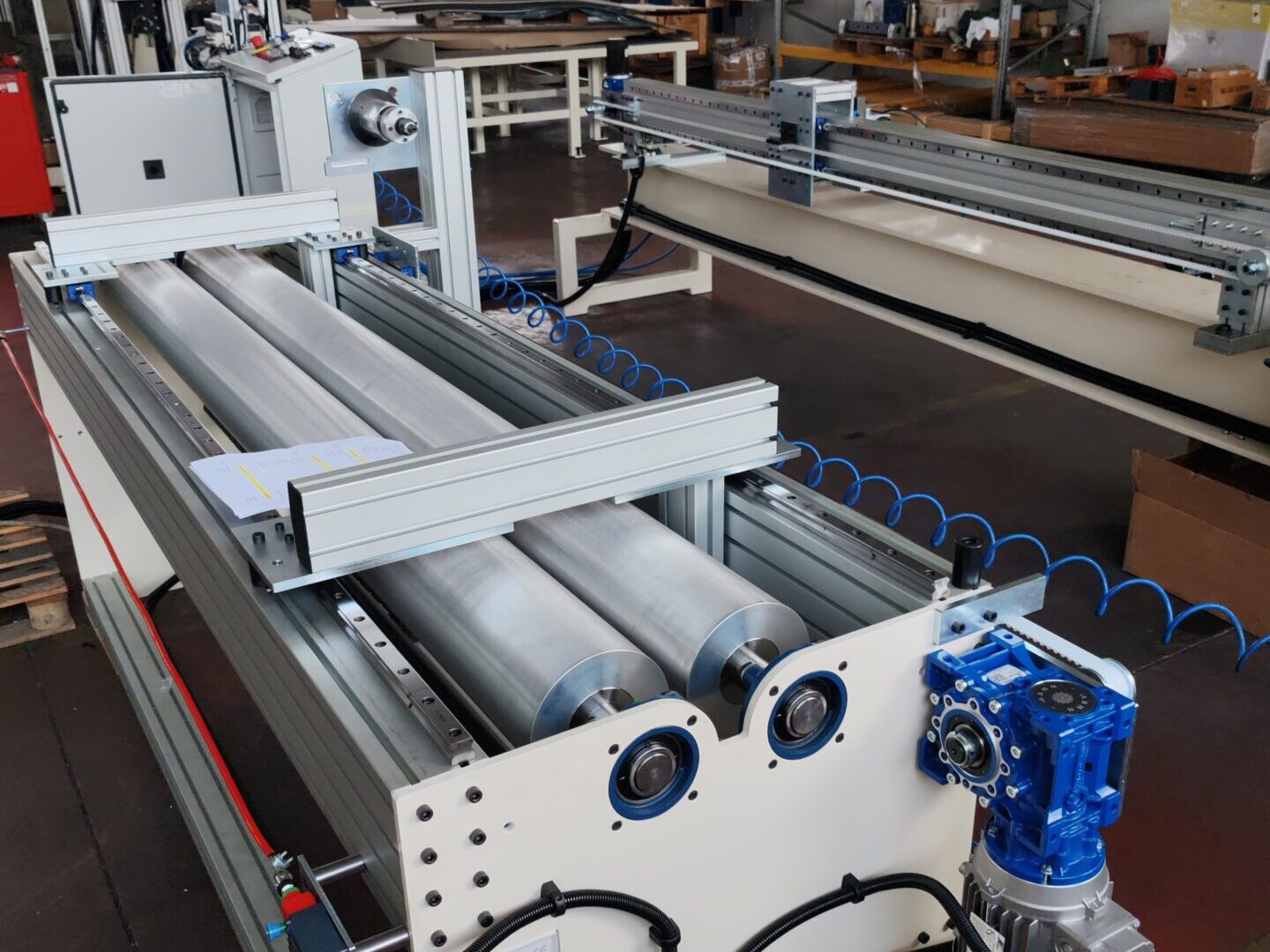

Rotation unit apt for the preliminary wrapping of non-woven rollers with tape. The application area is composed of a steel-made frame hosting a rotational station where the non-woven roller is positioned.
A tape unit holds the tape supply, ensuring it is readily available for wrapping. The tape holder unit is mounted on a guide system that allows it to move longitudinally along the length of the non-woven roller. As the machine operates, the tape holder unit releases tape and begins its movement along the guide.
Roller capacity:
Diameter: from 150 to 500mm
Length: up to 2300mm
Technical data
Power supply
Rated power
Dimensions
3500X1100X2100
Weight
700KG
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
