GLUING STATION FOR WHEELS
Description

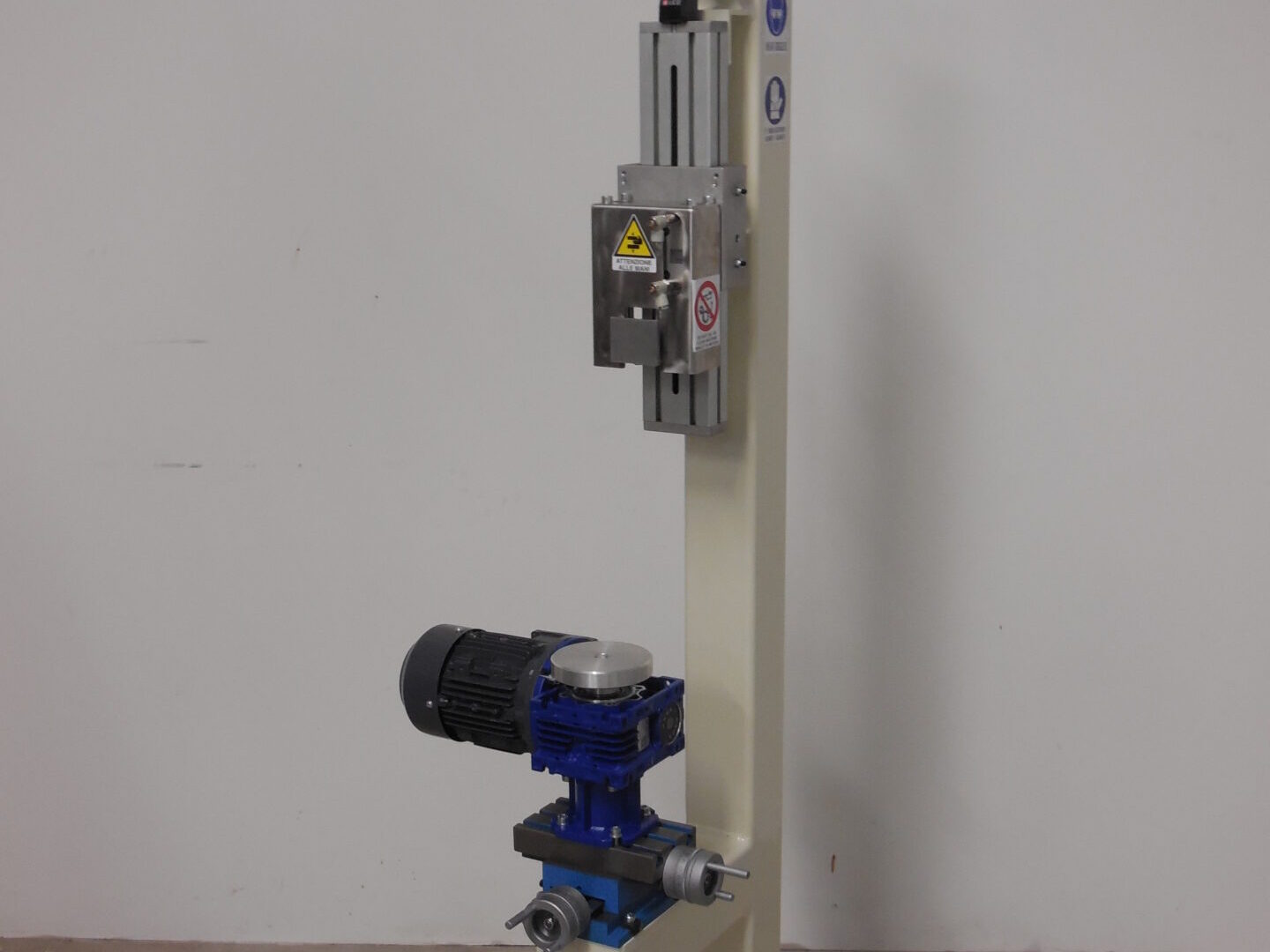

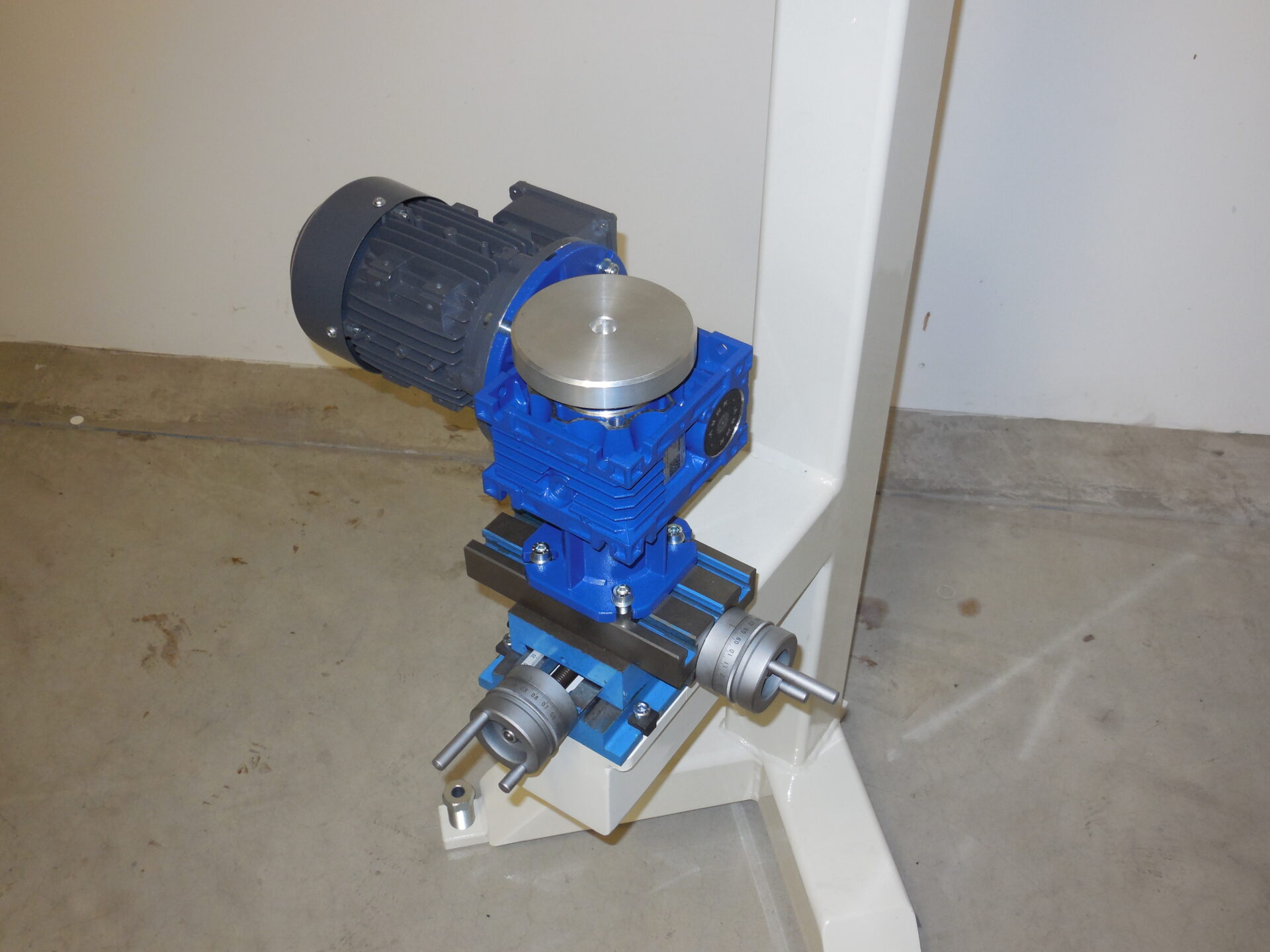

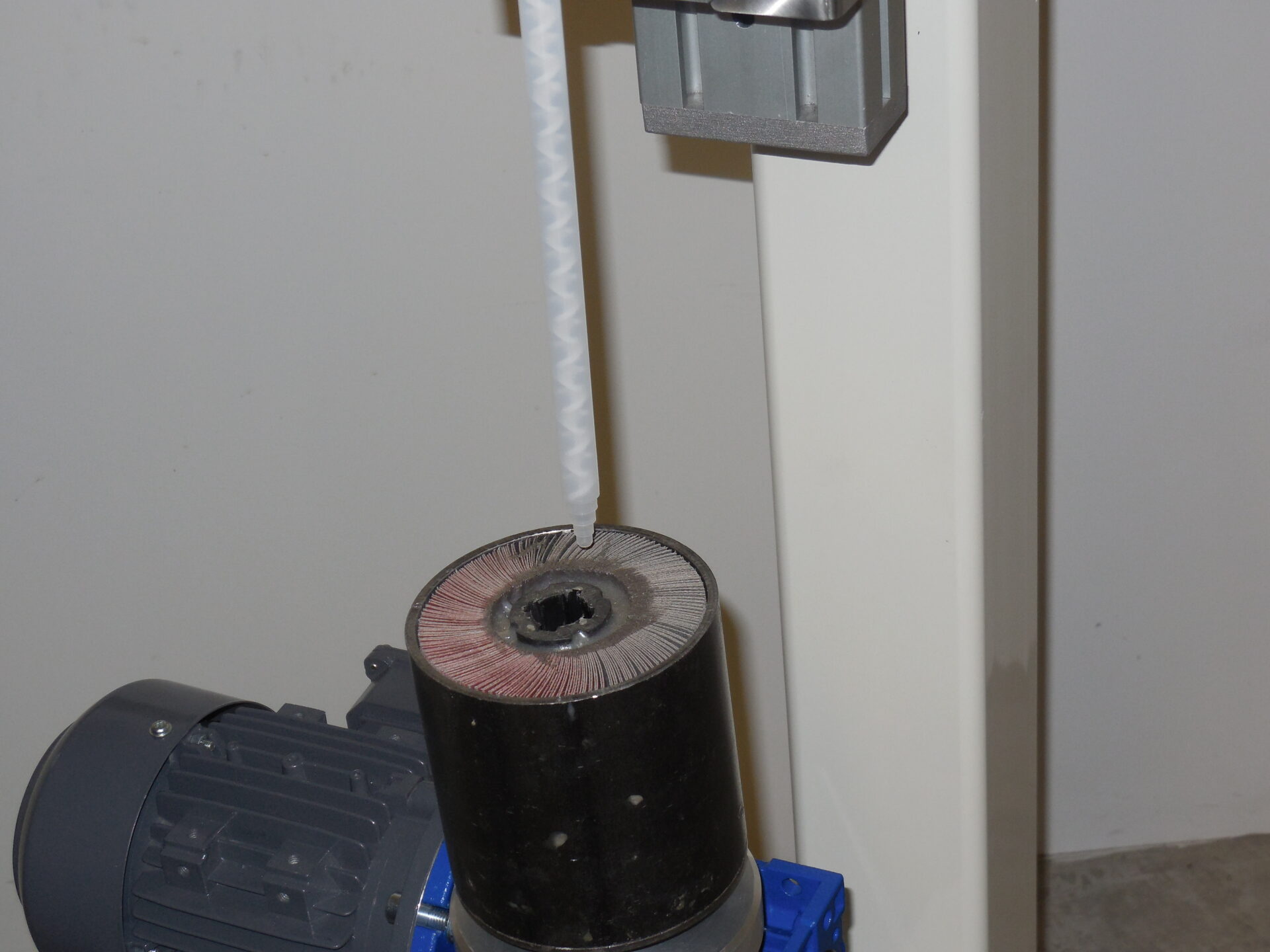

This station is configured as an optional tool for the DMP dosing unit. This vertical column features a rotary table for the rotation of the wheel during the gluing phase. The height of the dosing mixer can be set thanks to a vertical rail guide with handwheel and rev counter. The system is programmable and equipped with a cylinder that, during the dosing stage, lowers toward the dispensing unit. Its standard stroke is 50 mm.
Technical data
Power supply
230V 50HZ
Rated power
0.37KW
Dimensions
300X1700
Weight
100 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
