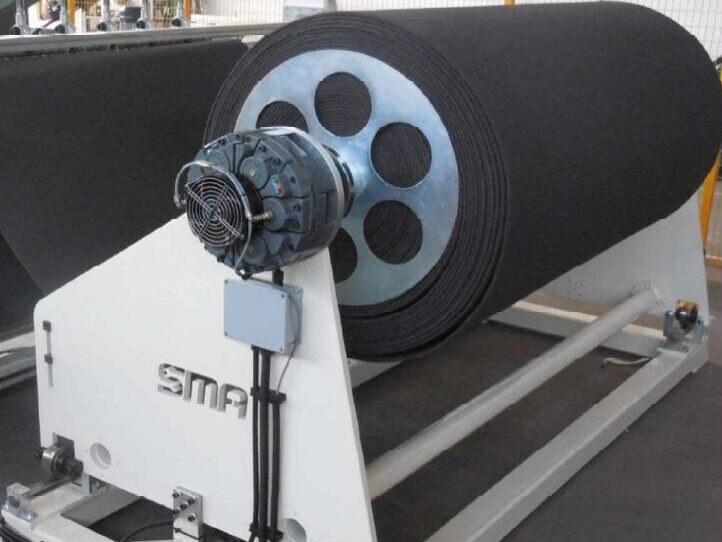

UNWINDER FOR JUMBO ROLLS
Description

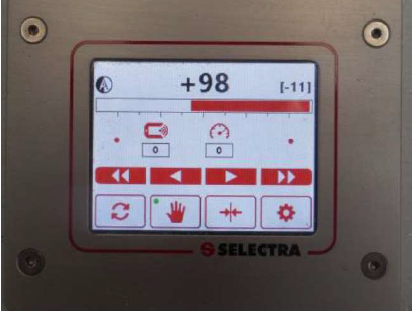

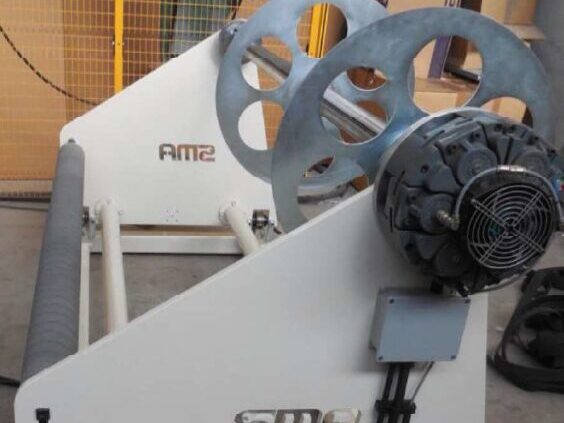

Unwinding unit for jumbo rolls; three sizes available: for 500kg, 1000kg and 1500kg coils. The metal framing is made via machining process. Its purpuse is the unwinding of rolls of abrasive material, and it features a drive control system. this unit can be equipped with automatic alignment, whose control is made possible by a small operator panel. this unit is composed of braking group with ventilated disc, two tilt-and-turn supporta, 3” expanding shaft and a dia.120mm, rubber-coated return roller. This unit can be integrated to all of S.M.A.’s slitting machines.
Technical data
Power supply
400V 50HZ
Rated power
Dimensions
1100x2900x1400
Weight
460 KG (SMA -UW/500), 780 KG (SMA-UW/1000), 1050 KG (SMA-UW/1500)
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
Automatic control of braking group via laser sensor
Double braking unit
Automatic alignment
