DMT-PPM/2K FN

DISPENSING UNIT FOR SEMI-SOLID, HIGHLY THIXOTROPIC OR FILLED ADHESIVES

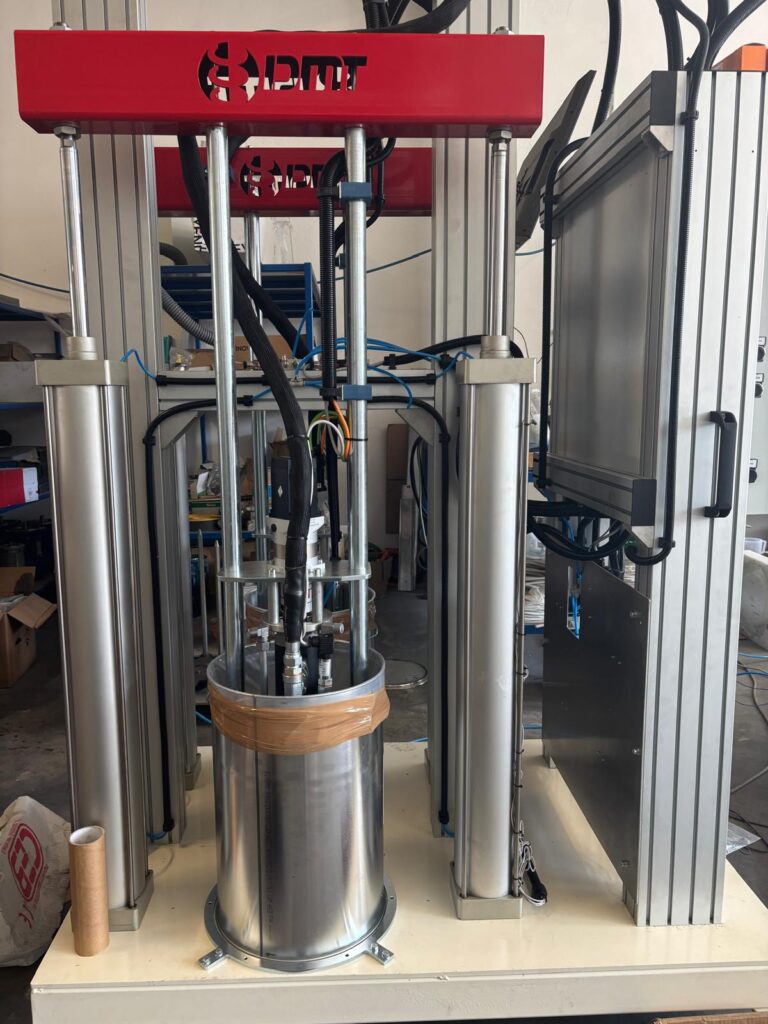

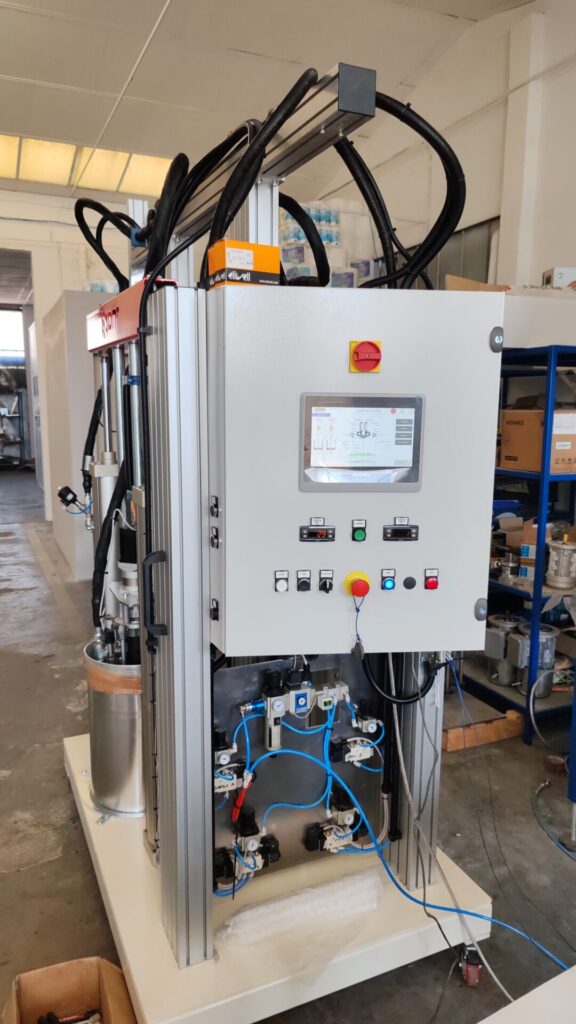

Dispensing unit for semi-solid, highly thixotropic, or filled adhesives. This unit is equipped to provide very accurate dispensing of structural adhesives for composite materials and industrial assembling. With this easy-to-use unit, the operator can change the mixing ratio and dosing speed in a simple and intuitive way. Electronic control and automatic monitoring on dosing pumps input and output working pressure. Drum extruders for 20kg-capacity containers. Triple-screw pumps for the accurate dosing of components A and B. Heated circuit, featuring a 25-to-80°C temperature control unit. Assisted dynamic mixing head.

Volume ratio: 100:100 to 100:50

Max. working viscosity: 1,000,000 Mpas at 25°C
