AUTOMATIC MACHINE FOR CONVOLUTE ROLLERS
Description

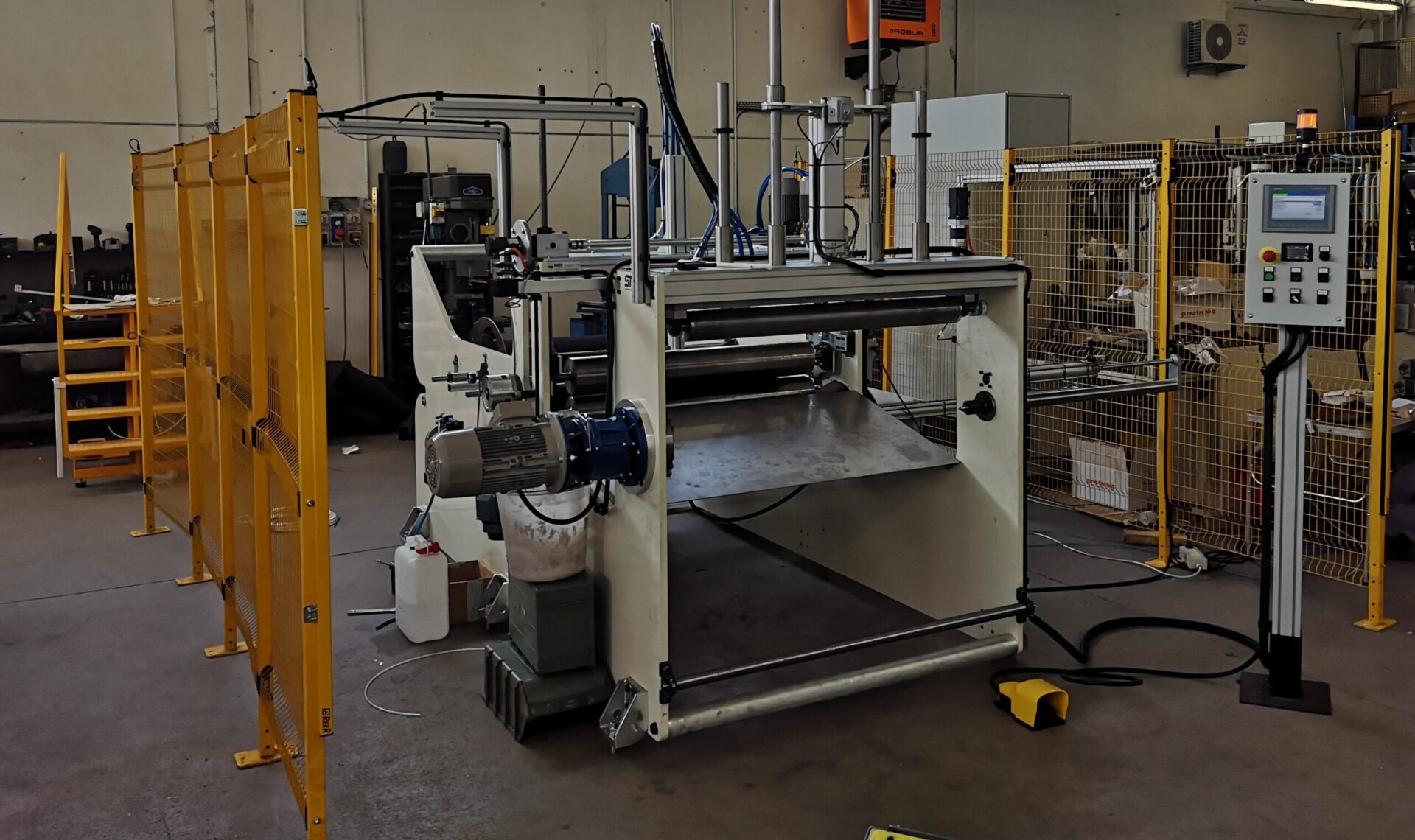

Automatic machine for the production of convolute rollers. Dosing and dispensing glue unit is included

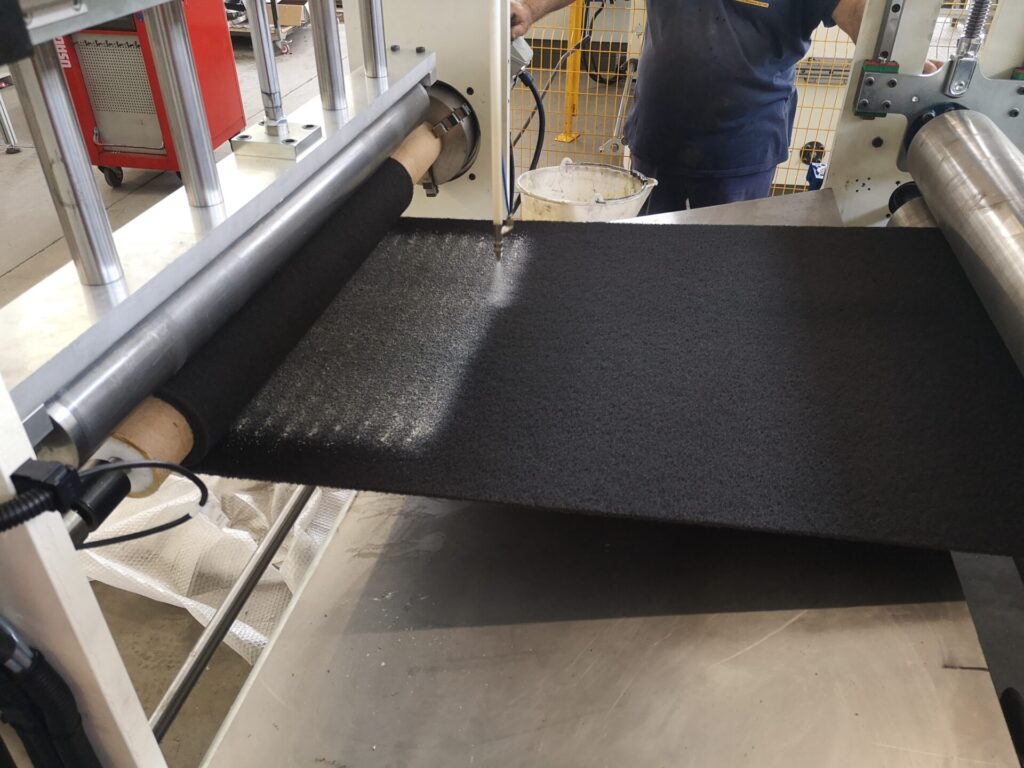

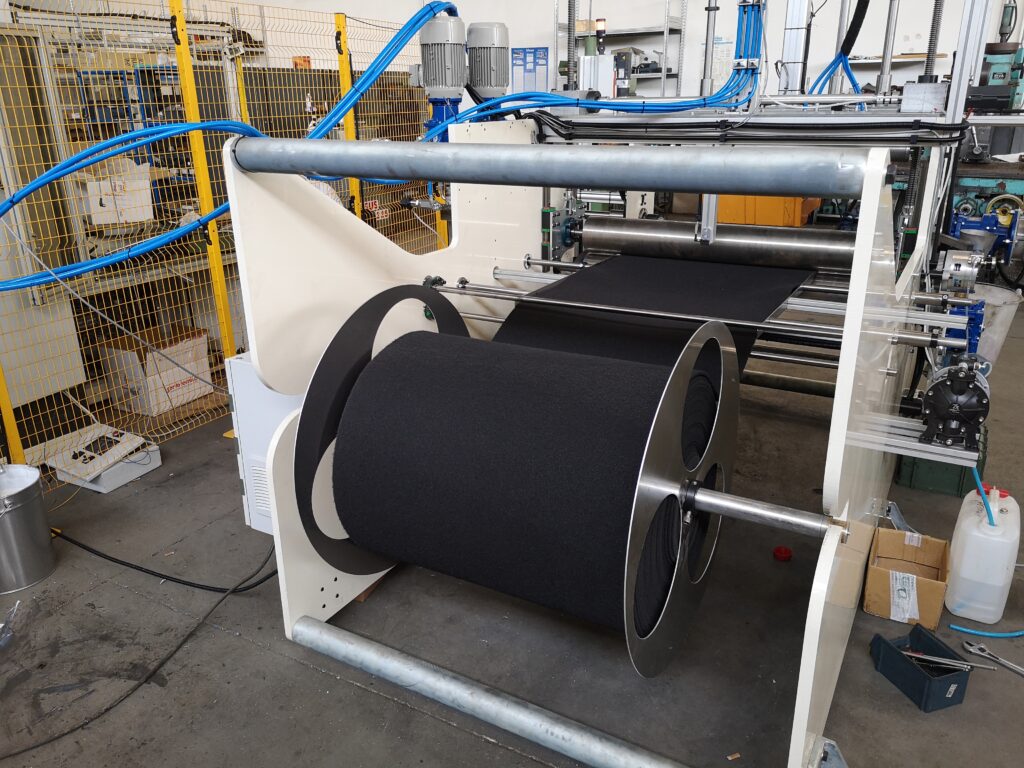

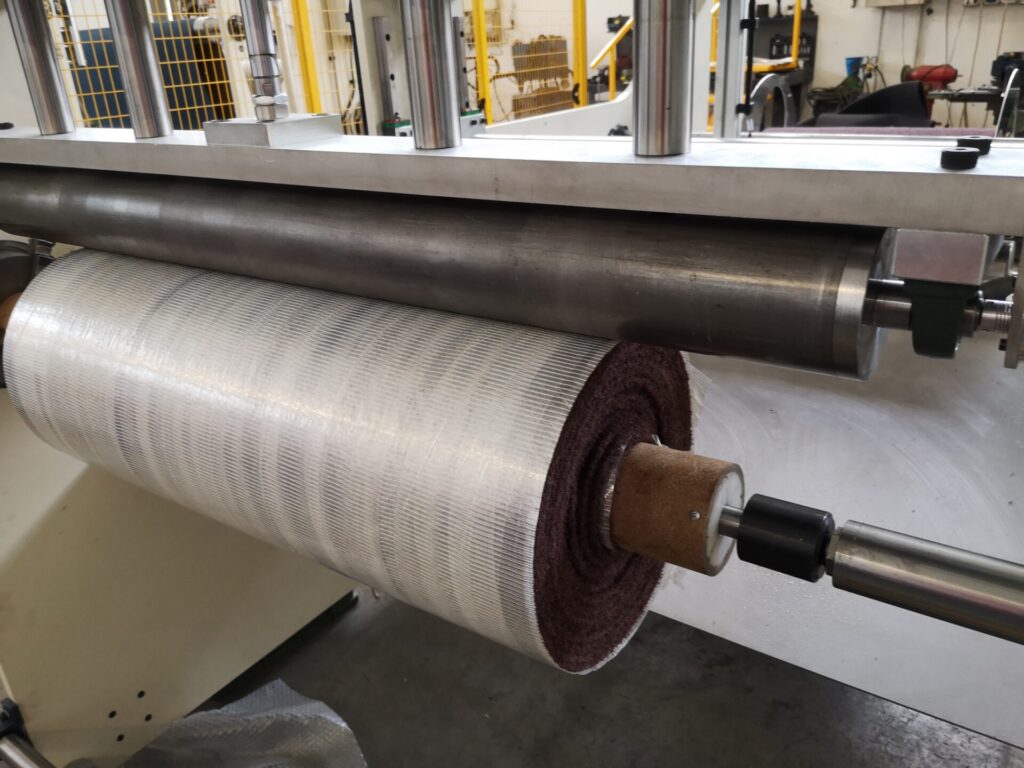

This complete unit is capable of manufacturing convolute rollers with a maximum width of 1000mm. Process is as follows: material is unrolled, then measured to desired thickness; Afterwards, adhesive is spread, material is rewound, with its drive under constant control, to be finally formed into a roller. It is possible to make rollers with different degrees of hardness .
Technical data
Power supply
400V 50HZ
Rated power
10KW
Dimensions
4000X2500
Weight
25000KG
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
A suction system must be used with this equipment.
