GLUING UNIT FOR BAKELITE TUBES
Description

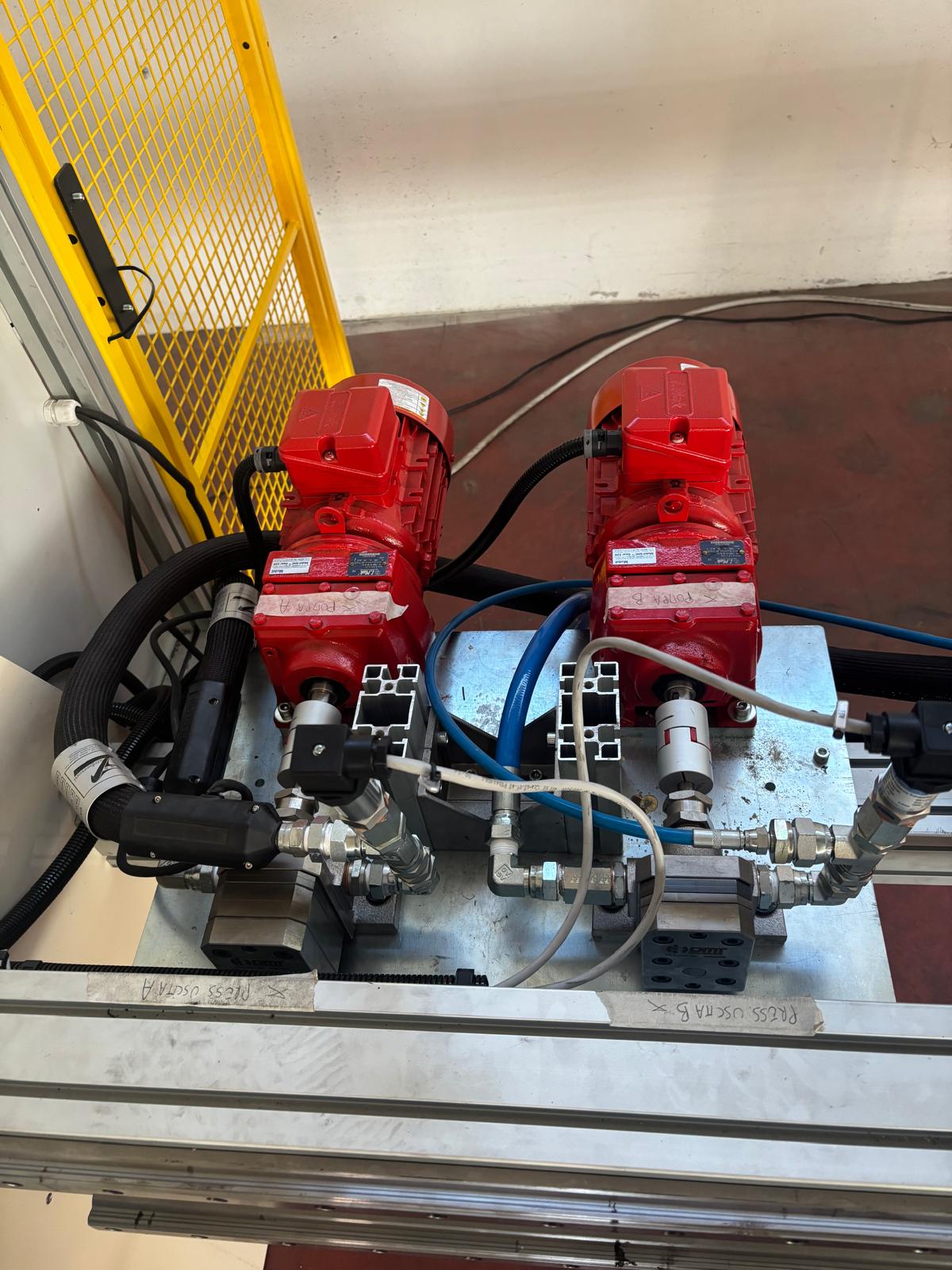

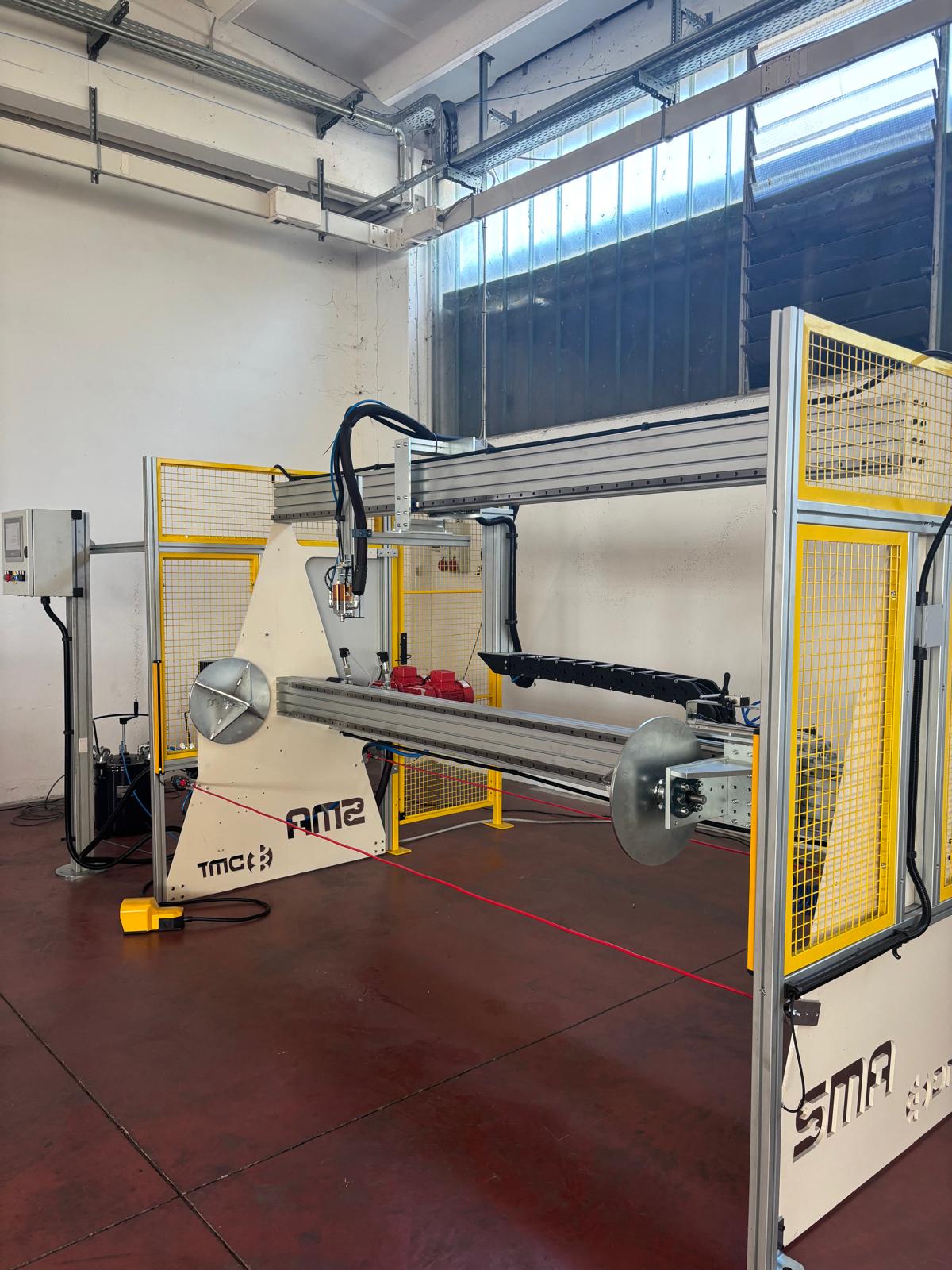

Gluing equipment for phenolic tubes. The machine features a double mandrel for the rotation of phenolic tubes. This system applies to the casting of thixotropic resins that roll onto the tube and do not drip.

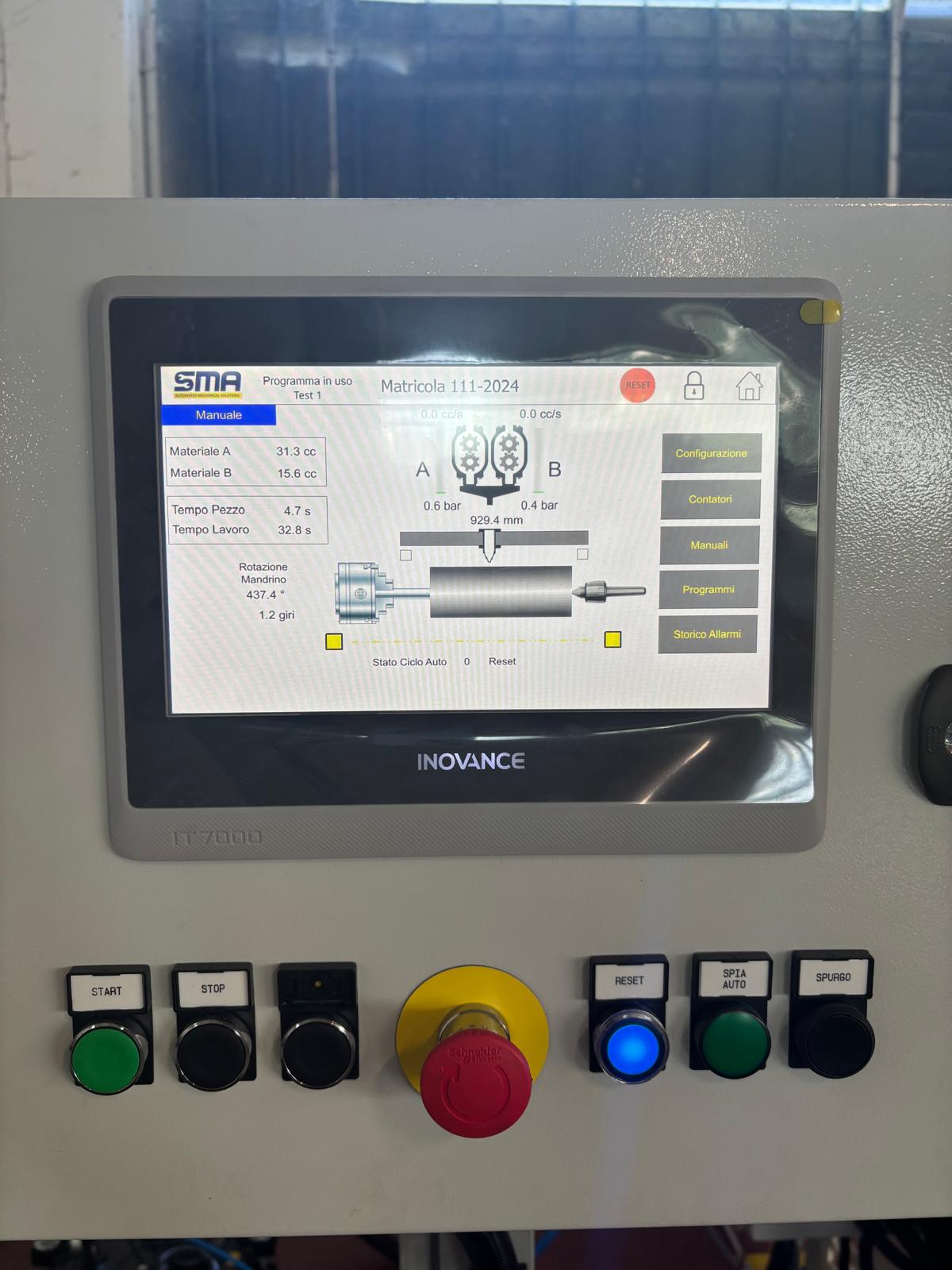

Maximum thickness is 6mm. It also features a 10” control panel for the storing of working procedures.
Technical data
Power supply
400V 50HZ
Rated power
5KW+ 5KW PIPE HEATING
Dimensions
4000X1200X2000
Weight
1100 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
