HYDRAULIC PRESSING MACHINE FOR NON-WOVEN ROLLS
Description

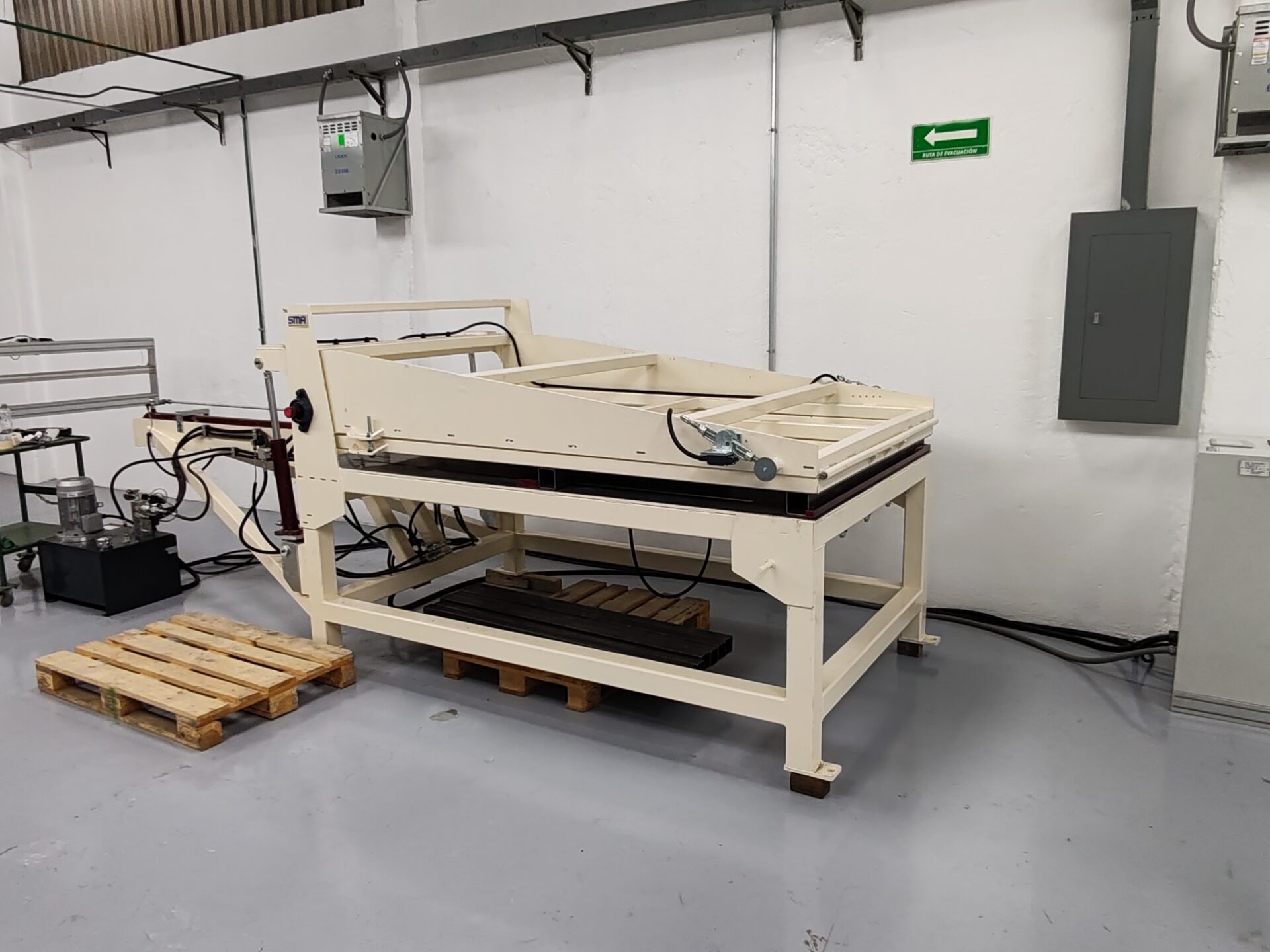

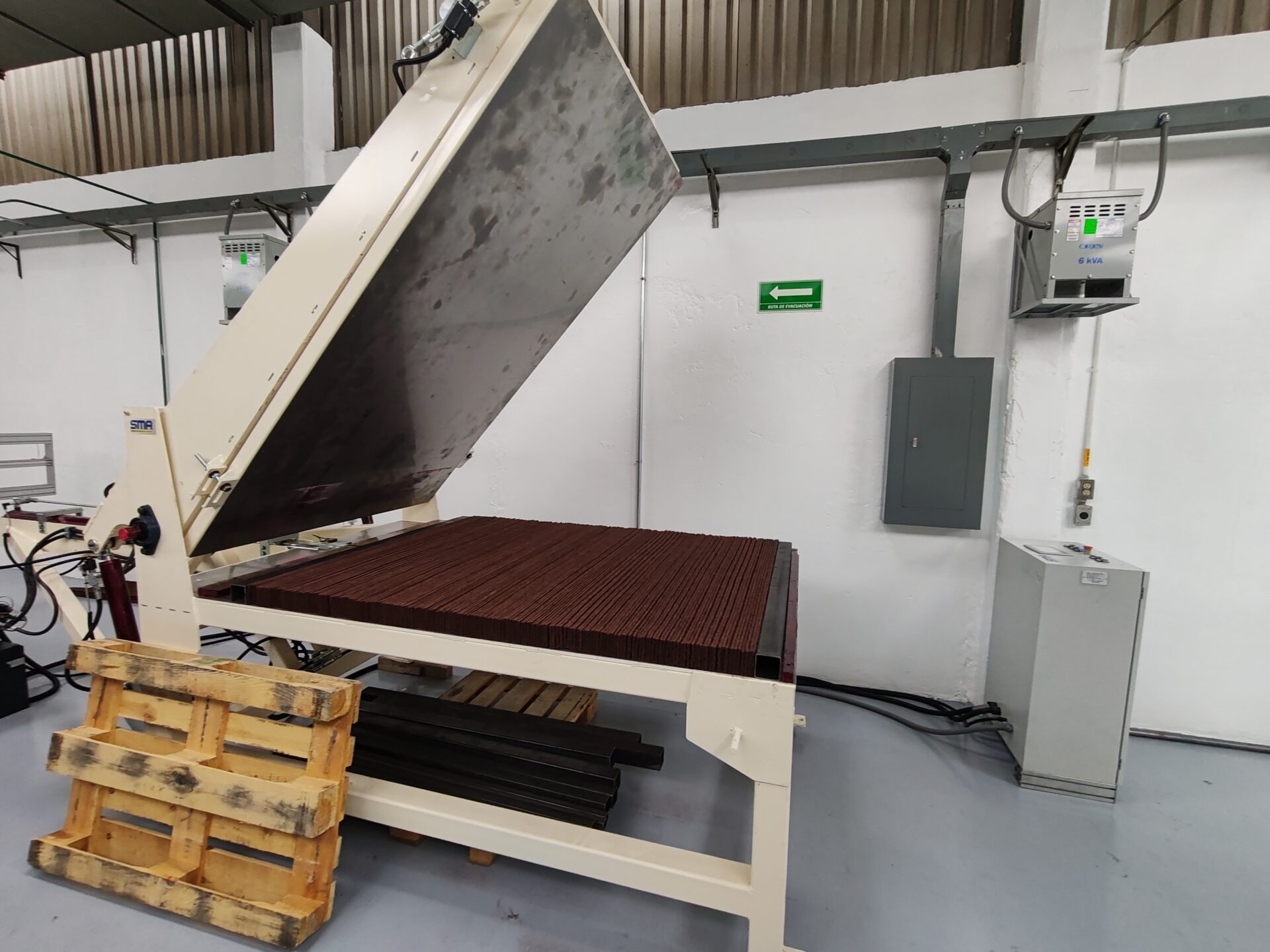

This is a machine for the production of abrasive rollers; maximum working sizes are 500mm diameter and

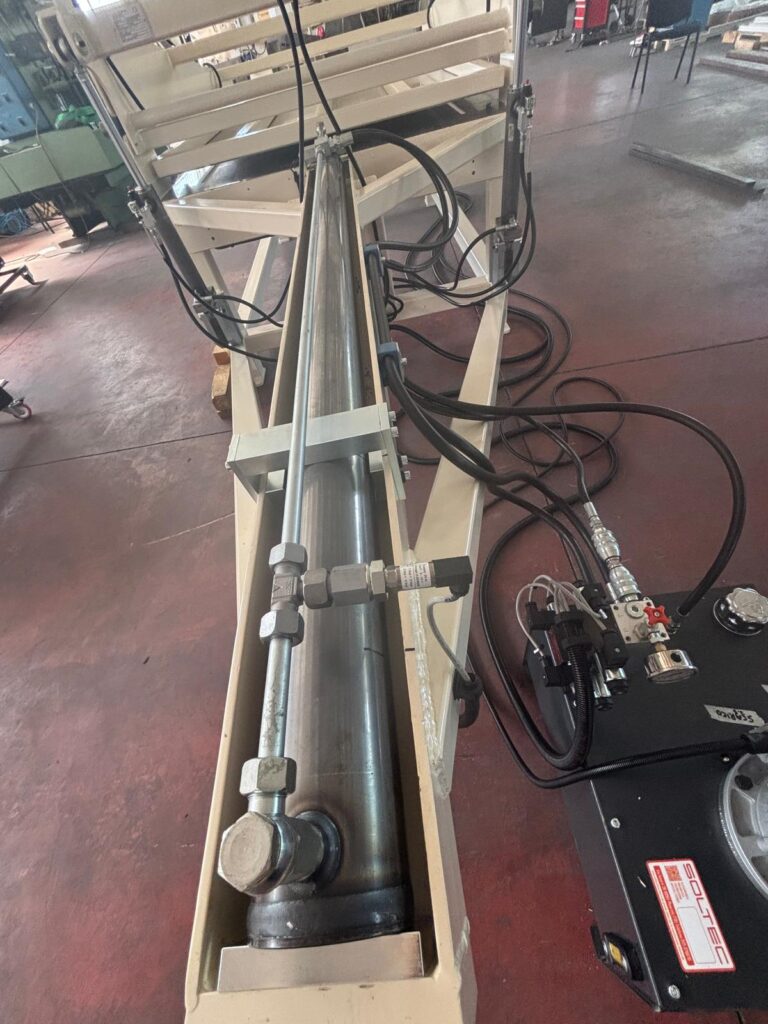

1500mm standard length. A hydraulic cylinder presses the material and two operators put it into the moulds. It is a very flexible option that allows to manufacture numerous sizes.
Technical data
Power supply
400V 50HZ
Rated power
5 KW
Dimensions
5000X2500X1200
Weight
2500 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
Adjusted workbench for
2000mm wide rollers
