SPEED TEST MACHINE FOR VETRFIED WHEELS
Description

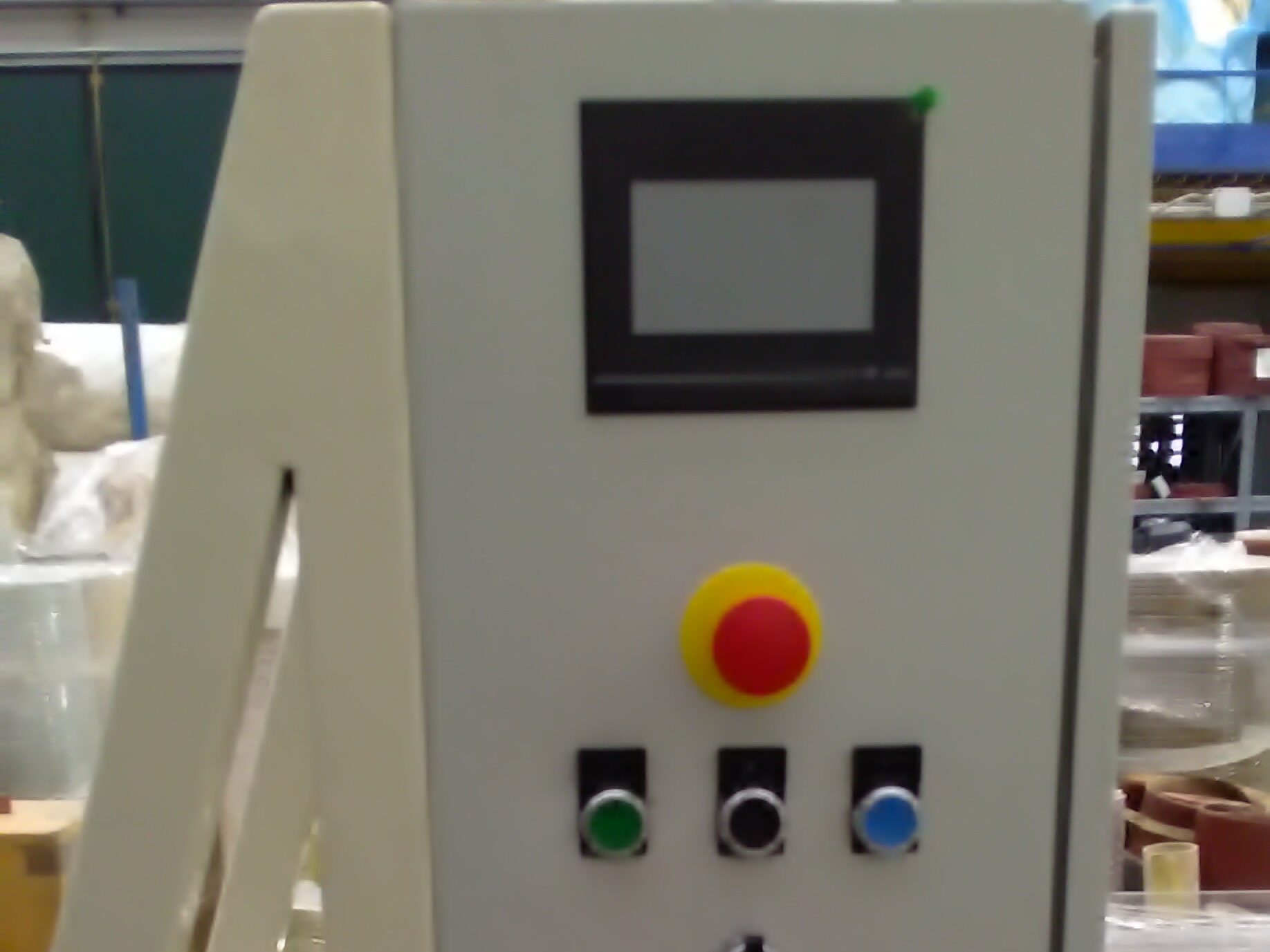

Unit for the test of vitrified ceramic wheels; maximum rotational speed is 20.000 RPM. Power is 15 Kw in total;equipped with a 4-inch HMI panel. Programming is handled via insertion of one or multiple batch production numbers of all the raw materials used for the production of such tools. Upon completion of the test, the machine will automatically create a .txt file that can be exported to a USB memory stick.
Technical data
Power supply
400V 50HZ
Rated power
15 KW
Dimensions
2000X100X1500
Weight
600 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
8-inch HMI panel
Adapter kit
