AUTOMATIC CUTTING MACHINE FOR SHAFT-MOUNTED FLAP WHEELS
Description

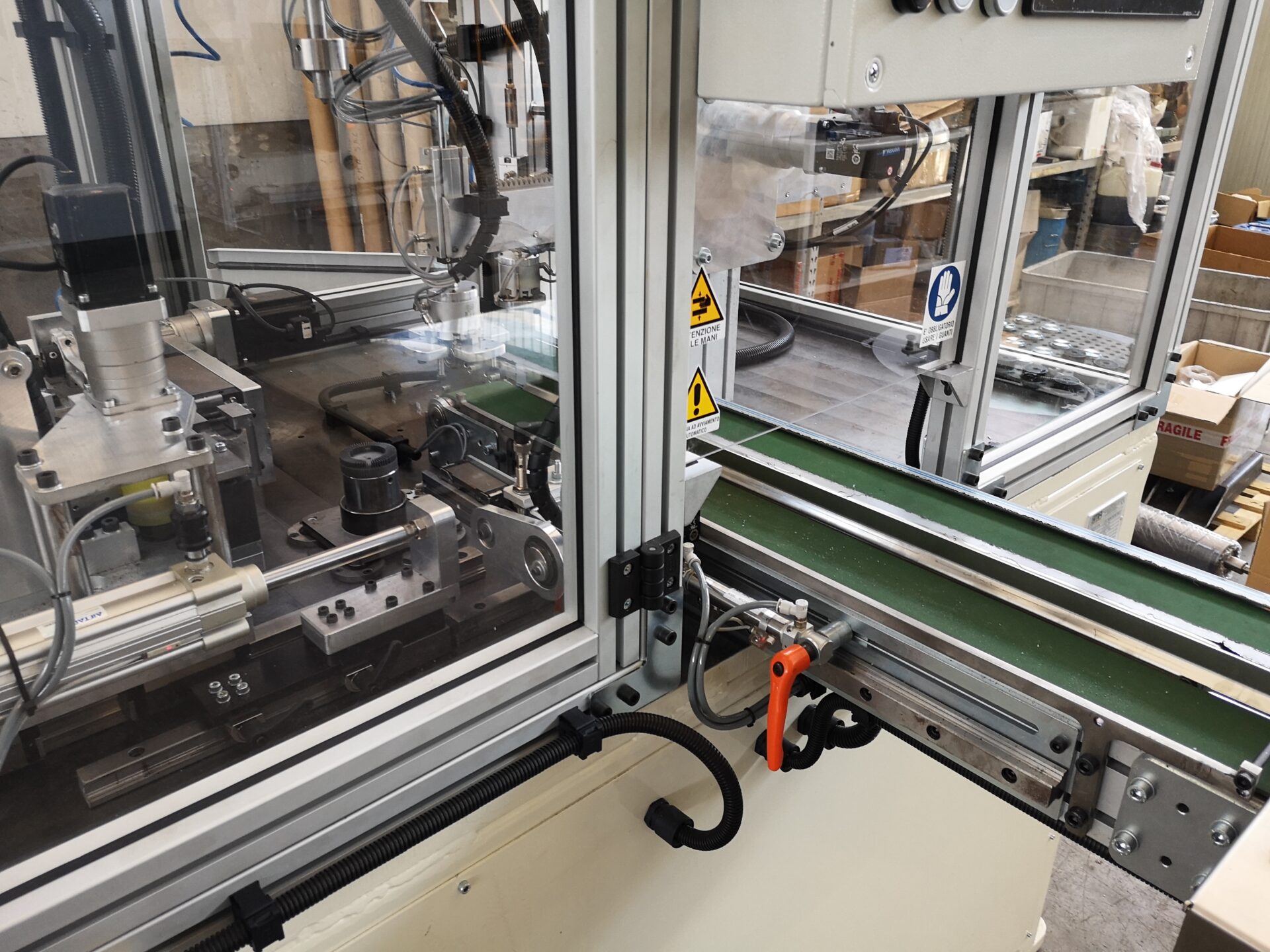

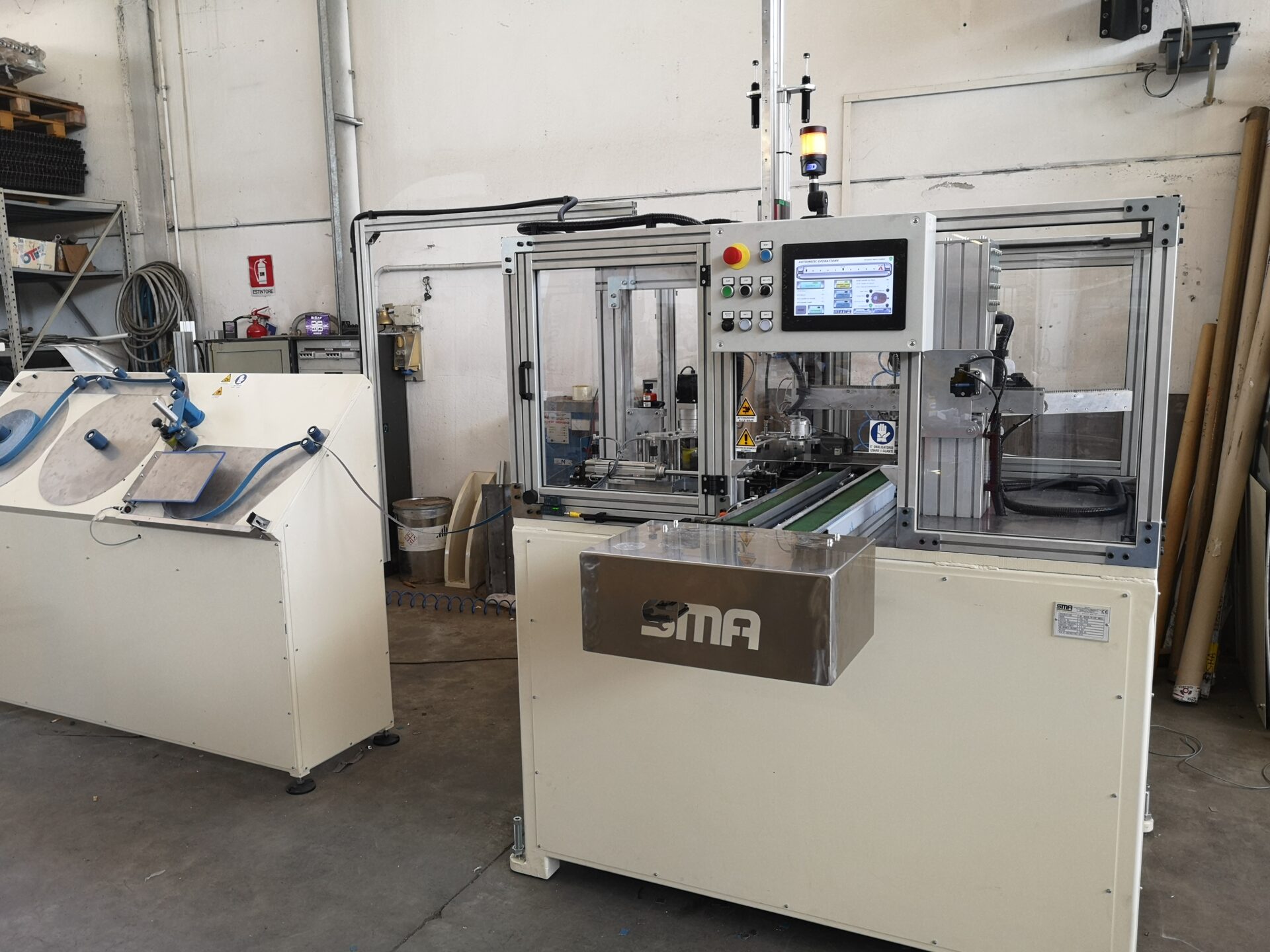

This is a new-concept, full automatic machine for the cutting and radial forming of shaft-mounted flap

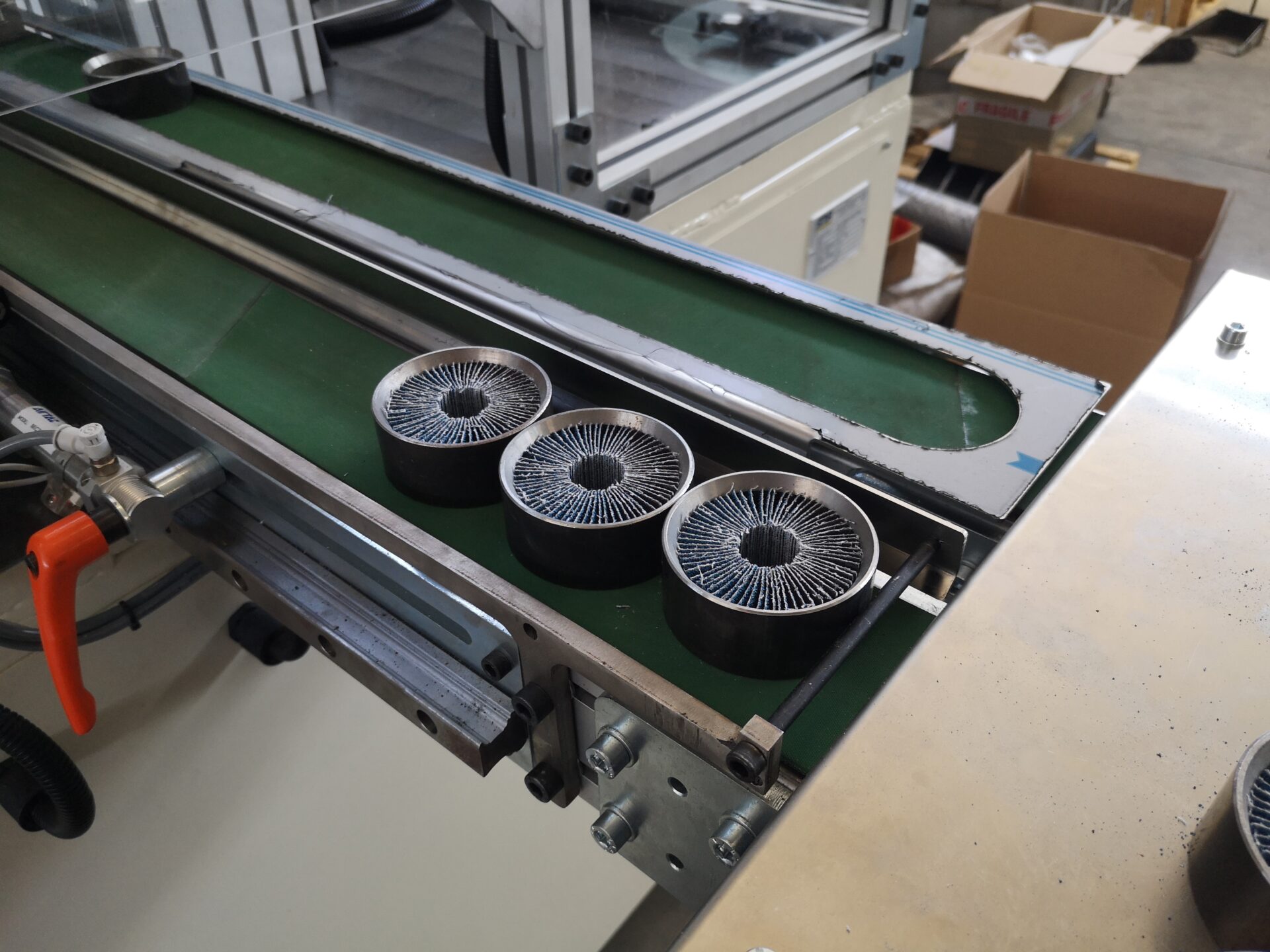

wheels in abrasive cloth. The machine cuts a pre-cut roll into flaps of the same height, then positions them in circular shape, to be finally in-serted into a cylindric mould. The process is fully automatic. A CNC controls the electronic department, by interpolation of each axis, thus minimising time wasting and increa-sing hourly productivity. This system can cut 27 20mm wide flaps each second.
Technical data
Power supply
400V 50HZ
Rated power
5KW
Dimensions
2200X3500X2000
Weight
1300 Kg
Compressor feed available?
Yes
Cycle consumption
Test
Productiviy
High
Number of operators
1
Machine Color
RAL1013
Noise level
25 dB
Marking
CE
PPI required? YES
- SAFETY SHOES
- SHIRTS WITH ELASTIC CUFFS
- GLASSES
- GLOVES
- EARPLUGS
Accessories?
Moulds for wheel placement
Moulds for wheel forming
